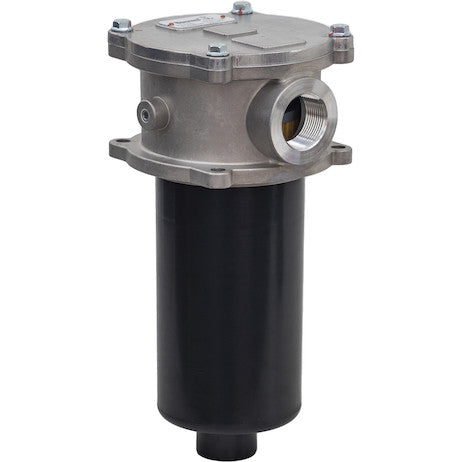

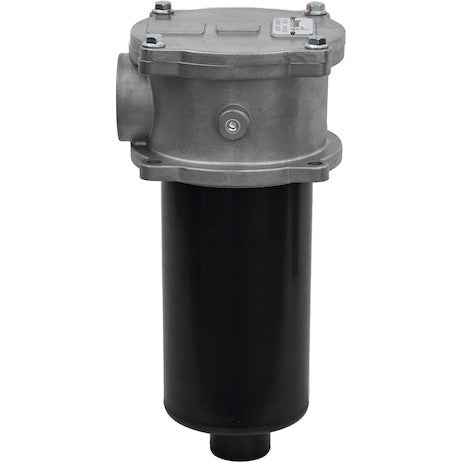

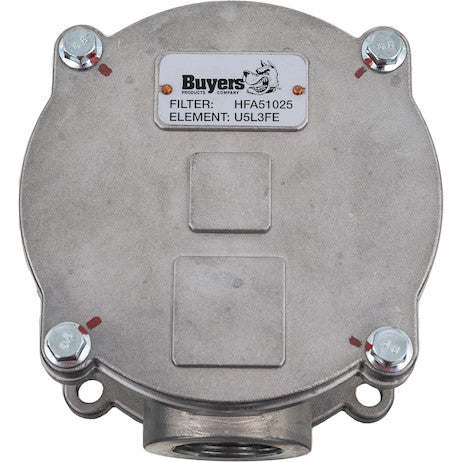

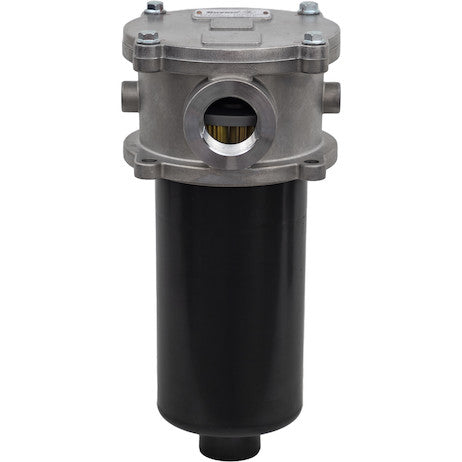

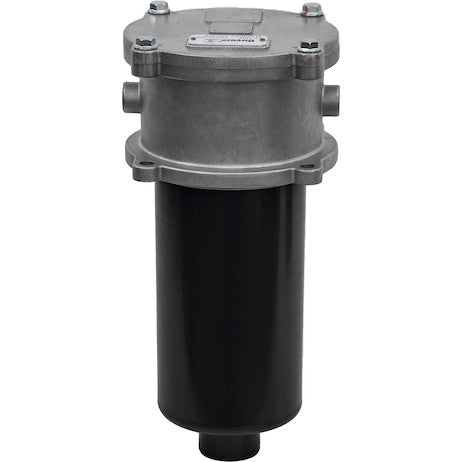

HFA51025 - 50 GPM In-Tank Filter 1-1/4 Inch NPT/10 Micron/25 PSI Bypass

The HFA5 Series 50 GPM In-Tank Filter from Buyers Products blocks contaminants as small as 10 microns from returning to your hydraulic reservoir. Located inside the reservoir, the filter assembly saves space by not having to be installed externally, and can operate in temperatures from -22??F to 212?? F. It can handle up to 100 PSI working pressure and has a 25 PSI bypass. The assembly comes with the filter head and either a 10 or 25 micron filter element. The 25 micron element allows an increased flow rate of up to 40 GPM.

Specifications

Comprehensive Technical Overview: HFA5 Series 50 GPM In-Tank Hydraulic Return Line Filter

In the demanding landscape of modern hydraulic systems, the integrity and longevity of components are directly contingent upon the cleanliness of the hydraulic fluid. Contamination, often microscopic and unseen, is recognized as the leading cause of hydraulic system failures, accounting for up to 80% of all reported issues. Addressing this pervasive challenge requires robust and precisely engineered filtration solutions. The Buyers Products HFA5 Series 50 GPM In-Tank Filter, featuring a 1-1/4 Inch NPT connection, 10-micron filtration capability, and a 25 PSI bypass valve, represents a critical component in maintaining optimal fluid cleanliness and ensuring the operational reliability of a wide array of hydraulic applications.

The Imperative of Hydraulic Filtration: Protecting Core System Integrity

Hydraulic fluid serves multiple vital roles within a system: transmitting power, lubricating moving parts, transferring heat, and sealing clearances. Any deviation from its specified cleanliness level can rapidly degrade system performance and accelerate component wear. Contaminants, typically particulate matter, water, and air, can originate from various sources including manufacturing processes (initial system build), external ingress (via cylinder rod seals, reservoir breathers), internal wear (abrasion, erosion), and fluid degradation (oxidation, thermal breakdown). The HFA5 filter primarily targets particulate contamination, which is the most destructive form. Particles, even those smaller than the human eye can see, can cause abrasive wear in pumps, erode valve seats, block orifices in proportional and servo valves, and score cylinder walls. This leads to increased internal leakage, reduced efficiency, erratic operation, and ultimately, premature failure of expensive components. By effectively removing these harmful particles down to 10 microns, the HFA5 filter ensures that the hydraulic fluid circulating through the system remains clean, thereby protecting precision components, maximizing system uptime, and significantly extending the operational lifespan of the entire hydraulic circuit.

HFA5 Series: An Advanced Solution for Return Line Filtration

The HFA5 series is specifically designed for integration into the return line of a hydraulic system, acting as the final barrier before fluid re-enters the reservoir for recirculation. This strategic placement ensures that any contaminants generated by the system's working components (e.g., pumps, motors, valves, cylinders) or introduced through external ingress during the work cycle are captured before they can settle in the reservoir and potentially be drawn back into the pump. The robust design and comprehensive specifications of the HFA5 series are tailored to meet the rigorous demands of industrial and mobile hydraulic equipment, providing reliable performance in challenging operational environments. The filter assembly includes both the durable filter head and a high-performance filter element, available in either 10 or 25 micron ratings, offering flexibility based on the specific cleanliness requirements of the application.

In-Tank Design: Optimizing Space and Enhancing System Integration

A distinctive feature of the HFA5 filter is its in-tank configuration. Unlike external return line filters that require additional mounting brackets, plumbing, and space outside the reservoir, the HFA5 assembly is designed to be installed directly inside the hydraulic reservoir. This innovative approach offers several tangible benefits:

• Space Optimization: For mobile equipment and compact industrial systems where space is at a premium, the in-tank design significantly reduces the overall footprint required for the filtration system, leading to more compact and aesthetically integrated hydraulic power units.
• Reduced Plumbing: By eliminating the need for extensive external pipework, hoses, and fittings, the in-tank design minimizes potential leak points, simplifies hydraulic circuit design, and reduces material costs.
• Enhanced Protection: Positioned within the reservoir, the filter assembly is shielded from external physical damage, environmental exposure, and tampering, contributing to its operational longevity and reliability.
• Thermal Management: While the primary function is filtration, the internal placement can sometimes contribute positively to thermal management by allowing the filter assembly to be directly immersed in the fluid, aiding in heat transfer to the reservoir walls.

Proper reservoir design is still paramount to ensure adequate fluid levels, prevent foaming, and allow for convenient access for maintenance, such as element replacement.

Precision Filtration: 10 Micron Cellulose Media Technology

The core of the HFA5 filter's performance lies in its ability to effectively remove contaminants down to a 10-micron particulate size. To fully appreciate this capability, it is essential to understand micron ratings:

• Micron Rating: A micron (µm) is one-millionth of a meter. For context, the average human hair is approximately 70 microns in diameter, and the smallest particle visible to the naked eye is about 40 microns. A 10-micron filter element is thus capable of capturing particles significantly smaller than what can be seen.
• Absolute vs. Nominal Rating: While the specification states "10 Micron Filter Rating," it is typically understood in the context of hydraulic filtration as either a nominal or absolute rating. Nominal ratings indicate that a certain percentage of particles at or above the stated micron size will be captured. Absolute ratings, often determined by multi-pass tests (e.g., ISO 16889), specify the largest particle that can pass through the filter with 99.5% efficiency or greater. For precision hydraulic systems, filters with high beta ratios (indicating high absolute efficiency) are preferred. The 10-micron rating signifies a high level of particulate removal critical for protecting sensitive components such as servo valves, proportional valves, and hydrostatic transmissions that operate with extremely tight internal clearances.

The filter media utilized is high-quality cellulose. Cellulose media, often derived from wood pulp, is a widely used and cost-effective material for hydraulic filters. It features a tortuous path design, where fluid must navigate a complex network of fibers, trapping particles within its depth. Key characteristics of cellulose media include:

• Good Dirt-Holding Capacity: Cellulose elements can effectively retain a substantial amount of particulate matter before reaching their terminal pressure drop.
• Cost-Effectiveness: Generally more economical than synthetic media, making them a practical choice for many applications.
• Operating Efficiency: Provides reliable filtration efficiency for common particulate contaminants.

While effective, it is worth noting that cellulose media typically has a lower dirt-holding capacity and may be more susceptible to degradation in the presence of water compared to advanced synthetic media. However, for many return line applications, especially where strict water removal is handled by other means or is not a primary concern, cellulose offers an excellent balance of performance and value.

The HFA5 series offers flexibility with two distinct filter element options: the standard 10-micron element, which provides superior contamination control at a maximum flow rate of 50 GPM, and an optional 25-micron element. The 25-micron element, while offering a coarser level of filtration, allows for an increased flow rate of up to 40 GPM. This choice enables system designers and operators to select the element that best aligns with their system's specific cleanliness requirements, component sensitivity, and desired flow characteristics. For systems with less sensitive components or higher flow demands where a slightly coarser filtration is acceptable, the 25-micron option provides a viable alternative without significantly compromising protection against larger, more destructive particles.

Flow Dynamics and Pressure Management: Ensuring System Integrity and Efficiency

The HFA5 filter is engineered to manage significant fluid flows and specific pressure conditions inherent to hydraulic return lines:

• Maximum Flow Return (50 GPM): The 50 gallons per minute (GPM) maximum return flow capacity is a critical specification, indicating the volume of fluid the filter can process efficiently without introducing excessive back pressure into the system. Excessive back pressure in the return line can lead to several undesirable outcomes, including cavitation at the pump inlet, reduced system efficiency, and potential damage to seals and other components. Ensuring the filter's flow rating exceeds the system's maximum return flow is crucial for maintaining optimal performance. The "Return Only" designation confirms its intended application downstream of the system's working components and upstream of the reservoir.
• Maximum Pressure (100 PSI): With a maximum working pressure of 100 PSI (pounds per square inch), the HFA5 filter is robustly constructed to withstand the typical pressure spikes and sustained pressures encountered in hydraulic return lines. While return line pressures are generally lower than pressure line pressures, adequate structural integrity is essential to prevent housing failure and ensure long-term reliability under dynamic operating conditions.
• 25 PSI Bypass Valve: The integrated 25 PSI bypass valve is a vital safety and operational feature. Its primary functions are:
  • Preventing Element Collapse: If the filter element becomes excessively clogged with contaminants, or if the hydraulic fluid's viscosity is unusually high (e.g., during cold starts), the pressure differential across the element will increase. Without a bypass valve, this pressure could become so high that it collapses the filter element, potentially releasing trapped contaminants back into the system or stopping fluid flow entirely. The 25 PSI setting ensures that if the pressure drop across the element reaches this threshold, the valve opens, allowing unfiltered fluid to bypass the element and continue flowing into the reservoir.
  • Maintaining System Flow: While bypassing unfiltered fluid is not ideal, it is preferable to completely starving the hydraulic pump of fluid. The bypass mechanism ensures continuous fluid circulation, preventing cavitation and potential damage to the pump and other components, especially during critical operational phases like cold startups when fluid viscosity is high.
  • Indicating Maintenance Needs: A bypass valve that frequently opens can also serve as an indicator that the filter element is nearing the end of its service life and requires replacement. While the HFA5 does not include a visual indicator, persistent activation of the bypass is a clear sign that maintenance is due.
  The precise 25 PSI setting is carefully calibrated to balance effective filtration with system protection. A lower setting might lead to premature bypassing, while a higher setting could risk element damage or system starvation.

Robust Construction and Operational Resilience Across Environments

The HFA5 series is designed for durability and consistent performance across a wide range of operational conditions:

• Operating Temperature Range (-22°F to 212°F): The broad operating temperature range, spanning from -22°F (-30°C) to 212°F (100°C), highlights the filter's versatility for deployment in diverse climatic conditions, from freezing environments to high-temperature industrial settings. This range ensures that the filter assembly maintains its structural integrity and filtration efficiency without material degradation or performance compromise due to thermal extremes. Maintaining proper fluid viscosity within this temperature range is also critical for optimal filtration and overall system health.
• Port Size (1-1/4 Inch NPTF): The 1-1/4 Inch NPTF (National Pipe Taper Fuel) port size is a standard and widely recognized threaded connection in hydraulic systems. This specification ensures a robust, leak-free connection when properly installed with compatible fittings and sealant. The generous port size is instrumental in supporting the 50 GPM flow rate, minimizing flow restrictions and ensuring a smooth return path for the hydraulic fluid.
• Materials of Construction: While not exhaustively detailed, filter heads in the HFA5 series are typically constructed from durable materials such as cast aluminum or similar high-strength alloys. These materials are selected for their resistance to hydraulic fluids, corrosion, and mechanical stresses, ensuring the longevity of the filter housing even under continuous operation. The internal components, including the bypass valve mechanism, are also fabricated from materials chosen for their resilience and functional integrity.

Maintenance, Longevity, and ISO Cleanliness Standards

Effective filtration is not a one-time installation but an ongoing commitment. Regular maintenance, primarily the timely replacement of the filter element, is paramount to realizing the full benefits of the HFA5 filter. While the 25 PSI bypass valve offers protection, it is an emergency mechanism, not a substitute for scheduled maintenance. A proactive approach to filter element replacement ensures that the system consistently operates with clean fluid, preventing the accumulation of contaminants that could eventually lead to component wear and system degradation.

By maintaining hydraulic fluid cleanliness to a high standard, such as that achieved by a 10-micron return line filter, operators can expect:

• Extended Component Lifespan: Pumps, motors, valves, and cylinders will experience significantly reduced abrasive wear, leading to substantially longer operational lives and fewer unscheduled replacements.
• Reduced Downtime: Fewer component failures translate directly into reduced maintenance intervals, lower repair costs, and increased machine availability and productivity.
• Optimal System Performance: Clean fluid ensures that precision components like servo and proportional valves can operate within their designed tolerances, maintaining system accuracy, responsiveness, and overall efficiency.
• Adherence to ISO Cleanliness Codes: Modern hydraulic systems often specify target fluid cleanliness levels, typically expressed using ISO 4406 cleanliness codes (e.g., 20/18/15). A 10-micron return line filter like the HFA5 series is a fundamental tool for achieving and maintaining these critical cleanliness standards, which are increasingly demanded by equipment manufacturers to validate warranties and ensure peak performance.

Technical Integration and Application Considerations

The HFA5 series filter is designed for straightforward integration into existing or new hydraulic systems. As a return line filter, it is installed between the working components of the hydraulic circuit (e.g., actuators, motors, directional control valves) and the reservoir. Its "Return Only" designation confirms it is not intended for high-pressure or suction line applications, which require different filtration characteristics and robust pressure ratings. Compatibility with various hydraulic fluids, including mineral oils and many synthetic types, is standard for cellulose media filters, though specific fluid compatibility should always be verified against the filter element's material specifications.

When sizing the HFA5 filter for a specific application, several factors beyond maximum flow rate should be considered, including the system's contamination ingress rate, desired cleanliness level, operating duty cycle, and the viscosity of the hydraulic fluid, particularly at cold start conditions. A properly sized filter ensures that the element's dirt-holding capacity is sufficient for reasonable service intervals, preventing frequent bypass activation and unnecessary maintenance.

Conclusion

The Buyers Products HFA5 Series 50 GPM In-Tank Filter with its 1-1/4 Inch NPT connection, 10-micron filtration capability, and 25 PSI bypass valve represents a sophisticated and essential component for hydraulic system health. Its in-tank design offers practical advantages in space and integration, while its precision 10-micron cellulose media provides critical protection against particulate contamination. Coupled with a robust pressure rating, broad operating temperature range, and the protective functionality of its bypass valve, this filter ensures maximum uptime, extends component life, and safeguards the significant investment in hydraulic equipment. By incorporating the HFA5 filter, system operators can achieve and maintain the fluid cleanliness levels necessary for optimal performance, reliability, and economic operation in today's demanding hydraulic applications.
