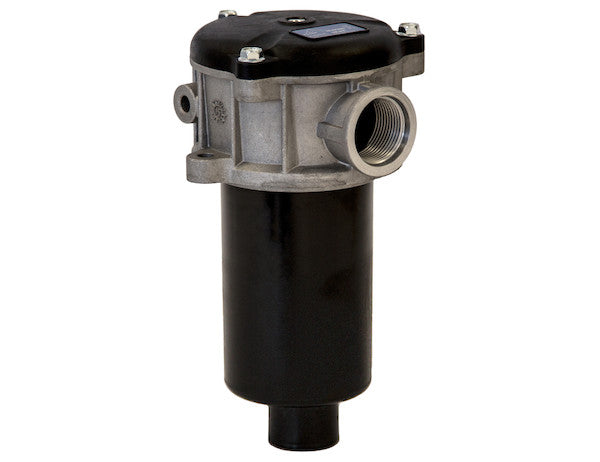

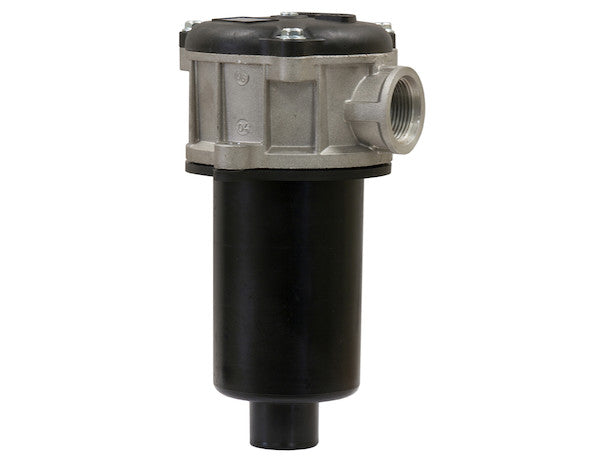

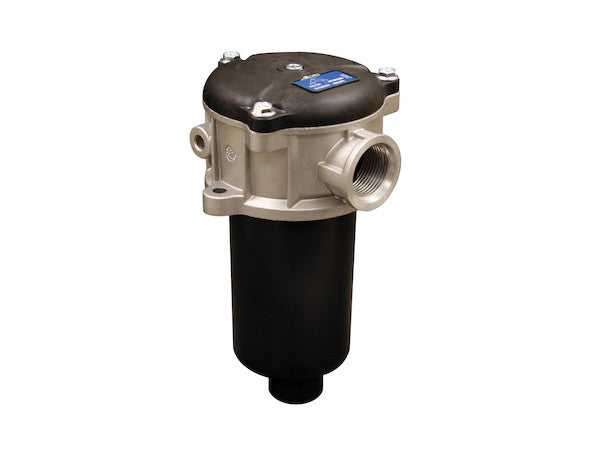

The HFA9 Series 26 GPM In-Tank Filter from Buyers Products blocks contaminants as small as 10 microns from returning to your hydraulic reservoir. Located inside the reservoir, the filter assembly saves space by not having to be installed externally, and can operate in temperatures from -22?? F to 212?? F. It can handle up to 100 PSI working pressure and has a 25 PSI bypass. The assembly comes with the filter head and either a 10 or 25 micron filter element. The 25 micron element allows an increased flow rate of up to 40 GPM.
Specifications
| Filter Media | Cellulose |
|---|---|
| In Tank/Out of Tank | In-Tank |
| Maximum Flow Return (GPM) | 26 |
| Maximum Flow Suction (GPM) | Return Only |
| Maximum Operating Temperature | 212 |
| Maximum Pressure | 100 |
| Micron Filter Rating | 10 |
| Minimum Operating Temperature | -22 |
| Number of Elements | 1 |
| Port Size | 1 NPTF |
| Series | HFA9 |
| Thread Size | 1 NPTF |
The HFA9 Series 26 GPM In-Tank Filter represents a critical component in the maintenance of hydraulic system integrity and longevity. Engineered to provide robust protection against fluid contamination, this filter assembly is specifically designed for integration within the hydraulic reservoir, offering significant advantages in terms of space utilization and operational efficiency. Understanding the technical specifications and design philosophy behind this unit is essential for hydraulic system designers, maintenance professionals, and operators seeking to optimize the performance and extend the lifespan of their equipment.
The Imperative of Hydraulic Fluid Cleanliness
Hydraulic systems rely on the pristine condition of their working fluid for optimal performance and reliability. Contamination, primarily in the form of particulate matter, is the leading cause of hydraulic component wear and system failure. These microscopic particles, often invisible to the naked eye, can originate from various sources: ingression from the external environment, wear debris generated internally by moving components, residual manufacturing contaminants, or even degradation of the hydraulic fluid itself. When these contaminants circulate through the system, they lead to abrasive wear, erosion, fatigue, and cavitation, progressively degrading pumps, valves, cylinders, and motors.
The HFA9 Series filter, with its impressive 10-micron filtration rating, is engineered to intercept and retain these detrimental particulates before they can inflict damage. A micron (µm) is one-millionth of a meter, and particles even as small as 5-10 microns can be highly destructive, particularly within the tight clearances of modern hydraulic components. For instance, the critical clearance between a spool and its bore in a hydraulic valve can be as small as 5-10 microns. Particles exceeding this size can bridge these gaps, causing wear, sticking, and ultimately, loss of control and efficiency. By removing particles down to 10 microns, this filter significantly reduces the potential for abrasive wear, thereby preserving the precision and operational life of expensive hydraulic components. The availability of a 25-micron element option further allows for system flexibility, providing an increased flow rate of up to 40 GPM where the application's cleanliness requirements permit a slightly coarser filtration.
Advanced Filtration Media: Cellulose Technology
At the core of the HFA9 Series filter's efficacy is its cellulose filter media. Cellulose is a widely utilized and highly effective material for hydraulic filtration, particularly in return line applications. The intrinsic properties of cellulose fibers, when formed into a dense, multi-layered matrix, create a depth-type filtration medium. This means that particles are captured not just on the surface but throughout the entire thickness of the media. This depth filtration capability allows for a high dirt-holding capacity, enabling the filter element to capture a substantial amount of contaminant before reaching its saturation point. The pleating of the cellulose media within the filter element maximizes the surface area available for filtration, further enhancing its dirt-holding capacity and extending its service life. This combination of effective media and optimized design ensures that the HFA9 filter consistently delivers clean fluid back to the reservoir, maintaining the required ISO cleanliness levels within the system and significantly contributing to reduced maintenance intervals and prolonged component lifespan.
Space-Optimized In-Tank Design and Integration
One of the standout features of the HFA9 Series is its in-tank installation. Unlike external return line filters that require additional mounting brackets, plumbing, and space outside the reservoir, the HFA9 filter assembly is strategically positioned inside the hydraulic tank. This design offers several practical advantages:
- Space Saving: In applications where space is at a premium, such as compact mobile equipment or densely packed industrial power units, an in-tank filter eliminates the need for external mounting, simplifying system layout and reducing overall footprint.
- Reduced Piping: By integrating directly into the reservoir, the need for extensive external return line piping is minimized, leading to a more streamlined system, fewer potential leak points, and potentially lower installation costs.
- Enhanced Protection: Locating the filter inside the reservoir naturally protects it from external physical damage, environmental exposure, and tampering, which can be particularly beneficial in harsh operating environments.
- Simplified Fluid Management: The filtered fluid returns directly into the reservoir, ensuring that the system's main fluid supply is continuously purified.
The successful implementation of an in-tank filter like the HFA9 requires careful consideration during reservoir design to ensure adequate clearance for installation, removal, and maintenance of the filter element. Proper baffling within the reservoir is also crucial to prevent the filtered return fluid from short-circuiting directly back to the pump suction port without sufficient dwell time for de-aeration and heat dissipation, ensuring efficient system operation.
Performance Parameters and Operational Resilience
The HFA9 Series filter is engineered for robust performance across a range of operational conditions, highlighted by its key specifications:
Maximum Flow Return (GPM): The filter is rated for a maximum return flow of 26 GPM (gallons per minute) with the 10-micron element. This rating indicates the maximum volume of hydraulic fluid it can process per minute while maintaining its filtration efficiency and without exceeding acceptable pressure drops. For systems with higher flow requirements, the 25-micron element option boosts the capacity to 40 GPM. Selecting the appropriate flow rate capacity is critical to avoid excessive back pressure in the return line, which can negatively impact system performance and potentially damage components upstream of the filter.
Maximum Pressure: With a maximum working pressure of 100 PSI (pounds per square inch), the HFA9 Series is designed to withstand typical return line pressures without compromise. Return line filters generally operate at lower pressures compared to high-pressure filters found in the pressure line, but they must still be robust enough to handle pressure spikes that can occur during various operational cycles. This 100 PSI rating ensures structural integrity under normal and transient hydraulic conditions, contributing to the filter's overall reliability.
25 PSI Bypass Valve: A critical safety and operational feature, the integrated 25 PSI bypass valve plays a pivotal role in protecting the hydraulic system. This valve is designed to open and allow unfiltered fluid to bypass the filter element if the differential pressure across the element exceeds 25 PSI. This scenario typically occurs under two primary conditions:
- Cold Starts: When hydraulic fluid is cold, its viscosity increases significantly. This higher viscosity can cause a substantial pressure drop across the filter element, especially during initial startup, potentially leading to element collapse if no bypass is present. The bypass valve ensures fluid flow continues, preventing filter damage and pump cavitation.
- Clogged Element: As the filter element accumulates contaminants, its resistance to flow increases, leading to a rising differential pressure. If the element becomes sufficiently clogged, the bypass valve will open to prevent excessive back pressure from damaging upstream components or starving the pump (if used in a suction line, though this is a return-only filter). While bypassing means momentarily unfiltered fluid, it prioritizes system operation and prevents catastrophic component failure. The opening of the bypass valve serves as an indirect indicator that the filter element is nearing the end of its service life and requires replacement.
Operating Temperature Range: The HFA9 Series is built to perform reliably across a wide temperature spectrum, from -22°F to 212°F (-30°C to 100°C). This broad range makes it suitable for diverse operational environments, from freezing cold climates to high-heat industrial applications. The materials used in the filter head, element construction, and seals are selected to maintain their mechanical properties and sealing integrity across these temperature extremes. Proper thermal management of hydraulic fluid is crucial, as extreme temperatures can affect fluid viscosity, additive degradation, and seal performance, all of which can influence filtration efficiency and overall system health.
Robust Construction and Connectivity
The HFA9 Series filter assembly is engineered for durability and ease of integration. The filter head is designed for robust attachment to the hydraulic reservoir, ensuring a secure and leak-free connection. The choice of 1 NPTF (National Pipe Taper Fuel) for the port size and thread ensures compatibility with standard hydraulic fittings and piping systems. NPTF threads are self-sealing due to their tapered design, which creates an interference fit when tightened, providing a reliable seal without requiring additional sealants in many applications, although proper thread sealant is always recommended for hydraulic connections to ensure leak-free operation and prevent galling. This standardized connection type simplifies installation and replacement processes, reducing downtime and maintenance complexity.
Versatile Applications Across Industries
The HFA9 Series 26 GPM In-Tank Filter is a versatile solution applicable across a multitude of hydraulic systems and industries:
- Mobile Hydraulics: Essential for construction equipment (excavators, loaders), agricultural machinery (tractors, harvesters), forestry equipment, and municipal vehicles, where hydraulic systems operate in challenging environments prone to contamination.
- Industrial Hydraulics: Integral to manufacturing plants for presses, injection molding machines, machine tools, and material handling systems (forklifts, conveyors) where consistent fluid cleanliness is paramount for production reliability.
- Marine Applications: Used in various marine hydraulic systems for steering, winches, and auxiliary power, where reliable filtration is critical in often corrosive and demanding conditions.
- Power Units: Critical for any standalone or integrated hydraulic power unit, ensuring that the fluid supplied to the system's actuators and motors is consistently clean.
In each of these applications, the HFA9 filter contributes directly to extending the service life of pumps, valves, cylinders, and motors by preventing premature wear induced by particulate contamination.
Maintenance and Sustained Performance
To ensure the continuous optimal performance of any hydraulic system and the filter itself, regular maintenance, specifically timely filter element replacement, is critical. The efficiency of the HFA9 Series filter, like all filters, is finite. As contaminants accumulate within the cellulose media, the differential pressure across the element will gradually increase. While the 25 PSI bypass valve provides a safeguard, its activation signals that the element is saturated and no longer effectively filtering the fluid. Relying on the bypass valve to open regularly means that unfiltered fluid is frequently returning to the reservoir, which negates the primary purpose of the filter and exposes the system to increased contamination risks.
Therefore, establishing a routine maintenance schedule based on operating hours, fluid analysis, or the use of differential pressure indicators (if applicable to the system design) is crucial. Proactive replacement of the 10-micron or 25-micron element ensures that the system consistently operates with clean fluid, preventing minor issues from escalating into significant operational failures. The design of the HFA9, being an in-tank filter, means access to the element typically requires draining the reservoir or providing a means to isolate the filter port, which should be factored into maintenance planning to minimize downtime.
Technical Superiority and Value Proposition
The HFA9 Series 26 GPM In-Tank Filter embodies a blend of technical superiority and practical value. Its robust construction, efficient 10-micron (or 25-micron) cellulose media, wide operating temperature range, and integrated bypass valve collectively provide a high level of protection for hydraulic systems. By effectively removing particulate contaminants, this filter directly contributes to:
- Extended Component Life: Minimizing abrasive wear on pumps, valves, and actuators.
- Reduced Downtime: Preventing breakdowns caused by contamination-related failures.
- Improved System Efficiency: Maintaining optimal performance and responsiveness of hydraulic components.
- Lower Operating Costs: Reducing the need for premature component replacement and costly repairs.
- Compliance: Helping systems meet stringent ISO cleanliness requirements for modern hydraulic applications.
In conclusion, the HFA9 Series 26 GPM In-Tank Filter is more than just a component; it is an investment in the reliability, efficiency, and longevity of any hydraulic system. Its technical design, focused on effective contamination control and seamless integration, makes it an indispensable asset for industries that demand unwavering performance from their hydraulic machinery. By ensuring that hydraulic fluid remains exceptionally clean, this filter underpins the operational integrity and economic viability of critical equipment, delivering tangible benefits through superior protection and sustained system health.
