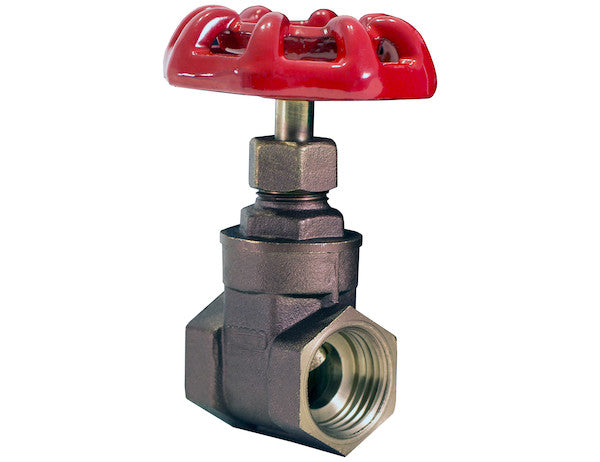

HGV038 - 3/8 Inch Gate Valve

The Full Flow Gate Valve from Buyers Products reliably controls the flow of fluid in your truck's hydraulic system. It allows full flow for maximum pressure. Easy to install, the valve's small footprint is ideal for tight spaces. It has a non-rising stem and easy to operate bonnet. Its durable and airtight brass construction features a solid wedge disk and integral seats. It's built to handle 200 PSI of non-shock pressure. The valve can be conveniently repacked while it is in service and under pressure. Choose from a range of valve sizes to meet your needs. Note: The valve is not suitable for steam or potable water applications.

Specifications

The 3/8 Inch Gate Valve represents a critical component for precise and reliable fluid control within diverse hydraulic systems, particularly those found in demanding mobile applications such as commercial trucks and heavy-duty equipment. Engineered to exacting standards, this valve is designed to manage hydraulic oil flow efficiently, ensuring optimal performance and longevity of connected machinery. Its robust construction, featuring high-quality brass for the body, wedge, and integral seats, underscores its suitability for environments where durability and resistance to wear are paramount.

At its core, a gate valve operates on a simple yet highly effective principle: a wedge-shaped gate, or disc, moves perpendicularly to the flow of fluid. When fully open, the gate is entirely withdrawn into the valve bonnet, creating a full-bore, unobstructed passage that minimizes pressure drop and turbulence. This "full flow" capability is a distinct advantage in hydraulic systems, where maintaining maximum pressure and volumetric efficiency is crucial. Unlike throttling valves, which are designed to regulate flow rates, gate valves are primarily intended for on/off service, providing a complete shut-off or a completely open flow path. The 3/8-inch nominal pipe size, coupled with 3/8 NPT (National Pipe Taper) threading, ensures compatibility with standard hydraulic lines and fittings, facilitating straightforward integration into existing or new hydraulic circuits.

The selection of materials for the 3/8 Inch Gate Valve is a deliberate engineering choice, emphasizing performance and resilience. The valve body, wedge, and integral seats are constructed from brass. Brass, an alloy primarily of copper and zinc, is highly regarded in fluid handling applications for several compelling reasons. Its excellent corrosion resistance makes it ideal for hydraulic oils, which can sometimes contain additives that might react with less robust metals. Furthermore, brass exhibits superior machinability, allowing for the precise manufacturing of critical components such like the wedge and seats, which are essential for achieving an airtight seal. Its inherent strength provides the necessary structural integrity to withstand the specified 200 PSI non-shock pressure, ensuring reliable operation under typical hydraulic system loads. The smooth body finish not only contributes to the valve's aesthetic but also enhances its resistance to external contaminants and facilitates easier cleaning, crucial in maintaining system hygiene in demanding environments.

A distinctive feature of this particular gate valve is its solid wedge disk. While some gate valves utilize flexible or split wedge designs, a solid wedge offers enhanced durability and robustness. It is less susceptible to deformation under pressure or due to thermal cycling, providing a more consistent and reliable seal against the integral seats. The integral seat design further enhances the valve's reliability by eliminating potential leak paths that could arise from threaded or pressed-in seats. This monolithic construction ensures a secure sealing surface, contributing to the "airtight" characteristic of the valve, which is vital for preventing fluid loss and ingress of contaminants into sensitive hydraulic systems.

The valve's design also incorporates a non-rising stem. In a non-rising stem configuration, the stem rotates but does not move axially up or down as the valve is opened or closed. This design offers several practical benefits. Firstly, it results in a more compact overall valve assembly, which is particularly advantageous in space-constrained applications, such as the tight chassis of commercial trucks. Secondly, the non-rising stem prevents the stem from accumulating dirt or debris on its exposed threads, which can lead to wear and packing degradation. While it doesn't provide a visual indication of the valve's open or closed status from the stem's position, the easy-to-operate bonnet design ensures smooth and reliable manual actuation. The carbon steel handle provides a robust and ergonomically sound interface for manual operation, offering the necessary leverage and durability for repeated use.

Performance specifications are critical for understanding a valve's suitability for an application. This 3/8 Inch Gate Valve is rated for a maximum pressure of 200 PSI (pounds per square inch) in non-shock conditions. "Non-shock pressure" refers to the maximum permissible pressure that the valve can safely withstand during normal, steady-state operation, without sudden spikes or hydraulic hammer. In hydraulic systems, pressure surges can occur due to rapid valve actuation or pump cycling. While robust, this valve is primarily designed for applications where such shocks are either mitigated by other system components or are not expected to exceed its rating. Its 200 PSI capacity makes it well-suited for a wide array of auxiliary hydraulic circuits in trucks, such as those controlling dump beds, snowplows, salt spreaders, utility cranes, and lift gates, where pressures are typically within this range or are appropriately regulated.

The "full flow" characteristic is paramount for hydraulic system efficiency. When a gate valve is fully open, its bore is typically the same diameter as the connecting pipe, creating a minimal restriction to fluid flow. This minimizes pressure drop across the valve, which translates directly into reduced energy loss and improved system response. In contrast, valves with reduced ports (i.e., smaller than the pipe diameter) create a bottleneck, leading to increased velocity, pressure drop, and potential for cavitation, especially with high flow rates. For truck hydraulic systems, this means that hydraulic pumps can operate more efficiently, and actuators (cylinders, motors) receive maximum hydraulic power, leading to faster and more precise operations without unnecessary strain on the pump or other components.

Integration into truck hydraulic systems is facilitated by the 3/8 NPT thread size. NPT, or National Pipe Taper, is a widely recognized standard for tapered threads used in sealing pipes and fittings. The tapered design allows for a mechanical interference fit between the male and female threads, forming a metal-to-metal seal that becomes tighter as the connection is assembled. When combined with appropriate thread sealant (such as PTFE tape or pipe dope), NPT connections provide a highly effective and leak-tight seal, crucial for hydraulic systems that operate under pressure and require absolute containment of hydraulic fluid. The 0.375-inch pipe size directly corresponds to the 3/8 NPT thread, ensuring seamless compatibility with standard hydraulic hoses and rigid piping. The "small footprint" of the valve further simplifies installation in the often-cramped confines of a vehicle chassis, allowing for flexible mounting options without compromising access or interfering with other components.

Maintenance and longevity are key considerations for any industrial component. A significant advantage of this gate valve is its ability to be conveniently repacked while in service and under pressure. This feature is invaluable for minimizing downtime and operational interruptions. The packing, typically a compressible material such as PTFE or graphite composite, forms a seal around the stem within the packing gland to prevent fluid leakage. Over time, packing can wear or degrade, leading to external leakage. The ability to replace or tighten the packing while the system remains pressurized allows for rapid field servicing, preventing costly fluid loss and maintaining system integrity without the need for a full system shutdown or depressurization. This design aspect significantly contributes to the overall operational efficiency and cost-effectiveness of the hydraulic system.

The durability of the brass construction, coupled with the robust design elements like the solid wedge disk and integral seats, ensures a long service life for the valve under normal operating conditions. Factors contributing to its longevity include its resistance to corrosion, wear from repeated cycling, and the ability to maintain a tight seal over extended periods. Regular inspection and adherence to recommended maintenance procedures, particularly regarding packing, will further extend the operational lifespan of the valve, providing years of reliable service in demanding applications.

While exceptionally capable for its intended applications, it is important to reiterate the specified limitations. The valve is explicitly noted as "not suitable for steam or potable water applications." The unsuitability for steam primarily stems from the temperature and pressure characteristics of steam systems, which often exceed the thermal and pressure ratings for standard brass gate valves designed for hydraulic oil. High-temperature steam can also accelerate corrosion in certain brass alloys and can cause thermal expansion issues. For potable water, the primary concern is related to regulatory compliance. Standard brass alloys, while safe for many industrial fluids, often contain small amounts of lead (to improve machinability) that are not permissible under strict regulations for drinking water systems (e.g., NSF/ANSI 61 and Safe Drinking Water Act standards). For potable water applications, lead-free brass or alternative materials are typically required. Furthermore, this valve is optimized for hydraulic oils; while it can handle water and gas within its pressure rating, its specific sealing and material properties are best aligned with the viscosities and chemical compositions of common hydraulic fluids.

In conclusion, the 3/8 Inch Gate Valve from Buyers Products stands as a meticulously engineered solution for critical fluid control in truck hydraulic systems. Its full-flow capability ensures peak system efficiency, minimizing energy losses and maximizing pressure delivery to actuators. The durable brass construction, featuring a solid wedge disk and integral seats, provides exceptional resistance to corrosion and wear, guaranteeing a long service life. With a non-rising stem for compactness and an easy-to-operate bonnet, coupled with the unique advantage of being repackable under pressure, this valve prioritizes both performance and maintainability. Rated for 200 PSI non-shock pressure and compatible with 3/8 NPT connections, it offers reliable, leak-free operation, making it an indispensable component for any robust mobile hydraulic application requiring dependable on/off fluid isolation, excluding steam and potable water services.
