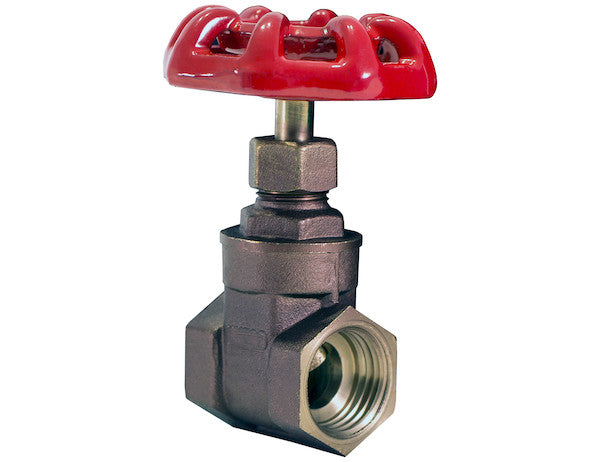

HGV075 - 3/4 Inch Gate Valve

The 3/4 Inch Gate Valve represents a meticulously engineered solution for demanding hydraulic fluid control applications, particularly within the automotive and heavy-duty truck sectors. Designed to integrate seamlessly into complex hydraulic systems, this valve ensures precise and reliable on/off fluid management. Its nominal pipe size of 3/4 inch, coupled with standard NPT (National Pipe Taper) threading, facilitates broad compatibility and straightforward installation within existing hydraulic lines. This critical component is not merely a shut-off device; it is a gateway to optimized hydraulic performance, engineered to support systems where uninterrupted, high-volume flow is paramount.

At the core of its superior performance and longevity is the strategic selection of brass as the primary material for its construction. The valve body, wedge, and integral seats are all fabricated from high-grade brass, a material renowned for its exceptional properties. Brass alloys offer an outstanding balance of strength, ductility, and resistance to corrosion and erosion, making them ideally suited for the challenging environments encountered in hydraulic applications. Unlike ferrous metals, brass inherently resists rust and galvanic corrosion when exposed to various hydraulic fluids, contributing significantly to the valve's extended operational lifespan. Furthermore, the excellent machinability of brass allows for the manufacture of components with tight tolerances, ensuring a consistently airtight seal and robust mechanical integrity. The smooth body finish not only contributes to the aesthetic appeal but also minimizes surface irregularities that could harbor contaminants or initiate corrosion, thereby enhancing the valve's overall durability and ease of maintenance.

The operational mechanism of this 3/4 Inch Gate Valve is characterized by a non-rising stem design, a crucial feature for applications requiring compactness and safety. In a non-rising stem gate valve, the gate (or wedge) travels up or down along the stem's threaded portion, but the stem itself rotates in place and does not extend beyond the bonnet. This design offers several distinct advantages: it significantly reduces the vertical clearance required for operation, making it an ideal choice for installation in confined spaces within truck chassis or equipment compartments where overhead room is limited. Moreover, the contained stem reduces the risk of accidental damage to the stem or its packing, enhancing the valve's long-term reliability and personnel safety. The easy-to-operate bonnet assembly further complements this design, allowing for smooth, low-torque actuation and straightforward access for maintenance procedures.

A key differentiator of this gate valve is its "full flow" capability. When fully open, the gate is completely withdrawn from the fluid path, presenting a nearly unobstructed bore equal to the pipeline's nominal diameter. This design characteristic minimizes pressure drop across the valve, ensuring maximum fluid velocity and minimal energy loss within the hydraulic system. For truck hydraulic systems, which often power energy-intensive functions like dump truck hoists, refuse compactors, or crane operations, maintaining optimal flow and pressure is critical for efficient and responsive operation. The reduced turbulence and cavitation potential in a full-flow gate valve also contribute to the longevity of the entire hydraulic system, protecting pumps and other components from undue stress and wear. Unlike throttling valves, gate valves are specifically engineered for isolation service, providing a positive shut-off and unimpeded flow when fully open, making them perfect for on/off control.

The robust construction of the valve is further exemplified by its solid wedge disk and integral seats. The solid wedge design offers superior mechanical strength and rigidity compared to flexible or split wedge designs. This robustness ensures consistent sealing performance even under varying pressure conditions and minimizes the risk of distortion or damage during operation. The integral seats, machined directly into the valve body, provide a permanent and leak-tight sealing surface. This contrasts with valves that utilize replaceable or threaded-in seats, which can introduce additional potential leak paths or require more intensive maintenance. The combination of a solid brass wedge and integral brass seats creates a highly durable metal-to-metal sealing interface, designed for a long service life and reliable shut-off in demanding hydraulic environments.

With a maximum non-shock pressure rating of 200 PSI, this gate valve is engineered to withstand the typical operating pressures encountered in medium-duty hydraulic systems. The term "non-shock" is crucial; it refers to the maximum pressure a valve can safely endure without experiencing sudden, severe fluctuations or water hammer, which can momentarily exceed static pressure ratings. In hydraulic applications, careful system design is necessary to mitigate shock pressures. The 200 PSI rating ensures a substantial margin of safety under normal operating conditions. While the valve is specifically not recommended for steam or potable water, the WOG (Water, Oil, Gas) pressure rating nomenclature, commonly used in valve specifications, indicates its suitability for a range of non-corrosive fluids, with oils (hydraulic fluids) being its primary intended medium. This robust pressure handling capability underlines its suitability for heavy-duty operational cycles found in commercial truck applications.

One of the most significant maintenance advantages of this 3/4 Inch Gate Valve is its ability to be repacked while in service and under pressure. This feature is made possible by a back-seating mechanism, which, when the valve is fully open, creates a seal between the stem and the bonnet, isolating the stem packing from the line fluid. This allows technicians to safely replace or tighten the stem packing, which is crucial for preventing external leakage, without having to de-pressurize and drain the entire hydraulic system. The ability to perform such maintenance on-the-fly drastically reduces operational downtime, minimizes labor costs, and enhances overall system availability. For truck fleet operators, where vehicle uptime directly impacts profitability, this repacking capability translates into significant operational efficiencies and a lower total cost of ownership over the valve's lifespan.

The applications for this gate valve are diverse within the realm of truck hydraulic systems. It is an indispensable component in dump trucks for controlling the flow of hydraulic fluid to the lifting cylinders, in refuse trucks for managing the compaction and ejector mechanisms, in snowplows for raising and lowering the blade, and in various utility vehicles for controlling auxiliary equipment. Its reliable on/off function is critical for the safe and effective operation of these heavy-duty machines. The brass construction is compatible with a wide array of hydraulic oils, ensuring chemical resistance to the specific fluids used in these systems. Furthermore, the valve's robust design is engineered to withstand the vibrations, temperature fluctuations, and exposure to environmental contaminants commonly encountered in mobile hydraulic applications, ensuring consistent performance in challenging conditions.

Installation of the 3/4 Inch Gate Valve is simplified by its compact design and standard 3/4 NPT threading. NPT threads are universally recognized for their self-sealing properties when properly installed with sealant, providing a secure and leak-free connection essential for high-pressure hydraulic lines. While "easy to install" indicates a user-friendly design, adherence to industry best practices for pipe fitting, including proper thread preparation, sealant application, and torque specifications, is always recommended to ensure optimal performance and safety. The small footprint is particularly beneficial in the often-cramped spaces available on commercial vehicles, allowing for flexible positioning without compromising other critical components or accessibility.

It is important to reiterate the explicit limitations of this valve for specific applications. Its unsuitability for steam service stems from several factors: the elevated temperatures and pressures of steam applications typically exceed the material and pressure ratings of standard brass gate valves. Brass can lose significant strength and integrity at high temperatures, and the packing materials commonly used in these valves are not designed for the thermal demands of steam. Similarly, its exclusion from potable water systems is primarily due to regulatory requirements and material considerations. Even if the brass alloy used is low-lead, potable water valves often require specific certifications (e.g., NSF/ANSI 61) and design features to prevent contamination, which this industrial hydraulic valve does not possess. Adhering to these limitations ensures safe operation and compliance with relevant standards.

In summary, the 3/4 Inch Gate Valve stands as a testament to engineering excellence, offering a highly reliable and efficient solution for critical fluid control in truck hydraulic systems. Its brass construction delivers superior corrosion resistance and durability, while the non-rising stem design ensures compactness and operational safety. The full-flow capability minimizes pressure drop, optimizing hydraulic system efficiency, and the solid wedge with integral seats guarantees a robust, long-lasting seal. The unique ability to be repacked under pressure provides unparalleled maintenance flexibility, significantly reducing downtime and operational costs. Despite its specific exclusions for steam and potable water, its robust 200 PSI non-shock rating and meticulous design make it an indispensable component for any demanding hydraulic application seeking uncompromising performance and reliability.
