HGV125 - 1-1/4 Inch Gate Valve

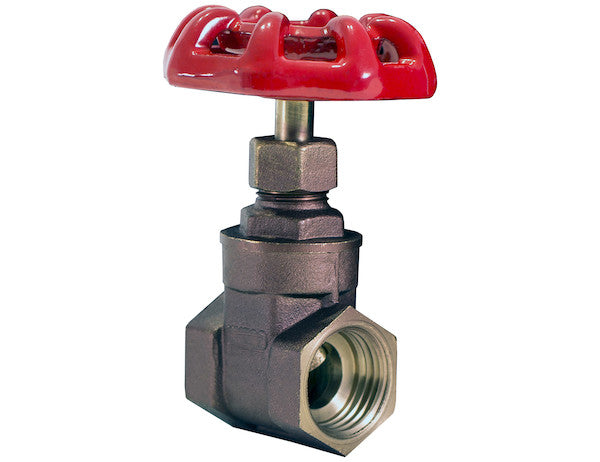

The Full Flow Gate Valve from Buyers Products reliably controls the flow of fluid in your truck's hydraulic system. It allows full flow for maximum pressure. Easy to install, the valve's small footprint is ideal for tight spaces. It has a non-rising stem and easy to operate bonnet. Its durable and airtight brass construction features a solid wedge disk and integral seats. It's built to handle 200 PSI of non-shock pressure. The valve can be conveniently repacked while it is in service and under pressure. Choose from a range of valve sizes to meet your needs. Note: The valve is not suitable for steam or potable water applications.

Specifications

Advanced Technical Overview: 1-1/4 Inch Full Flow Gate Valve for Hydraulic Systems

The 1-1/4 Inch Full Flow Gate Valve represents a critical component in advanced hydraulic systems, specifically engineered for robust performance in demanding applications such as those found in commercial trucks and heavy equipment. This valve is meticulously designed to provide precise and reliable control over fluid flow, ensuring optimal operation and system integrity. Its construction and operational characteristics are tailored to meet the rigorous requirements of hydraulic circuits, where consistent pressure management and unimpeded flow are paramount.

Precision Engineering for Uncompromised Flow Dynamics

At the core of this valve's superior performance is its "Full Flow" design. This designation signifies that when the valve is in its fully open position, it presents a flow path with minimal obstruction, effectively matching the internal diameter of the connected piping. This characteristic is crucial in hydraulic systems for several reasons:

• Maximized Pressure Delivery: By reducing flow restrictions, the valve minimizes pressure drop across the component. This ensures that the maximum available system pressure is efficiently delivered to the actuators and other hydraulic components, optimizing their performance and responsiveness.
• Enhanced System Efficiency: A lower pressure drop translates directly into reduced energy losses within the hydraulic circuit. This allows the pump to operate more efficiently, potentially reducing fuel consumption in mobile applications and extending the lifespan of hydraulic system components by mitigating excessive workload.
• Reduced Heat Generation: Turbulence and friction within a restricted flow path generate heat, which can degrade hydraulic fluid properties and lead to premature component wear. The full flow design minimizes turbulence, thereby contributing to lower operating temperatures and preserving fluid longevity.
• Optimal Fluid Velocity: Maintaining consistent fluid velocity throughout the system is vital for preventing cavitation and ensuring smooth operation. The full flow bore of this gate valve helps in preserving the designed fluid velocity, which is particularly important for achieving precise control and rapid response in hydraulic functions.

The precise 1-1/4 inch pipe size, coupled with standard 1 1/4 NPT (National Pipe Taper) threading, ensures seamless integration into existing hydraulic lines. NPT threads are recognized for their robust sealing capability, achieved through a tapered male and female thread engagement that creates an interference fit, further enhanced by appropriate thread sealant. This design is critical for maintaining leak-free connections under the high pressures characteristic of hydraulic systems, preventing fluid loss and safeguarding environmental compliance.

Robust Construction with Premium Materials

The selection of materials and the method of construction are fundamental to the durability and reliability of any hydraulic valve. This gate valve features an almost entirely brass construction, a deliberate choice based on brass's intrinsic properties:

• Corrosion Resistance: Brass, an alloy primarily of copper and zinc, exhibits excellent resistance to corrosion from various hydraulic fluids, including petroleum-based oils and synthetic lubricants. This resistance ensures the valve's integrity and prevents the formation of rust or other corrosive byproducts that could contaminate the hydraulic fluid and damage other system components.
• Durability and Strength: Brass offers a commendable balance of strength and ductility. It can withstand the mechanical stresses and vibrations inherent in mobile hydraulic applications without brittle fracture, while also being malleable enough for precise machining and forming. This inherent strength contributes to the valve's ability to handle up to 200 PSI of non-shock pressure reliably.
• Machinability: The excellent machinability of brass allows for the fabrication of complex internal geometries with high precision, ensuring tight tolerances for critical components like the solid wedge disk and integral seats. This precision is vital for achieving a consistently tight shut-off and smooth operation.
• Compatibility: Brass is broadly compatible with a wide range of hydraulic fluids, minimizing concerns about material degradation or chemical reactions that could compromise system performance or safety.

The valve's architecture includes a solid wedge disk and integral seats. A solid wedge disk is inherently robust, offering superior mechanical strength and resistance to deformation under pressure compared to flexible or split-wedge designs. This solid construction ensures a consistent and tight seal against the valve seats. Integral seats, which are machined directly into the valve body, eliminate potential leak paths associated with threaded or welded-in seat rings. This design enhances the valve's overall structural integrity and longevity, providing a reliable and durable sealing surface that can withstand repeated cycles of opening and closing without degradation.

Operational Excellence and Compact Design

The operational design of this 1-1/4 inch gate valve is centered on efficiency, compactness, and user-friendliness:

• Non-Rising Stem: A key feature of this gate valve is its non-rising stem design. In this configuration, the stem rotates but does not translate vertically when the valve is operated. This offers several significant advantages:
  • Compact Footprint: The non-rising stem design maintains a consistent overall height, making the valve exceptionally suitable for installations in confined spaces where vertical clearance is limited, a common challenge in truck chassis and equipment compartments.
  • Reduced Risk of Damage: Without an exposed rising stem, the valve is less susceptible to external damage from impacts or debris, enhancing its robustness in harsh operating environments.
  • Visual Indication (Indirect): While the stem doesn't rise, the handle's position still provides a clear visual indication of the valve's open or closed status.
• Easy-to-Operate Bonnet: The bonnet, constructed from brass, houses the stem packing and provides the structural integrity for the valve’s operating mechanism. Its design facilitates smooth and reliable operation, ensuring that the valve can be actuated with appropriate torque. The carbon steel handle provides a durable and ergonomically sound interface for manual operation, offering excellent leverage and resistance to wear and bending.
• Small Footprint: The overall compact design, encompassing the non-rising stem and carefully optimized body dimensions, makes this valve an ideal choice for integration into complex hydraulic layouts where space optimization is critical without compromising performance or accessibility.

Pressure Rating and System Integration

This gate valve is engineered to confidently manage 200 PSI of non-shock pressure. Understanding the distinction of "non-shock" pressure is vital in hydraulic applications: it refers to systems where sudden, sharp pressure spikes (often caused by rapid valve closure or pump startup/shutdown) are either absent or adequately mitigated. In well-designed hydraulic circuits, pressure surges are controlled, allowing the valve to operate reliably within its rated parameters. This pressure rating is robust enough for a vast majority of truck-mounted hydraulic systems, including those powering dump bodies, lift gates, snow plows, and various utility equipment.

The smooth body finish not only contributes to the aesthetic quality of the component but also facilitates easier cleaning and inspection, which is important for maintaining system hygiene and identifying potential issues early in demanding operational environments. The precise manufacturing processes employed ensure that the internal passages are optimized for fluid flow, contributing to the "Full Flow" capability and minimal pressure drop.

Unparalleled Maintainability: In-Service Repacking

One of the most distinguishing and economically beneficial features of this gate valve is its capability for convenient repacking while the valve is in service and under pressure. This advanced design attribute offers significant operational advantages:

• Minimized Downtime: The ability to service the valve's stem packing without depressurizing and draining the entire hydraulic system drastically reduces equipment downtime. In commercial trucking and heavy equipment operations, every hour of uptime translates directly to productivity and profitability.
• Reduced Maintenance Costs: Eliminating the need for system shutdown, fluid removal, and subsequent refilling significantly lowers labor costs, material costs (for replacement fluid), and the overhead associated with complex maintenance procedures.
• Enhanced Operational Continuity: For critical hydraulic functions, the capacity for in-service repacking ensures that routine maintenance or unexpected packing adjustments can be performed quickly, maintaining continuous system operation and preventing costly interruptions.
• Safety Enhancement: Performing maintenance without full system depressurization, when done correctly, can sometimes simplify procedures and reduce certain risks associated with system re-pressurization. However, it is crucial that all such operations are carried out by trained personnel adhering to strict safety protocols.

The design that enables in-service repacking typically involves a robust bonnet assembly with a well-engineered packing gland that can be tightened or loosened to replace packing material while the main fluid path remains under pressure and isolated from the stem area by internal seals. This feature highlights a commitment to practical engineering solutions that prioritize both performance and maintainability in real-world industrial settings.

Application Suitability and Important Considerations

The 1-1/4 Inch Full Flow Gate Valve is specifically optimized for use in truck hydraulic systems, where its brass construction, full flow characteristics, pressure rating, and maintainability align perfectly with operational demands. These systems typically utilize hydraulic oils at moderate temperatures and pressures, conditions under which brass performs exceptionally well.

It is imperative to note the explicit exclusion for steam and potable water applications. This restriction is based on several technical factors:

• Steam Applications: While brass has some temperature resistance, prolonged exposure to high-temperature steam can lead to dezincification (a form of corrosion where zinc is leached from the alloy), weakening the material and compromising the valve's structural integrity. Furthermore, specialized materials and designs are required for valves operating in steam environments due to the higher temperatures, specific fluid dynamics, and safety considerations.
• Potable Water Applications: For applications involving drinking water, specific regulatory standards and material certifications (e.g., NSF/ANSI standards) are mandated to ensure that no harmful substances leach into the water. While brass is often used in plumbing, the specific alloy composition and internal components of this hydraulic valve may not meet these stringent potable water requirements. The focus of its design is solely on hydraulic fluid compatibility and performance.

Therefore, adherence to these application guidelines is crucial for ensuring both the long-term performance of the valve and compliance with industry standards and safety regulations.

Conclusion

The 1-1/4 Inch Full Flow Gate Valve stands as a testament to advanced fluid control engineering. Its robust brass construction, solid wedge disk, integral seats, and non-rising stem collectively ensure superior durability and a compact footprint ideal for the demanding and often space-constrained environments of truck-mounted hydraulic systems. The valve's full flow capability guarantees maximum pressure delivery and system efficiency, while its 200 PSI non-shock pressure rating provides a reliable operational envelope. Crucially, the innovative design allowing for repacking while in service and under pressure significantly minimizes downtime and maintenance costs, offering unparalleled operational continuity. By delivering precise fluid control, exceptional longevity, and simplified maintenance, this gate valve proves to be an indispensable component for optimizing the performance and reliability of hydraulic systems in the most challenging applications.
