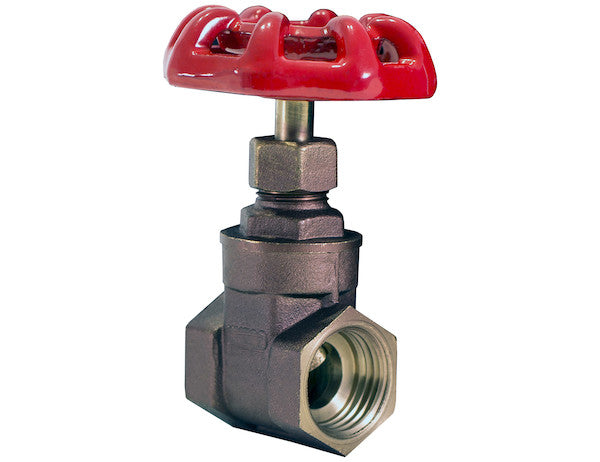

HGV150 - 1-1/2 Inch Gate Valve

The Full Flow Gate Valve from Buyers Products reliably controls the flow of fluid in your truck's hydraulic system. It allows full flow for maximum pressure. Easy to install, the valve's small footprint is ideal for tight spaces. It has a non-rising stem and easy to operate bonnet. Its durable and airtight brass construction features a solid wedge disk and integral seats. It's built to handle 200 PSI of non-shock pressure. The valve can be conveniently repacked while it is in service and under pressure. Choose from a range of valve sizes to meet your needs. Note: The valve is not suitable for steam or potable water applications.

Specifications

Advanced Technical Overview: 1-1/2 Inch Full Flow Brass Gate Valve for Hydraulic Systems

The 1-1/2 Inch Full Flow Gate Valve from Buyers Products represents a pinnacle of fluid control technology specifically engineered for demanding mobile and industrial hydraulic applications. Designed to facilitate robust and reliable regulation of fluid pathways, this valve ensures maximum system efficiency through its unrestricted, full-bore flow capability. Its meticulous design and superior material selection underscore its suitability for critical roles within complex hydraulic circuits, where consistent performance and longevity are paramount.

Operational Principle and Design Superiority

At the core of this valve's functionality is the gate mechanism, a time-tested design recognized for its minimal pressure drop characteristics when fully open. Unlike quarter-turn valves (such as ball valves) or throttling valves (like globe valves), a gate valve is primarily intended for isolation, allowing for either completely open or completely closed states. The 1-1/2 inch nominal pipe size denotes the internal diameter of the flow path, directly correlating with the valve's ability to provide unimpeded fluid transfer when in its open position. This full flow capability is crucial in hydraulic systems where minimizing energy losses and maintaining system pressure are critical for efficient operation of pumps, actuators, and other components.

Non-Rising Stem Configuration

A key feature of this specific gate valve is its non-rising stem design. In a traditional rising stem gate valve, the stem extends upwards out of the bonnet as the valve is opened, visually indicating the valve's position. While functional, this design requires significant vertical clearance above the valve. The non-rising stem, conversely, rotates within the valve body, with the gate translating vertically along the stem's threads without the stem itself moving axially. This ingenious design offers several distinct advantages, particularly for the truck-mounted hydraulic systems it is intended for:

• Compact Footprint: The absence of an external rising stem dramatically reduces the overall vertical dimension of the valve, making it exceptionally well-suited for installations in confined or tight spaces, a common constraint in vehicle chassis and equipment compartments.
• Reduced Stem Wear: Since the stem does not repeatedly move through external packing, there is less abrasive wear on the stem surface, potentially extending the lifespan of the stem packing and reducing the frequency of maintenance.
• Enhanced Safety: With no external stem movement, there is a lower risk of accidental impact or interference with the stem, contributing to a safer operating environment.
• Corrosion Protection: The non-exposed stem is better protected from environmental contaminants and corrosive elements, which can be prevalent in mobile applications.

Solid Wedge Disk and Integral Seats

The sealing mechanism of this 1-1/2 inch gate valve relies on a solid wedge disk and integral seats, both constructed from durable brass. The solid wedge disk, machined from a single piece of brass, offers exceptional rigidity and resistance to deformation under pressure. This contrasts with flexible or split wedge designs, which might offer better sealing for minor seat misalignments but can be more susceptible to damage or wear in rugged applications. The robust nature of the solid wedge ensures a positive shut-off and contributes to the valve's overall durability and longevity.

Integral seats, also crafted directly from the brass body, eliminate the potential for leakage paths that can arise with separate, screwed-in, or welded seat rings. This monolithic construction provides a superior, long-lasting sealing surface that is resistant to loosening or distortion. The precise machining of these integral seats ensures a tight, leak-free closure against the solid wedge, enhancing the valve's performance and reducing the total cost of ownership through minimized maintenance and fluid loss.

Easy-to-Operate Bonnet

The valve features an easy-to-operate bonnet, designed for both reliability and serviceability. The bonnet assembly encapsulates the stem, packing, and associated components, forming a critical pressure boundary. Its design facilitates smooth stem rotation and gate translation, ensuring reliable opening and closing cycles. Furthermore, the construction of the bonnet is engineered to allow convenient access for maintenance procedures, notably the ability to repack the valve while it remains in service and under pressure.

Material Science: The Advantages of Brass Construction

The predominant use of brass for the body, ball (referring to the gate/wedge in a gate valve context), seat, and wedge materials is a deliberate engineering choice that endows this 1-1/2 inch gate valve with outstanding properties essential for hydraulic system applications. Brass, an alloy primarily composed of copper and zinc, offers a compelling combination of mechanical strength, corrosion resistance, and machinability.

• Corrosion Resistance: Brass exhibits excellent resistance to corrosion from a wide range of hydraulic fluids, oils, gases, and water (non-potable and non-steam). This characteristic is vital for maintaining the integrity of the valve over extended periods, preventing internal degradation that could lead to leakage, flow obstruction, or premature failure. The smooth body finish further enhances external corrosion resistance and ease of cleaning.
• Strength and Durability: With a maximum working pressure rating of 200 PSI for non-shock conditions, the brass construction provides sufficient tensile strength and rigidity to withstand typical hydraulic system pressures without yielding or deforming. Its inherent toughness contributes to the valve's resistance to wear and tear from mechanical operation.
• Machinability: Brass is highly amenable to machining processes, allowing for the precise manufacturing of critical components such as the solid wedge disk, integral seats, and the internal threading for the stem. This precision is fundamental to achieving the valve's airtight construction and consistent sealing performance.
• Airtight Construction: The phrase "airtight brass construction" highlights the meticulous manufacturing tolerances and material properties that ensure a tight seal against external leakage and internal bypass. This is crucial for preventing fluid loss and maintaining system pressure, especially in hydraulic circuits where even minor leaks can compromise performance and efficiency.

Carbon Steel Handle

Complementing the brass body is a carbon steel handle. Carbon steel is chosen for this component due to its superior mechanical properties, including high tensile strength and fatigue resistance. This ensures that the handle can withstand the torque required for opening and closing the valve, providing reliable operation and excellent leverage for the user without bending or breaking, even after countless cycles of use.

Performance Specifications and Hydraulic System Integration

The 1-1/2 Inch Full Flow Gate Valve is engineered to meet stringent performance requirements within hydraulic environments, ensuring reliable and efficient fluid control.

• Maximum Pressure Rating (200 PSI Non-Shock): The valve is rated for a maximum non-shock working pressure of 200 pounds per square inch (PSI). The term "non-shock" is critical; it signifies the maximum static pressure the valve can safely withstand without experiencing sudden surges or hydraulic hammer. In hydraulic systems, pressure surges can occur due to rapid valve closure, pump cavitation, or sudden changes in flow direction. While robust, this valve is designed to handle steady operating pressures up to 200 PSI, making it suitable for many medium-pressure hydraulic applications common in truck-mounted equipment. Exceeding this non-shock rating can lead to material fatigue, seal failure, or catastrophic rupture, underscoring the importance of proper system design and pressure management.
• Full Flow for Maximum Pressure: The gate valve's design minimizes internal obstructions, creating a clear, unimpeded flow path when fully open. This "full flow" characteristic is paramount for maximizing pressure transmission and minimizing pressure drop across the valve. In hydraulic circuits, a low pressure drop translates directly into higher system efficiency, reduced energy consumption by the pump, and consistent power delivery to actuators. The 1.500 inch pipe size and 1 1/2 NPT thread size ensure compatibility with standard hydraulic lines, facilitating high volume flow rates typical for robust truck hydraulic operations.
• Fluid Compatibility: While explicitly noted as unsuitable for steam or potable water, the valve is optimized for hydraulic oils, petroleum-based fluids, and various non-corrosive gases and industrial liquids within its specified pressure and temperature envelope. This makes it ideal for controlling hydraulic fluid in a wide array of mobile equipment.

Installation and Maintenance Advantages

Beyond its robust construction and performance, this 1-1/2 inch gate valve excels in its ease of installation and remarkable serviceability.

• Easy to Install: The valve's design, coupled with its standard 1 1/2 NPT (National Pipe Taper) threaded connections, ensures straightforward installation into existing or new hydraulic lines. NPT threads provide a secure, tapered seal when properly applied with thread sealant, ensuring leak-free connections under pressure. The compact design facilitated by the non-rising stem further simplifies installation in congested spaces, reducing installation time and labor costs.
• Small Footprint, Ideal for Tight Spaces: As highlighted, the non-rising stem is a direct contributor to the valve's compact profile. This is a critical advantage in vehicle-mounted hydraulic systems, where space is often at a premium. The valve can be integrated into complex plumbing configurations without requiring excessive clearance, thus optimizing system layout and component density.
• Repackable In-Service and Under Pressure: This is perhaps one of the most significant operational benefits. The stem packing, which provides a seal around the valve stem to prevent external leakage, is subject to wear over time. The ability to repack the valve while it is in service and under system pressure means that maintenance can be performed without depressurizing and draining the entire hydraulic circuit. This feature drastically reduces downtime, improves operational continuity, and lowers overall maintenance costs. It reflects a design philosophy focused on maximizing uptime and minimizing operational disruption for commercial and industrial users. The bonnet design facilitates access to the packing gland for convenient replacement of packing material, ensuring the valve maintains its airtight integrity throughout its service life.

Applications in Truck Hydraulic Systems

The 1-1/2 Inch Full Flow Gate Valve is purpose-built for the rigors of truck-mounted hydraulic systems, providing reliable fluid control in a diverse range of heavy-duty applications. Typical uses include:

• Dump Trucks: Controlling the flow of hydraulic fluid to the hoist cylinders that elevate the dump bed.
• Refuse Vehicles: Managing hydraulic power for compactor mechanisms, lifters, and ejection plates.
• Snowplows and Salt Spreaders: Directing fluid to lift, angle, and spread mechanisms.
• Cranes and Lifts: Isolating sections of hydraulic circuits or controlling flow to specific boom or outrigger cylinders.
• Utility Trucks: For systems powering aerial lifts, winches, and other auxiliary equipment.

In these applications, the valve acts as a critical isolation point, allowing operators to fully engage or disengage hydraulic functions with confidence, ensuring safety and operational efficiency. Its full flow capacity ensures that when a hydraulic function is engaged, the necessary pressure and volume of fluid are delivered without impedance, leading to responsive and powerful equipment performance.

Conclusion

The 1-1/2 Inch Full Flow Gate Valve from Buyers Products stands as a robust, meticulously engineered component essential for high-performance hydraulic systems, particularly within the demanding realm of truck-mounted equipment. Its non-rising stem, solid brass wedge disk, integral seats, and heavy-duty brass construction with a carbon steel handle are all design elements chosen for maximum durability, reliability, and ease of maintenance. The capacity to handle 200 PSI non-shock pressure and its unique in-service repackable feature underscore its professional-grade utility, minimizing downtime and optimizing operational efficiency. While precisely engineered for hydraulic oils and non-corrosive industrial fluids, its clear exclusion for steam and potable water applications ensures proper deployment within its intended operational parameters. For professionals seeking a dependable and highly serviceable fluid control valve in their critical hydraulic infrastructure, this 1-1/2 inch gate valve offers an exceptional balance of technical sophistication and practical utility.
