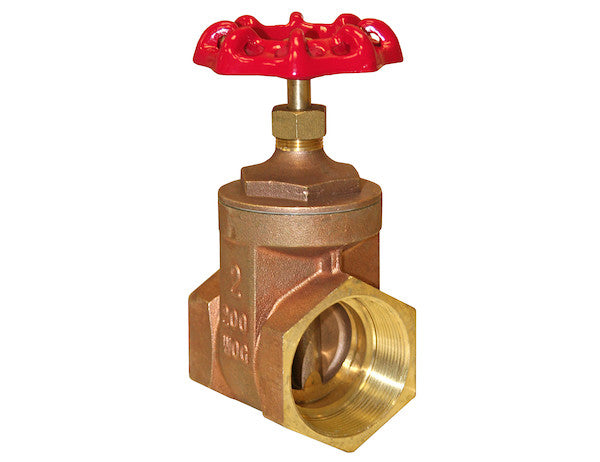

HGV200 - 2 Inch Gate Valve

The Full Flow Gate Valve from Buyers Products reliably controls the flow of fluid in your truck's hydraulic system. It allows full flow for maximum pressure. Easy to install, the valve's small footprint is ideal for tight spaces. It has a non-rising stem and easy to operate bonnet. Its durable and airtight brass construction features a solid wedge disk and integral seats. It's built to handle 200 PSI of non-shock pressure. The valve can be conveniently repacked while it is in service and under pressure. Choose from a range of valve sizes to meet your needs. Note: The valve is not suitable for steam or potable water applications.

Specifications

Advanced Technical Overview: The 2-Inch Brass Full Flow Gate Valve for Hydraulic Systems

The 2-inch Full Flow Gate Valve presented by Buyers Products represents a critical component engineered for robust and reliable fluid flow control within demanding hydraulic systems. Designed with precision and manufactured to exacting standards, this valve is optimized for applications requiring unobstructed flow paths and durable performance under moderate pressure conditions. Its specific 2-inch pipe size, coupled with National Pipe Taper (NPT) threading, ensures seamless integration into a wide array of industrial and mobile hydraulic circuits, particularly prevalent in heavy-duty truck equipment.

Fundamental Principles of Gate Valve Operation and Full Flow Design

At its core, a gate valve functions by lifting a gate-like wedge element out of the path of the fluid. This particular model utilizes a solid wedge disk, which is actuated perpendicular to the flow direction. When the valve is fully open, the wedge is completely retracted into the valve bonnet, creating a full bore passageway. This full flow capability is a distinguishing characteristic and a significant advantage in hydraulic applications. Unlike throttling valves, such as globe valves, which intentionally restrict flow to regulate pressure or flow rate, gate valves are designed for isolation service – either fully open or fully closed. In the fully open position, the valve introduces minimal pressure drop across its length. This low resistance to flow translates directly into enhanced system efficiency, as pumps expend less energy overcoming internal valve friction. Furthermore, the unobstructed flow path minimizes turbulence within the fluid, which is crucial in hydraulic systems to prevent cavitation, reduce noise, and maintain the integrity of the hydraulic fluid and other system components. The absence of significant internal obstructions also facilitates the passage of higher viscosity hydraulic oils without impeding their flow characteristics, ensuring optimal performance of cylinders, motors, and other hydraulic actuators.

Precision Engineering: Materials and Construction for Longevity

The selection of materials for the construction of this 2-inch gate valve is paramount to its durability and performance, especially in the harsh environments often encountered by truck-mounted hydraulic systems. The valve body, wedge, and integral seats are all crafted from high-quality brass. Brass, an alloy primarily composed of copper and zinc, offers a superior combination of characteristics suitable for hydraulic applications:

• Corrosion Resistance: Hydraulic fluids, while generally stable, can contain additives or encounter contaminants that might accelerate corrosion in less resistant materials. Brass exhibits excellent resistance to corrosion, ensuring the structural integrity and sealing performance of the valve over its operational lifespan.
• Strength and Ductility: Brass possesses high tensile strength, allowing it to withstand the specified 200 PSI non-shock pressure without deformation. Concurrently, its inherent ductility allows for precise machining and forming, critical for creating the tight tolerances required for effective sealing.
• Compatibility with Hydraulic Fluids: The chemical inertness of brass with common hydraulic oils (e.g., mineral oil-based, synthetic) prevents degradation of the fluid or the valve material itself, maintaining system cleanliness and efficiency.
• Temperature Stability: While not designed for extreme temperatures like steam, brass maintains its mechanical properties across the typical operating temperature ranges of mobile hydraulic systems, which can experience significant temperature fluctuations due to environmental conditions and operational demands.
• Machinability: The excellent machinability of brass allows for the creation of intricate components like the solid wedge disk and integral seats with high precision, contributing to the valve's airtight sealing capability and smooth operation.

The **solid wedge disk** design is a key element of the valve's robust construction. Unlike flexible or split wedge designs, a solid wedge offers maximum structural rigidity, preventing deformation under pressure and ensuring consistent sealing performance over time. This design minimizes the potential for jamming due due to thermal expansion or trapped debris, contributing to reliable operation. The precision-machined surfaces of the solid wedge mate perfectly with the **integral seats**, which are machined directly into the valve body. Integral seats eliminate potential leak paths that might be present in valves with screwed-in or welded-in seats, enhancing the overall airtightness and structural integrity of the valve. This design choice contributes significantly to the valve's longevity and its ability to maintain a tight shut-off even after extensive cycles of operation.

An "airtight brass construction" is critical in hydraulic systems. Air ingress can lead to cavitation, a phenomenon where air bubbles form and collapse, causing wear and damage to pumps, cylinders, and other components. It can also compromise the hydraulic fluid's ability to transmit force efficiently, leading to spongy responses and reduced system performance. The meticulously engineered brass components, combined with precise machining and sealing mechanisms, ensure that the valve maintains a positive seal against both fluid leakage and external air intrusion.

Ergonomic Design and Maintenance Accessibility

Several design features underscore the valve's suitability for practical application, emphasizing ease of installation, operation, and maintenance:

• Small Footprint: In the confined spaces typical of truck chassis and equipment compartments, every inch matters. The compact design of this 2-inch gate valve allows for installation in tight locations without compromising accessibility or interfering with adjacent components. This compact form factor is particularly advantageous in custom hydraulic setups where space optimization is critical.
• Non-Rising Stem: This design feature means the stem, which connects the operating handle to the wedge disk, does not extend vertically out of the valve bonnet when the valve is opened. Instead, the stem threads internally into the wedge. This offers several distinct advantages:
  • Space Savings: Eliminates the need for vertical clearance above the valve, further contributing to its suitability for tight spaces.
  • Protection: The stem threads are enclosed within the bonnet, protecting them from external contaminants (dust, dirt, moisture, corrosive agents) that could lead to wear or seizing.
  • Durability: Less exposure to the environment means a longer operational life for the stem and associated packing.
  • Visual Indication: While the stem itself doesn't rise, the handle movement typically provides a clear indication of the valve's open or closed status, which is important for operational safety.
• Easy-to-Operate Bonnet: The bonnet is a critical valve component that houses the stem, packing, and provides a closure for the valve body. An "easy-to-operate bonnet" implies a design that facilitates straightforward assembly, disassembly for maintenance, and effective sealing around the stem. This design focus is particularly relevant for the repacking capability.
• Repackable While in Service and Under Pressure: This feature is a significant economic and operational advantage. Over time, the packing material around the valve stem, which prevents leakage, can wear or degrade. The ability to repack the valve while it remains in service and under pressure eliminates the need to shut down the entire hydraulic system, drain fluids, or isolate specific circuits. This drastically reduces downtime, labor costs, and the risk of contamination associated with system depressurization and extensive repairs. It allows for proactive maintenance, extending the overall lifespan of the valve and maintaining system integrity without disruptive interruptions. The design likely incorporates a back-seating feature that seals the stem against the bonnet when fully open, allowing the packing to be replaced.

Performance Parameters and System Integration

The specified performance parameters are crucial for ensuring the valve's compatibility and safe operation within hydraulic systems:

• Maximum Pressure (Water, Oil, Gas): 200 PSI Non-Shock: This rating indicates the maximum pressure the valve can safely withstand in continuous service without structural failure or leakage, specifically when not subjected to sudden pressure spikes (water hammer). In hydraulic systems, pressures can fluctuate. While many heavy-duty hydraulic systems operate at pressures far exceeding 200 PSI, this valve is typically deployed in return lines, drain lines, or ancillary low-pressure circuits within the overall hydraulic architecture of a truck. For instance, it might be used in a reservoir discharge line, suction line, or other control circuits where moderate pressures are present. Understanding the exact pressure profile of the intended application is critical to ensure this valve is correctly specified. "Non-shock" emphasizes that the system should be designed to prevent rapid pressure transients that could exceed this rating.
• Pipe Size: 2.000 inches / Thread Size: 2 NPT: The 2-inch nominal pipe size and NPT (National Pipe Taper) threading are standard for hydraulic connections. NPT threads are tapered, meaning they get tighter as they are screwed in, creating a mechanical interference fit that forms a seal. When properly installed with an appropriate thread sealant (e.g., PTFE tape or pipe thread compound), NPT connections provide a robust and leak-free interface. This standardization ensures compatibility with a vast range of hydraulic fittings and piping components, simplifying system design and installation.

Considerations for Installation and Maintenance

Proper installation is paramount for the long-term performance and safety of the 2-inch gate valve. It should be installed in the correct orientation, typically with the stem vertical, to ensure smooth operation and prevent premature wear of internal components. The use of appropriate thread sealants is essential to achieve a leak-tight NPT connection. Over-tightening can damage threads or distort the valve body, while under-tightening will lead to leaks. Professional installation by qualified personnel experienced in hydraulic systems is highly recommended.

Beyond the unique 'repackable under pressure' feature, routine maintenance should include periodic visual inspections for external leakage, damage, or corrosion. The valve's carbon steel handle material ensures durability for repeated manual operation. Any signs of operational stiffness or degraded sealing should prompt investigation and corrective action, leveraging the valve's accessible design for servicing.

Application Specifics and Exclusions

The primary application for this valve is specified as "truck's hydraulic system." This encompasses a broad range of heavy-duty mobile equipment where fluid power is integral to operation. Examples include, but are not limited to:

• Dump Trucks: For controlling the flow to and from hydraulic cylinders that lift and lower the dump bed.
• Snow Plows and Salt Spreaders: Managing hydraulic lines for blade articulation, lifting, and spreader mechanisms.
• Refuse Vehicles: Operating various compaction and lifting functions.
• Tanker Trucks: Controlling fluid transfer for loading and unloading operations.
• Service and Utility Trucks: For hydraulic cranes, lifts, and other auxiliary equipment.

It is crucial to adhere to the stated limitations: "The valve is not suitable for steam or potable water applications." For steam applications, higher temperature and pressure ratings, along with specific alloys (e.g., cast steel, stainless steel) and specialized packing materials, are required to withstand extreme thermal cycling and corrosive condensate. For potable water, valves must typically meet strict regulatory standards regarding lead content (e.g., NSF/ANSI 61 and 372 in North America) to prevent contamination of drinking water. While brass is generally safe, specific brass alloys for potable water are formulated with ultra-low lead content to comply with these regulations. This valve, being designed for industrial hydraulic oil, does not meet these specific requirements and should not be used for municipal water supplies or food-grade applications.

Conclusion

The 2-inch Brass Full Flow Gate Valve from Buyers Products stands as a testament to engineering excellence in fluid control. Its robust brass construction, featuring a solid wedge disk and integral seats, ensures durability and airtight performance within mobile hydraulic systems operating at up to 200 PSI non-shock pressure. The full flow design minimizes pressure drop, enhancing system efficiency, while its compact footprint and non-rising stem facilitate installation in constrained environments. Crucially, the ability to repack the valve while in service and under pressure underscores its design for maximal uptime and reduced maintenance costs. This valve is an indispensable component for professionals seeking reliable, high-performance fluid isolation in heavy-duty truck and equipment hydraulic applications, provided its operating parameters and intended use exclusions are respected.
