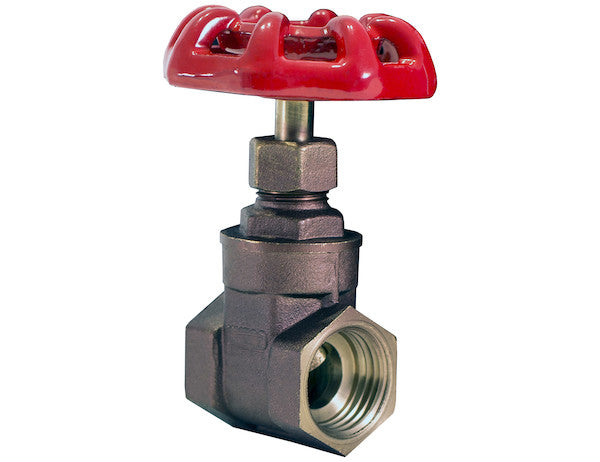

HGV250 - 2-1/2 Inch Gate Valve

The Full Flow Gate Valve from Buyers Products reliably controls the flow of fluid in your truck's hydraulic system. It allows full flow for maximum pressure. Easy to install, the valve's small footprint is ideal for tight spaces. It has a non-rising stem and easy to operate bonnet. Its durable and airtight brass construction features a solid wedge disk and integral seats. It's built to handle 200 PSI of non-shock pressure. The valve can be conveniently repacked while it is in service and under pressure. Choose from a range of valve sizes to meet your needs. Note: The valve is not suitable for steam or potable water applications.

Specifications

The 2-1/2 Inch Gate Valve from Buyers Products represents a critical component in advanced hydraulic fluid management systems, specifically engineered for the demanding environments of commercial truck applications. This valve is meticulously designed to provide precise and dependable control over the flow of hydraulic fluid, ensuring optimal performance and operational safety for a wide array of truck-mounted equipment. Its robust construction, coupled with sophisticated design features, positions it as a superior choice for professional-grade hydraulic systems requiring reliable on/off fluid isolation with minimal flow restriction.

At its core, this gate valve is characterized by its full-flow capability, a paramount feature for hydraulic systems where maintaining maximum pressure and minimizing energy losses are essential. Unlike throttling valves, a gate valve is designed for either fully open or fully closed operation, creating an unobstructed passage when open. This design minimizes pressure drop across the valve, thereby preserving the system's hydraulic efficiency and ensuring that power is delivered effectively to actuators and other hydraulic components. For a 2-1/2 inch nominal pipe size, this means that the internal bore of the valve, when fully open, closely matches the internal diameter of the connecting pipework, facilitating unimpeded fluid transit. This "full bore" characteristic is particularly beneficial in applications where high flow rates are required, preventing cavitation and turbulence that could otherwise lead to premature wear of system components and reduced overall efficiency.

The mechanical architecture of the valve features a non-rising stem, a design choice that offers significant operational advantages. In a non-rising stem configuration, the stem remains stationary in the axial direction as the handwheel is rotated, with the gate disk traversing along the stem's threaded portion. This design is highly advantageous in installations with restricted overhead clearance, such as within crowded engine compartments or chassis frames of trucks, where the vertical travel of a rising stem would be impractical or impossible. Furthermore, the non-rising stem protects the stem threads from exposure to external contaminants, which can prolong the life of the stem and packing. It also provides a visual indication of valve position by the rotation count of the handwheel, offering a subtle yet effective means of monitoring valve status without requiring additional indicators. The "easy to operate bonnet" complements this, providing a secure, pressure-containing enclosure for the internal components while allowing for straightforward access for maintenance and repair procedures, a key consideration for reducing downtime.

Durability and longevity are central to the design philosophy of this 2-1/2 inch gate valve, evident in its all-brass construction for the body, ball (referring to internal moving components, although technically a gate valve doesn't have a 'ball' in the conventional sense, it signifies critical internal metallic components), seat, and wedge. Brass, an alloy primarily composed of copper and zinc, is an exceptionally well-suited material for hydraulic applications due to its remarkable combination of properties. It exhibits excellent corrosion resistance against a wide range of hydraulic fluids, including petroleum-based and synthetic oils, which is crucial for maintaining the integrity of the fluid pathway over extended periods. The inherent strength and rigidity of brass enable it to withstand the operational pressures and mechanical stresses prevalent in truck hydraulic systems. Moreover, brass possesses superior machinability, allowing for the precise manufacturing of internal components such as the solid wedge disk and integral seats, which are critical for achieving an airtight seal and smooth operation. The smooth body finish, while seemingly aesthetic, contributes to cleaner operation by minimizing contaminant adherence and simplifying external cleaning processes, further enhancing the valve's longevity in harsh environments.

The solid wedge disk is a fundamental component contributing to the valve's robust sealing capability. Unlike flexible or split wedge designs, a solid wedge disk offers maximum strength and rigidity, ensuring a positive shut-off even under fluctuating pressure conditions. When the valve is closed, the wedge seats firmly against the integral seats within the valve body, creating a tight, leak-proof barrier. The integral seats themselves are machined directly into the valve body, eliminating potential leakage paths associated with screwed-in or welded-in seat rings. This monolithic construction enhances the structural integrity of the valve, reduces the number of failure points, and contributes significantly to the valve's long-term reliability and airtight performance. The precision fit between the solid wedge and integral seats is critical for the valve's ability to maintain system pressure and prevent fluid bypass when in the closed position, a non-negotiable requirement for effective hydraulic system control.

Rated for 200 PSI of non-shock pressure, this gate valve is engineered to withstand typical operating pressures encountered in medium-duty truck hydraulic systems. The term "non-shock pressure" is a vital specification, indicating the maximum continuous pressure the valve can safely handle without experiencing sudden, severe pressure spikes (water hammer). Hydraulic systems are inherently dynamic, and while this valve is designed for resilience, prudent system design should always incorporate measures to mitigate extreme pressure surges. The 200 PSI rating is well-suited for applications such as controlling the flow to dump truck hoists, snowplow angling mechanisms, salt spreader hydraulics, or auxiliary power take-off (PTO) driven equipment on service vehicles, where reliable isolation is required without the need to manage extremely high-pressure transients typical of specialized, high-performance industrial hydraulics. The handle, crafted from durable carbon steel, provides the necessary mechanical advantage and structural integrity for repeated operation, ensuring ease of use and long-term functionality even with frequent actuation.

A standout feature of this gate valve is its maintainability: it can be conveniently repacked while in service and under pressure. This capability dramatically reduces operational downtime and maintenance costs. Traditional valves often require depressurization and removal from the pipeline for packing replacement, leading to system shutdowns. The design of this valve incorporates a back-seating feature that allows the stem packing to be replaced or tightened while the valve is in the fully open position and the system remains pressurized. When fully open, the back-seating surface on the stem mates with a corresponding surface in the bonnet, creating a temporary seal that isolates the packing chamber from the line pressure. This allows technicians to service the packing gland without draining the hydraulic system, which is an invaluable advantage in maintaining continuous vehicle operation and minimizing service interruptions. This feature alone can translate into substantial savings in labor, fluid replacement, and lost productivity for fleet operators.

The 2-1/2 NPT thread size denotes adherence to the National Pipe Taper thread standard, a widely recognized and utilized standard for connecting pipes and fittings in North America. NPT threads create a fluid-tight seal by metal-to-metal interference fit, often supplemented with pipe sealant or PTFE tape, as the tapered threads are tightened. This standard ensures compatibility with existing hydraulic system components and simplifies installation and replacement. The 2.500-inch pipe size is common for higher flow rate lines in truck hydraulic systems, where robust fluid transfer is necessary for significant work functions. The relatively small footprint of the valve, despite its 2-1/2 inch size and full-flow capabilities, is a testament to optimized engineering, ensuring that it can be integrated into tight or congested spaces frequently found in modern commercial vehicle designs without compromising accessibility or other component installations.

While highly versatile for hydraulic applications, it is crucial to understand the specified limitations of this valve. It is explicitly noted as "not suitable for steam or potable water applications." The reasons for these exclusions are technical and material-specific. For steam service, valves typically require materials capable of withstanding higher temperatures, greater thermal cycling stresses, and specific types of packing compounds formulated for steam. The brass alloy used in this valve, while excellent for hydraulics, may not possess the necessary high-temperature creep resistance or strength for prolonged exposure to superheated steam, which can lead to material degradation and premature failure. Additionally, the packing materials suitable for hydraulic oils differ significantly from those required for steam, where aggressive thermal expansion and condensation cycles demand specialized sealing solutions to prevent leakage.

Regarding potable water, the primary concern lies with the metallurgical composition of standard industrial brass. While brass offers excellent corrosion resistance, certain brass alloys may contain trace amounts of lead, which, while beneficial for machinability, are not permissible under strict regulations governing drinking water systems. Potable water valves must meet specific lead-free requirements (e.g., NSF/ANSI 61, Annex G, or California AB1953) to prevent lead leaching into the water supply, which poses a public health risk. This valve is not designed or certified to meet these stringent potable water standards, making it unsuitable for applications where human consumption water is conveyed. This clear demarcation of application suitability underscores the specialized nature of its design for industrial hydraulic fluids.

In summary, the 2-1/2 Inch Gate Valve from Buyers Products is a purpose-built, high-performance component designed to meet the rigorous demands of truck hydraulic systems. Its full-flow design ensures maximum hydraulic efficiency and power transfer, crucial for the effective operation of truck-mounted equipment. The non-rising stem and compact footprint address space constraints prevalent in vehicle installations. Constructed from durable brass with a solid wedge disk and integral seats, it guarantees airtight sealing and extended operational life. The 200 PSI non-shock pressure rating provides ample capacity for typical hydraulic applications, while the unique ability to be repacked under pressure significantly enhances maintainability and reduces costly downtime. While its robust design is tailored for hydraulic oil service, it is imperative to respect its specified limitations regarding steam and potable water to ensure proper application and compliance. This valve stands as an indispensable choice for engineers, fleet managers, and maintenance professionals seeking a reliable, efficient, and long-lasting fluid control solution for their commercial truck hydraulic systems.
