HK1413 - Hose Clamp 13/16 Inch Clamping Diameter With 13/32 Inch Bolt Hole

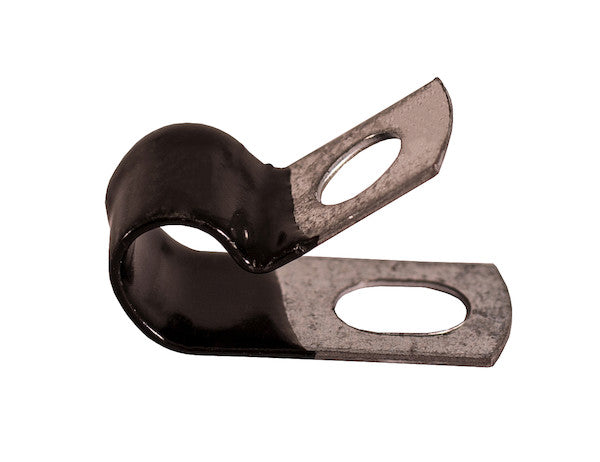

The sturdy Hose Clamp from Buyers Products is constructed of cold-rolled steel with a corrosion-resistant zinc finish and a black vinyl cushion to protect the hose. Clamps are packaged in quantities of 25 pieces..

Specifications

Advanced Technical Overview: Precision Cushioned Hose Clamp for Demanding Applications

The Buyers Products Hose Clamp, featuring a 13/16 inch (0.813 inch) clamping diameter and a 0.531 inch bolt hole, represents a critical component in the secure routing and management of fluid transfer lines, electrical conduits, and various tubing systems across diverse industrial and commercial sectors. Engineered for optimal performance and longevity, this clamp combines robust material science with a protective design, ensuring the integrity and operational safety of the systems it serves. Its construction from cold-rolled carbon steel, enhanced with a corrosion-resistant zinc finish and complemented by a resilient black vinyl cushion, positions it as a superior fastening solution for environments where reliability and component protection are paramount. Packaged conveniently in quantities of 25, these clamps are designed to meet the demands of high-volume industrial and maintenance applications.

Material Science: The Foundation of Durability – Cold-Rolled Carbon Steel

The fundamental strength and structural integrity of this hose clamp are derived from its cold-rolled carbon steel construction. Carbon steel, primarily an alloy of iron and carbon, is selected for its exceptional balance of strength, ductility, and cost-effectiveness. The "cold-rolled" designation refers to a manufacturing process where the steel is formed below its recrystallization temperature, typically at room temperature. This process involves passing the steel through a series of rollers, which incrementally reduces its thickness and refines its grain structure. The benefits of cold rolling are manifold and directly contribute to the superior performance of the clamp:

• Enhanced Mechanical Properties: Cold rolling significantly increases the steel's tensile strength, yield strength, and hardness, making the clamp highly resistant to deformation under stress. This is crucial for maintaining a tight, consistent grip on the secured hose or conduit over extended periods, even under dynamic loads or vibrations.
• Superior Surface Finish: The cold rolling process produces a smooth, non-porous surface finish. This attribute is not only aesthetically pleasing but also improves the adhesion and integrity of subsequent coatings, such as the zinc plating, thereby enhancing corrosion resistance.
• Improved Dimensional Accuracy and Tolerances: Cold-rolled steel exhibits tighter dimensional tolerances compared to hot-rolled steel. This precision is vital for the consistent clamping diameter of 0.813 inches and the accurate 0.531-inch bolt hole, ensuring optimal fitment and reliable performance across all units.
• Reduced Residual Stress: While cold working can introduce residual stresses, controlled processing ensures these are managed, contributing to the clamp's long-term stability and resistance to stress corrosion cracking or fatigue.
• Work Hardening: The plastic deformation inherent in cold rolling causes work hardening, which refines the microstructure and boosts the material's ability to resist further deformation, making the clamp robust against installation forces and operational pressures.

The specific grade of carbon steel chosen, while not explicitly detailed, is selected to provide the optimal balance of formability during manufacturing and rigidity in application, ensuring that the clamp can be securely fastened without yielding, yet possesses enough ductility to prevent brittle fracture under typical operational conditions. This strategic material selection underpins the clamp's reliability as a critical fastening component.

Advanced Corrosion Protection: Zinc Plating Technology

To safeguard the inherent strength of the carbon steel against environmental degradation, the clamp undergoes a sophisticated zinc plating process. Zinc plating is a widely adopted and highly effective method for preventing corrosion in steel components. The mechanism of protection is primarily twofold:

1. Sacrificial Protection (Galvanic Action): Zinc is electrochemically more active than steel. When the zinc-plated surface is exposed to a corrosive environment (e.g., moisture, electrolytes), the zinc acts as a sacrificial anode, preferentially corroding itself to protect the underlying steel cathode. This ensures that even if the plating is scratched or compromised in a small area, the steel remains protected as long as zinc is present nearby.
2. Barrier Protection: The zinc layer itself acts as a physical barrier, isolating the steel substrate from direct contact with corrosive elements. This barrier significantly delays the onset of rust and extends the operational life of the clamp.

The zinc finish applied to these clamps typically refers to electroplated zinc. This process involves immersing the steel clamps in an electrolyte solution containing zinc ions and applying an electric current. The current deposits a uniform layer of zinc onto the steel surface. The advantages of electroplated zinc include:

• Uniform Coverage: Electroplating ensures an even coating, even on complex geometries, providing consistent protection across the entire clamp surface.
• Controlled Thickness: The thickness of the zinc layer can be precisely controlled, optimizing the balance between corrosion resistance and application requirements.
• Aesthetic Appeal: Zinc plating often imparts a bright, clean metallic appearance, indicating a quality finish.

The resilience of zinc plating makes these clamps suitable for applications exposed to varying degrees of humidity, moderate chemical splashes, and outdoor conditions. Regular inspection and appropriate maintenance practices further enhance the longevity of the zinc finish, preserving the structural integrity of the clamp over its operational lifespan. This critical layer of protection is essential for maintaining secure connections in challenging environments, preventing premature failure due to corrosion.

Vibration Isolation and Abrasion Resistance: The Vinyl Cushion

A distinctive and highly functional feature of this hose clamp is its black vinyl cushion. This integrated protective layer serves multiple critical functions, enhancing both the performance and the longevity of the secured hose or conduit:

1. Abrasion Prevention: In applications involving vibration, movement, or pulsation, a metal-on-metal or metal-on-hose contact can lead to chafing and wear. The vinyl cushion creates a soft, compliant barrier between the rigid steel clamp and the potentially delicate outer surface of the hose. This effectively eliminates direct contact abrasion, protecting the hose jacket from wear, cuts, and tears that could lead to premature failure.
2. Vibration Damping and Noise Reduction: Vibrations are inherent in many mechanical systems. The elastomeric properties of vinyl allow it to absorb and dissipate kinetic energy, significantly damping vibrations transmitted from the system to the hose and vice versa. This not only protects the hose from vibration-induced fatigue but also reduces transmitted noise, contributing to a quieter operational environment.
3. Electrical Insulation: Vinyl is an excellent electrical insulator. In applications involving electrical cables or conduits, the cushion provides an additional layer of electrical isolation, preventing potential short circuits or galvanic corrosion if dissimilar metals were to come into contact.
4. Thermal Isolation: While not its primary function, the vinyl cushion can offer a degree of thermal insulation, mitigating direct heat transfer from the clamp to the hose or vice versa, especially in applications where temperature fluctuations could affect hose material integrity.
5. Chemical Resistance: Vinyl (Polyvinyl Chloride, PVC) exhibits good resistance to many chemicals, oils, and greases commonly encountered in industrial environments. This ensures the cushion maintains its protective properties even when exposed to various operational fluids.
6. Temperature Range Performance: Modern vinyl formulations are designed to maintain flexibility and integrity across a broad range of operating temperatures, ensuring consistent performance in diverse climatic and operational conditions. The black color also suggests carbon black content, which often enhances UV resistance for outdoor applications.

The precise fit of the vinyl cushion within the clamp's profile ensures full encapsulation of the secured item, providing comprehensive protection. This thoughtful design element transforms a simple fastening device into a sophisticated component that actively contributes to system reliability and extended service life by safeguarding critical fluid or electrical pathways.

Precision Engineering: Clamping and Bolt Hole Dimensions

The specified dimensions of this hose clamp are critical to its functional performance and proper integration into various systems:

1. Clamping Diameter: 13/16 Inch (0.813 inches, approximately 20.65 mm)

The 13/16 inch clamping diameter represents the nominal outside diameter of the hose, tube, or cable that this clamp is designed to securely hold. Precision in this dimension is paramount for several reasons:

• Optimal Retention: A precisely matched clamping diameter ensures a snug, secure fit. When fastened, the clamp applies uniform pressure around the circumference of the hose, preventing slippage, rotation, and dislodgement, even under dynamic conditions such as pressure surges, vibrations, or mechanical stress.
• Damage Prevention: An undersized clamp could deform or compress the hose excessively, leading to flow restrictions or structural damage to the hose wall. An oversized clamp would fail to provide adequate retention, allowing movement and potential abrasion. The 0.813-inch specification is meticulously engineered to provide firm support without compromising the hose's integrity.
• System Integrity: In fluid transfer systems, maintaining line integrity is crucial for preventing leaks, maintaining pressure, and ensuring efficient operation. For electrical conduits, a secure clamp prevents wire fatigue due to movement and protects against external damage.

The design of the clamp, including the vinyl cushion, ensures that this 0.813-inch capacity is effectively utilized to cradle and secure the hose, distributing the clamping force evenly and preventing point loads that could cause localized stress or damage.

2. Bolt Hole Diameter: 0.531 inches (approximately 17/32 inch or 13.49 mm)

The 0.531-inch bolt hole diameter dictates the size of the fastening hardware required to mount the clamp to a frame, chassis, or other structural element. This dimension is crucial for:

• Mounting Hardware Compatibility: A 0.531-inch diameter hole is typically designed to accommodate standard imperial fasteners, such as a 1/2 inch bolt (0.500 inches nominal diameter), providing sufficient clearance for easy installation while ensuring a robust connection. Alternatively, it could accommodate metric bolts like M12 (12 mm or 0.472 inches) with ample clearance. The precise clearance allows for slight misalignment during installation and prevents binding, while still allowing the bolt to center the clamp effectively.
• Load Distribution: The size of the bolt hole, in conjunction with the clamp’s material thickness and design, influences how installation and operational loads are transferred from the clamp to the mounting structure. A larger diameter bolt, compatible with this hole size, can distribute stress over a greater area, minimizing localized stress concentrations in both the clamp and the mounting surface, thereby enhancing the overall strength and reliability of the assembly.
• Versatility in Fastening: This bolt hole size offers flexibility in choosing appropriate washers, lock washers, and nuts, allowing for highly secure and vibration-resistant installations tailored to specific application requirements. For instance, a flat washer with an appropriate outside diameter would distribute the bolt head or nut pressure over the clamp's mounting tab, preventing deformation and ensuring a lasting connection.

The precise adherence to these dimensions throughout the manufacturing process ensures interchangeability and consistent performance, simplifying installation and maintenance in industrial settings.

Application Versatility and Environmental Considerations

The robust design and protective features of this cushioned hose clamp render it exceptionally versatile across a broad spectrum of industries and applications:

• Automotive and Heavy Equipment: Indispensable for securing hydraulic lines, fuel lines, brake lines, coolant hoses, and electrical harnesses in trucks, buses, construction machinery, agricultural equipment, and off-road vehicles. Its vibration damping properties are particularly beneficial in these high-vibration environments.
• Marine Applications: Suitable for securing bilge pump lines, fuel lines, and electrical wiring in boats and marine vessels, where corrosion resistance from the zinc plating is a significant advantage in saltwater or humid conditions.
• Industrial Machinery: Utilized in manufacturing plants for routing pneumatic and hydraulic tubing, electrical cables for robotics, and coolant lines for process machinery, contributing to operational safety and organization.
• HVAC Systems: Employed to secure refrigerant lines, condensate drain lines, and electrical conduits in commercial and industrial heating, ventilation, and air conditioning units, where vibration isolation and secure routing are key.
• Construction: For temporary or permanent routing of utility lines, pneumatic tool hoses, and electrical extension cables on construction sites, where durability and resistance to harsh outdoor conditions are paramount.
• Fluid Power Systems: Essential for organized and secure routing of pressure and return lines in hydraulic and pneumatic circuits, preventing hose fatigue and ensuring system integrity.

The combination of corrosion-resistant zinc plating, resilient vinyl cushioning, and high-strength cold-rolled steel enables these clamps to withstand challenging environmental factors including moisture, moderate chemical exposure, temperature variations, and mechanical stresses, ensuring prolonged reliable service.

Installation, Ergonomics, and Quality Assurance

The design of this hose clamp prioritizes ease of installation without compromising security. The open-loop design allows for easy insertion of the hose, and the single bolt hole facilitates quick and straightforward mounting to a flat surface. The presence of the vinyl cushion simplifies installation by providing a forgiving surface that accommodates the hose without the need for additional protective sleeves, streamlining assembly processes. The rigidity of the cold-rolled steel ensures that once the mounting bolt is tightened, the clamp maintains its shape and clamping force effectively.

Quality assurance is embedded throughout the manufacturing process, from the selection of high-grade carbon steel to the precision of the cold-rolling operation and the meticulous application of the zinc finish. Each clamp is manufactured to tight tolerances, guaranteeing consistent clamping diameter and bolt hole dimensions across batches. This commitment to quality ensures that every clamp performs reliably, contributing to the overall integrity and safety of the systems in which they are deployed.

Logistical Advantage: Bulk Packaging

The packaging of these hose clamps in quantities of 25 pieces offers significant logistical and operational advantages for industrial users, distributors, and maintenance departments:

• Efficient Inventory Management: Bulk packaging simplifies inventory tracking and replenishment, reducing administrative overhead.
• Reduced Handling Costs: Larger quantities per package minimize individual unit handling, leading to efficiencies in warehousing, shipping, and deployment.
• Streamlined Procurement: Facilitates purchasing for projects requiring numerous clamps, ensuring a consistent supply and potentially benefiting from bulk pricing.
• Minimized Waste: Efficient packaging typically reduces excess material, aligning with sustainable operational practices.

This practical packaging strategy underscores Buyers Products' understanding of industrial operational needs, ensuring that customers receive high-quality components efficiently and economically.

Conclusion

The Buyers Products Hose Clamp with its 13/16 inch clamping diameter and 0.531 inch bolt hole is a testament to sophisticated engineering and materials science applied to a seemingly simple component. Its foundation of cold-rolled carbon steel provides unparalleled strength and dimensional stability. The advanced zinc plating delivers robust, sacrificial corrosion protection, extending the clamp's lifespan in harsh environments. Crucially, the integrated black vinyl cushion offers superior abrasion resistance, vibration damping, and electrical isolation, safeguarding critical lines and contributing to overall system longevity and reliability. With precise dimensions, broad application versatility, and efficient bulk packaging, this hose clamp offers a premium solution for securing vital fluid, pneumatic, and electrical conduits across a multitude of demanding industrial and commercial applications, ensuring operational integrity and peace of mind.
