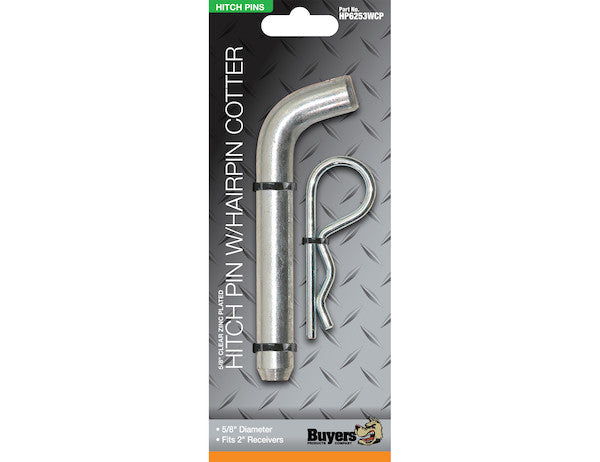

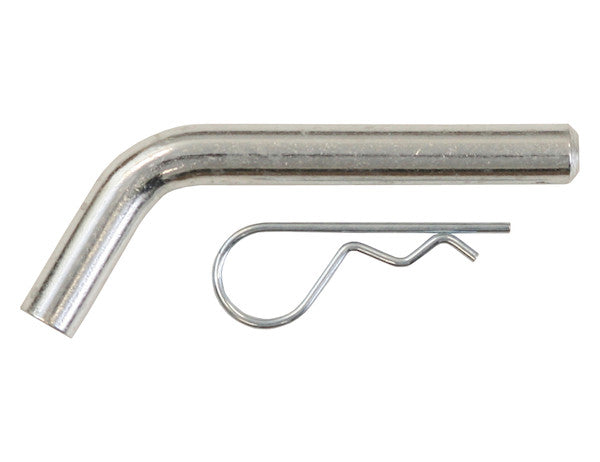

Zinc-plated hitch pins from Buyers Products are corrosion-resistant to withstand weather and road conditions. Available in various sizes to fit different receiver tubes. The hitch pins include a retaining cotter pin to keep your ball mount or other hitch-mounted accessory in place. The hitch pins can be purchased individually or in a Quick Pack box of 25. Replacement cotter pins are also available.
Specifications
| Color_1 | Silver |
|---|---|
| Diameter (in.) | 5/8 |
| Finish | Zinc Plated Clear |
| Locking (Y/N) | No |
| Material | Carbon Steel |
| Receiver Tube Size (in.) | 2 |
| Usable Pin Length (in.) | 3.316 |
The 5/8 x 3.3 Inch Clear Zinc Hitch Pin with Cotter, offered in convenient retail packaging by Buyers Products, represents a critical component in the secure and reliable operation of towing and hauling systems. Engineered for demanding applications, this hitch pin is meticulously designed to provide robust mechanical linkage between a vehicle's receiver hitch and various hitch-mounted accessories. Its technical specifications and material properties are optimized to withstand significant dynamic loads, environmental stressors, and the rigors of continuous use.
Engineering Foundation: Carbon Steel Strength
At the core of this hitch pin's structural integrity is its primary material: carbon steel. Carbon steel is a ferrous alloy comprising iron and carbon, with carbon content typically ranging from 0.05% to 2.1% by weight. The specific grade of carbon steel chosen for this application is selected for its advantageous mechanical properties, particularly its high tensile strength, excellent shear strength, and good ductility. Tensile strength refers to the maximum stress the material can withstand while being stretched or pulled before breaking, a crucial factor when a hitch pin is subjected to longitudinal pulling forces from the towed load. Shear strength, equally vital, dictates the material's ability to resist forces that cause it to deform or fracture along a plane parallel to the applied force, which is the primary mode of stress for a hitch pin securing an accessory within a receiver tube. The 5/8-inch diameter pin, crafted from high-quality carbon steel, is designed to accommodate the substantial shear stresses generated during acceleration, braking, and cornering, ensuring the secure retention of the attached equipment.
The microstructure of carbon steel, specifically the ferrite and pearlite phases present, contributes directly to its desired mechanical attributes. By controlling the carbon content and employing specific heat treatment processes, manufacturers can fine-tune the steel's hardness, toughness, and fatigue resistance. This ensures that the hitch pin not only possesses the immediate strength to bear operational loads but also exhibits resilience against cyclic loading and potential stress concentrations over its service life. The inherent robustness of carbon steel provides a foundation of reliability, minimizing the risk of failure even under adverse conditions, thereby safeguarding both equipment and personnel.
Advanced Corrosion Protection: Clear Zinc Plating Technology
A critical attribute of the 5/8 x 3.3 Inch Hitch Pin is its clear zinc-plated finish. This electroplated coating serves as a sophisticated barrier against environmental degradation, significantly extending the product's lifespan and maintaining its functional integrity and aesthetic appeal. Zinc plating is a widely adopted sacrificial coating technology, meaning the zinc layer corrodes preferentially to the underlying carbon steel base material when exposed to corrosive elements like moisture, road salts, and various atmospheric pollutants. This galvanic protection mechanism ensures that the structural integrity of the carbon steel remains uncompromised, even if the zinc coating is scratched or locally damaged.
The "clear zinc" designation typically refers to a bright, silver-like finish often achieved through a subsequent passivation process, such as a clear chromate conversion coating. This chromate layer further enhances the zinc's corrosion resistance by forming a passive film that retards the oxidation rate of the zinc. It seals microscopic pores in the zinc, providing an additional layer of protection against white rust (zinc oxide) formation and delaying the onset of red rust (iron oxide) on the steel substrate. This advanced surface treatment is rigorously tested, often via salt spray tests (e.g., ASTM B117), to quantify its resistance to corrosion, demonstrating its capability to withstand prolonged exposure to harsh weather and aggressive road conditions without significant degradation. The uniformity and adhesion of the zinc layer are meticulously controlled during the electroplating process to ensure complete coverage and durable performance, making the hitch pin a reliable choice for long-term outdoor exposure in diverse climates.
Precision Dimensional Engineering: Diameter and Usable Length
The precise dimensions of the 5/8 x 3.3 Inch Clear Zinc Hitch Pin are paramount to its proper function and compatibility. The specified 5/8-inch diameter (0.625 inches) is a standard dimension for hitch pins designed for 2-inch receiver tubes, commonly found on Class III, Class IV, and some Class V light-duty trailer hitches. This exact diameter ensures a snug yet free-fitting engagement through the receiver tube's pinholes and the corresponding bore in the shank of the hitch-mounted accessory, such as a ball mount or cargo carrier. Maintaining tight manufacturing tolerances on this diameter is critical to minimize play, which could lead to excessive wear on both the pin and the receiver, and to ensure optimal load transfer while mitigating dynamic shocks and vibrations during towing operations. A precisely toleranced fit helps distribute forces evenly across the pin's cross-section, preventing localized stress concentrations that could lead to premature material fatigue.
The usable pin length, specified as 3.316 inches, is another crucial dimension. This measurement represents the effective length from the underside of the pin head to the center of the cotter pin hole. This length is carefully calibrated to accommodate the typical wall thickness of a standard 2-inch receiver tube (which usually has a nominal internal dimension of 2 inches, but actual material thickness can vary) combined with the typical width of an accessory shank. The 3.316-inch usable length ensures that the hitch pin can pass through both the receiver and the accessory and still allow sufficient protrusion for the secure insertion of the retaining cotter pin. This precise length prevents the pin from being either too short to engage the cotter or excessively long, which could create undesirable leverage or interfere with other components. The design ensures full engagement of the accessory within the receiver, optimizing the mechanical advantage and stability of the entire towing assembly.
Secure Retention Mechanism: The Cotter Pin
Integral to the functionality and safety of the 5/8 x 3.3 Inch Hitch Pin is the inclusion of a retaining cotter pin. While the primary hitch pin provides the shear strength to carry the load, the cotter pin's role is to prevent the hitch pin from inadvertently disengaging from the receiver assembly, especially during dynamic conditions such as road bumps, vibrations, or sharp maneuvers. The cotter pin typically takes the form of a hairpin clip, an R-clip, or a split pin, designed for quick and tool-free insertion and removal. For this product, a standard cotter pin is supplied, ensuring immediate readiness for use.
The design of the cotter pin and its interaction with the main hitch pin's cross-drilled hole is a straightforward yet highly effective mechanical locking system. Once the hitch pin is inserted through the receiver and accessory, the cotter pin is passed through the hole at the distal end of the hitch pin. Its resilient spring steel construction and specific geometry (e.g., the "R" shape or bent prongs of a split pin) create a positive locking action, resisting axial forces that would otherwise allow the hitch pin to slide out. This simple, robust mechanism provides peace of mind, knowing that the ball mount, bike rack, or cargo carrier remains securely attached throughout the journey. The availability of replacement cotter pins further underscores the product's commitment to long-term serviceability and user convenience, ensuring that the primary hitch pin can continue to be utilized even if the original cotter pin is lost or damaged.
Application Versatility and Compatibility for 2-Inch Receivers
This 5/8 x 3.3 Inch Clear Zinc Hitch Pin is specifically engineered for universal compatibility with 2-inch receiver hitches, a prevalent standard across a broad spectrum of light trucks, SUVs, vans, and even some passenger cars equipped for towing. The 2-inch receiver class typically corresponds to Class III and Class IV hitches, capable of handling gross trailer weights (GTW) ranging from 5,000 lbs to 10,000 lbs, with tongue weights (TW) of 500 lbs to 1,000 lbs, respectively. This makes the hitch pin suitable for a wide array of towing and hauling applications, from recreational use to light commercial duties.
Common applications include securing:
- Ball mounts and drawbar assemblies for conventional trailer towing (e.g., utility trailers, boat trailers, travel trailers).
- Bicycle rack platforms that slide into the receiver.
- Cargo carriers and luggage baskets for additional vehicle storage.
- Tow hooks, shackles, and recovery points for off-road or emergency situations.
- Receiver-mounted winches or steps.
- Agricultural and landscaping implements designed for hitch attachment.
Operational Reliability and Longevity
The design and construction of the 5/8 x 3.3 Inch Clear Zinc Hitch Pin prioritize operational reliability and extended longevity. The combination of high-strength carbon steel and the advanced clear zinc plating ensures that the pin maintains its structural integrity and functional performance over a prolonged service life. Carbon steel's inherent fatigue resistance, coupled with proper sizing for shear and tensile loads, prevents material weakening even after countless cycles of attachment, detachment, and dynamic stress from towing. The zinc plating acts as a sacrificial layer, diligently protecting the steel core from corrosive elements encountered on roads and in varying climates, which would otherwise lead to rust, pitting, and ultimately, a compromised load-bearing capacity.
This robust construction contributes directly to reduced maintenance requirements and lower total cost of ownership. Users can depend on this hitch pin to consistently provide a secure connection, year after year, without concern for premature corrosion-induced failure or deformation under normal operating conditions. The emphasis on quality materials and protective finishes underscores a commitment to producing components that perform reliably in demanding environments, ensuring consistent safety and efficiency for all towing and hauling tasks.
Logistics and Accessibility: Retail Packaged and Bulk Options
Understanding the diverse needs of its customer base, Buyers Products offers the 5/8 x 3.3 Inch Clear Zinc Hitch Pin in flexible purchasing options. The product is readily available in individual retail packaging, designed for ease of display, clear product identification, and convenient purchase by individual consumers who require a single replacement or an initial hitch pin for a new accessory. This packaging format typically includes product information, specifications, and installation guidance, enhancing the end-user experience.
For professional users, fleet managers, distributors, or those requiring larger quantities, the hitch pin is also available in a Quick Pack box of 25 units. This bulk packaging option provides a cost-effective and efficient solution for high-volume users, minimizing packaging waste and streamlining inventory management. Furthermore, the availability of replacement cotter pins, sold separately, highlights a commitment to long-term product support and sustainability. This ensures that users can maintain their existing hitch pins and replace only specific components as needed, reducing waste and extending the functional life of the primary pin. This thoughtful approach to distribution and serviceability ensures that the right quantity of product is accessible for every type of customer, from the occasional user to large-scale commercial operations.
Safety and Best Practices
While the 5/8 x 3.3 Inch Clear Zinc Hitch Pin is engineered for maximum security and durability, adherence to best practices for installation and maintenance is crucial for optimal performance and safety. Users should always ensure that the hitch pin's diameter matches the pinhole dimensions of both the receiver tube and the accessory shank to guarantee a proper fit and minimize slop. Before each use, a visual inspection of the hitch pin should be performed to check for any signs of excessive wear, bending, cracks, or significant corrosion, particularly around the cotter pin hole and the pin's shaft. Any such indicators warrant immediate replacement of the pin.
The cotter pin must always be securely seated through the hitch pin's hole to prevent accidental disengagement. While this specific hitch pin is not a "locking" type (meaning it does not incorporate a key-operated lock to prevent theft), its mechanical retention system provides robust security against unintended separation. For situations where anti-theft measures are desired, the use of a separate locking hitch pin or padlock in conjunction with this cotter pin may be considered for added security of the attached accessory. Following these simple guidelines ensures the longevity of the hitch pin and, most importantly, the safe and reliable operation of the entire towing setup, protecting both property and human lives.
Conclusion
The 5/8 x 3.3 Inch Clear Zinc Hitch Pin with Cotter from Buyers Products stands as a testament to precision engineering, material science expertise, and practical design. Its foundation of high-grade carbon steel provides exceptional strength and shear resistance, critical for the demands of towing and hauling. This structural integrity is masterfully complemented by a clear zinc-plated finish, offering advanced sacrificial corrosion protection that ensures longevity and reliability in the face of harsh environmental conditions. With meticulously controlled dimensions, including a 5/8-inch diameter for standard 2-inch receivers and a 3.316-inch usable length, this hitch pin guarantees a secure and precise fit for a wide array of hitch-mounted accessories. The included cotter pin provides an immediate, foolproof mechanical retention system, preventing accidental disengagement under dynamic loads. Available in both individual retail packaging and bulk Quick Packs, along with accessible replacement cotter pins, Buyers Products ensures broad availability and continued serviceability. This hitch pin is not merely a fastener; it is a critical safety component, engineered for dependable performance, superior corrosion resistance, and enduring operational excellence in every towing application.
