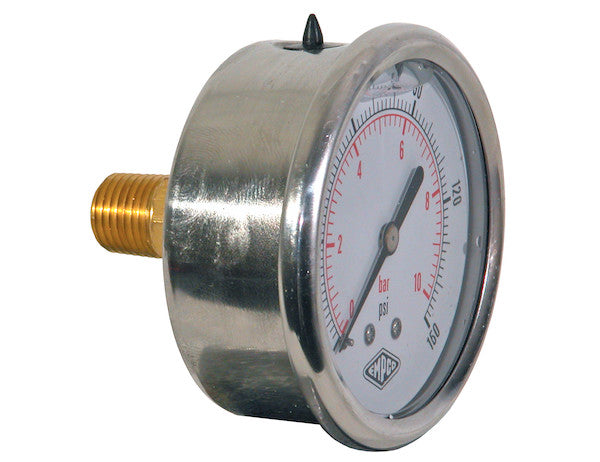

The Silicone Filled Pressure Gauge - Center Back Mount from Buyers Products stays accurate and readable in the most extreme temperatures and work conditions. The silicone also protects the delicate workings of the gauge against vibration and keeps out dirt and condensation. The dual scale, 2-1/2 in. diameter gauge has a stainless steel case and bezel. It contains a built-in relief valve to protect the device from pressures higher than its rated maximum. The gauge has an accuracy within 1.6%. Choose from two gauges measuring up to either 160 PSI or 300 PSI.
Specifications
| Built-In Relief? | Yes |
|---|---|
| Diameter | 2.5 |
| Pressure Range | 160 |
| Silicone Filled? | Yes |
| Style | Center Back |
| Thread | 1/4 NPT |
Advanced Technical Overview: Silicone Filled Pressure Gauge - Center Back Mount 0-160 PSI
The Buyers Products Silicone Filled Pressure Gauge, specifically the 0-160 PSI variant with a Center Back Mount, represents a robust and precisely engineered instrument designed for the rigorous demands of industrial, commercial, and mobile hydraulic/pneumatic applications. This gauge integrates several critical features that enhance its performance, longevity, and accuracy, particularly in environments characterized by significant vibration, pulsation, temperature extremes, and the presence of corrosive elements or particulate matter. Its design philosophy centers on providing reliable pressure indication where standard dry gauges would falter or degrade rapidly.
The Strategic Advantage of Silicone Filling
The most distinguishing characteristic of this pressure gauge is its silicone fluid filling. This proprietary design choice is not merely an additive but a fundamental engineering solution to several common challenges faced by pressure measurement devices in demanding operational settings. Silicone, a synthetic polymer, offers a superior performance profile compared to other common filling fluids like glycerin, especially across a broader temperature spectrum and in applications requiring exceptional vibration dampening.
1. Superior Vibration and Pulsation Dampening
In many industrial and mobile applications, machinery generates continuous mechanical vibration and pressure pulsations within the system. These forces can cause the pointer of a dry pressure gauge to oscillate rapidly, making it exceedingly difficult to obtain an accurate and stable reading. Furthermore, persistent vibration can accelerate wear on the delicate internal components of the gauge, such as the Bourdon tube, movement gears, and pivot points, leading to premature failure and inaccurate measurements over time.
The silicone fluid within the gauge case acts as a highly effective dampening medium. It hydraulically cushions the internal mechanism, significantly reducing the amplitude and frequency of pointer oscillation. This allows for stable, precise, and easily readable pressure indications, even in conditions of severe mechanical vibration or rapid pressure cycling. By absorbing and dissipating kinetic energy, the silicone fluid substantially mitigates mechanical stress on the gauge's internal parts, thereby extending its operational lifespan and maintaining its calibrated accuracy for longer periods.
2. Enhanced Performance in Extreme Temperatures
Operational environments often expose equipment to wide fluctuations in temperature, from sub-zero conditions to elevated heat. Unlike glycerin, which can become highly viscous and even freeze at lower temperatures (typically below -4°F / -20°C), or thin excessively at high temperatures, silicone fluid maintains a remarkably stable viscosity across an exceptionally broad temperature range. This property ensures consistent dampening performance and fluidity from extreme cold to significant heat, allowing the gauge to remain accurate and responsive without becoming sluggish or erratic. This characteristic is particularly vital for equipment operating outdoors in diverse climates or within process streams subject to significant thermal variations. The stability of silicone prevents internal components from being impeded by thickened fluid or inadequately lubricated by thinned fluid, guaranteeing reliable operation regardless of thermal challenges.
3. Protection Against Contaminants and Condensation
The sealed, liquid-filled case provides a hermetic barrier that effectively prevents the ingress of atmospheric moisture, dust, dirt, and other airborne contaminants into the gauge's delicate internal mechanism. In dry gauges, these elements can accumulate, leading to corrosion, abrasive wear on gears, and ultimately, instrument malfunction or failure. The silicone filling eradicates the possibility of internal condensation, which can lead to fogging of the dial, making readings impossible, and promoting internal corrosion. By maintaining a clean, stable internal environment, the silicone filling significantly enhances the durability and long-term reliability of the pressure gauge.
4. Internal Component Lubrication and Wear Reduction
While the primary role of the fluid is dampening and protection, the silicone also provides a degree of continuous lubrication to the intricate geared movement. This lubrication reduces friction and wear on the pivots and gears, which are constantly in motion as the Bourdon tube deflects. The reduction in wear contributes directly to the gauge's sustained accuracy and extends its service life, minimizing the need for premature replacement or recalibration.
Robust Construction and Design Specifications
The overall construction of the Buyers Products Silicone Filled Pressure Gauge reflects a commitment to durability and sustained performance in challenging environments.
Stainless Steel Case and Bezel
The gauge features a robust 2.5-inch diameter case and bezel constructed from stainless steel. Stainless steel is chosen for its exceptional resistance to corrosion, rust, and chemical degradation, particularly important in outdoor or corrosive industrial settings. Its inherent strength provides superior protection against physical impact and deformation, ensuring the integrity of the internal components. The polished finish of stainless steel also contributes to a professional aesthetic, suitable for integration into high-quality machinery and control panels.
Dual Scale and Readability

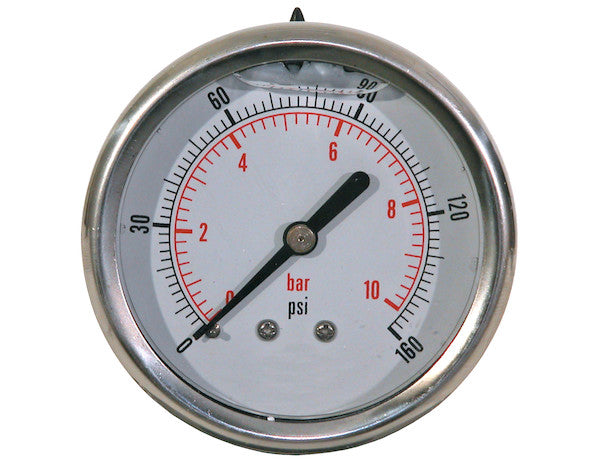

The 2.5-inch diameter dial offers a clear and legible display. It incorporates a dual scale, presenting pressure readings in both Pounds per Square Inch (PSI) and an equivalent metric unit (typically Kilopascals kPa or Bar). This dual scaling enhances versatility, allowing operators accustomed to different measurement systems to quickly and accurately interpret readings. The contrasting markings and clear pointer ensure excellent readability, even from a distance or in varying light conditions. The specific range of this model, 0-160 PSI, is ideal for a broad spectrum of low to moderate pressure hydraulic and pneumatic systems.
Center Back Mount with 1/4 NPT Thread
This gauge employs a Center Back Mount configuration, which is a common and highly practical mounting style for many industrial and mobile applications. This design allows the gauge to be directly screwed into a female NPT port at the back of the instrument, often integrating seamlessly into a manifold, pump outlet, or control panel. The 1/4 NPT (National Pipe Taper) thread is a widely recognized and standardized connection type, ensuring broad compatibility with existing plumbing and system components. The tapered design of NPT threads facilitates a secure, leak-tight seal when properly installed with an appropriate thread sealant, crucial for maintaining system integrity and preventing pressure loss.
Precision and Safety Features
Beyond its robust construction, the Buyers Products pressure gauge integrates features critical for accuracy and operational safety.
Accuracy Within 1.6%
The gauge boasts an accuracy rating of 1.6%. In the context of pressure gauges, accuracy is typically specified as a percentage of the full-scale range (FSR). For a 0-160 PSI gauge, an accuracy of 1.6% means that the maximum permissible error in any reading across the entire scale will be ±(1.6% of 160 PSI) = ±2.56 PSI. This level of accuracy is classified as a Grade B accuracy per ASME B40.100 standards, making it suitable for a wide range of general industrial and commercial applications where precise monitoring is required but ultra-high precision laboratory-grade instruments are not necessary. This accuracy is more than sufficient for monitoring operating pressures in hydraulic lines, pneumatic circuits, compressors, and various processing equipment, ensuring that operators can make informed decisions regarding system performance and safety.
Built-in Relief Valve
A critical safety and longevity feature of this gauge is its built-in relief valve. This valve is designed to vent internal case pressure that can build up due to rapid temperature changes or over-pressurization conditions. Rapid thermal expansion of the silicone fluid or the ingress of process media into the case (in the event of Bourdon tube failure) can lead to significant pressure accumulation inside the gauge case. Without a relief mechanism, this internal pressure could potentially cause the lens to rupture or the case to deform, posing a safety hazard and damaging the instrument. The relief valve automatically releases this excess pressure, protecting the gauge from internal damage, maintaining the integrity of the instrument, and preventing potential injury from uncontrolled pressure release. This thoughtful inclusion underscores the gauge's design for safety and reliability under demanding conditions.
Fundamentals of Bourdon Tube Pressure Measurement
At the heart of this pressure gauge lies the time-tested Bourdon tube mechanism. A Bourdon tube is a C-shaped or helical tube, typically made of brass, phosphor bronze, or stainless steel for increased chemical resistance and durability. One end of the tube is fixed and connected to the process pressure, while the other end is sealed and free to move. As pressure is applied, the Bourdon tube attempts to straighten out, and this deformation is proportional to the applied pressure. This mechanical movement of the free end is then translated, via a system of levers and gears (the movement), into the rotational movement of the pointer across a calibrated dial. The precision of the Bourdon tube's material, its manufacturing, and the quality of the gearing system all contribute to the gauge's overall accuracy and responsiveness. In silicone-filled gauges, the fluid helps to dampen the movement of the pointer, reducing the stress on these delicate mechanical linkages.
Ideal Applications
The specific features and robust construction of the Silicone Filled Pressure Gauge make it exceptionally well-suited for a variety of demanding applications:
- Mobile Hydraulic Equipment: Construction machinery, agricultural vehicles, municipal service trucks (e.g., snowplows, refuse trucks) where vibration, shock, and outdoor temperature fluctuations are constant.
- Hydraulic Power Units: Monitoring pressure in pumps, filters, and actuators in industrial hydraulic systems.
- Pneumatic Systems: Indicating pressure in air compressors, air lines, and pneumatic tools, especially in dusty or humid environments.
- HVAC/R Systems: Though more commonly seen with front flange mounts, center back mount gauges can be used in specific panel or manifold applications for refrigerant or air pressure monitoring where conditions are harsh.
- Process Industry: Applications in manufacturing, chemical processing, or water treatment facilities where moderate accuracy and high durability against environmental factors are paramount.
- Material Handling Equipment: Forklifts, conveyors, and other machinery where fluid pressure monitoring is crucial for safe and efficient operation.
Installation and Maintenance Best Practices
To maximize the performance and longevity of the Silicone Filled Pressure Gauge, proper installation and mindful maintenance are essential. When installing, always use an appropriate thread sealant (e.g., PTFE tape or liquid sealant) on the 1/4 NPT thread to ensure a leak-free connection. Avoid over-tightening, as this can damage the threads or deform the gauge connection. The gauge should be installed in a location that is easily visible to operators and where it is not subject to direct impact or excessive heat radiation. For optimal accuracy and lifespan, it is generally recommended to select a gauge with a full-scale range that is approximately twice the normal operating pressure, ensuring that the typical operating pressure falls within the middle 25-75% of the gauge's scale. While these gauges are designed for minimal maintenance, periodic visual inspection for any signs of case damage, lens fogging, or pointer malfunction is advisable. Recalibration is typically not required for this class of gauge unless accuracy deviations are observed or regulatory compliance mandates it.
Why Choose Buyers Products
Buyers Products has a long-standing reputation for manufacturing high-quality, durable equipment designed to withstand the rigors of commercial and industrial use. This Silicone Filled Pressure Gauge exemplifies that commitment, combining advanced fluid-dampening technology with robust stainless steel construction and essential safety features. Choosing this gauge means investing in a reliable instrument that provides accurate readings under the most challenging conditions, reduces maintenance frequency, and contributes to the overall safety and efficiency of your operations. Its thoughtful design, from the choice of silicone filling to the built-in relief valve, ensures consistent performance and extended service life, offering exceptional value and peace of mind.
