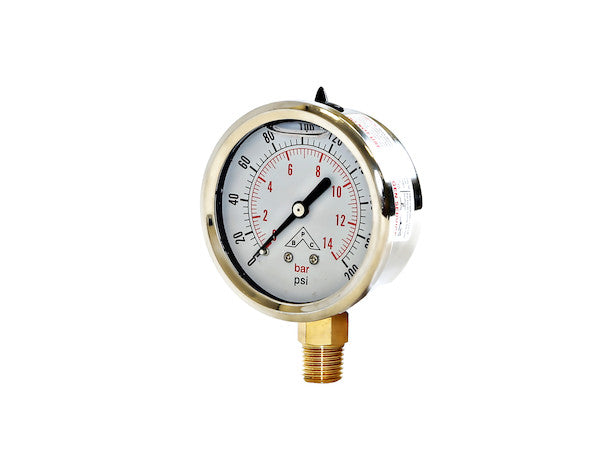

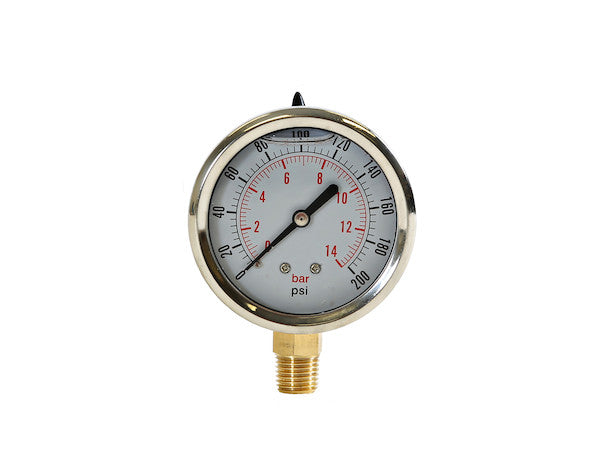

HPGS200 - Silicone Filled Pressure Gauge - Stem Mount 0-200 PSI

The Silicone Filled Pressure Gauge - Stem Mount from Buyers Products maintains accuracy and readability in the most extreme temperatures and work conditions. The silicone also protects the delicate workings of the gauge against vibration and keeps out dirt and condensation. The dual scale, 2-1/2 in. diameter gauge has a stainless steel case and bezel, and features a built-in relief valve. Its stem fits a standard 1/4 in. NPT. The gauge has an accuracy within 1.6%. Choose from a range of gauges measuring from 0-100 PSI to 0-10,000 PSI.

Specifications

The Silicone Filled Pressure Gauge - Stem Mount, specifically engineered for the 0-200 PSI range, represents a pinnacle of precision instrumentation designed for demanding industrial and commercial applications. This particular model, with its robust construction and innovative silicone-filling technology, is a critical component for monitoring hydraulic, pneumatic, and process pressures where accuracy, durability, and sustained performance are paramount. Its design directly addresses common challenges faced by pressure gauges in harsh operating environments, ensuring reliable data acquisition under conditions that would compromise standard dry gauges.

At the core of this gauge's superior performance is its silicone filling. This specialized silicone fluid completely immerses the delicate internal mechanisms, primarily the Bourdon tube and movement gears. The primary function of this viscous fluid is to provide exceptional dampening against mechanical vibrations and pulsations, which are ubiquitous in machinery such as heavy equipment, industrial pumps, compressors, and hydraulic systems. In a dry gauge, constant vibration can cause the pointer to oscillate erratically, making accurate readings difficult or impossible. More critically, prolonged vibration leads to accelerated wear of the gauge's internal gears and pivots, resulting in premature failure and drift in calibration. The silicone fluid absorbs and dissipates these kinetic energies, stabilizing the pointer for clear, instantaneous readings and significantly extending the operational lifespan of the instrument. This vibration dampening also protects against the destructive effects of pressure spikes and surges, which can overstress the Bourdon tube and lead to permanent deformation or fatigue failure.

Beyond vibration suppression, the silicone filling provides crucial protection against environmental ingress. Industrial environments are often characterized by the presence of dust, dirt, moisture, and corrosive vapors. A dry gauge's case, while typically sealed, can still be susceptible to micro-leakage over time, allowing contaminants to enter and foul the precision components. Condensation, especially in environments with fluctuating temperatures and high humidity, is another significant threat. Water vapor can condense inside the gauge, leading to rust, corrosion, and the formation of ice at low temperatures, all of which impede the movement and compromise accuracy. The silicone fill acts as an impenetrable barrier, preventing dirt particles, moisture, and corrosive substances from reaching the critical internal parts, thus maintaining the gauge's integrity and long-term accuracy. This sealing capability is particularly beneficial in outdoor applications, wash-down areas, and process industries where cleanliness and resistance to aggressive media are essential.

Temperature stability is another vital advantage conferred by the silicone filling. Extreme temperature fluctuations, from sub-zero conditions to elevated operational temperatures, can significantly affect the accuracy of pressure gauges. The thermal expansion and contraction of metallic components within a gauge can cause calibration drift. While silicone fluid itself has a coefficient of thermal expansion, its presence helps to mitigate rapid temperature changes, providing a more stable thermal environment for the internal mechanism. Furthermore, in very cold conditions, the silicone fluid resists freezing, ensuring the gauge remains operational where water-based condensation would freeze and render a dry gauge inoperable. For applications exposed to extreme hot or cold, the silicone-filled design ensures the gauge maintains its specified accuracy across a broader operational temperature range, minimizing the need for frequent recalibration or replacement due to thermal stress.

The construction of this 2-1/2 inch diameter gauge is meticulously designed for industrial robustness. Its case and bezel are manufactured from high-grade stainless steel. Stainless steel is chosen for its exceptional resistance to corrosion, rust, and chemical attack, making it suitable for a vast array of aggressive media and ambient conditions. This material ensures that the external structure of the gauge remains intact and aesthetically presentable even after prolonged exposure to harsh elements, impact, or chemical splashes. The 2-1/2 inch diameter dial provides an optimal balance between readability and physical footprint, offering a clear, unambiguous display of pressure without occupying excessive space on a control panel or equipment. The dial features a dual scale, presenting pressure readings in both Pounds per Square Inch (PSI) and typically Bar or Kilopascals (kPa). This dual-scale functionality enhances versatility, catering to operators who may be accustomed to different units of measurement or systems that require conversion, thereby reducing the potential for error and simplifying global deployment.

The pressure measurement mechanism itself, common to many industrial gauges, utilizes a Bourdon tube. As pressure is applied to the Bourdon tube, its curved, elliptical cross-section tends to straighten. This minute mechanical deformation is then amplified by a precision gear and linkage mechanism, translating the Bourdon tube's movement into the rotational motion of the pointer across the calibrated dial. The quality of these internal components, combined with the protective and dampening effects of the silicone fill, is critical for achieving and maintaining the specified accuracy of 1.6% of full scale. This accuracy rating, often conforming to industry standards like ANSI B40.100 Grade B, indicates that the maximum permissible error across the entire range (0-200 PSI in this case) is ±1.6% of 200 PSI, which is ±3.2 PSI. For many industrial processes, this level of precision is more than adequate for operational monitoring, safety interlocks, and process control feedback, providing reliable data for informed decision-making.

The stem mount configuration of this gauge, featuring a standard 1/4 inch NPT (National Pipe Taper) thread, offers a secure and widely compatible connection method. Stem mounts are ideal for direct installation into process lines, hydraulic blocks, or pneumatic manifolds where the gauge needs to be oriented in line with the pressure source. The 1/4 inch NPT thread is a globally recognized standard for industrial instrumentation, ensuring ease of integration with existing plumbing and minimizing the need for specialized adapters. The tapered design of NPT threads creates a mechanically strong and leak-tight seal when properly installed with sealant, preventing media leakage and maintaining system integrity. Proper installation involves adequate torque and the use of appropriate thread sealants to ensure a reliable connection that can withstand the operational pressures and vibrations without loosening.

A crucial safety and operational feature integrated into this pressure gauge is the built-in relief valve. This valve is designed to vent internal pressure buildup within the gauge case itself. While the silicone filling is beneficial, it is a fluid and subject to thermal expansion. In situations where the ambient temperature rapidly increases, the silicone fluid can expand, creating an internal pressure within the sealed gauge case. Without a relief mechanism, this internal pressure could potentially stress the case, deform the delicate internal components, or even cause the lens to fracture. The relief valve automatically releases this excess internal pressure, ensuring the integrity of the gauge and preventing damage, thereby enhancing both safety and longevity. This feature is particularly important in applications experiencing significant temperature cycling.

The 0-200 PSI pressure range makes this specific gauge highly suitable for a broad spectrum of low to medium pressure applications. Common uses include monitoring line pressure in compressed air systems, regulating pressure in pneumatic tools and machinery, checking hydraulic return line pressures, general water and fluid pumping systems, HVAC applications, and various types of process equipment that operate within this specific pressure envelope. For systems requiring higher pressure monitoring, the Buyers Products line offers a comprehensive range of gauges extending up to 0-10,000 PSI, ensuring that specific application requirements can be met with the same level of quality and robust design.

The comprehensive benefits of selecting the Silicone Filled Pressure Gauge - Stem Mount 0-200 PSI extend to reduced total cost of ownership (TCO). While the initial investment might be slightly higher than a basic dry gauge, the significantly extended service life, reduced downtime for maintenance or replacement, and consistent accuracy translate into substantial long-term savings. Less frequent recalibration, minimal risk of internal damage from environmental factors, and reliable performance under challenging conditions all contribute to a lower operational expenditure over the gauge's lifecycle. Its rugged design minimizes the potential for catastrophic failure in critical systems, thereby safeguarding equipment and personnel, and preventing costly process interruptions. This makes it an ideal choice for industries where reliability and safety cannot be compromised, such as manufacturing, transportation, construction, agriculture, and municipal services.

In summary, the Silicone Filled Pressure Gauge - Stem Mount 0-200 PSI from Buyers Products is more than just a pressure indicator; it is a meticulously engineered instrument designed for superior performance and longevity in the most demanding operational contexts. Its silicone filling technology provides unparalleled protection against vibration, pulsation, dirt, moisture, and temperature fluctuations, ensuring consistent accuracy and readability. The stainless steel construction offers robust corrosion resistance, while the 2-1/2 inch dual-scale dial provides clear and versatile pressure readings. With its standard 1/4 inch NPT stem mount and integrated relief valve, this gauge offers ease of installation, operational safety, and long-term reliability. For applications within the 0-200 PSI range where environmental resilience and unwavering accuracy are non-negotiable, this gauge stands as an exemplary choice, delivering precise pressure monitoring capabilities that contribute significantly to operational efficiency, equipment protection, and overall system integrity.
