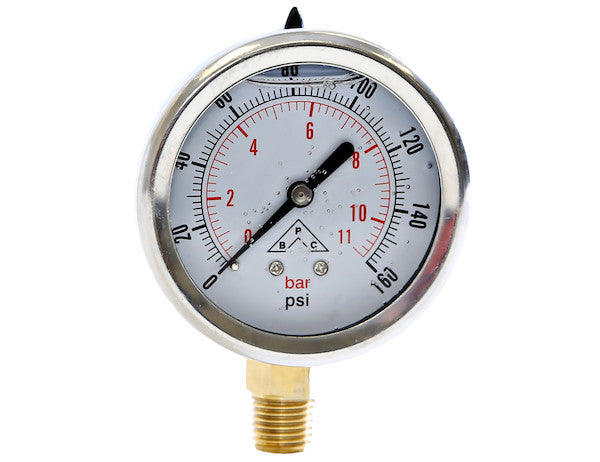

The Silicone Filled Pressure Gauge - Stem Mount from Buyers Products maintains accuracy and readability in the most extreme temperatures and work conditions. The silicone also protects the delicate workings of the gauge against vibration and keeps out dirt and condensation. The dual scale, 2-1/2 in. diameter gauge has a stainless steel case and bezel, and features a built-in relief valve. Its stem fits a standard 1/4 in. NPT. The gauge has an accuracy within 1.6%. Choose from a range of gauges measuring from 0-100 PSI to 0-10,000 PSI.
Specifications
| Built-In Relief? | Yes |
|---|---|
| Diameter | 2.5 |
| Pressure Range | 300 |
| Silicone Filled? | Yes |
| Style | Stem |
| Thread | 1/4 NPT |
In industrial, commercial, and mobile applications, the accurate and reliable measurement of fluid pressure is paramount for operational efficiency, safety, and equipment longevity. The Buyers Products Silicone Filled Pressure Gauge, specifically the Stem Mount 0-300 PSI model, represents a precision instrument engineered to meet these rigorous demands. This gauge is designed not just to display pressure, but to perform consistently and accurately in the most challenging environmental and operational conditions, offering a robust solution for a multitude of hydraulic, pneumatic, and process control systems.
The core innovation behind this particular pressure gauge is its silicone filling. Unlike traditional dry gauges, the internal mechanism of this instrument is fully immersed in a high-grade silicone fluid. This feature is not merely an enhancement; it is a critical engineering solution that addresses several common failure points and performance limitations of standard pressure gauges. The silicone acts as a powerful dampening agent, effectively absorbing and dissipating the energy from system vibrations and pressure pulsations. In dynamic systems, such as those found in heavy machinery, construction equipment, or hydraulic presses, constant vibrations can cause the gauge pointer to oscillate erratically, making accurate readings difficult or impossible. More critically, these vibrations induce mechanical stress and wear on the delicate gears, linkages, and Bourdon tube movement within the gauge, leading to premature failure and loss of calibration. The silicone fluid encapsulates these components, providing a viscous buffer that stabilizes the pointer, ensures clear readability, and dramatically extends the operational lifespan of the gauge by protecting its intricate mechanics from fatiguing forces.
Beyond vibration dampening, the silicone filling provides exceptional protection against extreme temperatures. The stable viscosity characteristics of silicone fluid across a broad temperature spectrum ensure that the dampening effect remains consistent whether the gauge is operating in frigid arctic conditions or blistering desert heat. Furthermore, the fluid acts as a thermal conductor, helping to equalize internal temperatures and dissipate localized heat, thereby improving the overall accuracy and stability of the measurement in varying ambient conditions. In environments where temperatures fluctuate significantly, the internal air within a dry gauge can condense, leading to moisture ingress, fogging of the dial, and potential corrosion of internal components. The hermetically sealed, liquid-filled case of the silicone gauge prevents such condensation and moisture penetration, ensuring the internal workings remain pristine and the dial remains clear and legible at all times. This protection also extends to keeping out airborne contaminants like dust, dirt, and corrosive fumes, which can degrade sensitive mechanisms over time, further cementing the silicone-filled design as superior for harsh applications.
The construction of the Buyers Products Silicone Filled Pressure Gauge prioritizes durability and resilience. It features a robust 2-1/2 inch diameter case and bezel, both meticulously crafted from high-grade stainless steel. Stainless steel, particularly grades like 304 or 316 (commonly used for such applications due to their excellent properties), is renowned for its superior resistance to corrosion, rust, and chemical degradation. This makes the gauge ideal for deployment in environments exposed to moisture, saltwater, caustic chemicals, or demanding outdoor conditions, where painted or lesser quality metallic cases would quickly succumb to wear and deterioration. The inherent strength of stainless steel also provides exceptional mechanical protection, safeguarding the delicate internal components from physical impacts, abrasions, and other forms of mechanical stress common in industrial settings. The sleek, professional aesthetic of stainless steel also contributes to a clean and modern appearance that endures over time, reflecting the quality and reliability of the equipment it monitors.
Functionality is further enhanced by the gauge's dual scale display. This feature allows for pressure readings to be easily interpreted in two common units of measurement, typically Pounds per Square Inch (PSI) and Bar (or kilopascals, kPa). This versatility is invaluable in multinational operations, diverse engineering teams, or systems that interface with components from various global manufacturers, eliminating the need for conversions and reducing the potential for error. The 2-1/2 inch diameter dial provides an optimal balance between readability and compactness. It is large enough to ensure clear visibility of the dual scale and pointer from a reasonable distance, even under dynamic operating conditions, yet sufficiently compact to integrate seamlessly into crowded control panels or equipment without occupying excessive space.
A crucial safety and performance feature integrated into this gauge is the built-in relief valve. In liquid-filled gauges, temperature fluctuations can cause the internal filling fluid to expand and contract. Without a mechanism to equalize the internal and external pressure, this expansion can lead to pressure build-up within the gauge case, potentially causing the lens to crack or detach, or even distorting the gauge's internal components, leading to inaccurate readings or complete failure. The relief valve, typically a small rubber plug or diaphragm, automatically vents any excess internal pressure, ensuring the integrity of the gauge case and maintaining the accuracy of the readings. This feature is a testament to thoughtful engineering, providing an essential layer of protection for both the instrument and the operational environment, especially critical in applications where precise and stable measurements are non-negotiable.
The "Stem Mount" design, coupled with a standard 1/4 inch NPT (National Pipe Taper) thread, highlights the gauge's universal compatibility and ease of installation. A stem mount configuration means the gauge connects directly to the pressure port of the system via its threaded stem. This direct connection minimizes external tubing or mounting brackets, resulting in a more compact, robust, and aesthetically integrated installation. The 1/4 inch NPT thread is an industry-standard tapered pipe thread, widely utilized across North America for hydraulic, pneumatic, and general process connections. Its tapered design creates a secure, leak-tight seal when properly installed with an appropriate thread sealant (such as PTFE tape or pipe dope), ensuring reliable pressure transmission to the gauge's Bourdon tube without loss of media or accuracy. This standardization simplifies procurement, installation, and replacement, making it a highly practical choice for engineers and technicians.
The stated accuracy of "within 1.6%" refers to the gauge's precision relative to its full-scale deflection (FSD). For a 0-300 PSI gauge, this means the maximum error will not exceed 1.6% of 300 PSI, which is 4.8 PSI. This level of accuracy classifies the gauge as Class 1.6 in accordance with international standards (e.g., EN 837-1 or ASME B40.100 Grade B), indicating a professional-grade instrument suitable for a wide array of industrial and commercial applications where precise monitoring is required but ultra-high precision laboratory-grade instruments are not necessary. Factors contributing to this accuracy include the quality of the Bourdon tube material and manufacturing, the precision of the gear and pinion movement, and the dampening effects of the silicone filling that minimize pointer jitter and hysteresis. Maintaining this accuracy is crucial for optimizing system performance, ensuring product quality, preventing over-pressurization, and safeguarding personnel and equipment.
While this specific model is calibrated for a range of 0-300 PSI, making it ideal for applications such as standard compressed air lines, medium-pressure hydraulic circuits, water pumps, and various pneumatic tools and systems, Buyers Products offers a comprehensive selection of these silicone-filled gauges. This range extends from lower pressures (0-100 PSI) suitable for vacuum systems or sensitive low-pressure monitoring, up to very high pressures (0-10,000 PSI) required for heavy-duty hydraulic presses, power units, and specialized industrial machinery. When selecting a pressure gauge, it is crucial to choose a range where the normal operating pressure falls within the middle 25% to 75% of the full-scale range. For a 0-300 PSI gauge, this suggests optimal operation between approximately 75 PSI and 225 PSI, allowing for accurate readings while also providing headroom for potential pressure spikes without exceeding the gauge's limits and ensuring longevity.
The versatility and robustness of this Silicone Filled Pressure Gauge make it indispensable across numerous industries. In hydraulic systems, it accurately monitors working pressures in cylinders, pumps, and valves on excavators, forklifts, agricultural machinery, and industrial automation equipment. For pneumatic systems, it ensures precise control of air pressure in compressors, air tools, braking systems, and automated assembly lines. Beyond these, its applications extend to HVAC/R systems for refrigerant pressure monitoring, water and wastewater treatment plants for pipeline pressure management, process control systems in chemical and manufacturing industries, and various specialized vehicles and marine applications where vibration and environmental exposure are constant threats to standard gauges. The ability to withstand harsh conditions while providing consistent, reliable data makes it a preferred choice for critical infrastructure and demanding operational contexts.
Proper installation is vital to maximize the performance and lifespan of the gauge. Before installation, it is recommended to inspect the gauge for any signs of damage. When connecting the 1/4 inch NPT stem, ensure that an appropriate thread sealant, such as PTFE tape (applied clockwise to the male threads, leaving the first thread clear), or a liquid pipe sealant, is used to ensure a leak-free connection. Care must be taken to tighten the gauge sufficiently to prevent leaks, but overtightening should be avoided as it can deform the threads or internal components, potentially leading to inaccurate readings or premature failure. The gauge should be mounted in a location that is easily visible for operators and protected from direct physical impact if possible. While the silicone filling provides excellent vibration dampening, in applications with extreme, high-frequency vibrations, consideration of additional vibration isolators or remote mounting with a capillary tube may further enhance longevity and readability.
Maintenance for the Silicone Filled Pressure Gauge is minimal due to its durable construction and liquid filling. Periodic visual inspection for any external damage to the case or lens, or for any signs of fluid leakage, is recommended. The stainless steel case can be cleaned with mild detergents to maintain its appearance. Unlike dry gauges that might require more frequent recalibration due to wear from vibration, the silicone-filled design inherently reduces internal component wear, extending calibration intervals. However, for critical applications, scheduled calibration checks by a certified laboratory are still advisable to ensure continued adherence to the 1.6% accuracy specification. Proper storage in a clean, dry environment when not in use will also contribute to its long-term reliability.
In conclusion, the Buyers Products Silicone Filled Pressure Gauge - Stem Mount 0-300 PSI is a testament to intelligent engineering designed for the most demanding environments. Its innovative silicone filling provides unparalleled protection against vibration, temperature extremes, and environmental contaminants, ensuring consistent accuracy and extended operational life. Coupled with its robust stainless steel construction, dual scale readability, integrated relief valve, and industry-standard mounting, this gauge offers a superior solution for critical pressure monitoring. Investing in this high-quality instrument means investing in the reliability, safety, and efficiency of your hydraulic, pneumatic, or process control systems, providing peace of mind and dependable performance in any challenging application.
