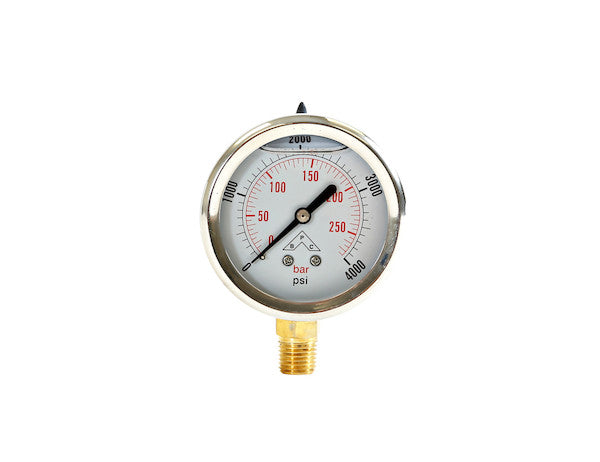

The Silicone Filled Pressure Gauge - Stem Mount from Buyers Products maintains accuracy and readability in the most extreme temperatures and work conditions. The silicone also protects the delicate workings of the gauge against vibration and keeps out dirt and condensation. The dual scale, 2-1/2 in. diameter gauge has a stainless steel case and bezel, and features a built-in relief valve. Its stem fits a standard 1/4 in. NPT. The gauge has an accuracy within 1.6%. Choose from a range of gauges measuring from 0-100 PSI to 0-10,000 PSI.
Specifications
| Built-In Relief? | Yes |
|---|---|
| Diameter | 2.5 |
| Pressure Range | 4000 |
| Silicone Filled? | Yes |
| Style | Stem |
| Thread | 1/4 NPT |
Advanced Technical Overview: Silicone Filled Pressure Gauge - Stem Mount 0-4,000 PSI
The Silicone Filled Pressure Gauge with a Stem Mount, specifically engineered for a 0-4,000 PSI range, represents a robust and highly reliable instrument designed to meet the rigorous demands of industrial and mobile hydraulic and pneumatic systems. This precision-engineered device from Buyers Products is more than just a pressure indicator; it is a critical component for maintaining operational efficiency, ensuring safety, and extending the lifespan of complex machinery in environments where conventional gauges often fail. Its design integrates advanced material science with precision mechanical engineering, setting a benchmark for durability and sustained accuracy.
The Imperative of Silicone Filling: A Deep Dive into Performance Enhancement
The defining characteristic of this pressure gauge is its silicone filling. This feature is not a mere additive but a fundamental engineering choice that profoundly impacts the gauge’s performance, longevity, and reliability. Unlike dry gauges or even those filled with glycerin, silicone fluid offers superior advantages across a broader spectrum of operational challenges. At its core, the silicone filling acts as a sophisticated damping mechanism. In environments characterized by high-frequency vibrations, sudden pressure surges, or mechanical shocks, the internal movement and pointer of a dry gauge would oscillate erratically, rendering accurate readings impossible and accelerating wear on delicate components. The high-viscosity silicone fluid encapsulates these components, effectively absorbing and dampening these vibrations. This viscous damping significantly stabilizes the pointer, allowing for consistent and precise pressure readings even under severe dynamic conditions. This stability is critical for operators who must make real-time decisions based on accurate gauge feedback, directly contributing to operational safety and efficiency.
Beyond vibration damping, silicone offers unparalleled performance across extreme temperature variations. Its stable viscosity profile ensures that the damping characteristics remain consistent from sub-zero conditions to elevated operational temperatures. Glycerin, a common alternative, can become excessively viscous at low temperatures, impeding pointer movement, or thin out significantly at high temperatures, reducing its damping effectiveness. Silicone's thermal stability ensures the gauge maintains its responsiveness and accuracy irrespective of ambient or process temperature fluctuations. This makes the Silicone Filled Pressure Gauge an ideal solution for outdoor applications, cold storage facilities, high-heat processing plants, and mobile equipment exposed to diverse climatic conditions.
Furthermore, the silicone filling acts as an internal sealant, protecting the intricate mechanical workings of the bourdon tube and movement from external contaminants. The sealed case, combined with the inert nature of silicone, prevents the ingress of dust, moisture, and corrosive agents that are ubiquitous in industrial settings. This internal protection significantly extends the operational life of the gauge by preventing premature wear, corrosion, and fouling of the gears and linkages. It also eliminates the potential for condensation formation inside the gauge case, which can obscure the dial and lead to internal corrosion, particularly in environments with significant temperature cycling or high humidity. The transparent, non-yellowing property of silicone also ensures long-term clarity of the dial, preserving readability throughout the gauge's service life.
Robust Construction: Stainless Steel Case and Bezel
The exterior integrity of a pressure gauge is as crucial as its internal mechanisms. This 2-1/2 inch diameter gauge features a robust stainless steel case and bezel, a deliberate material selection driven by the need for exceptional durability and corrosion resistance. Stainless steel, typically grade 304 or 316, is renowned for its ability to withstand harsh chemical exposures, saltwater environments, and general atmospheric corrosion. This makes the gauge suitable for applications in marine, chemical processing, food and beverage, and washdown environments where other materials would rapidly degrade. The inherent strength of stainless steel also provides superior protection against physical impact and mechanical stress, safeguarding the delicate internal components from external damage. The meticulously designed bezel securely holds the lens in place, forming a critical seal against environmental ingress while providing structural reinforcement to the front of the gauge. This combination of material strength and precision assembly ensures that the gauge maintains its aesthetic integrity and functional performance over prolonged periods in challenging operational settings.
Precision Measurement: The Bourdon Tube Mechanism and 1.6% Accuracy
At the heart of the Silicone Filled Pressure Gauge lies the highly reliable Bourdon tube mechanism, a tried-and-tested principle for mechanical pressure measurement. The Bourdon tube itself is a C-shaped or helical tube, typically made from an elastic material like brass or stainless steel, which is sealed at one end and open to the process pressure at the other. When process fluid pressure is applied, it causes the Bourdon tube to straighten or uncoil proportionally to the applied pressure. This minute elastic deformation is then precisely translated into rotational movement of the pointer via a series of precision-machined gears and linkages. The quality of these components, their manufacturing tolerances, and the careful assembly process are paramount to the gauge's accuracy and repeatability.
This particular gauge boasts an accuracy rating of 1.6%, referring to its accuracy relative to the full-scale deflection (FSD). For a 0-4,000 PSI gauge, this means the maximum error will be ±64 PSI across its entire operating range. This level of accuracy is classified as Grade B per ASME B40.100, which is suitable for a vast array of industrial and commercial applications where precise monitoring is critical but ultra-high precision (e.g., test gauges) is not required. Factors influencing this accuracy include the material properties and consistency of the Bourdon tube, the precision of the gearing, the quality of calibration, and the minimization of external interferences such as vibration and temperature fluctuations—all of which are meticulously addressed in the design of this silicone-filled unit. Consistent accuracy ensures reliable process control, prevents equipment damage from over-pressurization, and supports efficient system operation.
Strategic Integration: Stem Mount with 1/4 inch NPT Thread
The stem mount configuration, coupled with a standard 1/4 inch NPT (National Pipe Taper) thread, offers unparalleled versatility and ease of integration into existing systems. A stem mount directly connects the gauge to the pressure port, minimizing the need for additional piping, brackets, or complex mounting solutions. This direct connection reduces potential leak points, simplifies installation, and contributes to a more compact system footprint. The 1/4 inch NPT thread is an industry-standard tapered pipe thread, ensuring broad compatibility with a wide range of fittings, manifolds, pumps, and valves across various hydraulic and pneumatic systems. The tapered design allows for a tight, leak-proof seal without the need for excessive torque, provided proper thread sealant is used. This standard ensures that the gauge can be readily replaced or integrated into diverse applications from fixed industrial machinery to dynamic mobile equipment, offering a seamless and secure connection that withstands operational pressures and vibrations.
Safety and Reliability: Built-in Relief Valve
A critical safety feature integrated into this Silicone Filled Pressure Gauge is its built-in relief valve. While often overlooked, this component plays a vital role in preventing internal pressure buildup within the gauge case. Pressure inside the gauge case can accumulate due to several factors, including rapid changes in ambient temperature (causing the internal fluid to expand or contract), or a minor leak in the Bourdon tube itself. Without a relief mechanism, such pressure buildup could stress the gauge's lens or case, potentially leading to rupture and creating a safety hazard. The relief valve, typically a small rubber plug or a vent disc, is designed to safely release this internal pressure to the atmosphere, thereby protecting the gauge's integrity, preventing explosive decompression, and safeguarding nearby personnel. This subtle but essential feature underscores the comprehensive design philosophy focused on both performance and safety.
Operating Range and Dual Scale Readability
This specific model is calibrated for a pressure range of 0-4,000 PSI, making it highly suitable for medium to high-pressure hydraulic circuits, industrial compressors, process lines, and heavy-duty pneumatic systems. The comprehensive range from 0-100 PSI to 0-10,000 PSI across the product line highlights the adaptability of Buyers Products' gauges to a myriad of industrial requirements. The dual-scale dial, a standard feature for modern pressure gauges, enhances global utility by simultaneously displaying pressure in Pounds per Square Inch (PSI) and typically Bar or Kilopascals (kPa). This concurrent display eliminates the need for manual conversions, reduces the potential for reading errors, and facilitates seamless operation in international or multi-standard environments. The clear, legible markings and contrasting colors on the 2-1/2 inch diameter dial ensure quick and accurate interpretation of pressure values from a distance, even under varying lighting conditions, further contributing to operational efficiency and safety.
Versatile Applications Across Industries
The robust construction and superior performance characteristics of this Silicone Filled Pressure Gauge make it an indispensable tool across a wide array of demanding industries and applications. In hydraulic systems, it serves as a crucial monitor for fluid power circuits in heavy machinery, construction equipment, agricultural vehicles, and industrial presses, where high pressures and vibrations are commonplace. For pneumatic systems, it provides essential pressure readings for air compressors, air tools, and automated manufacturing lines, ensuring optimal operational pressure and preventing damage. In process control industries such as chemical processing, water treatment, and food and beverage, the stainless steel construction offers resistance to corrosive media, while the silicone filling ensures stable readings for critical parameters. Its resilience to extreme temperatures and condensation makes it suitable for outdoor and mobile equipment, including utility vehicles, snowplows, and refuse trucks, where exposure to harsh weather and constant vibration is standard. Furthermore, its reliability and standard fitting make it an excellent choice for Original Equipment Manufacturers (OEMs) seeking durable and accurate components for integration into their product lines.
Installation and Longevity Considerations
Proper installation is paramount to leveraging the full potential and ensuring the longevity of this high-performance pressure gauge. The 1/4 inch NPT stem mount requires a clean, threaded port. It is crucial to apply an appropriate thread sealant (e.g., PTFE tape or pipe sealant compound) to the male threads of the gauge before installation to ensure a leak-proof connection and prevent galling. The gauge should be tightened sufficiently to prevent leakage, but over-tightening should be avoided to prevent damage to the gauge connection or the mating port. For systems with severe pressure pulsations, the inclusion of a snubber or pulsation dampener upstream of the gauge can further extend its life and enhance readability, although the silicone filling inherently provides significant dampening. Regular visual inspection of the gauge for any signs of damage, fogging, or loss of fluid can aid in proactive maintenance. Given its robust design, the Silicone Filled Pressure Gauge from Buyers Products is engineered for minimal maintenance, providing years of reliable service under the most challenging conditions.
In summary, the Silicone Filled Pressure Gauge - Stem Mount 0-4,000 PSI is a technically advanced instrument meticulously engineered for environments where precision, durability, and reliability are non-negotiable. Its innovative silicone filling, robust stainless steel construction, precise Bourdon tube mechanism with 1.6% accuracy, integrated relief valve, and versatile stem mount with standard NPT thread collectively deliver a superior solution for critical pressure monitoring. This gauge is not just a device for displaying pressure; it is an investment in operational integrity, safety, and the extended performance of your valuable equipment.
