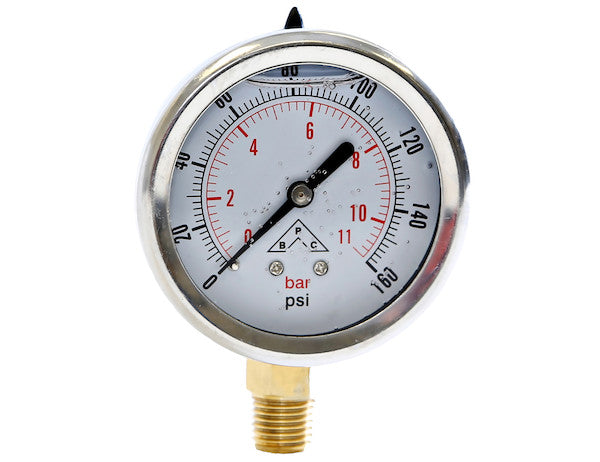

The Silicone Filled Pressure Gauge - Stem Mount from Buyers Products maintains accuracy and readability in the most extreme temperatures and work conditions. The silicone also protects the delicate workings of the gauge against vibration and keeps out dirt and condensation. The dual scale, 2-1/2 in. diameter gauge has a stainless steel case and bezel, and features a built-in relief valve. Its stem fits a standard 1/4 in. NPT. The gauge has an accuracy within 1.6%. Choose from a range of gauges measuring from 0-100 PSI to 0-10,000 PSI.
Specifications
| Built-In Relief? | Yes |
|---|---|
| Diameter | 2.5 |
| Pressure Range | 5000 |
| Silicone Filled? | Yes |
| Style | Stem |
| Thread | 1/4 NPT |
Advanced Technical Overview: Silicone Filled Pressure Gauge - Stem Mount 0-5,000 PSI
The Silicone Filled Pressure Gauge - Stem Mount, specifically engineered for the 0-5,000 PSI range, represents a cornerstone in industrial pressure measurement technology. Designed by Buyers Products, this instrument is meticulously crafted to deliver unparalleled accuracy and steadfast reliability within the most arduous operational environments. Its distinctive silicone-filled construction, combined with a robust stem mount configuration and a wide pressure range, positions it as an indispensable component for critical hydraulic, pneumatic, and process control applications where precision and durability are paramount. This detailed technical exposition will delve into the intrinsic design principles, material science, and operational benefits that characterize this high-performance pressure gauge.
The Foundational Principles of Pressure Measurement: The Bourdon Tube
At the core of this gauge's functionality lies the venerable Bourdon tube mechanism, a globally recognized standard for mechanical pressure sensing. The Bourdon tube is a C-shaped, elliptical, or helical metallic tube with one end fixed to the pressure inlet and the other end sealed and free to move. When process fluid pressure is introduced into the tube, it attempts to straighten, much like uncoiling a party favor. This deformation is directly proportional to the applied pressure. This mechanical movement is then amplified by a precision gear and linkage system, translating the subtle expansion into a clear, rotational movement of the indicator needle across the calibrated dial. The inherent simplicity and mechanical robustness of the Bourdon tube design contribute significantly to the long-term stability and repeatability of the gauge, making it a trusted choice for a diverse array of industrial sectors. The linearity of the Bourdon tube's response ensures that the gauge provides consistent and accurate readings throughout its entire specified range, from 0 PSI up to its maximum capacity of 5,000 PSI.
The Strategic Advantage of Silicone Filling
The defining feature of this pressure gauge is its silicone-filled casing, a critical engineering decision that confers a multitude of performance benefits, particularly under challenging conditions. Unlike dry gauges, the internal mechanism of this gauge is fully immersed in a high-viscosity silicone fluid. This filling serves several crucial purposes, elevating the gauge's performance beyond conventional standards.
Vibration Dampening and Mechanical Shock Resistance
One of the primary advantages of silicone filling is its exceptional ability to dampen mechanical vibrations. In environments characterized by pulsating pressures, machinery vibrations, or equipment shock, the indicator needle of a dry gauge can oscillate wildly, making accurate readings difficult or impossible. The viscous silicone fluid acts as a hydraulic dampener, effectively absorbing and dissipating kinetic energy, thereby stabilizing the pointer and ensuring a steady, readable display even under severe vibratory stress. This mitigation of pointer flutter not only enhances readability but also significantly reduces wear and tear on the delicate internal gearing and linkage system, substantially extending the operational lifespan of the gauge in applications like hydraulic pumps, compressors, and heavy mobile equipment.
Thermal Stability Across Extreme Temperatures
Industrial applications often subject instrumentation to wide temperature fluctuations, ranging from sub-zero conditions to elevated operational heat. Silicone fluid exhibits superior thermal stability compared to other common fill fluids like glycerin. It maintains its viscosity characteristics across a much broader temperature spectrum, preventing issues such as fluid thickening at low temperatures (which can slow pointer response) or thinning at high temperatures (which can reduce dampening effectiveness). This consistent viscosity ensures that the gauge maintains its specified accuracy and responsiveness from extremely cold conditions, where conventional fluids might freeze or become excessively viscous, to very hot conditions, where other fluids might degrade or evaporate. The silicone fill is specifically chosen to protect the delicate workings from the thermal expansion and contraction stresses that extreme temperatures can induce, ensuring reliable performance in environments from arctic installations to desert operations.
Protection Against Environmental Ingress and Condensation
Beyond vibration and temperature, the silicone filling provides an invaluable barrier against environmental contaminants. By completely filling the gauge case, the silicone prevents the ingress of airborne dirt, dust, and other particulate matter that could otherwise foul the intricate gear train and bearings, leading to increased friction, erratic readings, and premature failure. Furthermore, in environments with fluctuating humidity and temperature, the internal atmosphere of a dry gauge can lead to condensation forming on the inside of the viewing window, obscuring visibility. The silicone filling eliminates this air space, effectively preventing internal condensation and ensuring uninterrupted readability. This sealed environment also protects against corrosive atmospheres, preventing direct contact of corrosive gases or moisture with the sensitive metallic components of the Bourdon tube and movement mechanism.
Precision and Readability: The 2-1/2 Inch Dual Scale Dial
The gauge features a 2-1/2 inch (63mm) diameter dial, a size carefully selected to strike an optimal balance between compactness and readability. This dimension ensures that the gauge can be easily integrated into various system panels and equipment while providing a sufficiently large display for clear and precise readings from a reasonable distance. The dual scale feature is particularly beneficial in international or multi-standard environments, allowing for simultaneous readings in Pounds per Square Inch (PSI) and an equivalent metric unit, typically Bar or kilopascals (kPa). For the 0-5,000 PSI range, the corresponding metric scale would typically be 0-350 Bar or 0-35,000 kPa. This dual calibration eliminates the need for manual conversions, reducing the potential for errors and enhancing operational efficiency for technicians accustomed to different pressure units.
Accuracy Standards: 1.6% Full Scale
The specified accuracy of this gauge is within 1.6% of the full scale (FS) reading. This level of precision adheres to established industry standards, most commonly classified as ASME B40.100 Grade B (or Class 1.6 EN 837-1). This means that at any point across its entire 0-5,000 PSI range, the maximum permissible error will not exceed 1.6% of 5,000 PSI, which translates to a maximum deviation of ±80 PSI. This accuracy class is considered robust for a wide range of general industrial applications where monitoring and control of process pressures are critical but where ultra-high precision laboratory-grade measurements are not required. Factors contributing to this accuracy include the precision machining of the Bourdon tube, the low-friction design of the movement mechanism, and stringent calibration procedures during manufacturing. Maintaining this accuracy over time is facilitated by the silicone filling, which protects the internal components from wear and environmental degradation.
Seamless Integration: The Stem Mount and 1/4 inch NPT Connection
The stem mount configuration is a widely adopted standard for pressure gauge installation, offering a direct and robust connection to the pressure source. This design typically positions the connection point at the bottom of the gauge, allowing the gauge face to be oriented upwards for optimal viewing. The stem mount provides a stable mechanical interface, minimizing the impact of external vibrations on the connection point itself. The gauge is equipped with a standard 1/4 inch NPT (National Pipe Taper) male thread connection. The NPT standard is ubiquitous in North American industrial applications, known for creating a highly reliable and leak-tight seal when properly installed. The tapered design of the NPT thread ensures that as the male and female threads are tightened, they wedge together, creating a mechanical seal. When used in conjunction with appropriate thread sealant compounds, a robust and pressure-resistant connection is achieved, vital for maintaining system integrity within the 5,000 PSI operating range. This standard ensures broad compatibility with existing plumbing and instrumentation ports.
Enhanced Safety: The Integrated Relief Valve
A critical safety feature of this pressure gauge is its built-in relief valve. While Bourdon tube gauges are inherently robust, extreme over-pressurization can potentially damage the internal mechanism or even lead to catastrophic failure of the gauge, posing a safety risk. The integrated relief valve is designed as a controlled pressure-release mechanism. Should internal pressure within the gauge case (caused by diaphragm rupture, thermal expansion of the fill fluid, or extreme overpressure of the process medium) exceed a safe threshold, the relief valve will activate. This typically involves a small, controlled release of internal pressure or fill fluid to the atmosphere, preventing the buildup of excessive internal stress within the gauge case. This protective measure safeguards both the instrument itself and, more importantly, personnel operating in the vicinity by preventing case rupture or glass blow-out, which can occur under severe overpressure conditions. The presence of this feature underscores a commitment to operational safety and compliance with best practices in industrial instrumentation.
Unyielding Durability: Stainless Steel Case and Bezel
The external construction of the gauge features a high-grade stainless steel case and bezel. Stainless steel is renowned for its exceptional corrosion resistance, making it an ideal material for applications in harsh or chemically aggressive environments. Unlike painted steel or plastic cases, stainless steel resists rust, oxidation, and degradation from exposure to moisture, saline atmospheres, many chemicals, and UV radiation. This material choice ensures the long-term integrity of the gauge housing, preventing environmental factors from compromising the internal components. Furthermore, stainless steel provides superior mechanical strength and impact resistance, protecting the gauge from physical damage that can occur in demanding industrial settings. The polished finish of the stainless steel also contributes to a professional appearance and is easier to clean, maintaining readability and aesthetics over its operational lifetime.
Applications in Demanding Industrial Sectors
The Silicone Filled Pressure Gauge - Stem Mount 0-5,000 PSI is specifically engineered for environments that demand both high pressure measurement capability and extreme resilience. Its design makes it an optimal choice for:
- Hydraulic Systems: Indispensable for monitoring pressure in hydraulic power units, cylinders, pumps, and mobile hydraulic machinery (e.g., excavators, loaders, agricultural equipment) where high pressures, vibration, and temperature swings are common. The silicone filling is crucial here for stable readings under pulsating hydraulic loads.
- Pneumatic Systems: While often associated with lower pressures, high-pressure pneumatic systems, such as those in large industrial compressors or specialized air tools, benefit from the gauge's robustness and accuracy.
- Process Control: Essential in chemical processing, oil and gas, water treatment, and power generation plants for monitoring critical process pressures in pipelines, vessels, and reactors, especially where corrosive agents or extreme temperatures prevail.
- Heavy Machinery: Used in construction, mining, and forestry equipment to monitor operational pressures, ensuring safety and optimal performance.
- Marine and Offshore Applications: The stainless steel construction and resistance to condensation make it suitable for saltwater environments where corrosion is a constant threat.
- Wastewater and Municipal Systems: For monitoring pump and line pressures in environments with high moisture and potential for corrosive elements.
Maintenance and Longevity
While designed for robust performance, proper installation and periodic maintenance contribute significantly to the longevity and sustained accuracy of the Silicone Filled Pressure Gauge. It is crucial to ensure that the gauge is installed correctly, with adequate thread sealant, and that it is not subjected to pressures exceeding its specified range for prolonged periods. Regular visual inspections for signs of external damage, leakage of fill fluid, or fogging of the dial (indicating potential seal compromise) are recommended. While silicone-filled gauges generally require less frequent calibration due to their inherent stability, periodic calibration checks against a traceable standard are advised in critical applications to comply with quality assurance protocols and maintain certified accuracy. Protecting the gauge from direct, sustained impact and ensuring it operates within its specified temperature limits will further extend its service life.
Conclusion: The Quintessential Choice for Rugged Pressure Monitoring
The Silicone Filled Pressure Gauge - Stem Mount 0-5,000 PSI from Buyers Products is more than just a pressure indicator; it is a precisely engineered instrument designed for unwavering performance in the most challenging industrial landscapes. Its silicone-filled mechanism offers superior vibration dampening, thermal stability, and environmental protection, directly addressing common failure points of conventional dry gauges. Coupled with a durable stainless steel casing, a highly legible 2-1/2 inch dual-scale dial, and an integrated safety relief valve, this gauge provides an exceptional blend of accuracy, resilience, and operational safety. For engineers, technicians, and system integrators seeking a reliable, long-lasting solution for critical high-pressure monitoring in demanding environments, this silicone-filled pressure gauge stands as the definitive choice, delivering consistent and precise data essential for operational efficiency and safety.
