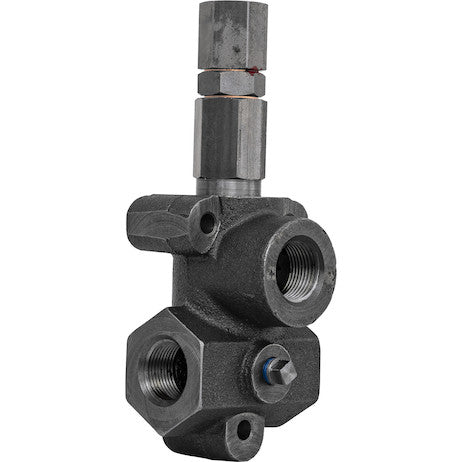

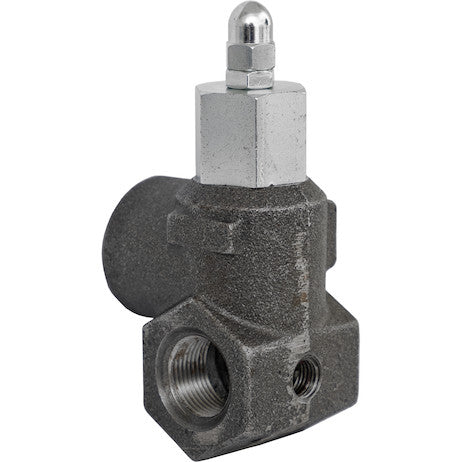

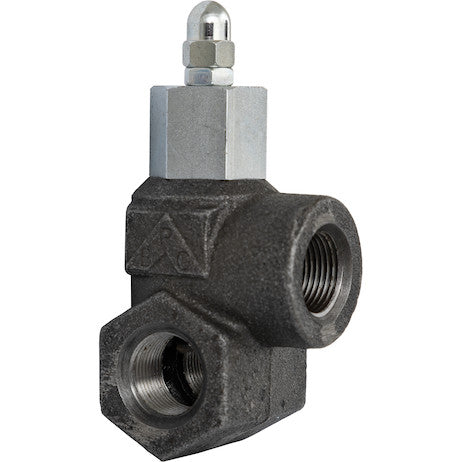

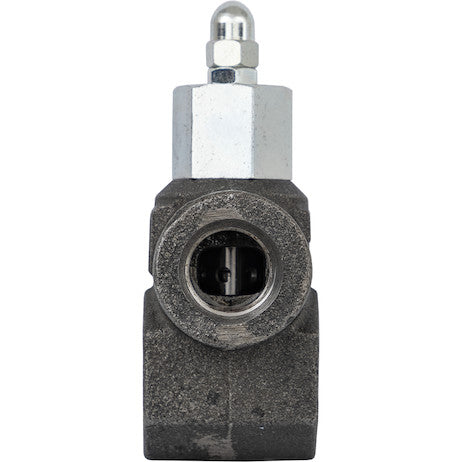

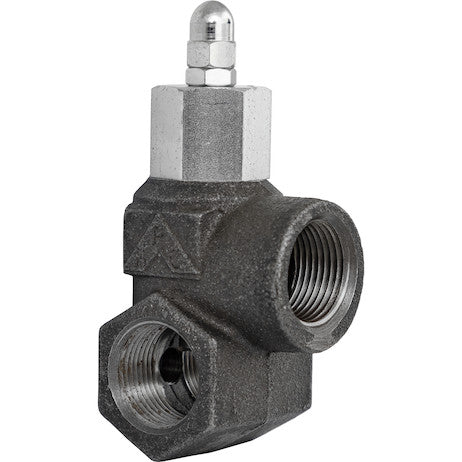

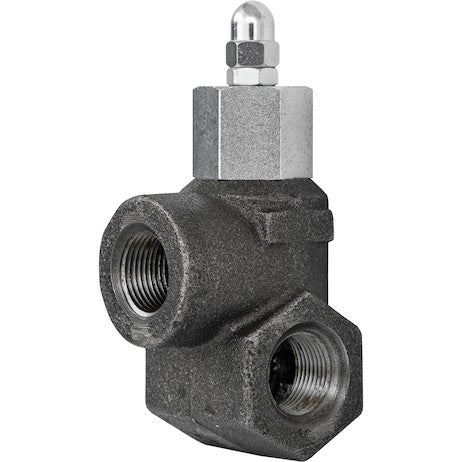

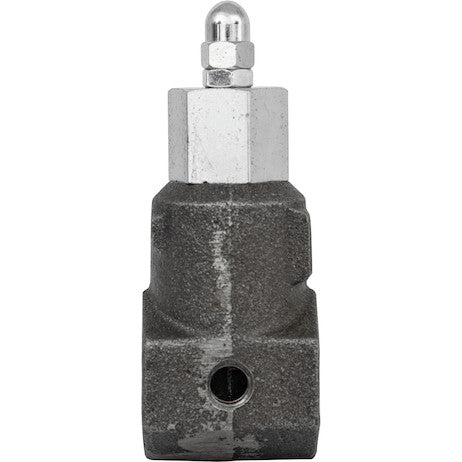

Buyers Products In-Line Relief Valve provides pressure relief to specific functions in your truck's hydraulic operations. Choose from a range of preset pressure ratings from 1650 to 2500 PSI.
Specifications
| Material | Cast Iron |
|---|---|
| Maximum Body Pressure | 3000 |
| Maximum Flow Rate | 20 |
| Maximum Pressure | 3000 |
| Maximum Relief Pressure Setting | 1501 |
| Number of Ports | 3 |
| Port Size | 3/4 NPTF |
The 3/4 Inch NPT In-Line Relief Valve, rated for up to 20 GPM, represents a critical component in the design and operation of robust hydraulic systems, particularly within the demanding environment of commercial truck applications. This valve is engineered to safeguard hydraulic circuits by precisely limiting maximum system pressure, thereby preventing damage to pumps, actuators, and other sensitive components that could result from overpressure conditions. Its in-line design facilitates straightforward integration into existing hydraulic lines, making it an ideal solution for applications requiring localized pressure control.
Fundamentals of Hydraulic Pressure Relief Valves
In any hydraulic system, the generation and controlled application of pressure are paramount. However, uncontrolled pressure spikes or continuous operation beyond design limits can lead to catastrophic failures. This is where the relief valve plays its indispensable role. Functionally, a hydraulic relief valve acts as a normally closed, pressure-limiting device that opens to divert fluid flow when the system pressure exceeds a predetermined set point. This diversion typically routes excess fluid back to the reservoir, ensuring that the pressure within the protected circuit remains below a critical threshold.
Relief valves are generally categorized into two main types: direct-acting and pilot-operated. Direct-acting relief valves, like the one described, utilize a spring-loaded poppet or ball that is directly exposed to the system pressure. When the hydraulic force on the poppet surpasses the opposing spring force, the poppet lifts, allowing fluid to bypass. This design is characterized by its simplicity, quick response time, and reliability, making it well-suited for applications where moderate flow rates and specific pressure settings are required, such as individual function protection on mobile equipment.
The operational principle involves a balance of forces. The system pressure exerts a force on the valve's poppet. Opposing this force is a spring, which is pre-compressed to achieve a specific cracking pressure – the pressure at which the valve first begins to open. As system pressure continues to rise, the poppet opens further, allowing increased flow to bypass until the full flow capacity is met at the valve's full-open pressure. This proportional opening ensures a smooth pressure transition and prevents abrupt pressure drops that could destabilize the system. The preset pressure ratings of 1650 to 2500 PSI for these Buyers Products valves underscore their suitability for a wide array of medium-to-high pressure hydraulic circuits common in modern commercial vehicles.
Detailed Analysis of Key Specifications
Port Size: 3/4 Inch NPTF
The designation "3/4 Inch NPTF" refers to the National Pipe Taper Fuel thread standard. NPTF threads are crucial in hydraulic applications because they are designed to create a mechanical seal without the need for an external sealant, provided they are correctly installed and torqued. This "dryseal" characteristic is achieved by the precise truncation of the thread crests and roots, ensuring metal-to-metal contact that forms an interference fit. A 3/4 inch size indicates a nominal internal diameter suitable for connecting to hydraulic lines where a balance of flow capacity and compact sizing is required. The tapered design is self-sealing, reducing the risk of leakage, which is paramount in hydraulic systems to prevent fluid loss, maintain pressure integrity, and avoid environmental contamination. The robust nature of NPTF connections ensures long-term reliability even under dynamic pressures and vibrations inherent in mobile hydraulic systems.
Maximum Flow Rate: 20 GPM
A maximum flow rate of 20 Gallons Per Minute (GPM) indicates the valve's capacity to handle a substantial volume of hydraulic fluid when fully open. This specification is critical for matching the valve to the overall hydraulic system's requirements. If a relief valve is undersized for the system's potential maximum flow, it can lead to excessive pressure drops across the valve, overheating of the fluid, and inefficient operation. Conversely, an oversized valve might be unnecessarily large and costly. A 20 GPM rating is appropriate for many auxiliary hydraulic functions found on commercial trucks, such as those powering medium-duty snow plows, salt spreaders, or smaller crane functions. It ensures that when an overpressure condition occurs, the valve can efficiently divert the excess flow without creating a significant backpressure that could still harm the system components. Proper sizing prevents both cavitation (due to excessive velocity) and undue energy loss.
Preset Pressure Ratings: 1650 to 2500 PSI
The availability of preset pressure ratings from 1650 to 2500 PSI offers a range of options to precisely match the protective requirements of various hydraulic circuits. In many mobile applications, having a factory-set relief pressure is advantageous as it eliminates the need for field adjustments, ensuring consistent performance and reducing the potential for incorrect settings. The precise preset values are crucial for aligning with the operational pressure limits of specific hydraulic motors, cylinders, and other components in a particular circuit. For instance, a hydraulic motor designed for a maximum operating pressure of 2000 PSI would be ideally protected by a valve preset slightly above this, perhaps at 2200 PSI, to allow for operational peaks while preventing damage. The "Maximum Relief Pressure Setting" listed as 1501 PSI in the specifications table typically refers to the *minimum* adjustable setting for a general version of this valve family, or a specific variant. However, for the specific products offered in this range, they are factory-preset to values between 1650 and 2500 PSI to meet specific application needs, ensuring robust protection within this critical operational window.
Material: Cast Iron
The choice of cast iron for the valve's body is a testament to its suitability for demanding industrial and mobile hydraulic applications. Cast iron offers an excellent combination of strength, rigidity, and vibration damping properties. Its high compressive strength allows it to withstand significant internal pressures, such as the 3000 PSI maximum body pressure specified. The material's inherent mass helps to absorb vibrations and minimize noise generated during fluid flow, contributing to quieter system operation and extended component life. Furthermore, cast iron is generally cost-effective and readily machinable, allowing for precise internal geometries essential for consistent valve performance. While less resistant to corrosion than stainless steel, it is highly durable and effective in typical hydraulic fluid environments, especially when combined with appropriate surface treatments or protective coatings if exposed to harsh external conditions. Its robust nature ensures long-term structural integrity and resistance to fatigue under continuous cyclic loading.
Maximum Body Pressure & Maximum Pressure: 3000 PSI
These specifications highlight the structural integrity and operational limits of the valve. A "Maximum Body Pressure" of 3000 PSI indicates the absolute highest static pressure the valve housing can safely withstand without structural failure. This is a critical safety parameter. The "Maximum Pressure" of 3000 PSI refers to the highest system pressure that the valve can effectively operate under while still being able to relieve at its set point. These values confirm the valve's robust construction and its capability to be integrated into hydraulic systems that may experience brief, intense pressure spikes up to this limit, even if the nominal operating pressure is lower. It provides a significant safety margin above the typical preset relief pressures of 1650-2500 PSI, ensuring the valve itself will not be the weakest link in the hydraulic circuit.
Number of Ports: 3
A 3-port configuration for an "in-line relief valve" is a practical and versatile design. In this context, the three ports typically correspond to:
- Pressure Inlet (P): This port connects to the main hydraulic line where pressure needs to be monitored and controlled.
- Protected Circuit Outlet (A/B): When the valve is closed (pressure below set point), fluid flows from the inlet to this port, feeding the protected hydraulic function (e.g., a cylinder or motor).
- Tank/Relief Outlet (T): When the system pressure exceeds the relief valve's set point, fluid is diverted from the pressure inlet to this port, routing it back to the hydraulic reservoir (tank).
Applications in Truck Hydraulic Systems
The 3/4 Inch NPT In-Line Relief Valve is engineered specifically for the demanding applications found in commercial and municipal truck hydraulic systems. Its robust design and precise pressure control are invaluable for:
- Snow and Ice Control Equipment: Protecting hydraulic cylinders and motors on snow plows, wing plows, and salt/sander spreaders from impact-induced pressure spikes or blockages. For instance, if a plow blade encounters an immovable object, the relief valve prevents hydraulic component damage by diverting excess pressure.
- Dump Truck Bodies: Ensuring safe and controlled lifting and lowering operations for dump beds, preventing overpressure situations that could strain cylinders or pump.
- Lift Gates and Cranes: Providing critical pressure protection for the hydraulic cylinders and power units responsible for lifting heavy loads, ensuring operator safety and preventing structural damage to the equipment.
- Wreckers and Rollback Car Carriers: Safeguarding the complex hydraulic systems that power winches, booms, and tilt beds, which are frequently subjected to varying and high loads.
- Auxiliary Attachments: Any hydraulic-powered auxiliary equipment on a truck, such as chippers, compactors, or utility booms, benefits from localized pressure protection to prolong component life and maintain operational integrity.
Installation, Maintenance, and Best Practices
Proper installation is paramount for the optimal performance and longevity of an in-line relief valve. The 3/4 Inch NPTF port size ensures a secure, leak-free connection when installed correctly. Key considerations include:
- Orientation: While many direct-acting relief valves can be installed in any orientation, consulting the manufacturer's guidelines is always recommended to ensure proper fluid dynamics and spring operation.
- Fluid Cleanliness: Hydraulic systems, particularly those incorporating precision components like relief valves, are highly susceptible to contamination. Particles can cause the poppet to stick, leading to either constant leakage or complete valve failure (failure to relieve). Implementing effective filtration upstream of the relief valve is crucial.
- Line Sizing: Ensure that the hydraulic lines leading to and from the valve are appropriately sized for the 20 GPM flow rate to minimize pressure drop and heat generation.
- Torque Specifications: Adhere strictly to recommended torque specifications for NPTF fittings to achieve the dryseal without over-tightening, which can damage threads or crack the cast iron body.
Advantages and Benefits
Investing in a high-quality in-line relief valve like the 3/4 Inch NPT 20 GPM model offers numerous benefits:
- Enhanced Safety: Prevents dangerous overpressure situations that can lead to component rupture, fluid leaks, and potential injury to personnel.
- Component Protection: Safeguards expensive hydraulic pumps, motors, cylinders, and hoses from damage, significantly extending their operational lifespan.
- System Stability: By preventing excessive pressure, the valve helps maintain consistent system performance and reduces operational stress on the entire hydraulic circuit.
- Reliability: The robust cast iron construction and proven direct-acting mechanism ensure dependable performance even in harsh operating conditions.
- Cost Efficiency: Preventing component failure through effective pressure management leads to reduced downtime, lower repair costs, and optimized operational efficiency.
- Customized Protection: Preset pressure ratings allow for precise tailoring of protection to specific hydraulic functions, optimizing performance and safety for each subsystem.
Conclusion
The 3/4 Inch NPT In-Line Relief Valve with a 20 GPM capacity and preset pressure ratings from 1650 to 2500 PSI is an essential safety and performance-enhancing device for truck hydraulic systems. Its technical specifications, including the durable cast iron construction, precise NPTF porting, and capability to handle significant flow and pressure, underscore its reliability and effectiveness. By preventing overpressure conditions, this valve protects valuable hydraulic components, ensures operational continuity, and contributes significantly to the overall safety and efficiency of commercial vehicle operations. For applications ranging from snow plows to lift gates, its specific function relief capability provides targeted protection, making it an indispensable part of a well-engineered hydraulic circuit.
