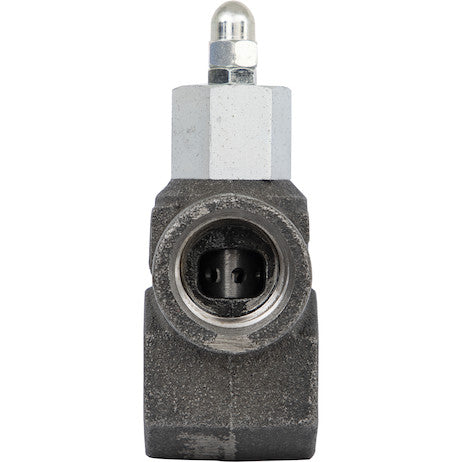

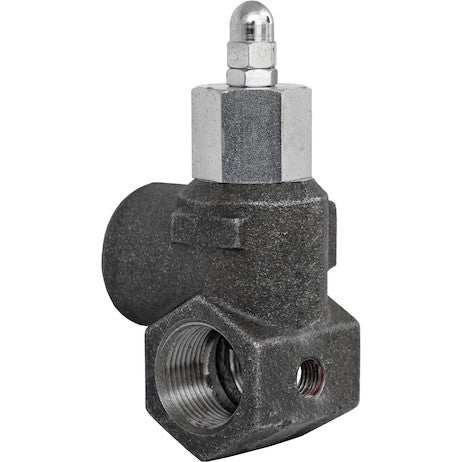

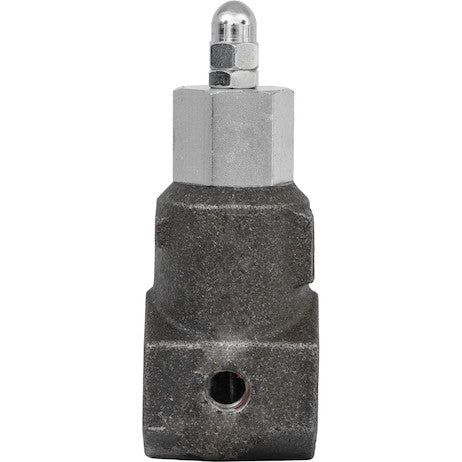

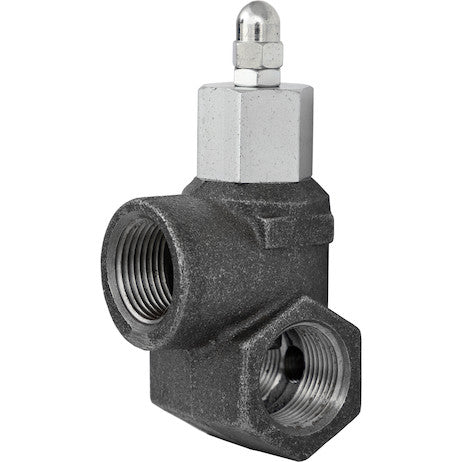

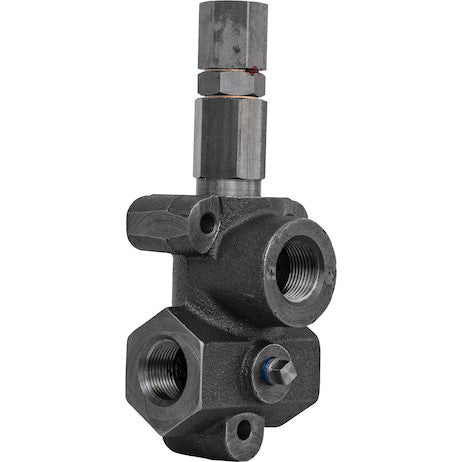

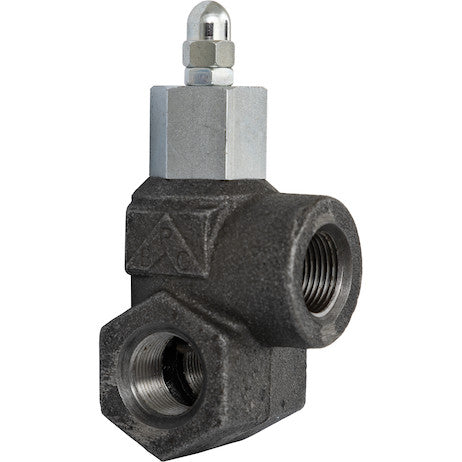

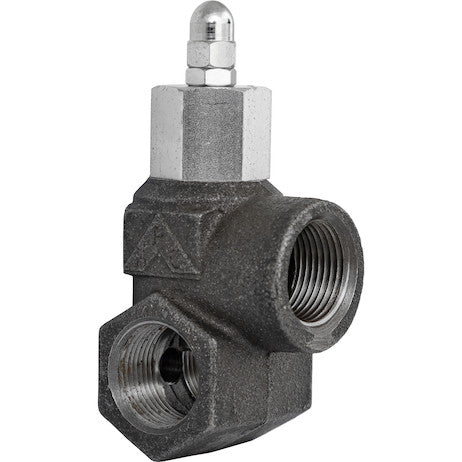

Buyers Products In-Line Relief Valve provides pressure relief to specific functions in your truck's hydraulic operations. Choose from a range of preset pressure ratings from 1650 to 2500 PSI.
Specifications
| Material | Cast Iron |
|---|---|
| Maximum Body Pressure | 3000 |
| Maximum Flow Rate | 30 |
| Maximum Pressure | 3000 |
| Maximum Relief Pressure Setting | 1501 |
| Number of Ports | 3 |
| Port Size | 1 NPTF |
The Buyers Products 1 Inch NPT In-Line Relief Valve, rated for a maximum flow of 30 GPM, represents a critical component in the design and operation of robust hydraulic systems. Engineered to provide essential pressure relief, this valve safeguards hydraulic circuits from potentially damaging overpressure conditions, thereby extending the lifespan of valuable equipment, enhancing operational safety, and maintaining system efficiency. This detailed exposition will delve into the technical intricacies, performance parameters, and application benefits of this indispensable hydraulic valve.
Understanding the Fundamental Role of a Hydraulic Relief Valve
In any hydraulic system, a pump generates flow, and resistance to this flow creates pressure. If this pressure exceeds the design limits of system components—such as cylinders, motors, hoses, or other valves—catastrophic failure can occur. A relief valve is a normally closed valve designed to open and divert fluid flow when system pressure reaches a predetermined set point. This diversion typically routes the excess fluid back to the reservoir, relieving the pressure on the primary circuit. The "in-line" designation signifies that this valve is integrated directly into the primary hydraulic line to protect a specific function or segment of the circuit, rather than being a cartridge-style valve mounted within a manifold block or a main system relief valve located immediately after the pump.
Core Specifications and Their Technical Significance
1 Inch NPT Connectivity: Standardized Integration for Robust Flow
The specification of a "1 Inch NPTF" port size indicates the use of National Pipe Taper Fuel threads. NPTF (National Pipe Taper - Fuel) threads are a variant of NPT designed to create a mechanical seal without sealant, though in high-pressure hydraulic applications, thread sealant or tape is still recommended for added security and ease of assembly/disassembly. The 1-inch nominal diameter is substantial, indicating suitability for applications requiring significant fluid conveyance. This thread standard ensures broad compatibility with existing hydraulic plumbing, simplifying installation and maintenance. The tapered design of NPT threads provides a robust, self-sealing connection when properly torqued, minimizing leakage risk under high operating pressures. The selection of a 1-inch port size is carefully considered to minimize pressure drop across the valve while accommodating the specified flow rate, contributing to the overall energy efficiency of the hydraulic system.
Optimal Flow Management: 30 GPM Capacity
With a maximum flow rate of 30 gallons per minute (GPM), this relief valve is ideally suited for a wide array of medium-duty mobile hydraulic applications. This flow capacity ensures that when the valve opens to relieve pressure, it can effectively bypass the full flow of the hydraulic pump or a significant portion thereof, preventing rapid and excessive pressure spikes. Sizing a relief valve correctly for flow is paramount; an undersized valve can lead to dangerous pressure surges even when open, as it cannot pass sufficient fluid volume. The 30 GPM rating indicates that this valve is designed to handle the output of many common hydraulic pumps found in commercial vehicles and industrial equipment, providing comprehensive protection across its operational spectrum.
Precision Pressure Regulation: 1650 to 2500 PSI Preset Options
The ability to choose from a range of preset pressure ratings between 1650 PSI and 2500 PSI is a critical feature, allowing engineers and technicians to precisely match the valve's protective capabilities to the specific pressure requirements of the hydraulic function it serves. This range covers a significant portion of typical operating pressures in mobile and industrial hydraulics. The "Maximum Body Pressure" of 3000 PSI indicates the structural integrity limit of the valve body itself, ensuring that even under transient pressure spikes or minor overloads, the valve housing will not fail. The "Maximum Pressure" also listed at 3000 PSI typically refers to the highest pressure the valve is designed to withstand in its closed or open state without suffering damage or permanent deformation. The "Maximum Relief Pressure Setting" of 1501 PSI appears as a specific technical data point, which could represent a lower bound for adjustable models or a particular model variant. However, the primary operational focus is on the selectable preset range of 1650 to 2500 PSI, which is where the valve will actively engage to relieve pressure. This adjustability ensures that components are protected just above their normal operating pressure but below their maximum safe working pressure, striking an optimal balance between system performance and component longevity.
Robust Construction: Cast Iron Body for Enduring Performance
The selection of cast iron as the primary material for the valve body is a deliberate engineering choice, offering a multitude of benefits for hydraulic applications. Cast iron provides excellent compressive strength and rigidity, making it highly resistant to deformation under the intense pressures characteristic of hydraulic systems. Its inherent dampening properties help to absorb vibrations and mitigate noise, contributing to smoother system operation. Furthermore, cast iron is known for its durability and resistance to wear, ensuring a long operational life even in harsh environments typical of mobile equipment. While corrosion resistance is often addressed through surface treatments or protective coatings, the fundamental material provides a solid, heavy-duty foundation capable of withstanding the physical stresses and thermal variations inherent in hydraulic systems.
Advanced Port Configuration: The Three-Port Advantage
The specification of "3 Ports" for an in-line relief valve is particularly noteworthy. While many simple relief valves are two-port devices (inlet from protected circuit, outlet to tank), a 3-port configuration typically offers enhanced functionality, particularly for in-line applications protecting a specific function. In such a setup, the valve often has:
- An inlet port (P) connected to the pressure side of the circuit being protected.
- An outlet port (A or B) that continues the flow to the hydraulic actuator (e.g., cylinder or motor).
- A tank port (T) for diverting excess fluid back to the reservoir when the relief pressure is reached.
Operating Principles and Internal Mechanism
The Buyers Products in-line relief valve operates on a direct-acting or potentially pilot-operated principle, depending on its specific internal design, to achieve its pressure-limiting function.
In a typical direct-acting relief valve, a spring-loaded poppet or ball is held against a seat, blocking the flow to the tank port. The system pressure acts on the face of the poppet. When the system pressure exerts a force greater than the opposing force of the spring, the poppet lifts off its seat, allowing fluid to flow past it and out through the tank port, thus relieving the excess pressure. The spring force determines the cracking pressure (the pressure at which the valve first begins to open) and the full flow pressure (the pressure at which the valve is fully open and relieving the maximum specified flow).
For higher flow rates and more stable pressure control, a pilot-operated relief valve might be employed, though direct-acting types are common for in-line applications of this size. A pilot-operated valve uses a small direct-acting relief valve (the pilot) to control a larger main poppet or spool. When the pilot pressure is reached, it opens, relieving a small amount of fluid from a control chamber. This pressure drop across the main spool causes it to shift, opening the main flow path to the tank. Pilot-operated valves generally offer flatter pressure override curves (less pressure increase from cracking to full flow) and improved stability. Given the 3-port configuration and in-line nature, it's designed for precise control over a specific function's pressure rather than just being a catastrophic overpressure dump.
Applications in Mobile Hydraulic Systems
The 1 Inch NPT In-Line Relief Valve 30 GPM is indispensable across a spectrum of demanding mobile hydraulic applications, particularly within the commercial truck industry. Its robust design and precise pressure control capabilities make it ideal for:
- Snow Plows and Salt Spreaders: Protecting hydraulic cylinders that lift, angle, and trip snow plow blades from impact loads or freezing conditions that could cause pressure spikes. It also safeguards the hydraulic motor driving the salt spreader from stall conditions.
- Dump Trucks: Ensuring the hydraulic cylinder responsible for lifting the dump bed operates within safe pressure limits, especially during heavy loads or when encountering resistance during lowering.
- Refuse Trucks: Critical for compacting mechanisms and lift arms, where irregular loads can generate extreme, unpredictable forces. The valve protects the hydraulic cylinders and motors responsible for compaction and bin lifting.
- Service and Utility Vehicles: Often equipped with cranes, aerial lifts, or other specialized tools. This valve provides localized pressure protection for individual boom cylinders, outrigger cylinders, or tool functions, preventing damage from accidental overloads or operational errors.
- Wreckers and Tow Trucks: Safeguarding the hydraulic winches, boom lift cylinders, and under-reach mechanisms from over-stressing when handling heavy vehicles.
- Forestry and Construction Equipment: While primarily designed for truck hydraulics, the principles extend to smaller forestry loaders, chippers, or mini-excavator attachments where specific functions require dedicated pressure limitation.
Performance Characteristics and System Integration
Beyond its fundamental protective role, the performance characteristics of this relief valve are crucial for overall system efficiency and reliability:
- Pressure Override: This refers to the difference between the cracking pressure (when the valve first opens) and the full flow pressure (when it's fully open and bypassing the maximum rated flow). A low-pressure override is desirable as it indicates stable and precise pressure control across the operating range.
- Hysteresis: The difference between the pressure at which the valve opens and the pressure at which it closes. Minimizing hysteresis ensures that the system pressure remains stable and does not oscillate unnecessarily, leading to smoother operation.
- Response Time: The speed at which the valve reacts to a sudden pressure increase. A fast response time is critical for preventing damaging pressure spikes, especially in dynamic applications.
- Stability: A well-designed relief valve should operate smoothly without chattering or excessive noise. Chatter can be caused by instability in the poppet/spool movement, leading to premature wear and inconsistent pressure regulation. The robust cast iron body also contributes to dampening any potential vibrations.
- Pressure Drop: While relieving, there will be a minor pressure drop across the valve. During normal operation (when the valve is closed), the pressure drop through the "in-line" path to the specific function should be minimal to maintain system efficiency. The 1-inch NPT sizing helps in achieving this balance for the 30 GPM flow.
Installation, Maintenance, and Longevity
Correct installation and regular maintenance are paramount to ensuring the long-term reliability and optimal performance of the Buyers Products 1 Inch NPT In-Line Relief Valve.
Installation:
- Location: Install the valve in the specific line of the hydraulic function requiring protection. Ensure adequate clearance for servicing and adjustment (if applicable for adjustable versions within the preset range).
- Orientation: While many relief valves are orientation-insensitive, it's always best to consult any manufacturer's guidelines for optimal performance, especially for pilot-operated designs that might be sensitive to air entrapment.
- Thread Sealing: For NPTF threads, while designed for mechanical sealing, applying a high-quality thread sealant (compatible with hydraulic fluid) or PTFE tape is highly recommended for all connections to prevent leakage and facilitate future disassembly. Torque connections to manufacturer specifications.
- Line Sizing: Ensure all connecting hydraulic lines (inlet, outlet to function, and tank return) are correctly sized to handle the maximum flow rate without excessive velocity, which would lead to detrimental pressure drop and heat generation. The tank return line, especially, must be capable of carrying the full 30 GPM at minimal back pressure.
- Cleanliness: Hydraulic systems are highly sensitive to contamination. Ensure all ports, lines, and fittings are thoroughly cleaned before assembly to prevent debris from entering the system and impairing valve function.
- Regular Inspection: Periodically check for external leaks around the ports and body. Address any leaks promptly to prevent fluid loss and contamination ingress.
- Pressure Checks: If the system exhibits unusual behavior (e.g., sluggish operation, overheating, or unexpected activation of the relief valve), verify the actual relief pressure setting using a calibrated pressure gauge.
- Contamination Monitoring: Monitor hydraulic fluid cleanliness. Contaminated fluid is a primary cause of relief valve malfunction, leading to sticky poppets/spools, erosion of seats, and premature wear.
-
Troubleshooting: Common issues include:
- Chatter: Often caused by excessive back pressure in the return line, improper spring settings, or contamination.
- Leakage (internal): Valve not reseating properly due to contamination, worn seat, or damaged poppet/spool. This can lead to heat generation and loss of system pressure.
- Sluggish Response: Often due to contamination preventing the poppet/spool from moving freely.
- Drift in Setting: Can occur due to spring fatigue or wear in the adjustment mechanism, if the specific model allows for field adjustment within the preset range.
Safety and Reliability Enhancement
The implementation of the Buyers Products 1 Inch NPT In-Line Relief Valve is not merely about protecting machinery; it is fundamentally about enhancing safety and reliability. By preventing overpressure, the valve mitigates the risk of sudden component failures, such as hose bursts or seal failures, which can cause hydraulic fluid to spray under high pressure, posing severe hazards to personnel. It also prevents the uncontrolled movement of actuators, which could lead to accidents. From a reliability standpoint, consistent pressure management reduces mechanical stress on pumps, motors, cylinders, and control valves, leading to fewer breakdowns, extended intervals between maintenance, and predictable operational performance. This translates directly into reduced operating costs and improved productivity for truck operators.
Conclusion
The Buyers Products 1 Inch NPT In-Line Relief Valve with its 30 GPM flow capacity and adjustable pressure settings (1650-2500 PSI) stands as a testament to robust engineering and critical system protection in the demanding world of mobile hydraulics. Crafted from durable cast iron and featuring a versatile 3-port design, this valve offers precise, reliable overpressure protection for specific functions within truck hydraulic operations. Its technical specifications ensure seamless integration and optimal performance across a wide range of applications, from snow plows to refuse compactors. By choosing this meticulously engineered relief valve, customers invest in the longevity, safety, and operational efficiency of their hydraulic equipment, ensuring uninterrupted productivity and peace of mind. Buyers Products continues its commitment to delivering high-quality, dependable hydraulic components that meet the rigorous demands of today's industrial and commercial environments.
