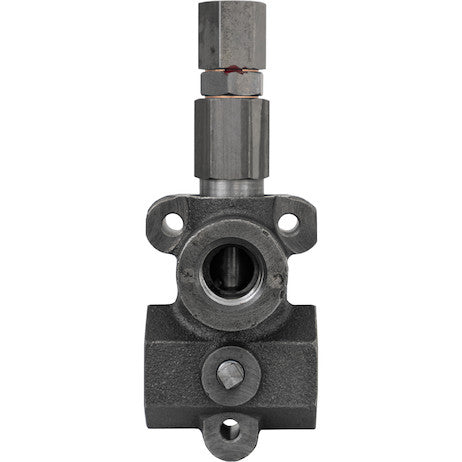

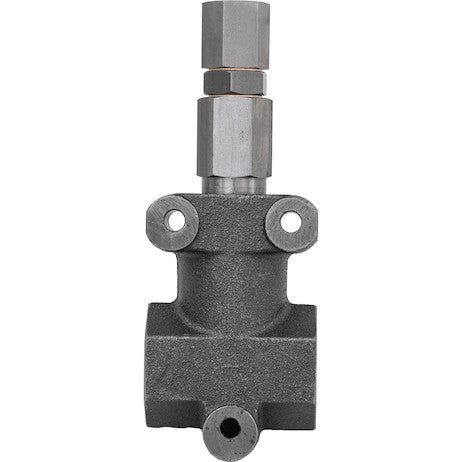

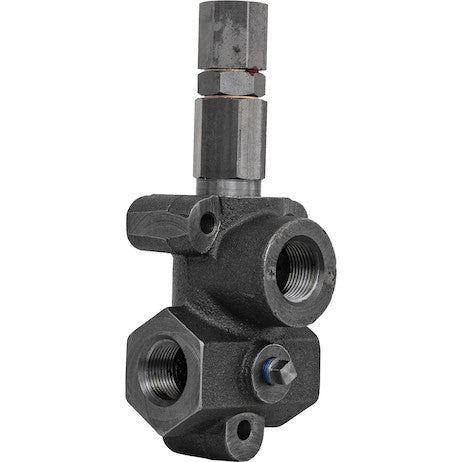

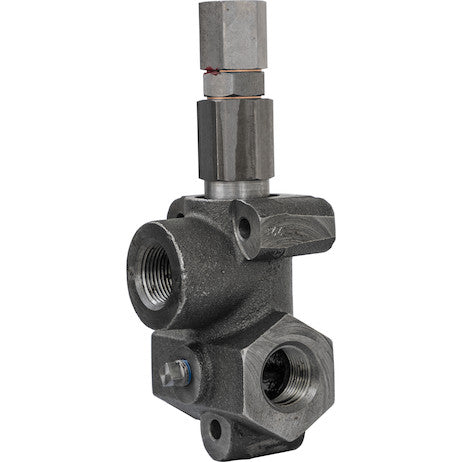

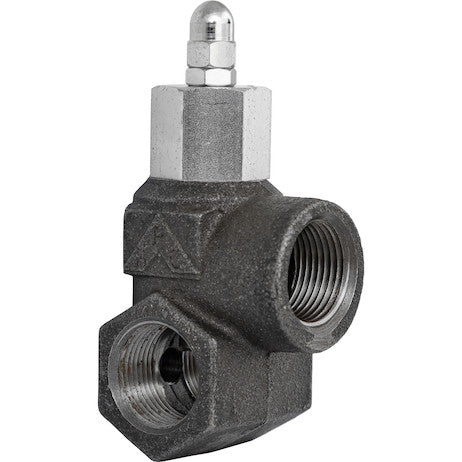

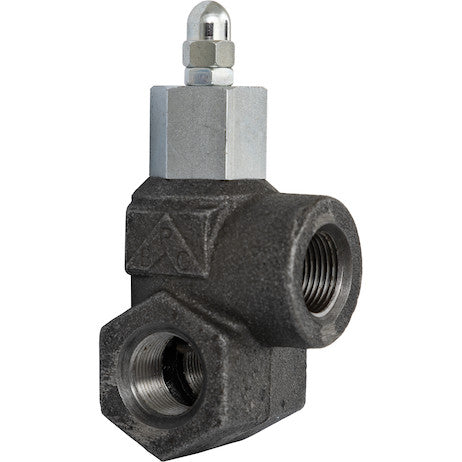

HRV10025 - 1 Inch NPT In-Line Relief Valve 50 GPM

Buyers Products In-Line Relief Valve provides pressure relief to specific functions in your truck's hydraulic operations. Choose from a range of preset pressure ratings from 1650 to 2500 PSI.

Specifications

The Buyers Products 1 Inch NPT In-Line Relief Valve: Precision Pressure Management for Hydraulic Systems

In the demanding world of hydraulic machinery, the integrity and longevity of components are paramount. The Buyers Products 1 Inch NPT In-Line Relief Valve, engineered for a robust 50 GPM flow rate and offering an adjustable pressure relief range from 1650 to 2500 PSI, stands as a critical guardian against the damaging effects of over-pressurization. This technical exposition delves into the intricate design, operational principles, material science, and comprehensive applications of this essential hydraulic component, highlighting its significance in ensuring system safety, operational efficiency, and extended equipment lifespan, particularly within mobile hydraulic environments such as truck-based operations.

Foundational Principles of Hydraulic Pressure Relief

Hydraulic systems, by their very nature, operate under high pressure to transmit power. This power, while essential for heavy-duty tasks, also introduces inherent risks. Without proper regulation, uncontrolled pressure spikes can lead to catastrophic component failure, system downtime, and significant safety hazards. Relief valves are the primary protective mechanism, designed to safeguard the entire hydraulic circuit by diverting excess fluid flow to a lower-pressure reservoir (typically the tank) when a pre-set pressure threshold is exceeded. This maintains the maximum system pressure within safe operating limits, preventing damage to pumps, actuators, hoses, seals, and other sensitive components.

The 1 Inch NPT In-Line Relief Valve serves as a crucial secondary or sectional relief valve. While a main system relief valve protects the entire pump output, in-line relief valves are strategically placed to protect specific sub-circuits or actuators from localized pressure surges. These surges can arise from external impact loads, sudden stopping of heavy loads, or thermal expansion within a confined volume of fluid. By addressing these localized pressure anomalies, the valve ensures that even if the main system pressure is within limits, individual components subjected to transient stresses remain protected. This level of granular control is indispensable in complex hydraulic architectures, optimizing both performance and preventative maintenance strategies.

Detailed Design and Operational Mechanics

This Buyers Products relief valve is characterized by its "in-line" configuration, meaning it is designed to be installed directly within the hydraulic flow path to a specific function or actuator. This simplifies plumbing and offers direct protection where it's most needed. The "3 Ports" specification is indicative of its functionality: typically, one port serves as the pressure inlet from the pump or upstream circuit, another port directs the flow to the protected function, and the third port acts as the relief (tank) line. When pressure at the inlet (and consequently, at the protected function) exceeds the valve's set point, the valve opens, diverting fluid from the protected function back to the tank, thereby limiting the pressure experienced by the actuator.

At its core, the relief valve operates on a differential pressure principle, utilizing a spring-loaded poppet or spool mechanism. Hydraulic fluid pressure acts upon one side of the poppet, opposing the force exerted by a precisely calibrated compression spring. As the system pressure rises, the force exerted by the fluid increases. When this fluid force overcomes the spring’s pre-load, the poppet unseats, creating an open path for the excess fluid to flow through the relief port to the hydraulic reservoir. The specified adjustable pressure range of 1650 to 2500 PSI is achieved by an external adjustment mechanism, typically a threaded screw or knob, which allows the operator or technician to vary the spring's compression, thereby altering the force required to unseat the poppet and, consequently, the pressure at which relief occurs. This adjustability is a critical feature, enabling customization to suit the specific requirements and safety limits of diverse hydraulic applications and components.

The valve's "Maximum Flow Rate" of 50 GPM (Gallons Per Minute) is a significant performance parameter. This rating indicates the maximum volume of fluid the valve can efficiently handle and relieve without experiencing excessive pressure drop across the valve itself, or generating detrimental heat. An adequately sized relief valve is crucial; if the flow rate of the protected circuit's pump or potential surge exceeds the valve's capacity, the valve may struggle to effectively limit pressure, leading to "pressure override" – a condition where system pressure rises significantly above the set point before full relief flow can be achieved. For systems designed to operate at or below 50 GPM, this valve offers ample capacity, ensuring swift and effective pressure diversion, minimizing the duration and magnitude of over-pressure events. Moreover, the "Maximum Body Pressure" and "Maximum Pressure" ratings, both at 3000 PSI, confirm the structural integrity of the valve housing and its internal components, guaranteeing safe operation even under peak system pressures that approach this limit, far exceeding the typical relief settings.

Material Science: The Strength of Cast Iron

The choice of "Cast Iron" for the valve body is a deliberate engineering decision based on its mechanical properties and suitability for high-pressure hydraulic environments. Cast iron, specifically grey cast iron, is widely favored in hydraulic component manufacturing for several key reasons:

• High Compressive Strength: Cast iron exhibits excellent compressive strength, allowing it to withstand the immense hydrostatic forces generated within hydraulic systems without deformation or structural failure. This is crucial for maintaining the precise internal geometry required for reliable valve operation.
• Rigidity and Stability: The material’s inherent rigidity contributes to dimensional stability, ensuring that critical internal clearances and sealing surfaces remain consistent even under varying pressures and temperatures. This minimizes internal leakage and maintains consistent performance characteristics.
• Vibration Damping: Cast iron has superior vibration damping characteristics compared to other metals like steel. In hydraulic systems, where pressure fluctuations and fluid turbulence can generate noise and vibration, a cast iron body helps to absorb these oscillations, contributing to quieter operation and reduced wear on connecting components.
• Machinability: While tough, cast iron is also highly machinable, allowing for the precise manufacturing of complex internal passages, valve seats, and port geometries essential for optimal fluid flow and pressure control.
• Cost-Effectiveness: Compared to other high-strength alloys, cast iron offers an excellent balance of performance and economic viability, making it a practical choice for industrial and mobile hydraulic components where durability without excessive cost is a priority.

The robustness of cast iron ensures that the valve can endure harsh operating conditions, including fluctuating temperatures, abrasive particles (when filtration is compromised), and continuous pressure cycles, thereby contributing significantly to the valve's long operational life and reliability in the field.

Connectivity Standards: 1 Inch NPTF Ports

The specification "1 NPTF" for the port size is critical for system integration. NPTF stands for National Pipe Taper Fuel, a specific type of tapered pipe thread standard that is widely used in North America for fluid power applications. While similar to the more general NPT (National Pipe Taper) standard, NPTF threads are designed to create a mechanical seal between the crest of the male thread and the root of the female thread, and between the root of the male thread and the crest of the female thread, without requiring a sealant to prevent leakage – a feature known as "dryseal." However, in practice, thread sealants are still commonly used in hydraulic applications to ensure an absolutely leak-free connection and facilitate assembly/disassembly.

Key aspects of NPTF connectivity include:

• Tapered Design: Both male and female threads are tapered, meaning the diameter of the thread decreases along its length. When tightened, this taper creates an interference fit, pressing the threads together to form a seal.
• Robust Connection: The tapered thread provides a strong mechanical joint capable of withstanding significant pressure and vibration without loosening.
• Standardization: 1-inch NPTF is a common size, ensuring compatibility with a wide range of hydraulic fittings, hoses, and other components, simplifying system design and maintenance.
• Installation Considerations: Proper installation is paramount. Over-tightening can damage the threads and compromise the seal, while under-tightening can lead to leaks. Using appropriate thread sealant (compatible with hydraulic fluids) and applying correct torque specifications are essential for a reliable, leak-free connection.

The 1-inch size signifies that this valve is designed for hydraulic circuits with higher flow requirements, aligning perfectly with its 50 GPM capacity, allowing for minimal pressure drop across the ports during normal operation and efficient flow diversion during relief.

Applications in Mobile and Industrial Hydraulics

While the initial description highlights "truck's hydraulic operations," the inherent versatility and robust design of the Buyers Products 1 Inch NPT In-Line Relief Valve extend its utility across a broad spectrum of demanding hydraulic applications. Its primary role in protecting "specific functions" makes it invaluable in scenarios where individual actuators or sub-circuits require dedicated pressure control.

Mobile Hydraulic Applications (Trucks and Beyond):

• Snowplows and Salt Spreaders: Protecting cylinders that articulate the plow blade or motors driving spreader augers from impact loads or sudden stalls.
• Dump Trucks: Safeguarding the hydraulic hoist cylinders from over-pressurization during the lifting and lowering of heavy loads, or from external forces acting on the bed.
• Refuse Vehicles: Ensuring the safe operation of compactors, lifters, and ejection mechanisms, where sudden resistive forces can generate pressure spikes.
• Cranes and Aerial Work Platforms: Providing secondary relief for boom extension cylinders, outrigger cylinders, or winch motors, preventing damage from shock loads or operator error.
• Utility Trucks: For digger derricks, bucket trucks, and other service vehicles, protecting hydraulic tools and actuators from unexpected resistance or impacts.
• Agricultural Equipment: Protecting implement cylinders (e.g., for cultivators, planters, loaders) from ground impact or sudden resistance, as well as hydraulic motors driving various functions.
• Construction Equipment: In excavators, loaders, and bulldozers, providing dedicated relief for specific attachments, swing motors, or individual cylinder circuits, enhancing component life under heavy operational stresses.

Industrial Hydraulic Applications:

• Machine Tools: Protecting hydraulic clamping mechanisms, feed cylinders, or tool changers from excessive force.
• Material Handling Equipment: In forklifts, stackers, and conveyor systems, safeguarding lift cylinders, tilt cylinders, and drive motors.
• Presses and Molds: Ensuring consistent and safe force application in hydraulic presses, preventing damage from over-pressurization during clamping or forming operations.
• Process Control Systems: In applications requiring precise hydraulic actuation, providing fail-safe pressure limits for critical processes.

The adjustable pressure range from 1650 to 2500 PSI allows operators to fine-tune the protection level precisely for the rated working pressure of the specific component it guards. For instance, a cylinder rated for 2000 PSI maximum continuous pressure could be protected by setting the valve at 1800-1900 PSI, providing a safety margin before reaching the component's absolute limit.

Installation, Maintenance, and Operational Best Practices

To maximize the performance, reliability, and longevity of the 1 Inch NPT In-Line Relief Valve, adherence to proper installation and maintenance protocols is crucial.

Installation:

1. System Cleanliness: Ensure the hydraulic system is free of contaminants before installation. Contaminants are a leading cause of valve malfunction and premature wear. Flush lines if necessary.
2. Orientation: Install the valve in the correct flow direction as indicated by markings on the valve body. Incorrect orientation will compromise its protective function.
3. Secure Mounting: Mount the valve securely to prevent vibration and stress on the plumbing connections. Consider vibration dampening mounts if the operating environment is particularly harsh.
4. Thread Sealant and Torque: Apply a high-quality hydraulic-compatible thread sealant to the NPTF threads. Tighten fittings to the manufacturer's recommended torque specifications. Avoid over-tightening, which can distort the valve body or damage threads, leading to leaks.
5. Accessibility: Install the valve in a location that allows easy access for pressure adjustments, inspection, and potential maintenance.

Pressure Setting and Adjustment:

1. Use a Pressure Gauge: Always adjust the relief pressure using a calibrated pressure gauge connected to the protected circuit. Do not rely on "feel" or approximations.
2. Gradual Adjustment: Increase the system pressure gradually while adjusting the valve. Turn the adjustment screw clockwise to increase the relief pressure and counter-clockwise to decrease it.
3. Test Under Load: Test the relief valve setting under actual operational load conditions to confirm its effectiveness and ensure it activates at the desired pressure point, accounting for dynamic system responses.
4. Locking Mechanism: Once the desired pressure is set, secure the adjustment mechanism, typically with a locknut, to prevent accidental changes due to vibration.

Maintenance and Troubleshooting:

• Fluid Quality: Regular monitoring of hydraulic fluid cleanliness and viscosity is paramount. Contaminated fluid can cause valve sticking, erosion of valve seats, and premature spring fatigue. Adhere to fluid change intervals and maintain proper filtration levels.
• Leak Inspection: Periodically inspect the valve and its connections for external leaks. Address any leaks promptly to prevent fluid loss, contamination ingress, and safety hazards.
• Performance Checks: Conduct periodic functional checks of the relief valve by intentionally exceeding the set pressure (under controlled conditions) to ensure it opens smoothly and reseats reliably without excessive pressure override or chatter.
• Addressing Chatter: If the valve "chatters" (rapid opening and closing), it often indicates instability in the system, potentially due to excessive flow, incorrect spring rate, or system harmonics. Adjusting the relief pressure slightly or inspecting for upstream/downstream flow restrictions can sometimes mitigate this.
• Overheating: Continuous operation of a relief valve in its open position (dumping fluid to tank) indicates an issue within the system (e.g., a jammed cylinder, a system demanding more force than available) and will generate significant heat. This reduces system efficiency and can damage hydraulic fluid and components. Address the root cause immediately.

By integrating this valve correctly and adhering to these best practices, operators can significantly enhance the safety, reliability, and service life of their hydraulic equipment.

Conclusion: A Sentinel of Hydraulic System Integrity

The Buyers Products 1 Inch NPT In-Line Relief Valve, with its robust Cast Iron construction, 50 GPM flow capacity, and adjustable pressure relief range of 1650 to 2500 PSI, represents a critical component in the engineering of reliable hydraulic systems. Its ability to provide precise, localized pressure protection for specific functions in demanding applications – from truck hydraulics to heavy industrial machinery – is indispensable. By diverting excess pressure effectively and maintaining system integrity, this valve not only prevents costly damage to pumps, actuators, and associated plumbing but also significantly contributes to operational safety and reduces unscheduled downtime. Its careful design, adherence to established standards like NPTF, and the durability afforded by its material choice underscore its role as a high-performance, long-lasting solution for hydraulic pressure management. For engineers and operators seeking dependable hydraulic control and protection, this in-line relief valve stands as an exemplary choice, ensuring that hydraulic power is delivered safely and efficiently.
