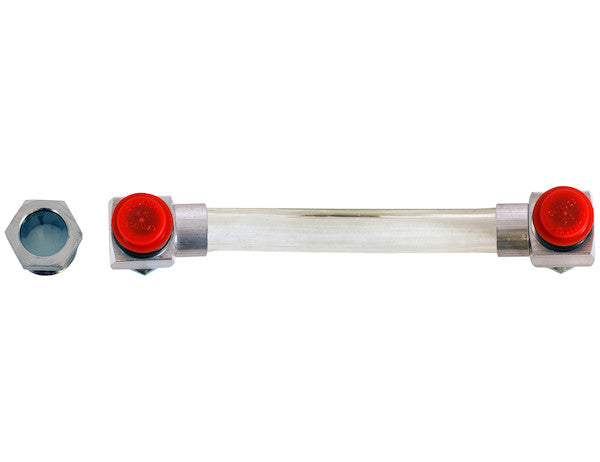

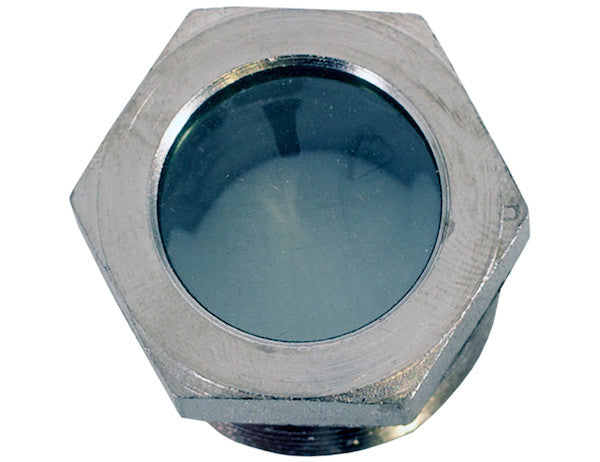

Sight Level Gauges from Buyers Products let you quickly and simply assess the amount of hydraulic fluid in your reservoir. The gauges are zinc-plated for corrosion resistance and rated at 125 PSI and 250?? F. Choose from two NPT sight level gauges or a 5 in. hydraulic liquid level gauge with 1/2in.-13 NC threads.
Specifications
| Mount Thread | 3/4 NPT |
|---|---|
| Size | .25" |
| Style | Sight Glass |
| Temperature Indicator | No |
Comprehensive Technical Analysis of the 3/4 Inch NPT Sight Level Gauge
The 3/4 Inch NPT Sight Level Gauge by Buyers Products represents a critical component in the proactive maintenance and operational integrity of hydraulic systems. Designed for precise, instantaneous visual assessment of hydraulic fluid levels, this gauge ensures that essential machinery and equipment operate within optimal parameters, thereby mitigating risks associated with inadequate or excessive fluid volumes. In complex hydraulic circuits, the correct fluid level is paramount not only for efficient power transmission but also for the longevity of system components, including pumps, valves, and actuators. This technical description will delve into the specific design characteristics, material science, performance ratings, and application versatility of this vital instrument.
Fundamental Principles of Hydraulic Fluid Level Monitoring
Monitoring hydraulic fluid levels is not merely a routine check; it is a fundamental aspect of preventive maintenance that directly impacts system performance, reliability, and lifespan. An insufficient fluid level can lead to cavitation within the pump, causing severe damage, reduced efficiency, and premature failure. Cavitation occurs when suction pressure drops below the fluid’s vapor pressure, leading to the formation and collapse of vapor bubbles, which erodes pump components and introduces air into the system. Conversely, an overfilled reservoir can result in aeration, increased system pressure, overheating, and potential fluid leaks through breather vents or seals. Furthermore, incorrect fluid levels can compromise heat dissipation, as the reservoir plays a crucial role in cooling the hydraulic fluid. The 3/4 Inch NPT Sight Level Gauge provides a simple, yet highly effective, method for operators and technicians to maintain the prescribed fluid level, ensuring continuous, safe, and efficient operation of hydraulic machinery. Its direct visual interface eliminates the complexities of electronic sensors, offering an immediate and reliable assessment that is indispensable in numerous industrial and mobile applications.
In-Depth Examination of Design and Construction
The engineering and material selection for the 3/4 Inch NPT Sight Level Gauge are meticulously chosen to ensure durability, reliability, and compatibility within demanding hydraulic environments. The construction focuses on providing a robust housing, a clear and resilient viewing element, and secure, leak-proof connections.
Robust Material Selection: Zinc-Plated Steel Housing
The primary housing of this sight level gauge is constructed from steel, which provides inherent structural strength and mechanical integrity. To enhance its resistance to environmental degradation, the steel housing undergoes a zinc-plating process. Zinc plating, also known as galvanization, is an electrodeposition technique where a thin layer of zinc is applied to the steel surface. This plating serves as a sacrificial coating; zinc is more electrochemically active than steel, meaning it will corrode preferentially to protect the underlying steel substrate in the presence of corrosive agents such such as moisture, salts, and various chemicals. This cathodic protection significantly extends the operational life of the gauge in harsh conditions, preventing rust and maintaining the aesthetic and structural integrity of the component. The zinc plating ensures that the gauge can withstand the rigors of industrial and outdoor environments where exposure to varying weather conditions, dust, and certain corrosive agents is common, thereby reducing maintenance costs and replacement frequency.
High-Clarity Sight Glass Element
The viewing element, referred to as "Sight Glass," is engineered for optimal transparency and chemical compatibility with hydraulic fluids. While the term "sight glass" can sometimes broadly refer to any transparent viewing window, in high-performance applications such as hydraulic systems, it typically denotes a robust material capable of withstanding pressure, temperature, and chemical exposure. Common materials for such elements include borosilicate glass, which offers excellent thermal shock resistance and chemical inertness, or high-performance transparent polymers like polyamide (Nylon) or acrylic (PMMA) for applications where impact resistance is a priority. For this particular gauge, the "Style: Sight Glass" implies a clear, durable window designed for long-term visibility without clouding or degradation from contact with hydraulic fluid. The precise composition is selected to resist common hydraulic fluid additives and ensure that the fluid level remains clearly discernible over extended periods, facilitating accurate readings.
Precision Engineering for Sealing Integrity
A critical aspect of any fluid-carrying component in a pressurized system is its sealing integrity. The 3/4 Inch NPT Sight Level Gauge is designed with precision-machined threads and appropriate sealing mechanisms to prevent leaks. The NPT (National Pipe Taper) thread standard intrinsically provides a mechanical seal due to its tapered design; as the male and female threads engage, they wedge together, creating a metal-to-metal seal. However, for pressurized hydraulic applications, supplementary thread sealants or PTFE (polytetrafluoroethylene) tape are typically employed to ensure a completely leak-proof connection. Internally, the interface between the sight glass element and the zinc-plated housing incorporates elastomeric seals, commonly made from materials like NBR (Nitrile Butadiene Rubber) or FKM (Fluoroelastomer), chosen for their specific chemical compatibility with hydraulic fluids and their ability to maintain sealing properties across the specified temperature range. These seals are crucial for preventing fluid egress and maintaining the internal pressure rating of the gauge.
Performance Specifications: A Technical Analysis
Understanding the detailed performance specifications is crucial for proper system integration and ensuring safe, reliable operation. The 3/4 Inch NPT Sight Level Gauge is meticulously rated to meet the demands of various hydraulic applications.
Pressure Rating: 125 PSI – Operational Safety and System Compatibility
The gauge is rated for a maximum operating pressure of 125 PSI (pounds per square inch). This specification is a critical safety parameter, indicating the highest pressure the component can safely withstand without risk of failure, leakage, or structural compromise. In hydraulic systems, pressure is a direct measure of force, and components must be capable of safely containing the system’s operational pressures, often with a significant safety factor. While many hydraulic systems operate at much higher pressures, sight level gauges are typically installed on low-pressure return lines, reservoirs, or tanks where the fluid is at atmospheric pressure or under minimal positive pressure due to fluid head or breather resistance. The 125 PSI rating confirms the gauge's suitability for such applications, ensuring it can handle potential pressure spikes or sustained low-pressure conditions within the reservoir or ancillary lines without risk of rupture. Exceeding this pressure rating can lead to catastrophic failure, resulting in fluid leaks, environmental contamination, equipment damage, and serious safety hazards to personnel.
Temperature Rating: 250° F (121° C) – Thermal Resilience
A maximum operating temperature of 250° F (approximately 121° C) underscores the gauge's thermal resilience. Hydraulic systems generate significant heat during operation due to fluid friction, pump inefficiency, and external environmental factors. The temperature rating is critical as elevated temperatures can degrade hydraulic fluid properties, accelerate seal deterioration, and compromise the structural integrity of the gauge materials. The 250° F rating ensures that the sight glass element, housing, and internal seals can maintain their mechanical and chemical properties without becoming brittle, soft, or losing their sealing capabilities within the typical operating temperature range of most industrial and mobile hydraulic reservoirs. Operating beyond this limit can lead to premature failure, fluid leaks, and a loss of visual clarity over time. This robust thermal rating makes the gauge suitable for applications where fluid temperatures can rise significantly, providing a reliable level indicator even under thermally challenging conditions.
3/4 NPT Mounting Thread – Universal Integration
The specification of a 3/4 NPT (National Pipe Taper) mounting thread indicates a widely recognized and utilized standard for connecting pipes and fittings in North America. The tapered design of NPT threads ensures a secure, leak-resistant connection suitable for fluid and gas applications. The 3/4-inch designation refers to the nominal pipe size, not the actual measured diameter of the threads, which is a common characteristic of pipe thread standards. This universal threading simplifies installation, allowing for direct integration into pre-tapped ports on hydraulic reservoirs, tanks, or process vessels. Proper installation involves applying an appropriate thread sealant (e.g., PTFE tape or liquid pipe sealant) to the male threads and tightening to the manufacturer's recommended torque specifications. This ensures a hermetic seal against both pressure and vacuum, preventing fluid leakage and air ingress into the hydraulic system, which can cause aeration and operational issues. The prevalence of NPT threads simplifies replacement and maintenance, as compatible fittings are readily available.
Gauge "Size" (.25") – Clarity and Durability
The specification of "Size: .25"" for a sight level gauge can refer to several dimensions, depending on the specific design. Given the "Style: Sight Glass," this often indicates the thickness of the transparent viewing element itself, or potentially the effective viewing aperture diameter in a compact design. If it refers to the thickness of the sight glass, a .25-inch (or 1/4-inch) thickness denotes a highly robust and durable window, capable of withstanding significant mechanical stress, impact, and internal pressure without compromising clarity. A thicker glass element enhances the gauge's resistance to accidental damage and provides superior structural integrity against system vibrations or external forces. If interpreted as a viewing diameter, it would represent a compact but sufficiently clear window for direct fluid level observation in space-constrained applications. In either interpretation, the .25-inch size emphasizes a design principle focused on ruggedness and reliability, ensuring that the visual indication remains protected and functional throughout its operational life, even in demanding industrial environments where components are exposed to potential physical impacts.
Style: Sight Glass – Direct Visual Indication
The "Style: Sight Glass" signifies a direct, transparent viewing port that allows for immediate and unambiguous visual inspection of the fluid level. This contrasts with other level indication methods such as dipsticks, float switches, or electronic sensors. The primary advantage of a sight glass is its simplicity and reliability; it provides an intuitive, real-time representation of the fluid level without relying on electrical signals or mechanical linkages that can fail or require calibration. This direct visual method is invaluable for quick checks during routine maintenance, troubleshooting, and initial system commissioning. While it does not offer remote monitoring capabilities or automated control outputs, its straightforward design makes it exceptionally cost-effective and dependable for local fluid level assessment. The clear viewing window facilitates easy detection of not only the fluid level but also visual characteristics of the fluid itself, such as discoloration, turbidity, or the presence of contaminants or foam, providing additional diagnostic insights to the operator.
Absence of Temperature Indicator – Focused Functionality
The specification "Temperature Indicator: No" clarifies that this particular sight level gauge is designed solely for fluid level assessment and does not incorporate a integrated thermometer. While some sight gauges offer combined level and temperature indication, this model focuses exclusively on its primary function: providing a clear and reliable fluid level reading. This streamlined design can offer benefits in terms of cost-effectiveness and potentially reduced complexity or points of failure associated with additional sensors. For applications where fluid temperature monitoring is also critical, a separate temperature gauge would need to be installed independently. This allows operators to select the most appropriate and precise temperature sensing solution for their specific system requirements, whether it be a simple bimetallic thermometer or a more advanced electronic temperature sensor with remote output capabilities. The absence of an integrated temperature indicator does not diminish the effectiveness of the gauge for its stated purpose but rather highlights its specialized role within the hydraulic system monitoring suite.
Critical Applications and Industry Suitability
The 3/4 Inch NPT Sight Level Gauge is an indispensable component across a broad spectrum of industries and hydraulic applications due to its robust design and clear functionality:
- Mobile Hydraulics: Essential for construction equipment (excavators, bulldozers), agricultural machinery (tractors, harvesters), utility vehicles, and municipal service trucks, ensuring hydraulic fluid levels are always within safe limits for demanding field operations.
- Industrial Machinery: Crucial for stationary hydraulic power units found in manufacturing plants, machine tools (CNC machines), presses, plastic injection molding equipment, and material handling systems, where consistent fluid levels are vital for continuous production.
- Off-Highway Equipment: Widely used in mining equipment, forestry machinery, and other heavy-duty vehicles operating in remote and harsh environments, where reliable and simple visual checks are preferred.
- General Hydraulic Systems: Applicable to any system featuring a hydraulic reservoir where direct visual confirmation of fluid level is required for routine maintenance and operational safety. This includes lubrication systems, cooling units, and various fluid transfer systems.
Installation Best Practices and Operational Longevity
Proper installation and routine maintenance are paramount to maximizing the operational life and reliability of the 3/4 Inch NPT Sight Level Gauge.
Installation Procedures:
- Port Preparation: Ensure the hydraulic reservoir or tank port is clean, free of debris, and correctly threaded (3/4 NPT female).
- Thread Sealant: Apply a suitable thread sealant, such as PTFE tape or a liquid pipe thread sealant compatible with hydraulic fluids, to the male 3/4 NPT threads of the sight gauge. Apply sealant only to the threads, avoiding the first two threads to prevent sealant material from entering the hydraulic system.
- Mounting: Carefully thread the gauge into the prepared port by hand until finger-tight.
- Torque Specification: Using an appropriate wrench, tighten the gauge to the manufacturer’s recommended torque specification. Over-tightening can damage the threads or the gauge housing, while under-tightening can lead to leaks.
- Orientation: Ensure the sight glass is oriented in a position that provides clear and unobstructed visual access for level checks.
- System Integration Check: After installation, fill the hydraulic system to the recommended level and check the gauge for any signs of leakage under operating pressure.
Maintenance and Inspection:
- Routine Visual Inspection: Regularly inspect the sight glass for clarity, cracks, discoloration, or any signs of fluid degradation within the gauge. Check the housing for corrosion or damage.
- Leak Detection: Periodically check the threaded connection for any signs of hydraulic fluid leakage. Address leaks promptly to prevent fluid loss and system contamination.
- Cleaning: Keep the exterior of the sight glass clean to ensure maximum visibility. Use a soft cloth and a cleaning agent compatible with the sight glass material to avoid scratching or chemical degradation.
- Fluid Compatibility: Ensure that the hydraulic fluid being used is compatible with the gauge's internal seals and sight glass material to prevent degradation over time.
- Replacement: While designed for longevity, gauges should be replaced if they show signs of structural damage, significant clouding of the sight glass, or persistent leakage that cannot be resolved.
The Advantage of Buyers Products: Quality and Reliability
Buyers Products is renowned for its commitment to engineering excellence and manufacturing robust components designed for the most demanding applications. The 3/4 Inch NPT Sight Level Gauge is a testament to this legacy, reflecting rigorous quality control processes and adherence to industry standards. Choosing a Buyers Products sight gauge ensures that you are investing in a component that offers superior performance, extended durability, and unwavering reliability, contributing to the overall efficiency and safety of your hydraulic systems. This dedication to quality translates directly into reduced downtime, lower maintenance costs, and optimized operational performance for your equipment.
In conclusion, the 3/4 Inch NPT Sight Level Gauge by Buyers Products is a meticulously engineered instrument essential for the reliable operation of hydraulic systems. Its zinc-plated steel construction, robust sight glass element, and precise NPT threading, combined with its specific pressure and temperature ratings, ensure dependable performance in a wide array of industrial and mobile applications. By providing clear, direct visual feedback on hydraulic fluid levels, this gauge empowers operators and maintenance personnel to make informed decisions, prevent costly system failures, and extend the lifespan of critical machinery. Its straightforward design and high-quality construction make it an invaluable asset for any professional managing hydraulic equipment.
