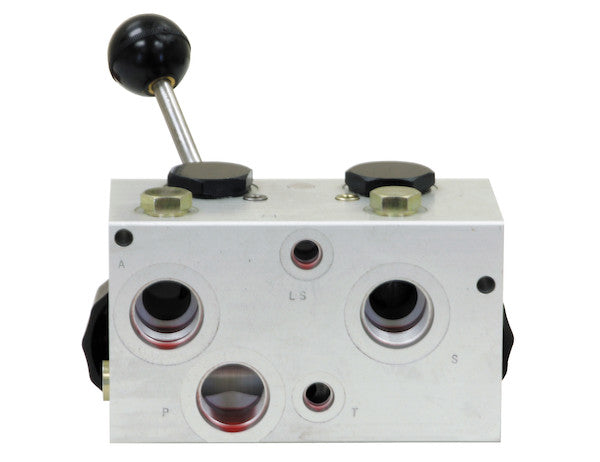

The Load Sensing Spreader Valve from Buyers Products has internal load sensing checks that communicate pressure signals to a load sensing pump in order to increase or decrease the flow. The valve can handle a maximum 3000 PSI. Dirt-tolerant and reliable, it features honed and matched hardened steel working parts for a long life. Flow for each operation is easy to adjust with two detent knobs, each featuring 11 positive positions. An On/Unload lever has detented stops. Choose from a 5/15 GPM or a 10/30 GPM model to meet your needs.
Specifications
| Auger/Chain Flow Rate Max (GPM) | 30 |
|---|---|
| Auger/Chain Flow Rate Max (LPM) | 114 |
| Auger/Chain Port | 3/4 NPT |
| Flow (GPM) | 40 |
| Flow (LPM) | 153 |
| Functions Supported | Spinner/Auger |
| GPS Capable? | No |
| GPS Included? | No |
| Included Control Type | Manual |
| Inlet Port | 3/4 NPT |
| Load Sensing Port | 1/4 NPT |
| Main Relief Setting | 1500 |
| Mount Type | Base |
| Number of Ports | 5 |
| Pre-Wet Supported? | No |
| Pressure | 2000 |
| Pressure (Bar) | 140 |
| Relief Cartridge Setting | 1500 |
| Single or Dual Flow | Dual |
| Spinner Flow Rate Max (GPM) | 10 |
| Spinner Flow Rate Max (LPM) | 115 |
| Spinner Port | 1/2 NPT |
| Tank Port | 3/4 NPT |
| Type | Load Sensing |
| What's Included | Valve Only |
Advanced Technical Overview: Load Sensing Spreader Valve 10-30 GPM
The Buyers Products Load Sensing Spreader Valve, specifically engineered for 10-30 GPM applications, represents a critical component in modern hydraulic systems requiring precise, efficient, and robust control over material spreading operations. This valve is meticulously designed to optimize the interaction between the hydraulic pump and the actuated equipment, delivering unparalleled performance for auger/chain and spinner functions in demanding environments such as winter road maintenance, agricultural seeding, or material distribution.
At its core, this valve employs advanced load sensing technology, a fundamental principle in hydraulic efficiency. Unlike traditional open-center or fixed-displacement pump systems, a load sensing system dynamically matches the pump's output flow and pressure to the instantaneous demand of the actuators. The internal load sensing checks within this valve are crucial to this process. They continuously monitor the pressure required by the work functions (i.e., the auger/chain and spinner motors). This pressure signal, often referred to as the "load sense signal" or "LS signal," is then relayed via a dedicated pilot line to a variable displacement load sensing pump. Upon receiving this signal, the pump’s compensator mechanism adjusts its swashplate angle, thereby increasing or decreasing its displacement to supply precisely the flow and pressure needed, plus a small pre-set margin (often 200-300 PSI, known as the "standby pressure" or "load sensing differential pressure"). This intelligent communication minimizes wasted energy, as the pump only works as hard as the application demands, translating directly into significant fuel savings, reduced heat generation within the hydraulic system, and extended component life. The ability to handle a maximum system pressure of 3000 PSI ensures that the valve can operate reliably under substantial loads, with a nominal operating pressure of 2000 PSI providing ample power for most spreading applications.
Optimized Performance and Flow Management
The 10-30 GPM designation of this valve refers to its robust capability to manage substantial hydraulic flow rates for the auger/chain mechanism, reaching up to 30 GPM (114 LPM). Concurrently, it offers a dedicated, independently controlled circuit for the spinner, capable of up to 10 GPM (38 LPM, though the specification lists 115 LPM, indicating potential for higher flow or a rounding discrepancy, the 10 GPM is the control max). This dual-flow functionality is a cornerstone of its design, enabling simultaneous and independent control of both critical spreading functions. The independent control of the auger/chain and spinner allows operators to fine-tune material output and spread pattern width separately, adapting instantly to varying terrain, material types, and operational requirements. For instance, adjusting the auger speed regulates the volume of material discharged, while modifying the spinner speed and direction dictates the spread width and uniformity. This level of granular control is essential for preventing material waste, ensuring even coverage, and complying with environmental regulations regarding over-spreading. The valve's overall maximum flow capacity of 40 GPM (153 LPM) indicates its robust internal architecture, designed to handle peak demands and ensure sufficient fluid delivery across all integrated functions without excessive pressure drop, thereby maintaining system responsiveness and efficiency even during combined operation.
Engineered for Uncompromising Durability and Reliability
The operational environment for spreader valves is inherently harsh, often involving exposure to extreme temperatures, corrosive materials, and abrasive contaminants. Recognizing these challenges, the Buyers Products Load Sensing Spreader Valve has been engineered with an emphasis on durability and long-term reliability. A key feature is its "dirt-tolerant" design. This is achieved through precision manufacturing tolerances, strategic placement of seals, and robust material selection which collectively minimize the ingress of particulate matter into critical internal clearances. However, the most significant contribution to its longevity comes from its "honed and matched hardened steel working parts." This refers to the spool and bore components within the valve:
- Hardened Steel: The use of hardened steel for critical moving parts, such as the spools and their respective bores, provides exceptional resistance to abrasive wear, erosion, and brinelling. This material selection ensures that the valve's internal geometry remains precise over extended periods of operation, even under high pressure and frequent cycling.
- Honed Finish: The internal bores are meticulously honed to achieve an ultra-smooth surface finish. This process not only ensures tight sealing and minimizes internal leakage (thus preserving hydraulic efficiency) but also reduces friction, leading to smoother spool actuation and less wear. A superior surface finish on the bore is critical for preventing debris from scoring surfaces and for optimizing hydrodynamic lubrication.
- Matched Components: The spools are precisely matched to their respective honed bores. This means that each spool is individually fitted to its specific bore during the manufacturing process to achieve optimal clearance. This precision matching minimizes "bypass leakage" (leakage from high-pressure to low-pressure areas internally), which is vital for maintaining pressure and flow accuracy. It also ensures consistent performance characteristics across the valve's operating range and minimizes the risk of spool sticking or excessive wear due to misalignment.
These engineering principles collectively ensure that the valve maintains its operational integrity and performance specifications over an extended service life, significantly reducing maintenance requirements and total cost of ownership in demanding applications.
Precision Control and Intuitive User Interface
Operator control is paramount in material spreading applications where precision is critical for effective deployment and resource management. This valve features an intuitive manual control interface designed for straightforward and accurate adjustments. The two detent knobs, each offering 11 positive positions, provide a distinct advantage for setting and maintaining specific flow rates for both the auger/chain and spinner functions. Each detented position corresponds to a calibrated flow setting, allowing operators to make repeatable adjustments without guesswork. This tactile feedback system ensures that once a desired flow rate is selected, it remains securely in place, even under vehicle vibration or dynamic operating conditions. The granular control afforded by 11 positions enables very fine tuning of material delivery, crucial for optimizing spread patterns and material consumption. For instance, adjusting the auger/chain flow rate through these detent knobs directly impacts the material feed rate onto the spinner, while independent adjustment of the spinner flow rate controls its rotational speed and consequently the spread width and velocity. The "On/Unload lever" further simplifies operation, featuring detented stops for clear functional engagement. The "On" position engages the spreading functions, while the "Unload" position typically directs pump flow back to the tank at minimum pressure (standby pressure), effectively disengaging the work functions and reducing energy consumption when spreading is not required. This lever provides a quick and decisive means to activate or deactivate the system, enhancing both operational safety and efficiency.
Seamless System Integration and Application Versatility
The Buyers Products Load Sensing Spreader Valve is designed for seamless integration into hydraulic systems utilizing load sensing variable displacement pumps. Its 5-port configuration is meticulously arranged for standard hydraulic circuit connections:
- Inlet Port (3/4 NPT): The main connection for pressurized hydraulic fluid from the load sensing pump. The 3/4 NPT thread ensures robust, leak-free connection capable of handling high flow and pressure.
- Tank Port (3/4 NPT): Returns unused hydraulic fluid back to the reservoir. A sufficiently sized tank port is crucial for minimizing backpressure within the system, which can otherwise lead to heat generation and reduced efficiency.
- Auger/Chain Port (3/4 NPT): Dedicated output for the hydraulic motor driving the auger or chain conveyor. The 3/4 NPT size accommodates the higher flow rates (up to 30 GPM) required for robust material conveyance.
- Spinner Port (1/2 NPT): Dedicated output for the hydraulic motor driving the spinner. The 1/2 NPT size is appropriate for the lower, yet precisely controlled, flow rates (up to 10 GPM) required for the spinner.
- Load Sensing Port (1/4 NPT): This crucial port connects to the load sensing input of the variable displacement pump, transmitting the highest working pressure signal back to the pump's compensator to regulate its output. The smaller 1/4 NPT size is standard for pilot or signal lines.
This valve primarily supports "Spinner/Auger" functions, making it ideally suited for a wide array of spreading equipment. Common applications include:
- Winter Maintenance Vehicles: For precise application of salt, sand, and other de-icing agents on roads, highways, and parking lots. The ability to vary spread patterns and material density is critical for managing ice and snow effectively and economically.
- Agricultural Spreaders: For uniform distribution of fertilizers, seeds, lime, and other agricultural inputs, optimizing crop yield and soil health.
- Construction and Landscaping: For spreading gravel, mulch, or other aggregate materials.
The base mount type ensures stable and secure installation within the vehicle's hydraulic manifold or frame, minimizing vibration and potential damage from operational stresses.
Operational Efficiencies and Environmental Benefits
The implementation of this Load Sensing Spreader Valve contributes significantly to the overall operational efficiency of the equipment. By providing only the necessary flow and pressure, the hydraulic system minimizes energy losses that would otherwise manifest as heat. This results in:
- Reduced Fuel Consumption: Less energy wasted by the pump translates directly into lower fuel usage for the prime mover (e.g., truck engine).
- Lower Operating Temperatures: A cooler hydraulic system extends the life of hydraulic fluid, seals, hoses, and other components, reducing maintenance costs and downtime.
- Extended Component Life: Reduced stress on the pump, motor, and other hydraulic components due to optimized pressure and flow management leads to longer service intervals and increased reliability.
- Precise Material Application: The fine-tune adjustments and independent control enable operators to apply materials with greater accuracy, reducing waste and minimizing environmental impact from over-spreading. This is particularly relevant for sensitive materials like certain chemicals or fertilizers.
While this specific model features manual control, its inherent load sensing capability provides a solid foundation for future integration with more advanced electronic control systems, should an operator choose to upgrade or integrate into existing vehicle control architectures. However, for applications where simplicity, reliability, and robust mechanical control are prioritized, this manual valve offers an optimal solution.
Conclusion
The Buyers Products Load Sensing Spreader Valve 10-30 GPM stands as a testament to advanced hydraulic engineering, designed to meet the rigorous demands of modern material spreading applications. Its integration of sophisticated load sensing technology, robust construction with honed and matched hardened steel components, precise manual flow adjustment, and dedicated dual-functionality for auger/chain and spinner operations collectively deliver superior performance. Operators benefit from enhanced efficiency, reduced operational costs through fuel savings and extended component life, and unparalleled control over material deployment. This valve is not merely a component; it is a vital system enhancer, ensuring reliable, precise, and cost-effective spreading operations across a multitude of industries.
