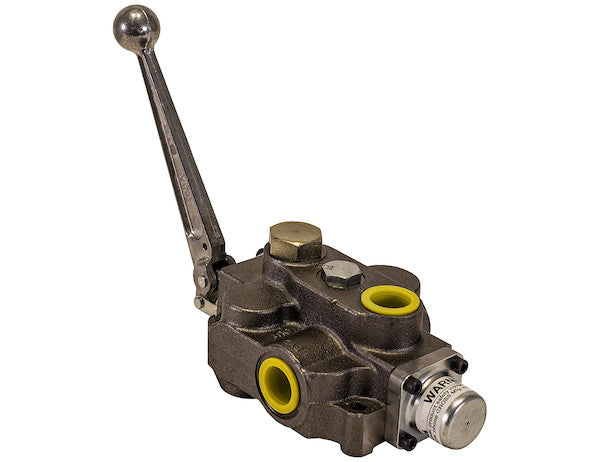

The 1 Spool Directional Control Valve from Buyers Products is compact, precise, and reliable. It directs flow smoothly where and when you need it. It's built of cast iron for durable, dependable performance. Small enough to fit anywhere, with plenty of force for the job, the control valve has a max flow of 30 GPM and a working pressure of 2500 PSI (maximum 4000 PSI). The integral relief valve is adjustable (factory-set at 2000 PSI/10 GPM). Each valve has a built-in load check to prevent flow reversal when shifting. Precision-machined and ground spools provide minimal leakage and smooth operation. The spool seals are external for easy replacement without having to disassemble the valve. The handle is sold separately. Additional configurations are available. Please contact Customer Service for further information.
Specifications
| Electrically Operated (y/n) | No |
|---|---|
| Inlet Port Size | 3/4 SAE ORB (-12) |
| Main Relief Setting | 2000 |
| Maximum Flow Rate | 30 |
| Maximum Pressure | 3500 |
| Out Port Size | #12 |
| Outlet Port Size | 3/4 SAE ORB (-12) |
| Port Type | SAE |
| Power Beyond (y/n) | Yes |
| Spool Action 1 | Power Up/Gravity Down |
| Spool Function | Single Acting 3 Way |
| Work Port Size | 3/4 SAE ORB (-12) |
Advanced Technical Overview: 1 Spool Directional Control Valve with Spring Center and Power Beyond Functionality
The Buyers Products 1 Spool Directional Control Valve is engineered to deliver superior hydraulic fluid management, offering precise control in a compact and robust package. This component is integral to the efficient operation of various hydraulic systems, providing reliable and repeatable control over the movement of single-acting cylinders and motors. Designed for demanding applications, its construction and feature set underscore a commitment to durability, performance, and ease of maintenance.
Fundamental Principles of Directional Control Valves in Hydraulic Systems
A directional control valve (DCV) is a cornerstone of any hydraulic system, serving as the primary mechanism for regulating the path of hydraulic fluid. By directing fluid flow, DCVs control the starting, stopping, and direction of motion of hydraulic actuators, such as cylinders and motors. The nomenclature "1 Spool" indicates that this particular valve is equipped with a single internal sliding spool, enabling the control of one distinct hydraulic circuit or function. This design simplifies installation and operation for systems requiring a single actuator control, optimizing space and cost without compromising performance. The "3-Way" classification refers to the number of active ports available for fluid connection, typically comprising an inlet (P), a tank/return (T), and a work port (A). For a single-acting cylinder, the valve directs pressure fluid to extend the cylinder and connects the cylinder port to the tank for retraction, often relying on gravity or an external spring for the return stroke, hence the "Power Up/Gravity Down" spool action specified.
Understanding the Spring Center and Power Beyond Mechanisms
The "Spring Center" characteristic of this directional control valve refers to the spool's default neutral position. When the operating lever (handle sold separately) is released, internal springs automatically return the spool to a predetermined central position. In this neutral state, fluid flow from the pump is typically blocked from the work port, and the work port may be open or closed to the tank, depending on the spool configuration. For this specific 3-way valve, the spring center ensures that the single-acting cylinder remains in a held position, or allows for controlled gravity-down movement when the spool is actuated. This mechanical spring-return functionality enhances safety by providing a fail-safe neutral position and simplifies operation by eliminating the need for constant manual engagement.
The "Power Beyond" feature is a critical attribute for hydraulic systems requiring multiple functions to be powered by a single pump. In conventional open-center hydraulic systems, when a directional control valve is in its neutral position, hydraulic fluid typically flows directly back to the tank. This makes it challenging to operate additional downstream components unless they are plumbed in series, which can lead to pressure drops and inefficiencies. A "Power Beyond" valve, however, includes an additional port (often denoted as 'N' or 'PB') that allows pressurized fluid from the pump to be routed to another valve or component in the system, even when the current valve's spool is in the neutral position. This means the 1 Spool Directional Control Valve can effectively act as the first valve in a series, providing continuous pressurized flow to subsequent valves without significant loss of pressure or flow. This capability significantly expands the versatility and modularity of hydraulic system designs, making it ideal for equipment that needs to power multiple attachments or functions sequentially or independently.
Robust Construction and Material Science: The Advantages of Cast Iron
Durability is paramount in hydraulic components, especially those subjected to high pressures, fluctuating temperatures, and challenging operating environments. This directional control valve is constructed from high-grade cast iron, a material renowned for its exceptional strength-to-weight ratio, excellent vibration dampening characteristics, and superior resistance to wear and corrosion. Cast iron’s inherent rigidity minimizes deflection under pressure, ensuring the precise alignment of internal components and contributing to the valve's overall longevity and reliable performance. The robust cast iron housing effectively protects the intricate internal mechanisms from external impacts and contaminants, making the valve suitable for strenuous mobile and industrial applications. This material choice reflects a meticulous engineering decision to provide a component that not only performs reliably but also withstands the rigors of continuous duty cycles over an extended operational lifespan.
Precision Engineering and Advanced Performance Parameters
The performance specifications of this directional control valve are indicative of its capability to handle demanding hydraulic tasks:
- Maximum Flow Rate (30 GPM): A maximum flow rate of 30 Gallons Per Minute (GPM) signifies the volume of hydraulic fluid the valve can efficiently manage. This capacity is crucial for ensuring rapid and responsive actuation of cylinders or motors. For applications involving moderately sized cylinders or where quicker cycle times are desired, a 30 GPM rating provides ample flow. It ensures that actuators receive sufficient fluid volume to perform their functions swiftly and effectively, minimizing operational delays and enhancing productivity.
- Working and Maximum Pressure (2500 PSI / 4000 PSI): The specified working pressure of 2500 PSI (pounds per square inch) denotes the recommended continuous operating pressure for the valve, ensuring optimal performance and longevity. The maximum pressure rating of 4000 PSI indicates the absolute peak pressure the valve can safely withstand without structural failure. This substantial pressure capacity underscores the valve's robust design, making it suitable for heavy-duty applications that experience high system pressures. Such pressure resilience is vital for safety and operational integrity in environments where hydraulic loads can be significant.
- Main Relief Valve (Adjustable, Factory-Set at 2000 PSI/10 GPM): An integrated, adjustable main relief valve is a critical safety and system protection feature. Its primary function is to limit the maximum pressure within the hydraulic circuit by diverting excess fluid back to the tank when the system pressure exceeds a preset threshold. This prevents over-pressurization, which could otherwise damage the pump, actuators, hoses, and other hydraulic components. The factory-set pressure of 2000 PSI (at 10 GPM flow, indicating the flow at which the setting was measured) provides a balanced starting point for many applications, offering immediate protection upon installation. The adjustability allows operators or technicians to fine-tune the relief setting to match the specific pressure requirements of their application, thereby optimizing system performance and protection.
Advanced Features for Enhanced Operation and Maintenance
Beyond its core specifications, this directional control valve incorporates several design enhancements that contribute to its superior operational characteristics and ease of service:
- Integrated Load Check Valve: Each spool within the valve body is equipped with a built-in load check valve. The fundamental purpose of a load check valve is to prevent the backflow of hydraulic fluid from the actuator (load) back towards the pump when the spool is shifted. This is particularly important when raising heavy loads. Without a load check, a momentary drop in the load could occur as the spool shifts from neutral to an active position, leading to an uncontrolled descent. The integral load check ensures that the load remains securely held during spool transitions, providing smooth, controlled, and safe operation.
-
Precision-Machined and Ground Spools: The internal spools are manufactured with exceptional precision, undergoing meticulous machining and grinding processes. This level of accuracy is vital for several reasons:
- Minimal Leakage: Tight tolerances between the spool and the valve body bore minimize internal leakage (slip flow). Reduced leakage translates directly to higher volumetric efficiency, ensuring that more of the pump's output is delivered to the actuator, leading to more responsive and powerful operation.
- Smooth Operation: The highly polished and accurately sized spools slide effortlessly within the valve body. This results in smooth, consistent, and predictable spool shifts, providing the operator with superior control over the hydraulic function. Reduced friction also contributes to lower heat generation and extended component life.
- Reduced Wear: The precision surfaces reduce wear on both the spool and the valve body, maintaining performance over prolonged periods and contributing to the valve's overall durability.
- External Spool Seals: A significant maintenance advantage of this valve is the design featuring external spool seals. Unlike internal seals that often require complete disassembly of the valve body for replacement, these external seals can be accessed and replaced with relative ease. This design significantly reduces downtime and maintenance costs, as technicians can perform seal replacements quickly without having to remove the entire valve from the system or extensively dismantle its internal components. This forward-thinking design principle ensures maximum uptime and operational efficiency for your equipment.
Optimized Porting and Connectivity Standards
The valve utilizes 3/4 SAE ORB (-12) porting for its inlet, outlet, and work ports. SAE O-Ring Boss (ORB) ports are widely regarded as a superior connection standard in hydraulic systems due to their exceptional leak-free performance. The O-ring seal provides a robust, positive seal that effectively prevents fluid leakage, even under high pressures and vibrational stress. The "-12" designation corresponds to a 3/4-inch nominal tube size, offering ample cross-sectional area for the 30 GPM flow rate, thereby minimizing pressure drop and optimizing system efficiency. Standardized SAE porting also facilitates easy integration with existing hydraulic systems and readily available components, simplifying installation and maintenance.
Specific Spool Action and Functionality: Power Up/Gravity Down for Single-Acting Systems
The specified "Spool Action 1: Power Up/Gravity Down" with a "Spool Function: Single Acting 3 Way" perfectly describes the operational characteristic of this valve. It is specifically designed to control single-acting hydraulic cylinders. In this configuration:
- Power Up: When the operator actuates the spool to the "up" position, hydraulic fluid from the pump is directed to the work port, extending the single-acting cylinder and lifting the load.
- Gravity Down: When the spool is shifted to the "down" position, the work port is connected to the tank, allowing the cylinder to retract under the force of gravity or the external load. The speed of retraction can often be modulated by the degree of spool actuation.
- Hold Position (Spring Center): When the spool is returned to the spring-centered neutral position, the work port is typically blocked, holding the cylinder in its current position, and the pump flow is directed to the power beyond port or back to the tank, depending on the specific neutral configuration.
This functionality is common in applications such as dump beds, snow plows, lift gates, and certain agricultural implements where the load assists in the return stroke of the cylinder.
Diverse Applications and System Integration
The Buyers Products 1 Spool Directional Control Valve with its distinctive features finds extensive utility across a broad spectrum of industries and equipment types:
- Mobile Hydraulics: Its compact size and robust construction make it ideal for vehicles such as municipal trucks, service vehicles, and construction equipment. Typical applications include controlling snow plow lift and angle, operating dump body hoists, or managing a single auxiliary function on a utility truck. The power beyond feature is especially valuable here, allowing a single pump to efficiently power multiple attachments sequentially or in parallel without complex plumbing.
- Agricultural Machinery: On farms, this valve can control functions like the lifting and lowering of single-acting implements, operating gates, or adjusting components on small tractors and utility vehicles.
- Material Handling: Used in small lift systems, conveyors, or other equipment requiring precise control of a single hydraulic cylinder.
- Small Industrial Applications: For compact machinery or test rigs where reliable control of a single hydraulic movement is essential.
Its ability to integrate seamlessly into existing hydraulic systems via SAE ORB connections, coupled with the power beyond capability, makes it a versatile choice for system designers and operators seeking efficiency and expandability.
Installation, Integration, and Longevity Considerations
While the handle is sold separately, indicating flexibility in control interface, the design of this valve inherently supports straightforward installation. Proper integration into a hydraulic circuit requires attention to port connections (Inlet, Outlet, Work Port, and Power Beyond), ensuring correct hose routing and secure fittings to prevent leaks. Maintaining the cleanliness of hydraulic fluid is paramount for the longevity of any hydraulic component, and this valve is no exception. Regular fluid filtration and adherence to manufacturer specifications for hydraulic fluid type will prevent premature wear of spools, seals, and other precision components. The external spool seals simplify routine maintenance, allowing for quick seal replacements, which contributes significantly to reducing operational downtime and extending the overall service life of the valve.
Commitment to Quality and Customer Support
The Buyers Products 1 Spool Directional Control Valve stands as a testament to precision engineering, robust design, and practical functionality. Every aspect, from the selection of cast iron for the body to the meticulous machining of the spools and the integration of a relief valve and load check, is aimed at delivering a reliable, high-performance component. Buyers Products is committed to providing hydraulic solutions that meet the rigorous demands of various applications, ensuring system efficiency, safety, and longevity.
For system designers and operators requiring specific configurations, flow characteristics, or integration advice, our dedicated Customer Service team is readily available. We understand that each hydraulic application presents unique challenges, and our experts are equipped to provide the necessary support to ensure optimal valve selection and system performance. Explore the potential of advanced hydraulic control with a valve built for durability and precision.
