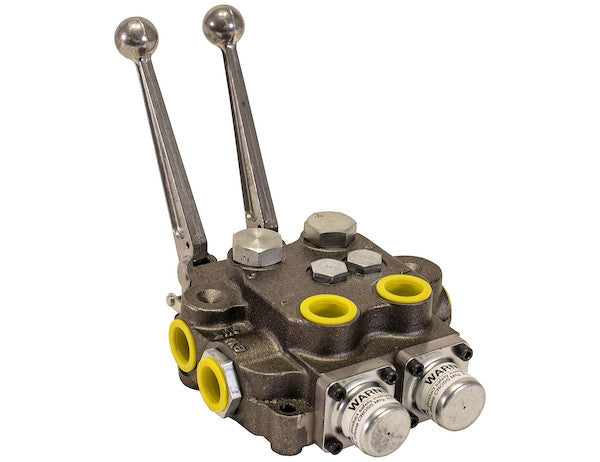

The 2 Spool Directional Control Valve from Buyers Products is compact, precise, and reliable. It directs flow smoothly where and when you need it. It's built of cast iron for durable, dependable performance. Small enough to fit anywhere, while allowing plenty of force for the job, the control valve is rated at 30 GPM and a working pressure of 2500 PSI (maximum 4000 PSI ). The integral relief valve is adjustable (factory-set at 2000 PSI /10 GPM). Each valve has a built-in load check to prevent flow reversal when shifting. Precision-machined and ground spools provide minimal leakage and smooth operation. The spool seals are external for easy replacement without having to disassemble the valve. Choose from a variety of 3-way or 4-way spool actions. They are available with or without Power Beyond, or with an option to convert to Power Beyond. The handle is sold separately. Additional configurations are available. Please contact Customer Service for further information.
Specifications
| Electrically Operated (y/n) | No |
|---|---|
| Inlet Port Size | 3/4 SAE ORB (-12) |
| Main Relief Setting | 2000 |
| Maximum Flow Rate | 30 |
| Maximum Pressure | 3500 |
| Outlet Port Size | 3/4 SAE ORB (-12) |
| Power Beyond (y/n) | Yes |
| Spool Action 1 | Power Up/Power Down |
| Spool Action 3 | Power Up/Power Down |
| Work Port Size | 3/4 SAE ORB (-12) |
Advanced Technical Overview: 2 Spool Directional Control Valve with Power Beyond
The Buyers Products 2 Spool Directional Control Valve is a meticulously engineered hydraulic component designed for precise fluid power management in demanding mobile and industrial applications. It serves as a critical interface between the hydraulic power unit and actuators, controlling the flow of pressurized fluid to govern movement and operation. Its robust cast iron construction, combined with advanced features such as 4-way spool action, a spring-centered design, and integrated Power Beyond capability, ensures optimal system performance, reliability, and operational flexibility. This valve is engineered to withstand rigorous conditions, providing superior control and extended service life.
Fundamental Principles of Directional Control Valves
Directional control valves (DCVs) are indispensable in hydraulic systems, orchestrating the flow of pressurized fluid to various parts of a circuit. By manipulating internal spools, DCVs initiate, cease, and reverse fluid flow, thereby dictating the motion of hydraulic actuators. A "4-way" valve configuration denotes four primary ports: a pressure inlet (P) from the pump, a return outlet (T) to the reservoir, and two work ports (A and B) connecting to the actuator. This design facilitates comprehensive bidirectional control over double-acting cylinders or reversible hydraulic motors, enabling both extension/retraction and clockwise/counter-clockwise rotation.
The "2 Spool" configuration integrates two independent control sections within a single valve body, allowing for the simultaneous or sequential control of two distinct actuators or functions. This compact design significantly reduces the physical footprint and simplifies plumbing compared to using multiple single-spool valves, which is crucial for machinery where space and efficient integration are paramount. Each spool in this Buyers Products valve is configured for "4-way" operation, providing precise bidirectional control for two independent hydraulic loads, enhancing system versatility and functional density.
Advanced Spool Action: 4-Way Spring Center for Controlled Operation
The "4-way Spring Center" spool action is a pivotal feature for both operational safety and control precision. A 4-way valve's spool can typically occupy three positions: extend (or forward), retract (or reverse), and a neutral center position. The "spring center" mechanism automatically repositions the spool to its neutral state upon release of the control handle. This central position typically blocks all ports (closed center) or routes pump flow directly to the tank (open center), effectively halting actuator movement and de-energizing the associated circuit. For this particular valve, the "Power Up/Power Down" designation for Spool Action 1 and Spool Action 3 is optimized for applications requiring precise lifting and lowering, such as snowplows or dump beds. The spring-centered design ensures a predictable and safe default state, preventing unintentional movements and reinforcing operator control. This automatic return is invaluable for applications demanding momentary, precise control and a robust default state for operational integrity.
Integrated Power Beyond Capability for System Expansion
A significant technical advantage of this directional control valve is its integrated Power Beyond (PB) capability, explicitly noted in the specifications. Power Beyond is a sophisticated hydraulic feature that enables the routing of unpressurized pump fluid, after it has serviced the primary valve's pressure gallery, to a subsequent hydraulic component or another directional control valve in series. In contrast to standard open-center systems where pump flow is typically routed directly to the tank when spools are neutral, Power Beyond utilizes a dedicated port (often 'N' or 'PB') to channel this 'unloaded' pump flow at system pressure to the next valve in the circuit. This mechanism permits multiple hydraulic functions to be operated in series from a single pump, thereby maximizing the efficiency and utility of the hydraulic power unit. The option to convert to Power Beyond further enhances the valve's adaptability, allowing tailored configurations for standalone applications or complex multi-valve systems.
The strategic implementation of Power Beyond substantially improves system efficiency and broadens the operational scope of mobile and industrial equipment. For instance, in vehicles equipped with diverse hydraulic attachments—such as a snowplow, a salt spreader, and a hoist—a single pump can seamlessly supply hydraulic power to each component sequentially. When the initial valve's functions are disengaged, the Power Beyond port ensures that the full pump flow, still under working pressure, remains available for subsequent valves, eliminating the need for complex parallel plumbing or additional pumps. This optimizes hydraulic system design, reduces material and installation costs, and contributes to a streamlined, more efficient hydraulic circuit.
Robust Cast Iron Construction for Extreme Durability
The choice of cast iron for the valve body construction reflects an engineering commitment to long-term durability and reliability in arduous operating conditions. Cast iron offers several critical advantages in hydraulic applications: it possesses high compressive strength and rigidity, providing exceptional resistance to internal pressures (up to 3500 PSI maximum) and external mechanical stresses. Its microstructure provides superior vibration damping, crucial in hydraulic systems prone to noise and fatigue from pulsating fluid flow. Furthermore, cast iron exhibits good wear resistance when lubricated by hydraulic fluid, contributing to the longevity of bore surfaces, maintains mechanical properties across wide temperature ranges, and offers good resistance to environmental corrosion. This robust construction ensures the valve withstands the rigorous demands of heavy-duty machinery, providing a dependable and resilient hydraulic control solution.
Precision Performance Specifications
The technical specifications of this directional control valve highlight its capacity for efficient and controlled handling of substantial hydraulic loads:
- Maximum Flow Rate (30 GPM): A flow rate of 30 Gallons Per Minute signifies the valve's capability to transmit a considerable volume of hydraulic fluid, directly influencing actuator speed. For applications requiring rapid cylinder cycles or high-speed motor rotation, this flow capacity ensures performance without excessive back pressure or heat, making it suitable for larger actuators or concurrent operation of multiple smaller actuators.
- Working Pressure (2500 PSI) and Maximum Pressure (3500 PSI): The 2500 PSI working pressure is the recommended continuous operating pressure for optimal longevity. The 3500 PSI maximum pressure rating represents the structural limit the valve can safely endure without damage. This substantial pressure capability facilitates the generation of significant force at the actuator, essential for heavy-duty tasks like lifting substantial loads or operating high-force implements. The margin between working and maximum pressure provides a critical safety factor against transient pressure spikes.
- Main Relief Setting (2000 PSI / 10 GPM): The integral relief valve is a fundamental safety feature. Factory-set at 2000 PSI, it automatically diverts excess fluid to the tank if system pressure surpasses this threshold, safeguarding the pump, actuators, and other components from over-pressurization. The "10 GPM" typically indicates the flow rate at which this relief pressure is measured, or the capacity of the relief valve to efficiently discharge fluid during pressure surges. The adjustability of this relief valve enables precise calibration of the maximum operating pressure to match specific hydraulic system requirements, optimizing both safety and performance.
Advanced Internal Mechanisms for Enhanced Control and Serviceability
The Buyers Products 2 Spool Directional Control Valve incorporates advanced internal mechanisms crucial for its superior performance, precise control, and simplified maintenance.
- Built-in Load Check Valve: Each spool features an integral load check valve, a critical safety and operational component. This valve prevents the reverse flow of hydraulic fluid from the actuator back towards the pump during spool shifting, ensuring that a suspended load remains securely held even before full system pressure is established or during transient spool transitions. This mechanism prevents uncontrolled load drops, enhances operator safety, and maintains precise actuator position, particularly with heavy or suspended loads.
-
Precision-Machined and Ground Spools: The spools undergo precision machining and grinding, achieving exceptionally tight tolerances and ultra-smooth surface finishes. This meticulous manufacturing process yields multiple benefits:
- Minimal Internal Leakage: A precision fit between the spool and valve bore significantly reduces internal leakage (bypass leakage), thereby enhancing volumetric efficiency and ensuring more pump output is converted into usable power at the actuator.
- Smooth Operation: Finely ground surfaces and tight tolerances ensure effortless spool movement, resulting in smooth, predictable, and responsive control, minimizing erratic actuator movements vital for precise positioning.
- Extended Service Life: Reduced friction between the spool and bore minimizes wear on these critical components, contributing to the valve's prolonged operational life and consistent performance.
- External Spool Seals for Easy Replacement: A key maintenance advantage is the externally accessible spool seals. Unlike many conventional designs requiring extensive valve body disassembly for seal replacement, this design allows technicians to access and replace seals without disassembling the main valve body. This dramatically reduces labor time, lowers maintenance costs, and significantly improves equipment uptime and serviceability, thereby reducing the total cost of ownership.
Optimized Porting for Seamless System Integration
The valve features standardized port sizes for effortless integration into hydraulic systems. All Inlet, Outlet, and Work Port sizes are 3/4 SAE ORB (-12). SAE O-Ring Boss (ORB) fittings are a widely preferred standard in hydraulics due to:
- Superior Leak Resistance: The O-ring boss seal provides a robust, positive seal against fluid leakage, even under high pressure and vibration, outperforming traditional pipe thread connections.
- Ease of Assembly and Disassembly: ORB fittings simplify connection and disconnection, streamlining installation, maintenance, and component replacement. The O-ring ensures a consistent seal without excessive torque, mitigating component damage risks.
- Reduced Contamination Risk: The superior sealing capability also minimizes external contaminant ingress, protecting sensitive hydraulic components.
- Standardization: The SAE ORB standard ensures broad compatibility with hydraulic hoses, tubes, and components, simplifying system design and sourcing. The "-12" designation precisely defines the thread and O-ring size.
This uniform porting strategy across all major connections simplifies plumbing and streamlines spare parts management.
Versatile Applications Across Industries
The Buyers Products 2 Spool Directional Control Valve's advanced features and robust construction make it ideal for a diverse range of demanding hydraulic applications:
- Mobile Equipment: Perfect for heavy-duty mobile equipment like snowplows, where precise blade articulation and auxiliary function control are critical, and dump trucks for efficient bed raise/lower operations.
- Agricultural Machinery: Controls multiple implements such as front loaders or cultivators, with Power Beyond being particularly valuable for operating various attachments from a single tractor pump.
- Construction Equipment: Benefits compact construction machinery (mini excavators, skid steers) by managing multiple functions like bucket tilt, arm articulation, and auxiliary tool operations, adaptable to space-constrained designs.
- Material Handling: Enhances forklifts, lift gates, and other systems requiring precise control over lifting, tilting, and clamping functions for smooth and safe operation.
- Industrial Hydraulics: Suitable for presses, automated assembly lines, and specialized machinery needing reliable hydraulic actuation of two independent functions due to its precision and durability.
Its capability to manage high flow rates and pressures, coupled with reliable 4-way spring-centered action and Power Beyond options, establishes it as a versatile solution for robust, efficient, and adaptable hydraulic control.
Installation, Maintenance, and System Integration Considerations
While designed for user-friendliness, correct installation is critical for optimal performance. Adherence to hydraulic system design guidelines for component sizing, fluid filtration, and hose routing is recommended. The separate sale of the handle allows for customization based on ergonomic and operational preferences. Furthermore, the availability of "additional configurations" and the invitation to "contact Customer Service" underscore Buyers Products' commitment to providing tailored solutions and comprehensive technical support for specialized requirements, including variations in spool actions, detent options, or pressure settings beyond standard offerings.
Conclusion: A Benchmark in Hydraulic Control
The Buyers Products 2 Spool Directional Control Valve stands as a meticulously engineered solution, crafted to meet the stringent demands of modern hydraulic systems. Its fusion of robust cast iron construction, high-performance specifications (30 GPM flow, 2500 PSI working pressure), precision-machined internal components, and critical features like 4-way spring-centered action and Power Beyond capability sets a new benchmark for efficiency, reliability, and precision control. Thoughtful design elements, such as external spool seals for simplified maintenance and an adjustable integral relief valve, further amplify its value by minimizing downtime and maximizing operational flexibility. For professionals requiring a dependable and versatile hydraulic control valve capable of delivering consistent, precise performance across a diverse range of demanding applications, this 2-spool valve represents an exceptional investment in system integrity and operational excellence.
