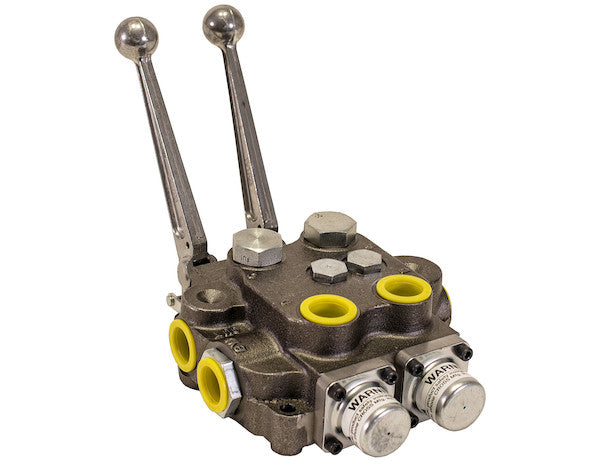

The 2 Spool Directional Control Valve from Buyers Products is compact, precise, and reliable. It directs flow smoothly where and when you need it. It's built of cast iron for durable, dependable performance. Small enough to fit anywhere, while allowing plenty of force for the job, the control valve is rated at 30 GPM and a working pressure of 2500 PSI (maximum 4000 PSI ). The integral relief valve is adjustable (factory-set at 2000 PSI /10 GPM). Each valve has a built-in load check to prevent flow reversal when shifting. Precision-machined and ground spools provide minimal leakage and smooth operation. The spool seals are external for easy replacement without having to disassemble the valve. Choose from a variety of 3-way or 4-way spool actions. They are available with or without Power Beyond, or with an option to convert to Power Beyond. The handle is sold separately. Additional configurations are available. Please contact Customer Service for further information.
Specifications
| Electrically Operated (y/n) | No |
|---|---|
| Inlet Port Size | 3/4 SAE ORB (-12) |
| Main Relief Setting | 2000 |
| Maximum Flow Rate | 30 |
| Maximum Pressure | 3500 |
| Outlet Port Size | 3/4 SAE ORB (-12) |
| Power Beyond (y/n) | Conv |
| Spool Action 1 | Power Up/Gravity Down |
| Spool Action 3 | Power Up/Power Down |
| Work Port Size | 3/4 SAE ORB (-12) |
The Buyers Products 2-Spool Directional Control Valve represents a pinnacle of hydraulic engineering, specifically designed to offer unparalleled control, reliability, and durability in demanding mobile and industrial applications. This robust hydraulic component is engineered to precisely manage the flow of hydraulic fluid, enabling the efficient operation of two distinct hydraulic actuators, whether they are cylinders or motors, within a single system. Its versatility, combined with superior performance specifications and thoughtful design features, makes it an indispensable asset for a wide array of equipment, from agricultural machinery and construction vehicles to material handling systems and utility trucks.
Advanced Hydraulic Flow Management and System Integration
At its core, a directional control valve is the brain of a hydraulic system, dictating the path of pressurized fluid to power various functions. The 2-spool configuration of this valve significantly enhances system flexibility, allowing for the independent or simultaneous control of two separate hydraulic circuits. This capability is critical in applications where multiple functions need to be performed concurrently or in sequence, such as operating a snowplow blade and a spreader, or controlling the lift and tilt functions of a loader bucket. The availability of both 3-way and 4-way spring-center spool actions further expands its applicability, catering to systems employing either single-acting or double-acting hydraulic cylinders, respectively. The "spring-center" design ensures that the spool automatically returns to its neutral position when the operator releases the handle, stopping flow to the work ports and often connecting them to the tank, thereby providing an inherent safety feature and predictable system behavior.
Robust Construction for Extreme Environments
Durability is paramount for hydraulic components operating in harsh conditions, and this valve is constructed from high-grade cast iron to meet and exceed these expectations. Cast iron is chosen for its exceptional tensile strength, rigidity, and resistance to wear and fatigue, making the valve body highly resilient against the mechanical stresses and vibrations inherent in mobile hydraulic applications. This robust material also provides excellent damping characteristics, helping to reduce noise and absorb shock pressures within the hydraulic system. The dense, non-porous structure of cast iron ensures a reliable seal and long-term integrity, minimizing the risk of external leakage and internal bypass, thereby preserving system efficiency over the valve's extended service life. This unwavering commitment to material quality translates directly into dependable performance and reduced downtime for critical machinery.
Optimized Hydraulic Performance Specifications
The performance metrics of this directional control valve are meticulously specified to deliver high efficiency and power output. With a maximum flow rate of 30 GPM (Gallons Per Minute), the valve can handle substantial hydraulic fluid volumes, supporting rapid actuator movements and ensuring high productivity for demanding tasks. This flow capacity is crucial for systems requiring quick cycle times or the simultaneous operation of multiple, high-volume hydraulic functions. The valve is engineered for a nominal working pressure of 2500 PSI, capable of delivering considerable force for heavy-duty applications. Furthermore, the robust design allows for a maximum pressure rating of 3500 PSI, as detailed in the specifications, providing a substantial safety margin and ensuring structural integrity even under intermittent pressure spikes or demanding load conditions. The valve body itself is designed to withstand transient pressure surges potentially reaching up to 4000 PSI, reinforcing its resilience in dynamic environments.
Integrated System Protection: The Adjustable Relief Valve
A critical safety and protection feature is the integral relief valve, factory-set at 2000 PSI at 10 GPM, and fully adjustable to suit specific system requirements. This relief valve serves as a vital safeguard, preventing over-pressurization of the hydraulic system by diverting excess fluid back to the reservoir once the set pressure threshold is exceeded. This protection is essential for preventing damage to pumps, actuators, hoses, and other components due to sudden load increases or operator error. The adjustability allows system designers and technicians to fine-tune the maximum operating pressure to match the requirements of the specific application and the pressure ratings of other components in the hydraulic circuit, optimizing both performance and safety. The factory setting provides a reliable starting point for common applications, simplifying initial setup.
Precision Spool Design for Enhanced Control
The heart of any directional control valve lies in its spools, and those within this 2-spool unit are precision-machined and ground to exceptionally tight tolerances. This meticulous manufacturing process ensures a superior fit between the spool and the valve bore, resulting in minimal internal leakage (also known as volumetric efficiency loss). Reduced leakage not only conserves hydraulic power, preventing it from being wasted as heat, but also ensures precise control over actuator positioning and movement, even under varying loads. The smooth operation provided by these precision spools translates into finer control for the operator, allowing for nuanced adjustments and enhancing the overall performance and safety of the machinery. The consistency in spool movement minimizes 'stick-slip' phenomena, providing a fluid and predictable response to operator input.
Critical Load Checks for Stability and Safety
Each spool within the valve incorporates a built-in load check valve. This seemingly small feature plays a monumental role in the safety and operational stability of hydraulic systems. A load check prevents the immediate reversal of flow from an actuator when the spool is shifted or momentarily returns to neutral, especially under a suspended load. For instance, if a cylinder is holding a heavy object aloft, the load check ensures that the load does not drop abruptly when the operator transitions the spool. It maintains pressure in the work port lines until the main pressure supply is engaged in the desired direction, preventing uncontrolled movement, cavitation, and enhancing operator confidence and safety. This feature is particularly vital in applications such as crane operation, forklift mast control, or any scenario involving lifted loads.
Uncomplicated Maintenance and Serviceability
Understanding that maintenance can impact operational uptime, the design of this 2-spool valve prioritizes ease of service. The spool seals are externally mounted, a significant advantage that allows for their replacement without the need to fully disassemble the valve body. This design consideration drastically reduces maintenance time and complexity, translating into lower labor costs and faster return to service for critical equipment. Operators and maintenance personnel can quickly address seal wear, a common point of eventual service in hydraulic systems, without the specialized tools or extensive downtime typically associated with internal seal replacement. This focus on practical serviceability underscores the valve's overall value proposition, ensuring long-term operational efficiency.
Versatile Spool Configurations: 3-Way and 4-Way Options
The flexibility in spool action is a key differentiator for this valve. Customers can choose from a variety of 3-way or 4-way spool actions to precisely match their application requirements.
-
3-Way Spools: These are typically used for single-acting cylinders, which extend under hydraulic pressure and retract due to gravity or an internal spring. A 3-way spool has three ports (pressure, tank, and one work port) and three positions (extend, hold, retract/float). An example includes a power up/gravity down configuration, where hydraulic pressure extends a cylinder, and releasing the control allows gravity to retract it, with the fluid returning to the tank.
-
4-Way Spools: These are designed for double-acting cylinders or reversible hydraulic motors, which require hydraulic pressure for both extension and retraction (or both directions of rotation). A 4-way spool has four ports (pressure, tank, and two work ports) and typically three positions (extend, hold/neutral, retract). The power up/power down configuration is a prime example, providing controlled hydraulic force for both extending and retracting an actuator, essential for applications where loads must be pushed down or where gravity is insufficient for retraction.
The ability to select the appropriate spool configuration ensures optimal performance and efficiency for the specific type of hydraulic actuator employed in the system.
Seamless Integration with Power Beyond Capability
The valve offers comprehensive options regarding Power Beyond functionality, crucial for modern hydraulic systems that utilize multiple valves in series. "Power Beyond" refers to a dedicated port that allows pressurized oil from the outlet of one valve to be routed to the inlet of a subsequent valve in a multi-valve hydraulic circuit, even when the first valve is in its neutral position. This design maintains system pressure for downstream components, preventing pressure drops and ensuring that all hydraulic functions in the series circuit receive adequate flow and pressure when required. The availability with or without factory-installed Power Beyond, or with an option to convert to Power Beyond, provides immense flexibility for system designers and integrators. This adaptability streamlines hydraulic plumbing, reduces the need for external components, and ensures efficient pressure distribution throughout complex systems.
Standardized Porting for Broad Compatibility
For ease of integration and broad compatibility, all major ports on the valve – Inlet, Outlet, and Work Ports – utilize 3/4 SAE ORB (-12) connections. The SAE O-Ring Boss (ORB) standard is widely adopted in hydraulic systems due to its superior sealing capabilities compared to tapered pipe threads. ORB connections feature a straight thread and an O-ring that creates a reliable, leak-free seal, even under high pressures and vibrations. This standardized porting simplifies hose and fitting selection, reduces the likelihood of leaks, and ensures compatibility with a vast range of hydraulic components and systems, contributing to quicker assembly and more reliable field performance.
Applications Across Industries
The robust design, versatile configurations, and high performance of the 2-Spool Directional Control Valve make it ideally suited for a diverse range of mobile and industrial hydraulic applications. Typical uses include:
- Snow & Ice Control: Operating snowplow blades, salt/sand spreaders, and de-icing equipment.
- Dump Truck & Trailer Systems: Controlling dump bed lift and lower functions.
- Agricultural Equipment: Managing various implement functions like plows, cultivators, and loaders.
- Construction Machinery: For backhoes, skid steers, and mini excavators to control auxiliary functions.
- Material Handling: Forklifts, scissor lifts, and platform lifts requiring precise control of lifting and tilting mechanisms.
- Utility Vehicles: Aerial lifts, cherry pickers, and service truck cranes.
- Forestry Equipment: Log splitters, grapples, and other attachments.
- Waste Management: Compactor and lift gate operations.
Its compact form factor allows for integration into space-constrained applications without compromising power or control.
Conclusion: A Benchmark in Hydraulic Control
The Buyers Products 2-Spool Directional Control Valve stands as a testament to intelligent engineering, combining robust construction, precise control, and high performance into a compact and serviceable unit. Its cast iron body, high flow and pressure ratings, integral adjustable relief valve, and built-in load checks ensure both safety and efficiency. The precision-machined spools guarantee smooth operation and minimal leakage, while external spool seals simplify maintenance, extending the valve's operational lifespan. With flexible 3-way or 4-way spring-center spool options, including power up/gravity down and power up/power down configurations, and comprehensive Power Beyond capabilities, this valve offers unparalleled adaptability for complex hydraulic systems. Designed for durability and ease of use, it provides a reliable and precise solution for directing hydraulic power, enhancing the productivity and safety of any machinery it serves. For specific application requirements or to explore additional configurations, please do not hesitate to contact our expert Customer Service team.
