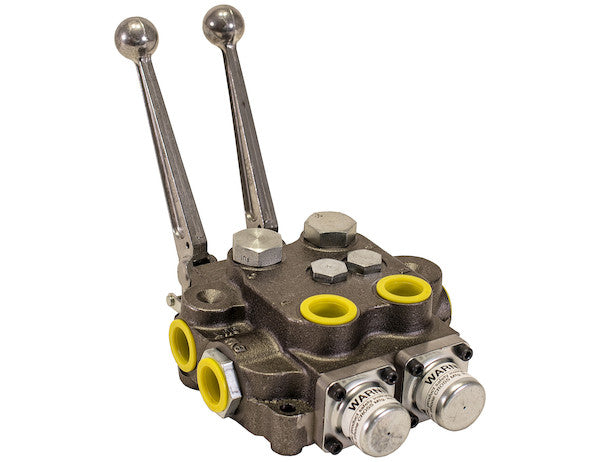

The 2 Spool Directional Control Valve from Buyers Products is compact, precise, and reliable. It directs flow smoothly where and when you need it. It's built of cast iron for durable, dependable performance. Small enough to fit anywhere, while allowing plenty of force for the job, the control valve is rated at 30 GPM and a working pressure of 2500 PSI (maximum 4000 PSI ). The integral relief valve is adjustable (factory-set at 2000 PSI /10 GPM). Each valve has a built-in load check to prevent flow reversal when shifting. Precision-machined and ground spools provide minimal leakage and smooth operation. The spool seals are external for easy replacement without having to disassemble the valve. Choose from a variety of 3-way or 4-way spool actions. They are available with or without Power Beyond, or with an option to convert to Power Beyond. The handle is sold separately. Additional configurations are available. Please contact Customer Service for further information.
Specifications
| Electrically Operated (y/n) | No |
|---|---|
| Inlet Port Size | 3/4 SAE ORB (-12) |
| Main Relief Setting | 2000 |
| Maximum Flow Rate | 30 |
| Maximum Pressure | 3500 |
| Outlet Port Size | 3/4 SAE ORB (-12) |
| Power Beyond (y/n) | Yes |
| Spool Action 1 | Power Up/Gravity Down |
| Spool Action 3 | Power Up/Power Down |
| Work Port Size | 1/2 SAE ORB (-8) |
The 2 Spool Directional Control Valve with its versatile 3-Way Detent In and 4-Way Spring Center configurations, along with Power Beyond capability, represents a robust and highly adaptable solution for precise hydraulic fluid management in a myriad of mobile and industrial applications. Engineered by Buyers Products, this valve is not merely a component but a critical orchestrator of hydraulic power, designed to meet the rigorous demands of modern hydraulic systems where efficiency, reliability, and control are paramount. This detailed exposition will delve into the technical intricacies, operational advantages, and application specificities that define this superior hydraulic control valve.
Advanced Design and Core Functionality
At its core, a directional control valve (DCV) serves as the brain of any hydraulic circuit, dictating the path of pressurized hydraulic fluid to actuators such as cylinders or motors. The dual-spool design of this particular valve significantly enhances its operational flexibility, allowing for the independent or simultaneous control of two distinct hydraulic functions from a single, compact unit. This reduces the complexity of hydraulic plumbing and simplifies system integration compared to using multiple single-spool valves. Each spool within the valve body is a precision-machined component, crafted to slide smoothly within its bore, effectively redirecting fluid flow based on the operator's input.
Spool Configurations: Detent In and Spring Center Mechanisms
The operational modes of the spools are a key differentiator. This valve offers both "3-Way Detent In" and "4-Way Spring Center" options, catering to a wide spectrum of application requirements:
3-Way Detent In Spool
A 3-way spool is typically employed for controlling single-acting hydraulic cylinders or other unidirectional actuators. In a 3-way configuration, the valve has one inlet port (P), one work port (A), and one tank port (T). The spool's positions facilitate:
- Neutral/Hold: All ports blocked or work port connected to tank.
- Extend/Power Up: Pressure port (P) connected to work port (A), allowing the actuator to extend.
- Retract/Gravity Down: Work port (A) connected to tank port (T), allowing the actuator to retract typically by gravity or an external force, while the pressure port (P) is blocked.
4-Way Spring Center Spool
A 4-way spool is designed for controlling double-acting hydraulic cylinders or bi-directional hydraulic motors, where fluid pressure is required to both extend and retract the cylinder, or to drive a motor in two directions. A 4-way valve includes one pressure port (P), one tank port (T), and two work ports (A and B). The typical positions for a 4-way spring center spool are:
- Neutral (Spring Centered): In this central position, the spring mechanism automatically returns the spool to this state when released. Depending on the specific center configuration (e.g., closed center, open center, tandem center), ports might be blocked, or P could be connected to T. The "Power Up/Power Down" (Spool Action 3) configuration for this valve implies a closed center or tandem center in neutral, meaning pressure is available for subsequent valves in a Power Beyond system.
- Position 1 (Extend/Power Up): Pressure port (P) connected to work port (A), and work port (B) connected to tank port (T). This directs fluid to one side of a double-acting cylinder.
- Position 2 (Retract/Power Down): Pressure port (P) connected to work port (B), and work port (A) connected to tank port (T). This directs fluid to the opposite side of the cylinder for retraction.
Hydraulic Performance Parameters
The operational efficacy of a hydraulic valve is fundamentally defined by its ability to manage fluid flow and pressure within specified limits. This 2-spool valve excels in these critical areas:
Maximum Flow Rate: 30 GPM (Gallons Per Minute)
A flow rate of 30 GPM indicates the maximum volume of hydraulic fluid the valve can efficiently process without excessive pressure drop or internal heating. This capacity positions the valve for use in systems that demand substantial fluid movement for rapid actuator response and powerful operation. Applications such as medium to heavy-duty dump bodies, material handling equipment, snow plows, and certain agricultural machinery often require this level of flow to ensure timely and effective performance. The design minimizes internal resistance, ensuring that the rated flow translates into efficient power delivery to the actuators.
Pressure Ratings: 2500 PSI Working, 3500 PSI Maximum
The valve is engineered for a robust working pressure of 2500 PSI, signifying its capability to consistently operate under this load for prolonged periods without compromising integrity or performance. Furthermore, it is designed to withstand momentary pressure spikes up to a maximum of 3500 PSI. This substantial pressure rating ensures compatibility with high-pressure hydraulic systems prevalent in demanding industrial and mobile environments. The robust cast iron construction and precision machining are integral to maintaining structural integrity and preventing leakage under these elevated pressures, offering a significant safety margin and extending the valve's service life.
Integral Adjustable Relief Valve
A hallmark of sophisticated hydraulic design, this valve incorporates an integral main relief valve, factory-set at 2000 PSI. The primary function of a relief valve is to protect the hydraulic system from over-pressurization. By diverting excess fluid back to the tank when system pressure exceeds the set point, it safeguards pumps, actuators, and other components from damage. The adjustability of this relief valve provides critical flexibility, allowing technicians to fine-tune the system's maximum operating pressure to precisely match the requirements of specific applications or to accommodate variations in load. The specification of 10 GPM for the relief valve implies its capacity to efficiently bypass this flow rate when activated, ensuring rapid pressure regulation.
Built-in Load Check
Each valve spool is equipped with a built-in load check valve. This essential component is positioned upstream of the spool and prevents the reversal of flow from the work port back to the pressure line when the spool is in its neutral position or during shifting. The benefit is twofold: it prevents the load from dropping or drifting when the valve is in neutral, ensuring controlled and stable operation, especially with suspended loads. Secondly, it contributes to smoother operation during spool shifting by preventing sudden pressure drops at the actuator, thereby minimizing shock and vibration within the system and prolonging component life.
Robust Construction and Maintenance Aspects
The physical attributes and ease of maintenance of a hydraulic valve are as crucial as its hydraulic performance:
Cast Iron Construction
The valve body is constructed from high-grade cast iron, a material renowned for its exceptional strength, rigidity, and excellent damping characteristics. Cast iron's high compressive strength makes it inherently resistant to the internal stresses generated by high hydraulic pressures. Its superior vibration dampening properties help mitigate noise and wear, contributing to a quieter and more stable hydraulic system. Furthermore, cast iron offers good resistance to corrosion in typical operating environments and provides a robust housing for the internal components, ensuring long-term durability and reliability even in harsh conditions.
Precision-Machined and Ground Spools
The core of the valve's precision lies in its spools, which undergo stringent manufacturing processes including precision machining and grinding. This meticulous fabrication ensures extremely tight tolerances between the spool and its bore. The result is minimal internal leakage, a critical factor for maintaining volumetric efficiency and preventing pressure bleed-down, which could lead to load drift. The smooth, ground surfaces also significantly reduce friction during spool movement, contributing to smooth, responsive operation and extended seal life. This precision directly translates into more accurate control and greater energy efficiency within the hydraulic system.
External Spool Seals for Easy Replacement
A thoughtful design feature is the placement of spool seals externally. In many conventional valve designs, replacing internal seals requires complete disassembly of the valve, a time-consuming and labor-intensive process. With external seals, maintenance can be performed quickly and efficiently without disrupting the internal mechanics of the valve. This design choice significantly reduces downtime, simplifies field repairs, and lowers overall maintenance costs throughout the valve's operational lifespan, enhancing its practicality for demanding applications.
Porting and System Integration
Effective system integration hinges on compatible and reliable porting:
SAE ORB (O-Ring Boss) Porting
This valve utilizes SAE ORB (O-Ring Boss) ports for all hydraulic connections: 3/4 SAE ORB (-12) for inlet and outlet, and 1/2 SAE ORB (-8) for the work ports. SAE ORB fittings are widely regarded as a superior connection method in hydraulic systems due to their excellent sealing capabilities. The O-ring provides a soft, deformable seal that effectively prevents leaks, even under high pressure and vibration, outperforming traditional pipe threads which rely on metal-to-metal contact. This design minimizes the risk of fluid loss, ingress of contaminants, and simplifies installation, contributing to the overall reliability and cleanliness of the hydraulic circuit. The standardized sizing ensures broad compatibility with existing hydraulic hoses and components.
Power Beyond (PB) Functionality
The inclusion of Power Beyond (PB) functionality is a significant advantage for complex hydraulic systems where multiple components or additional valves need to operate in series. A Power Beyond sleeve or port allows unpressurized fluid (after passing through the primary valve's relief valve) to be directed to the inlet of a subsequent directional control valve in the hydraulic circuit, maintaining the full system pressure for downstream components. This avoids the need for dedicated pump lines to each valve, simplifying plumbing, reducing cost, and optimizing fluid routing. The flexibility to select a valve with Power Beyond already integrated, or to convert a standard valve to Power Beyond, provides system designers with maximum adaptability for custom configurations. This feature is crucial for equipment like tow trucks, agricultural tractors with multiple implements, or municipal vehicles that require control over various hydraulic functions from a single pump source.
Application Spectrum
The robust design, versatile spool configurations (3-way detent, 4-way spring center), and high-performance specifications make this 2 Spool Directional Control Valve suitable for an extensive range of demanding applications across various sectors:
- Mobile Hydraulics: Ideal for dump trucks (hoist control), snow plows (blade lift/angle), refuse vehicles, agricultural machinery (loader buckets, tillage equipment, sprayers), construction equipment (mini excavators, skid steer attachments), and utility vehicles (aerial lifts, winches).
- Industrial Applications: Suitable for small industrial presses, material handling systems, car lifts, log splitters, and various custom machinery requiring precise and reliable hydraulic control.
- Marine: Certain marine applications like small crane operation or anchor winches could also benefit from its robust performance.
Installation and Operational Considerations
While the handle is sold separately, offering flexibility in choice and positioning, proper installation is paramount. The valve should be securely mounted to prevent vibration-induced wear and fatigue. Hydraulic lines should be routed to minimize bends and potential for abrasion, adhering to industry best practices for hose and fitting installation. Regular maintenance, including periodic inspection of seals and hydraulic fluid quality, will ensure the longevity and optimal performance of the valve and the entire hydraulic system. Its non-electrically operated nature simplifies installation by eliminating the need for complex wiring harnesses and associated electrical control systems, relying instead on direct mechanical linkage for actuation, which is often preferred for ruggedness and ease of field repair.
Conclusion
The Buyers Products 2 Spool Directional Control Valve stands as a testament to engineering excellence in hydraulic control. Its combination of a dual-spool design, versatile 3-Way Detent In and 4-Way Spring Center actions, high flow and pressure capabilities, integral adjustable relief valve, and critical load check functionality positions it as a premier choice for professionals seeking uncompromising performance and reliability. Constructed from durable cast iron with precision-machined components and external seals for simplified maintenance, it is built to endure the harshest operational environments. Coupled with its Power Beyond functionality, this valve offers unparalleled flexibility for integrating into complex hydraulic circuits, delivering smooth, precise, and dependable fluid direction exactly when and where it is needed. For detailed specifications or to explore additional configurations tailored to specific operational requirements, engaging with Customer Service is recommended to unlock the full potential of this advanced hydraulic solution.
