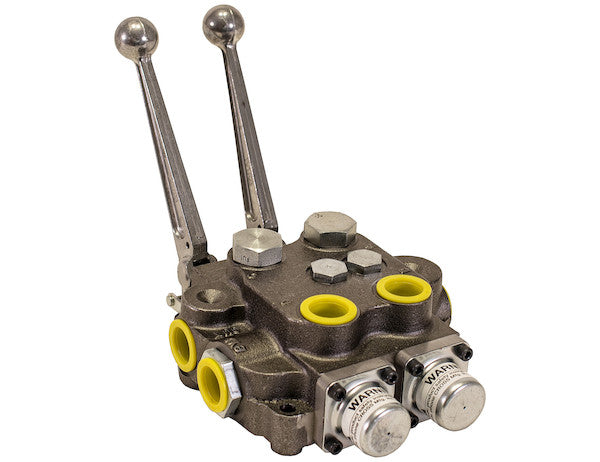

The 2 Spool Directional Control Valve from Buyers Products is compact, precise, and reliable. It directs flow smoothly where and when you need it. It's built of cast iron for durable, dependable performance. Small enough to fit anywhere, while allowing plenty of force for the job, the control valve is rated at 30 GPM and a working pressure of 2500 PSI (maximum 4000 PSI ). The integral relief valve is adjustable (factory-set at 2000 PSI /10 GPM). Each valve has a built-in load check to prevent flow reversal when shifting. Precision-machined and ground spools provide minimal leakage and smooth operation. The spool seals are external for easy replacement without having to disassemble the valve. Choose from a variety of 3-way or 4-way spool actions. They are available with or without Power Beyond, or with an option to convert to Power Beyond. The handle is sold separately. Additional configurations are available. Please contact Customer Service for further information.
Specifications
| Electrically Operated (y/n) | No |
|---|---|
| Inlet Port Size | 3/4 SAE ORB (-12) |
| Main Relief Setting | 2000 |
| Maximum Flow Rate | 30 |
| Maximum Pressure | 3500 |
| Outlet Port Size | 3/4 SAE ORB (-12) |
| Power Beyond (y/n) | Yes |
| Spool Action 1 | Power Up/Gravity Down |
| Spool Action 3 | Power Up/Gravity Down |
| Work Port Size | 3/4 SAE ORB (-12) |
Advanced Technical Overview: 2 Spool Directional Control Valve with 3-Way Spring Center and Power Beyond
The Buyers Products 2 Spool Directional Control Valve represents a robust and highly efficient solution for precise hydraulic fluid management in diverse mobile and industrial applications. Engineered for superior performance and longevity, this valve integrates advanced hydraulic principles with durable construction to deliver unparalleled control over hydraulic actuators. Its configuration, featuring two independent 3-way spring-centered spools with "Power Up/Gravity Down" action, coupled with integral Power Beyond functionality, positions it as an essential component for complex hydraulic systems requiring sequential or simultaneous control of single-acting cylinders.
Fundamental Principles of Directional Control Valves
A directional control valve (DCV) is the heart of any hydraulic circuit, serving to guide the flow of pressurized fluid from the pump to the desired actuator (e.g., cylinder or motor) and subsequently back to the reservoir. This particular model, a manually operated DCV, utilizes mechanical actuation to shift internal spools, thereby altering the fluid path. The core objective is to achieve precise control over the direction, speed, and force of hydraulic equipment. The 2-spool configuration enhances system versatility by allowing independent control of two distinct hydraulic functions from a single compact unit, minimizing plumbing complexity and installation footprint.
Detailed Analysis of Spool Configuration and Action
Two Spool Design for Enhanced Functionality
The presence of two spools within a single valve body provides the inherent advantage of controlling two separate hydraulic functions. Each spool operates independently, enabling operators to manage distinct tasks without requiring multiple, discrete valve units. This design streamlines system architecture, reduces potential leak points, and simplifies maintenance protocols. For applications where multiple hydraulic operations are required, such as simultaneously raising a dump bed and operating a snowplow, the dual-spool design offers significant operational efficiency and flexibility.
3-Way Spring Center Spool Action
Each of the two spools featured in this valve is configured as a 3-way type. A 3-way directional control valve typically manages flow between a pressure port (P), a return (tank) port (T), and a single work port (A). This configuration is primarily suited for single-acting hydraulic cylinders, which extend under hydraulic pressure but retract under gravity or an internal spring. The "spring center" designation indicates that when the control lever is released, the spool automatically returns to a neutral position, effectively blocking flow to the work port and often connecting it to the tank, thereby ensuring a controlled and predictable default state.
"Power Up/Gravity Down" Spool Logic Explained
The specified "Power Up/Gravity Down" spool action is a specialized variant of the 3-way configuration, optimized for single-acting cylinder applications where gravity assists in the return stroke. In the typical operation of such a spool:
- **Neutral Position (Spring Centered):** When the lever is released, the spool centers. In this position, the pressure port (P) is typically blocked, preventing fluid from reaching the work port (A). The work port (A) is connected to the tank port (T), allowing the cylinder to retract under gravity (if loaded) or spring force, with the displaced fluid returning to the reservoir. This is the default, safe, and energy-efficient state for retraction.
- **Engaged Position (Power Up):** When the lever is actuated to one side, the spool shifts. In this position, the pressure port (P) is connected to the work port (A). Pressurized hydraulic fluid flows from the pump, through the valve, and to the cylinder, causing it to extend (e.g., raise a dump bed, lift a plow). The tank port (T) may be blocked or remain connected to a return line, depending on the specific internal gallery design, but the primary action is to direct pressure to the work port.
This specific action is critical for systems like dump trucks, lift gates, and snowplows, where extending the cylinder requires hydraulic power, and retracting it is aided by the weight of the load or the implement itself. The smooth transition provided by the precision-machined spools ensures controlled movement and prevents jarring, enhancing both operator comfort and equipment longevity.
Robust Construction and Durability
Constructed from high-grade cast iron, the valve body offers exceptional structural integrity and resistance to the harsh operating conditions typical of heavy-duty applications. Cast iron is renowned for its excellent tensile strength, rigidity, and superior damping characteristics, which help mitigate hydraulic shock and vibration. Furthermore, its inherent resistance to corrosion and abrasion contributes significantly to the valve's extended operational lifespan, ensuring consistent performance even in environments exposed to moisture, chemicals, and particulate matter. The compact design, while accommodating substantial flow and pressure ratings, facilitates installation in confined spaces, a critical advantage in modern vehicle and equipment designs where real estate is at a premium.
Performance Specifications: An In-Depth Look
Flow Rate Capacity: 30 GPM (Gallons Per Minute)
A maximum flow rate of 30 GPM indicates this valve is capable of handling significant hydraulic fluid volumes, making it suitable for a wide array of medium to heavy-duty applications. The flow rate directly correlates with the speed at which hydraulic actuators can operate. For larger cylinders or multiple actuators requiring rapid movement, a high flow rate is indispensable. This capacity ensures that the valve does not restrict system performance, allowing connected equipment to function efficiently and without undue delays, thereby maximizing productivity.
Pressure Ratings: 2500 PSI Working, 3500 PSI Maximum
The specified working pressure of 2500 PSI signifies the continuous operational pressure the valve is designed to withstand reliably. This rating is crucial for ensuring the valve's structural integrity and preventing premature wear under typical operating loads. The maximum pressure of 3500 PSI (as per specifications, aligning with industry standards for peak transient pressures) indicates the peak pressure surges the valve can safely tolerate without catastrophic failure. These robust pressure ratings underscore the valve's suitability for demanding applications that require substantial force generation from hydraulic cylinders or motors, while providing a safety margin against unexpected pressure spikes. Precise pressure management is further supported by the integral relief valve.
Port Sizes: 3/4 SAE ORB (-12)
All primary ports – Inlet, Outlet, and Work Ports – are standardized to 3/4 SAE ORB (-12). SAE ORB (Society of Automotive Engineers O-Ring Boss) is a widely adopted standard for hydraulic fittings due to its superior sealing capabilities. The O-ring boss connection provides an excellent seal against leakage, even under high pressure and vibration, by utilizing an O-ring compressed against a chamfered seat. The '-12' designation refers to the dash size, which corresponds to a nominal tube O.D. of 3/4 inch (12/16 inch), indicating compatibility with commonly available hydraulic hose and tubing sizes. This standardization simplifies component selection, assembly, and maintenance, ensuring robust and leak-free connections throughout the hydraulic system.
Integrated Safety and Efficiency Features
Adjustable Integral Relief Valve
A critical safety and performance feature is the integral relief valve, factory-set at 2000 PSI at 10 GPM. The primary function of a relief valve is to protect the hydraulic system from over-pressurization, which can lead to component damage, system failure, or safety hazards. When the system pressure exceeds the set threshold, the relief valve opens, diverting excess fluid directly back to the reservoir, thereby safeguarding the pump, actuators, and other components. The adjustability of this relief valve allows system designers and technicians to fine-tune the maximum operating pressure to match the specific requirements and limitations of the connected hydraulic actuators, enhancing flexibility and safety. The specified 10 GPM at which the setting is calibrated provides a reference for its operational characteristics under flow conditions.
Built-in Load Check Valve
Each spool incorporates a built-in load check valve. This feature is instrumental in preventing flow reversal when the spool is shifted or when a load is suddenly applied to an actuator. Without a load check, a heavy load might cause the cylinder to drift or drop uncontrollably as the spool transitions to the pressure-on position, potentially leading to instability or dangerous situations. The load check ensures that the actuator's position is maintained until sufficient pressure is supplied, thereby promoting precise control, enhancing safety, and preventing cavitation in the work lines during operation.
Precision-Machined Spools and External Seals
The valve's operational integrity is significantly enhanced by its precision-machined and ground spools. This meticulous manufacturing process ensures minimal internal leakage (cross-port leakage), which is vital for maintaining system efficiency and holding actuator positions under load. Smooth spool operation is also a direct result of these tolerances, providing consistent and responsive control. Furthermore, the design incorporates external spool seals. This ingenious feature simplifies maintenance procedures by allowing for easy replacement of seals without requiring complete disassembly of the valve body, significantly reducing downtime and service costs over the lifespan of the equipment.
Power Beyond Capability
The inclusion of Power Beyond functionality is a significant advantage for sophisticated hydraulic systems. In a standard open-center directional control valve, when the spools are in neutral, hydraulic fluid typically flows from the pressure port directly through the valve's internal galleries and back to the tank. This means downstream components would not receive pressurized flow. Power Beyond, however, diverts the main system flow from the outlet of the initial valve (when its spools are in neutral) to a dedicated Power Beyond port. This pressurized flow can then be directed to additional hydraulic components or another directional control valve downstream in the circuit, enabling the creation of tandem hydraulic systems powered by a single pump. This capability is critical for applications that require multiple hydraulic functions to operate sequentially or independently from a single power source, without needing a separate pump or complex bypass circuitry. The option to convert to Power Beyond further underscores the valve's adaptability to various system architectures.
Non-Electrically Operated Design
This valve is designed for manual operation, signified by its "Electrically Operated (y/n): No" specification. Manual directional control valves offer several advantages in specific applications:
- **Simplicity and Reliability:** Fewer complex electronic components mean less susceptibility to electrical failures, electromagnetic interference, or extreme temperature variations.
- **Cost-Effectiveness:** Manual valves generally have a lower initial cost and simpler installation compared to solenoid-operated counterparts.
- **Durability in Harsh Environments:** Mechanical linkages are often more robust and less prone to damage in rugged or dirty operating conditions.
- **Direct Operator Feedback:** Manual levers provide tactile feedback, allowing operators to "feel" the hydraulic load and make fine adjustments with greater intuitive control.
The handle is sold separately, allowing operators to choose a handle style that best suits their ergonomic preferences and specific application requirements.
Diverse Application Suitability
Given its robust specifications and specialized spool actions, this 2-spool directional control valve is ideally suited for a wide array of mobile and stationary hydraulic applications, including but not limited to:
- **Dump Truck and Trailer Applications:** Precisely controlling the raise and lower functions of dump bodies.
- **Snow Plows and Salt Spreaders:** Managing blade articulation, lift, and potentially spreader functions.
- **Utility and Service Vehicles:** Operating lift gates, cranes, or various auxiliary tools requiring single-acting cylinders.
- **Agricultural Equipment:** Controlling implements like cultivators, plows, or other attachments that utilize single-acting hydraulics.
- **Material Handling:** For specialized forklifts or other lifting mechanisms.
- **Construction Equipment:** For auxiliary functions on compact excavators, skid steers, or backhoes.
Its reliability and precision make it a preferred choice for operators who demand consistent and trouble-free performance in challenging work environments.
Maintenance and Longevity Considerations
The design emphasis on durability extends to ease of maintenance. The external spool seals are a prime example, simplifying what can often be a complex and time-consuming task on other valve designs. Regular inspection of hydraulic fluid quality, adherence to recommended filtration practices, and periodic checks of connections are crucial for maximizing the lifespan of the valve and the entire hydraulic system. Buyers Products' commitment to quality ensures that this valve is built to endure, providing a long service life with minimal intervention.
Conclusion
The Buyers Products 2 Spool Directional Control Valve with its dual 3-way spring-centered "Power Up/Gravity Down" spools and integrated Power Beyond capability stands as a testament to advanced hydraulic engineering. Its robust cast iron construction, high flow and pressure ratings, superior sealing mechanisms, and critical safety features such as the adjustable integral relief valve and built-in load checks, collectively deliver an uncompromising solution for precise, reliable, and durable hydraulic control. Designed for the most demanding applications, this valve offers an optimal balance of performance, safety, and ease of maintenance, ensuring efficient operation and extended service life for a wide range of hydraulic machinery. For specific application needs or to explore additional configurations, Buyers Products Customer Service is readily available to provide expert guidance and support.
