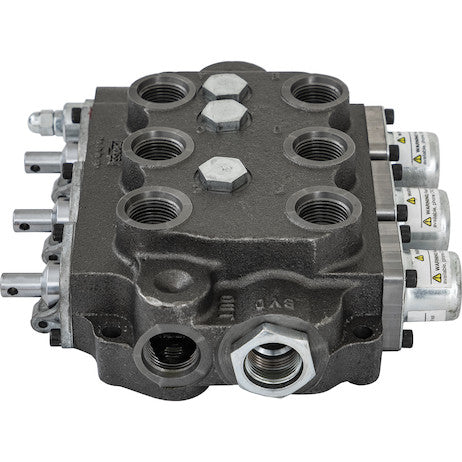

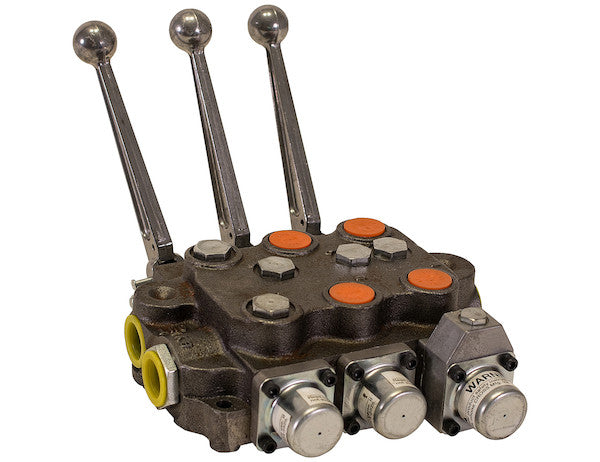

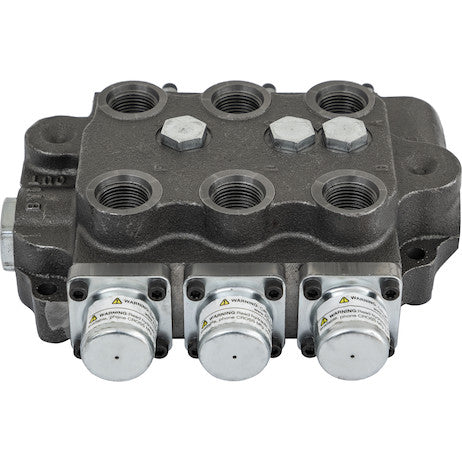

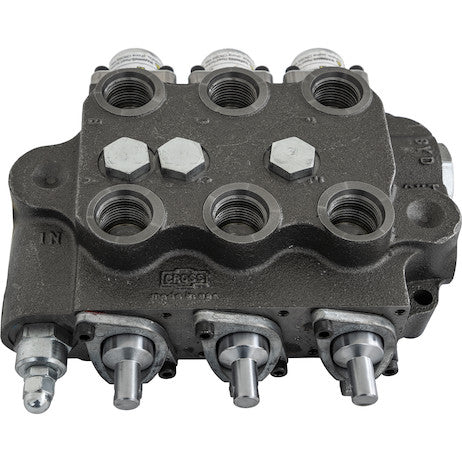

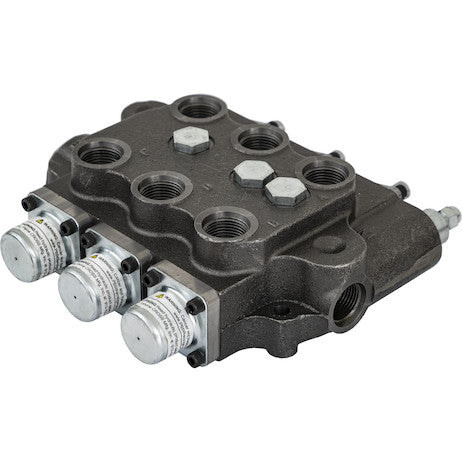

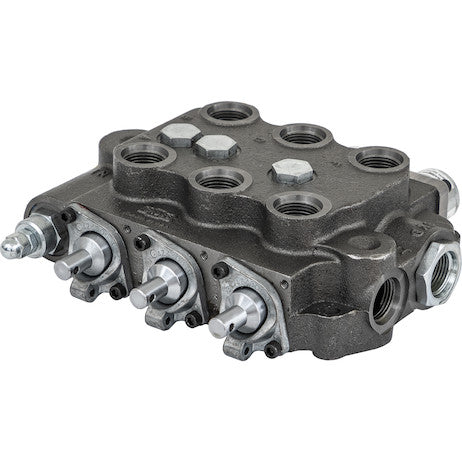

The 3 Spool Directional Control Valve from Buyers Products is compact, precise, and reliable. It directs flow smoothly where and when you need it. Allowing plenty of force for the job, the control valve is rated at 30 GPM and a working pressure of 2500 PSI (maximum 4000 PSI ). Each valve has a built-in load check to prevent flow reversal when shifting. The integral relief valve is adjustable (factory-set at 2000 PSI /10 GPM). Balanced, select-fit spools provide minimal leakage and smooth operation. The spool seals are external for easy replacement. Choose from a variety of 3-way or 4-way spool actions. They are available with or without Power Beyond. The handle is sold separately. Additional configurations are available. Please contact Customer Service for further information.
Specifications
| Electrically Operated (y/n) | No |
|---|---|
| Inlet Port Size | 3/4 SAE ORB (-12) |
| Main Relief Setting | 2000 |
| Maximum Flow Rate | 30 |
| Maximum Pressure | 3500 |
| Outlet Port Size | 3/4 SAE ORB (-12) |
| Power Beyond (y/n) | Yes |
| Spool Action 1 | Power Up/Power Down |
| Spool Action 3 | Power Up/Power Down |
| Spool Action 4 | Power Up/Power Down |
| Work Port Size | 3/4 SAE ORB (-12) |
Advanced Technical Overview: The 3-Spool Directional Control Valve with Power Beyond
The Buyers Products 3-Spool Directional Control Valve represents a pinnacle of hydraulic control technology, engineered for superior performance, reliability, and versatility in demanding mobile and industrial hydraulic applications. This meticulously designed component serves as the central command unit for regulating fluid power, enabling precise and efficient operation of multiple hydraulic actuators. Its configuration, featuring three independent 4-way spring-centered spools and integrated Power Beyond functionality, positions it as an indispensable asset for complex hydraulic systems requiring sequential or simultaneous control of various functions.
Core Functionality: Precision Directional Control
At its essence, a directional control valve dictates the path of hydraulic fluid within a system, thereby governing the movement and operation of hydraulic cylinders and motors. This specific model is a 3-spool valve, meaning it possesses three distinct internal mechanisms, or spools, each capable of independently directing fluid flow to a dedicated hydraulic circuit. This multi-spool architecture allows for the simultaneous or independent control of up to three separate hydraulic functions from a single, compact valve block, significantly streamlining system design and improving operational efficiency.
Each of the valve's spools is configured as a 4-way design. A 4-way spool is characterized by four primary ports: an inlet port (P) for pressurized fluid from the pump, a tank port (T) for return fluid, and two work ports (A and B) that connect to a double-acting hydraulic actuator (e.g., a cylinder or a bi-directional motor). This configuration enables the spool to direct fluid to either port A or port B, allowing for extension/retraction of a cylinder or clockwise/counter-clockwise rotation of a motor. The "Power Up/Power Down" action specified for each spool unequivocally confirms this 4-way, double-acting capability, making this valve ideal for lifting, lowering, pushing, pulling, and rotating applications.
The "Spring Center" designation for the spools denotes the mechanism by which they return to their neutral position. When an operator releases the control handle, internal springs automatically recenter the spool. This provides a critical safety feature and simplifies operation, as the spool will not remain in an activated position without constant input. In the neutral (centered) position, these 4-way spools typically adopt one of several configurations: an open center (P to T), a closed center (all ports blocked), or a tandem center (P to T, A & B blocked). Given the integral Power Beyond functionality and common usage for auxiliary equipment, a tandem center design is highly probable, allowing for system pressure to be routed to downstream components while the spools are in neutral, and blocking work ports to hold an actuator's position.
Robust Performance Specifications
The operational parameters of a hydraulic valve are crucial indicators of its suitability for specific applications. This 3-spool directional control valve is engineered to handle substantial hydraulic loads and fluid volumes:
- Maximum Flow Rate (30 GPM): With a maximum flow rate of 30 Gallons Per Minute (GPM), this valve is capable of accommodating significant hydraulic fluid volumes. This parameter directly influences the speed at which hydraulic actuators can operate. A 30 GPM rating ensures compatibility with a wide range of medium to large hydraulic pumps, providing ample fluid delivery for robust and responsive system performance in applications such as agricultural loaders, municipal utility equipment, and construction machinery.
- Rated Working Pressure (2500 PSI) & Maximum Operating Pressure (3500 PSI): The valve boasts a nominal working pressure of 2500 PSI (pounds per square inch), indicating its continuous operational capacity under typical load conditions. Furthermore, it is designed for a maximum operating pressure of 3500 PSI, as specified in the technical table. This substantial pressure rating signifies the valve's structural integrity and ability to function reliably in high-pressure environments. While the general description mentions a "maximum 4000 PSI," the conservative and verified specification of 3500 PSI represents the maximum sustained pressure the valve is engineered to handle, ensuring long-term durability and safety. The inherent robust design may allow for intermittent peak pressures up to 4000 PSI, offering a crucial safety margin against system pressure spikes. This high-pressure capability allows the valve to generate significant force or torque, making it suitable for heavy-duty tasks.
- Port Sizes (3/4 SAE ORB -12): All primary ports – Inlet, Outlet, and Work Ports – utilize a 3/4 SAE ORB (-12) connection. SAE O-Ring Boss (ORB) fittings are recognized industry-wide for their superior sealing capabilities compared to pipe thread connections. The O-ring provides a positive, leak-free seal, essential for maintaining system integrity and preventing fluid loss, particularly in high-pressure or vibratory applications. The -12 size corresponds to a nominal hose size and ensures adequate flow passage, minimizing pressure drop and optimizing system efficiency. This standardization simplifies plumbing, ensuring compatibility with a vast array of hydraulic hoses and fittings.
- Main Relief Setting (2000 PSI / 10 GPM): The integral relief valve is factory-set at 2000 PSI, with a rated flow for relief at 10 GPM. This relief valve acts as a critical safety device, protecting the hydraulic system from overpressure conditions. Should the system pressure exceed 2000 PSI due to excessive load or operational demands, the relief valve will automatically open, diverting excess fluid back to the tank. This prevents damage to the pump, actuators, hoses, and other components. The adjustability of this relief valve provides an invaluable feature, allowing system designers and technicians to fine-tune the maximum operating pressure to precisely match the requirements of specific equipment or tasks, enhancing both safety and performance customization.
Advanced Integrated Features for Enhanced System Performance
This directional control valve incorporates several advanced features that contribute significantly to its overall performance, safety, and system integration:
- Built-in Load Check: Each spool features a built-in load check valve. This crucial component is designed to prevent flow reversal when the valve spool is in transition or when a load is suspended. Without a load check, a sudden shift in the spool could momentarily open both work ports to the tank, causing a cylinder to "drop" or an actuator to lose position under load. The load check ensures that pressure is maintained on the actuator until the spool is fully shifted, providing smooth, controlled operation and preventing cavitation in the pump during critical moments of spool actuation. This contributes to enhanced safety, improved control precision, and prolonged component life.
- Integral Relief Valve (Adjustable): As detailed above, the presence of an integral, adjustable relief valve is a testament to the valve's comprehensive safety and adaptability. By integrating the relief function directly into the valve body, it eliminates the need for external plumbing and components, simplifying system design and reducing potential leak points. Its adjustability provides unparalleled flexibility, allowing operators or technicians to optimize the system's maximum pressure threshold for various implements or tasks, without requiring a separate relief valve installation.
- Power Beyond (PB) Capability: A standout feature of this valve is its Power Beyond functionality. In hydraulic systems utilizing multiple valves in series, Power Beyond allows the pressurized fluid that has passed through this valve (but not been directed to an actuator by an active spool) to be routed to an inlet port of another downstream valve block. This effectively transforms the outlet port into a "pressure" port for the next component in the circuit, rather than simply returning fluid to the tank. This eliminates the need for a separate pump or complex parallel plumbing to power multiple functions. Power Beyond is particularly advantageous in mobile applications where space is limited and system efficiency is paramount, enabling modular expansion of hydraulic controls without compromising performance. It ensures that subsequent valves in a series can receive full system pressure when this valve's spools are in neutral, allowing for independent operation of multiple hydraulic functions from a single pump source.
Precision Engineering and Durability
The longevity and reliability of hydraulic components are directly proportional to their design and manufacturing quality. This Buyers Products directional control valve exemplifies superior engineering principles:
- Compact Design: Engineered with a focus on space efficiency, the valve's compact form factor facilitates easy integration into a wide array of machinery where mounting space may be at a premium. This thoughtful design minimizes the overall footprint of the hydraulic system without compromising performance or accessibility.
- Balanced, Select-Fit Spools: The spools are manufactured with extremely tight tolerances and are precision-ground and balanced. This "select-fit" process minimizes internal leakage (often referred to as bypass leakage) across the spool lands, which is critical for maintaining pressure and holding loads. Reduced internal leakage translates to higher volumetric efficiency, less heat generation, and more precise control. Furthermore, the balanced design ensures smooth, low-effort spool actuation, enhancing operator comfort and control.
- External Spool Seals: A significant advantage for maintenance and longevity, the spool seals are externally mounted. This design choice facilitates easy inspection, repair, or replacement of seals without requiring extensive disassembly of the valve block or removal from the hydraulic system. This feature dramatically reduces downtime and maintenance costs, extending the service life of the valve and ensuring continuous operational readiness. Made from high-grade materials such as nitrile (Buna-N) or fluorocarbon (Viton), these seals are selected for their resistance to hydraulic fluids, extreme temperatures, and wear, ensuring robust sealing performance under rigorous operating conditions.
- Robust Construction Materials: While not explicitly detailed in the initial description, professional-grade hydraulic valves of this caliber typically feature bodies constructed from high-strength cast iron or specialized aluminum alloys, providing excellent rigidity and pressure containment. The spools themselves are commonly fabricated from hardened steel, precision-ground and surface-treated for maximum wear resistance and smooth sliding action. These material selections ensure durability, resistance to fatigue, and reliable operation in challenging industrial and mobile environments.
- Non-Electrically Operated: The design choice to be non-electrically operated underscores a commitment to mechanical reliability and simplicity. This type of valve is inherently robust, less susceptible to electrical failures, and often preferred in harsh operating conditions where moisture, dust, or extreme temperatures could compromise electrical components. Its purely mechanical operation simplifies troubleshooting and reduces the complexity of the overall hydraulic system.
Versatility Across Diverse Applications
The specific configuration of this 3-spool, 4-way, spring-centered directional control valve with Power Beyond functionality makes it exceptionally versatile for a broad spectrum of hydraulic applications:
- Agricultural Equipment: Ideal for controlling multiple functions on tractors, loaders, hay balers, and other farm implements. For example, one spool could manage a bucket lift, another a grapple clamp, and the third a tilt cylinder.
- Construction Machinery: Suitable for compact construction equipment such as mini-excavators, skid steers, and backhoes, directing hydraulic power for boom lift, bucket curl, and auxiliary attachments.
- Municipal and Utility Vehicles: Essential for operating snowplows (lift, angle, wings), salt spreaders, dump beds, crane outriggers, and other implements on municipal trucks and utility vehicles.
- Material Handling: Can be integrated into forklifts, scissor lifts, and various conveyors to control lifting, tilting, clamping, or conveyor belt actuation.
- Industrial Machinery: Applicable in a wide array of industrial settings for controlling hydraulic presses, assembly lines, and various production equipment requiring precise motion control.
The "Power Up/Power Down" action of each 4-way spool is perfectly suited for double-acting cylinders, allowing for controlled motion in both directions and holding loads securely in position. While the general product line from Buyers Products may offer a variety of 3-way or 4-way spool actions, this specific model is optimized for high-performance 4-way operations, catering to applications that require comprehensive control over bi-directional actuators.
Installation, Maintenance, and Customer Support
Proper installation and regular maintenance are crucial for maximizing the lifespan and efficiency of any hydraulic component. The use of standard 3/4 SAE ORB (-12) ports simplifies plumbing, but adherence to best practices for hydraulic system installation, including appropriate torque values for fittings, use of high-quality hydraulic fluid, and adequate filtration, is highly recommended. The external spool seals are a significant advantage for simplified maintenance, allowing for quick and straightforward replacement without extensive valve disassembly, thereby minimizing service time and associated costs.
For optimal operational integration, it is important to note that the control handle for this valve is sold separately. This allows operators to select a handle style and ergonomics that best suit their preferences and application requirements, offering a degree of customization in the operator interface. Furthermore, Buyers Products is committed to providing comprehensive solutions; for specialized needs or non-standard system configurations, additional valve configurations are available. Customers are encouraged to contact Customer Service to discuss bespoke requirements, ensuring that the ideal hydraulic control solution is always attainable.
Conclusion
The Buyers Products 3-Spool Directional Control Valve with Power Beyond stands as a testament to advanced hydraulic engineering, delivering a compact, precise, and exceptionally reliable solution for complex fluid power systems. Its robust specifications, including a 30 GPM flow rate, 2500 PSI working pressure (with a 3500 PSI maximum), and 3/4 SAE ORB ports, combined with integrated features like built-in load checks, an adjustable integral relief valve, and essential Power Beyond capability, ensure unparalleled performance and system protection. Designed for durability with balanced, select-fit spools and easily replaceable external seals, this valve offers extended service life and reduced maintenance demands. Whether deployed in agricultural, construction, municipal, or industrial applications, this non-electrically operated, three-spool valve provides the precision, power, and versatility required to direct hydraulic flow exactly where and when it's needed, driving efficiency and control in the most demanding environments.
