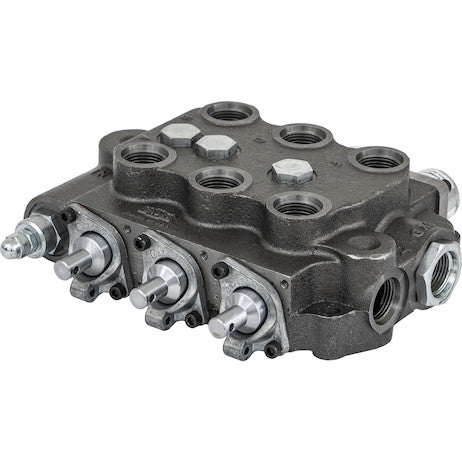

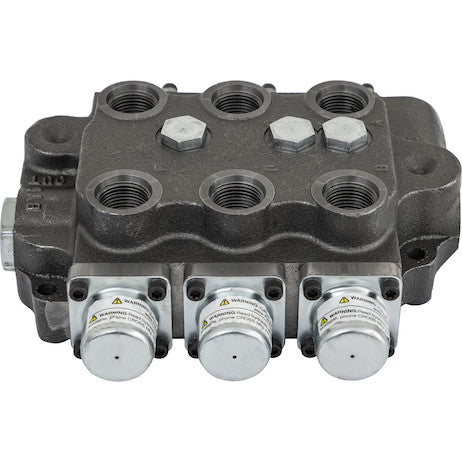

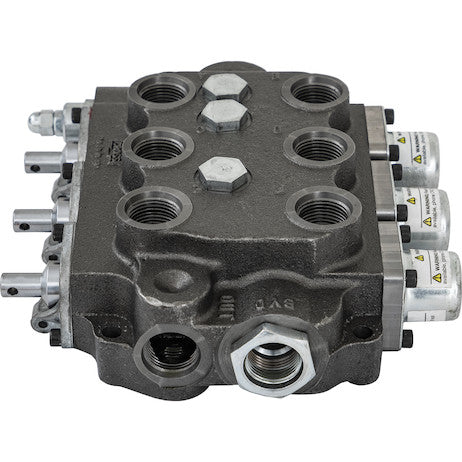

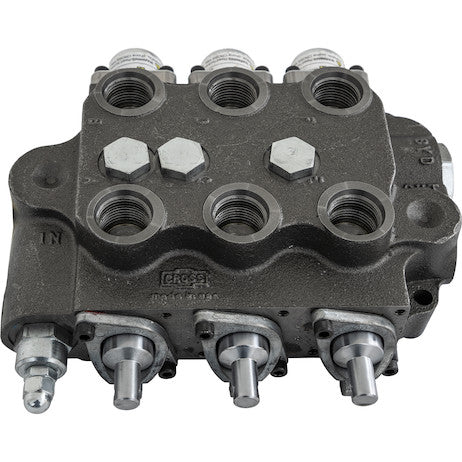

The 3 Spool Directional Control Valve from Buyers Products is compact, precise, and reliable. It directs flow smoothly where and when you need it. Allowing plenty of force for the job, the control valve is rated at 30 GPM and a working pressure of 2500 PSI (maximum 4000 PSI ). Each valve has a built-in load check to prevent flow reversal when shifting. The integral relief valve is adjustable (factory-set at 2000 PSI /10 GPM). Balanced, select-fit spools provide minimal leakage and smooth operation. The spool seals are external for easy replacement. Choose from a variety of 3-way or 4-way spool actions. They are available with or without Power Beyond. The handle is sold separately. Additional configurations are available. Please contact Customer Service for further information.
Specifications
| Electrically Operated (y/n) | No |
|---|---|
| Inlet Port Size | 3/4 SAE ORB (-12) |
| Main Relief Setting | 2000 |
| Maximum Flow Rate | 30 |
| Maximum Pressure | 3500 |
| Outlet Port Size | 3/4 SAE ORB (-12) |
| Power Beyond (y/n) | No |
| Spool Action 1 | Power Up/Power Down |
| Spool Action 3 | Power Up/Power Down |
| Spool Action 4 | Power Up/Power Down |
| Work Port Size | 3/4 SAE ORB (-12) |
Advanced Technical Overview: 3 Spool Directional Control Valve
This detailed technical description provides an in-depth analysis of the 3 Spool Directional Control Valve from Buyers Products, a robust and versatile component engineered for demanding hydraulic applications. Designed to offer precise and reliable control over hydraulic circuits, this monoblock-style valve consolidates three distinct directional control elements into a single, compact housing, significantly simplifying system design and installation. Each of the three spools is configured as a 4-way, 3-position valve with a spring-centered neutral, offering "Power Up/Power Down" functionality, ideal for operating double-acting hydraulic cylinders or reversible hydraulic motors.
Core Functional Principle and Configuration: The fundamental role of a directional control valve in any hydraulic system is to direct the flow of pressurized fluid from the pump to the hydraulic actuators (cylinders or motors) and subsequently return the fluid to the reservoir. This particular valve is a 3-spool design, meaning it can independently control three separate hydraulic functions. The "4-way" designation for each spool indicates that it possesses four main fluid ports: a pressure port (P), a tank port (T), and two work ports (A and B). These four ways allow for the full control of a double-acting cylinder or bi-directional motor. The "3-position" aspect refers to the three distinct operational states for each spool: a neutral position (spring-centered) and two actuated positions (lever pushed forward or pulled back), each directing fluid flow to achieve the desired motion (e.g., extend/retract, clockwise/counter-clockwise). The spring-centered mechanism ensures that the spool automatically returns to its neutral position when the operating lever is released, providing an inherent safety feature and predictable system behavior.
In the neutral, spring-centered position, the spools are typically configured as "tandem center" or "closed center." For applications requiring "Power Up/Power Down" functionality, a common neutral configuration is the "tandem center," where the pressure port is connected to the tank port, allowing continuous pump flow to bypass the work ports and return to the reservoir, while simultaneously blocking the A and B work ports. This configuration allows for lower heat generation in the neutral state by allowing flow back to tank, yet holds the cylinder in place. Alternatively, a "closed center" design would block all ports in neutral, suitable for systems where the pump flow can be unloaded elsewhere (e.g., via a pressure-compensated pump or accumulator system). Given the specifications of an integral relief valve and the 30 GPM flow rate, a tandem center or open-center neutral for the system’s primary flow path, with individual work port blocking, is a highly effective design choice for ensuring system efficiency and preventing unnecessary pressure buildup when no functions are being actuated.
Hydraulic Performance Specifications: Precision engineering underpins the impressive hydraulic performance of this control valve. With a maximum flow rate capacity of 30 GPM (Gallons Per Minute), it is well-suited for a wide range of medium to heavy-duty hydraulic applications where substantial fluid movement is required. The working pressure rating of 2500 PSI (Pounds per Square Inch) attests to its capability to operate reliably under significant loads, while the maximum allowable pressure of 3500 PSI provides a critical safety margin, ensuring structural integrity even during transient pressure spikes. It is important to note the distinction between working pressure and maximum pressure; the former represents the continuous operational pressure, while the latter is the absolute limit the valve can withstand without damage. The factory-set main relief valve at 2000 PSI is a crucial safety and system protection feature, preventing over-pressurization of the hydraulic circuit. This relief valve is adjustable, allowing operators to fine-tune the maximum system pressure to match the specific requirements and safety limits of the connected actuators and overall hydraulic system. The 10 GPM rating associated with the relief valve typically signifies the flow rate at which this relief pressure is measured or the maximum flow the relief valve can effectively bypass while maintaining stable pressure control.
Integrated Safety and Control Features: The design incorporates several key features to enhance both safety and operational efficiency. Each spool benefits from a built-in load check valve. Load check valves are imperative in multi-functional hydraulic systems to prevent hydraulic fluid from flowing back from the actuator to the pressure line when the spool is in its neutral position or during shifting. This is particularly important for holding loads in position without drift, ensuring smooth and controlled starts for cylinders or motors, and preventing cavitation or erratic movement during the initial phases of actuation, especially with multiple spools operating in series.
The integral relief valve, factory-set at 2000 PSI, serves as the primary safeguard against excessive system pressure. Should the pressure in the main hydraulic line exceed this preset value, the relief valve will automatically open, diverting excess fluid directly back to the tank. This action protects the pump, hoses, cylinders, and other hydraulic components from damage due to overloads or blockages in the system. Its adjustability provides invaluable flexibility, enabling precise calibration for specific application demands, optimizing both performance and component lifespan.
Spool Design and Maintenance: The spools themselves are a testament to robust engineering. Constructed with precision and featuring a balanced, select-fit design, they ensure minimal internal leakage (slip flow) and exceptionally smooth operation. Minimal leakage is critical for maintaining efficiency and holding loads precisely without creep. The balanced design reduces the force required to shift the spool, translating into easier manual operation and reduced wear on the actuation mechanism. A significant advantage for long-term serviceability is the external placement of the spool seals. This design choice dramatically simplifies maintenance procedures, allowing for quick and straightforward replacement of seals without requiring extensive disassembly of the valve body. This feature minimizes downtime and reduces overall maintenance costs, enhancing the valve's lifecycle value.
Porting and Connectivity: All major ports on this valve—Inlet (P), Outlet (T), and the Work Ports (A and B for each spool)—are specified as 3/4 SAE ORB (-12). SAE ORB (O-Ring Boss) fittings are a widely recognized and preferred standard in hydraulic systems for their superior sealing capabilities, particularly in high-pressure environments. The O-ring boss seal creates a robust, leak-free connection, significantly reducing the risk of fluid leakage compared to traditional pipe thread fittings. The standardized 3/4 inch size ensures compatibility with common hydraulic lines and components, facilitating integration into existing or new hydraulic circuits. The absence of a "Power Beyond" feature on this specific configuration means that the valve is typically intended for use in a series circuit where the tank port of this valve is connected directly back to the reservoir, or as the final valve in a series of non-power-beyond valves, rather than providing pressurized flow to subsequent valves downstream. For systems requiring multiple functions in series, each valve in the series would need to incorporate a power beyond sleeve or an equivalent bypass mechanism if constant pressure is required for the downstream components, but for this specific model, the assumption is direct return to tank for the outlet port unless customized. However, for monoblock valves like this, the internal design usually means the flow passes through the sections in series, with the main outlet port typically being the final return to tank from the entire block.

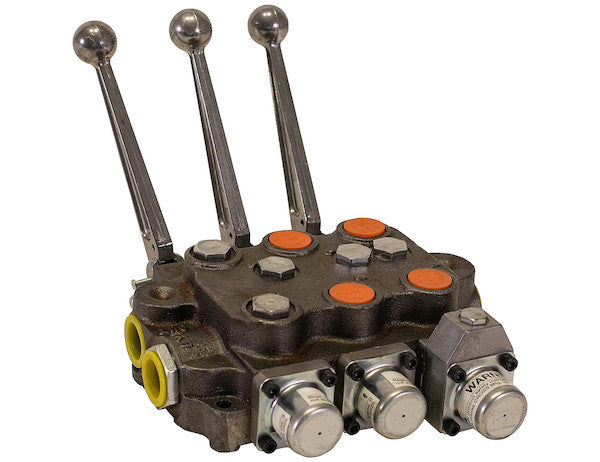

Manual Operation and System Integration: As indicated by "Electrically Operated (y/n): No," this valve is designed for direct manual actuation. The operating levers, sold separately, attach directly to the spools, providing intuitive and tactile control over hydraulic functions. This manual interface is often preferred in environments where operators need direct, physical control and immediate feedback, or in applications where electrical power for solenoid operation is unavailable or undesirable. The simplicity of manual operation also contributes to the valve's overall reliability and ease of troubleshooting compared to more complex electrical or electronic control systems.
Integrating this 3-spool valve into a hydraulic system requires careful consideration of pump capacity, reservoir size, and actuator requirements. The 30 GPM flow rating indicates that a pump capable of delivering this flow at the required pressure is necessary for optimal performance. Proper hydraulic fluid selection, filtration, and cooling are also paramount to ensure the longevity and efficiency of the valve and the entire hydraulic system. The ability to adjust the main relief setting provides critical flexibility during system commissioning, allowing installers to precisely match the valve's pressure characteristics to the specific operational parameters of the connected equipment.
Versatility and Applications: The "3 Spool Directional Control Valve 4-Way Spring Center/4-Way Spring Center/4-Way" configuration, with its "Power Up/Power Down" action for each spool, makes it exceptionally versatile for a wide array of mobile and industrial hydraulic applications. Typical uses include:
- Mobile Equipment: Control of multiple functions on dump trucks (e.g., hoist, gate, plow angle), snowplows (lift, angle, wing), agricultural machinery (loaders, cultivators, plows), utility vehicles (lifts, cranes, attachments), and refuse collection vehicles (packer, lifter, gate).
- Construction Equipment: Management of auxiliary functions on excavators, backhoes, and skid steers, such as grapple rotation, tilt buckets, or hammer attachments.
- Material Handling: Control of fork attachments, clamping mechanisms, or conveyor adjustments on specialized industrial vehicles.
- Industrial Machinery: Integration into custom hydraulic presses, manufacturing jigs, or test stands requiring sequential or independent control of multiple cylinders or motors.
Conclusion: The 3 Spool Directional Control Valve from Buyers Products represents a high-performance, meticulously engineered solution for complex hydraulic control needs. Its combination of robust construction, precise 4-way, 3-position spring-centered spools with "Power Up/Power Down" functionality, integrated load checks, and an adjustable relief valve ensures exceptional operational control, system protection, and longevity. The 30 GPM flow rate and 3500 PSI maximum pressure rating confirm its suitability for heavy-duty applications, while features like external spool seals simplify maintenance. With its 3/4 SAE ORB porting, this manually operated valve offers a compact, reliable, and cost-effective method for managing multiple hydraulic functions across diverse industries, making it an indispensable component for professionals seeking uncompromised performance and durability in their hydraulic systems.
