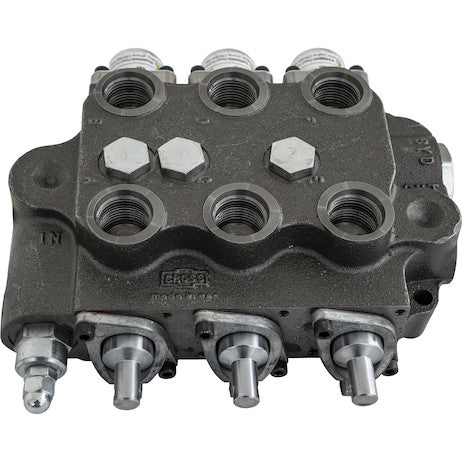

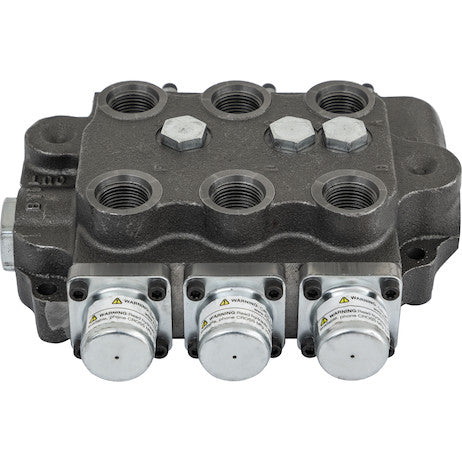

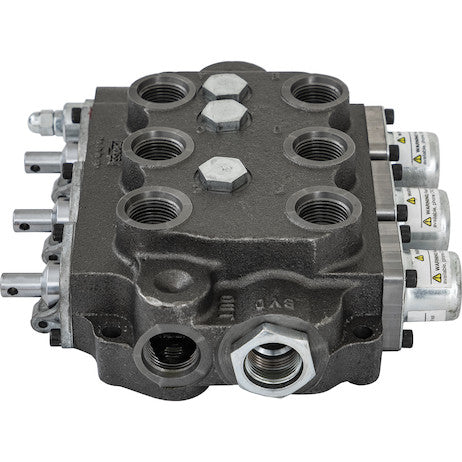

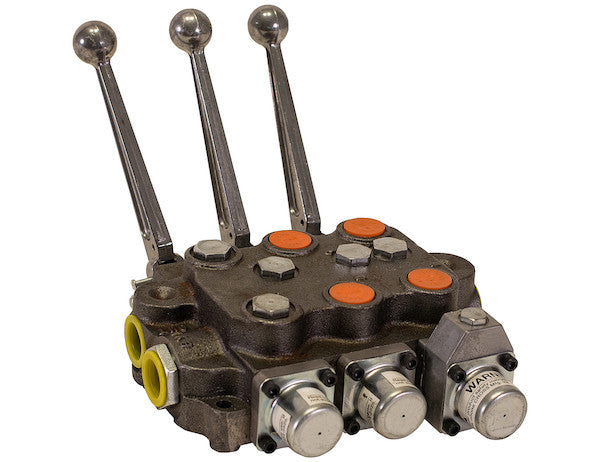

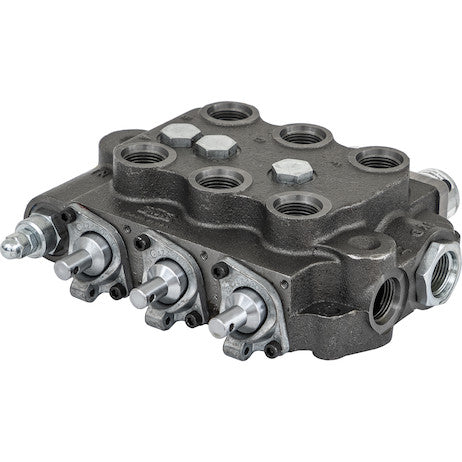

The 3 Spool Directional Control Valve from Buyers Products is compact, precise, and reliable. It directs flow smoothly where and when you need it. Allowing plenty of force for the job, the control valve is rated at 30 GPM and a working pressure of 2500 PSI (maximum 4000 PSI ). Each valve has a built-in load check to prevent flow reversal when shifting. The integral relief valve is adjustable (factory-set at 2000 PSI /10 GPM). Balanced, select-fit spools provide minimal leakage and smooth operation. The spool seals are external for easy replacement. Choose from a variety of 3-way or 4-way spool actions. They are available with or without Power Beyond. The handle is sold separately. Additional configurations are available. Please contact Customer Service for further information.
Specifications
| Electrically Operated (y/n) | No |
|---|---|
| Inlet Port Size | 3/4 SAE ORB (-12) |
| Main Relief Setting | 2000 |
| Maximum Flow Rate | 30 |
| Maximum Pressure | 3500 |
| Outlet Port Size | 3/4 SAE ORB (-12) |
| Power Beyond (y/n) | Yes |
| Spool Action 1 | Power Up/Gravity Down |
| Spool Action 3 | Power Up/Power Down |
| Spool Action 4 | Power Up/Power Down |
| Work Port Size | 1/2 JIC (-8) |
Advanced Technical Overview: 3 Spool Directional Control Valve with Integrated Power Beyond
The Buyers Products 3 Spool Directional Control Valve represents a pinnacle of hydraulic circuit control, engineered for applications demanding superior precision, robust performance, and unwavering reliability. This meticulously designed valve is a critical component in complex hydraulic systems, offering unparalleled control over multiple actuators with its versatile spool configurations and advanced operational features. Its compact form factor belies a powerful internal architecture, capable of efficiently managing significant hydraulic power to ensure smooth, responsive, and safe operation across a diverse range of industrial and mobile equipment.
Fundamental Principles of Directional Control Valves
Directional control valves are the orchestrators of hydraulic systems, governing the path of hydraulic fluid to cylinders, motors, or other actuators. Their primary function is to direct the flow from the pump to the appropriate work port(s) and return fluid from the actuator(s) to the tank, thereby controlling the direction of motion, stopping, or holding a load. This 3-spool variant enhances system versatility by allowing simultaneous or sequential control of up to three distinct hydraulic functions from a single, integrated unit. The manual operation, as indicated by the "Electrically Operated (y/n): No" specification, underscores its suitability for environments where simplicity, direct operator control, and inherent reliability are prioritized over electronic automation.
Robust Performance Metrics: Flow Rate and Pressure Handling
Performance is paramount in hydraulic applications, and this directional control valve is engineered to excel. With a maximum flow rate of 30 GPM (Gallons Per Minute), it is adept at handling significant fluid volumes, making it suitable for applications requiring rapid actuator movement or operating larger hydraulic components. This flow rate ensures that cylinders can extend or retract quickly, and hydraulic motors can achieve desired rotational speeds, contributing to enhanced operational efficiency and reduced cycle times.
Pressure management is equally critical for both performance and safety. The valve is specified with a working pressure of 2500 PSI (Pounds per Square Inch), providing ample force for most heavy-duty applications. Furthermore, its robust construction is designed to withstand a maximum pressure of 3500 PSI, offering a substantial safety margin above the typical operating pressure. This high maximum pressure rating ensures structural integrity and prolonged service life even under transient pressure spikes, thereby minimizing the risk of system failure and reducing maintenance requirements. The precise control over hydraulic power translates directly into superior lifting, pushing, and pulling capabilities for the connected equipment.
Integrated Safety and System Protection: Load Checks and Relief Valve
Safety and system longevity are core tenets of this valve's design. Each spool within the valve is equipped with a built-in load check mechanism. This critical feature prevents the reversal of flow when the spool is shifted or when external forces attempt to move the actuator against the intended direction. For instance, in applications involving lifting heavy loads, a load check valve ensures that the load remains securely held when the control lever is returned to neutral or when switching between functions, thereby enhancing operator safety and preventing uncontrolled movement of the attached implement. This non-return capability is indispensable for maintaining load stability and preventing cavitation within the system.
An integral relief valve is another cornerstone of this valve's protective features. Factory-set at 2000 PSI at 10 GPM, this adjustable relief valve serves as a crucial safety device, safeguarding the hydraulic system from over-pressurization. In the event that system pressure exceeds the preset threshold, the relief valve automatically diverts excess fluid back to the reservoir, preventing damage to the pump, actuators, hoses, and other components. The adjustability of this relief valve provides critical flexibility, allowing system designers and operators to fine-tune the maximum permissible pressure to precisely match the requirements and limitations of specific applications, thus optimizing both performance and component lifespan.
Advanced Spool Design and Functionality
The heart of any directional control valve lies in its spools. This unit features three spools, each meticulously engineered for specific control functions, providing a versatile and integrated control solution. The spools are balanced and select-fit, a testament to precision manufacturing techniques. This design minimizes internal leakage (crossover leakage) that can lead to energy loss, reduced efficiency, and diminished holding power. The minimal leakage characteristic ensures that hydraulic power is effectively transmitted to the actuators, maximizing the system's responsiveness and overall performance. The "smooth operation" afforded by these balanced spools translates directly into fine control for the operator, allowing for precise positioning and manipulation of loads.
Spool Configuration Detail: 3-Way Detent In, 4-Way Spring Center, 4-Way
The specific spool actions are a defining characteristic of this valve's versatility:
-
Spool 1: 3-Way Detent In (Power Up/Gravity Down)
This configuration is ideal for single-acting cylinders, commonly found in applications like dump bodies, snow plows, or certain lift functions where the load is raised hydraulically and lowered by gravity or external force. The "3-way" designation indicates three fluid connection ports (Pressure, Tank, and one Work Port). The "Detent In" feature means the spool can be mechanically held in the "Power Up" position, allowing the operator to release the control handle while the actuator completes its upward stroke or maintains its elevated position. This feature is particularly beneficial for tasks requiring sustained lifting without continuous manual input, enhancing operational convenience and reducing operator fatigue. When the detent is disengaged, the spool typically returns to a neutral position, allowing the load to descend by gravity through the return line. -
Spool 2: 4-Way Spring Center (Power Up/Power Down)
The 4-way spool is designed for double-acting cylinders or reversible hydraulic motors, providing precise control over both extension and retraction (or both directions of rotation). It features four primary ports (Pressure, Tank, and two Work Ports, A and B). In its neutral, spring-centered position, typically all ports are blocked, or P to T open, with A and B blocked. When the operator shifts the spool in one direction, pressure is directed to one work port (e.g., 'A'), and fluid from the other work port ('B') is returned to the tank, causing the actuator to move. Shifting the spool in the opposite direction reverses the flow, causing the actuator to move in the other direction. The "Spring Center" mechanism automatically returns the spool to the neutral position when the operator releases the control handle, preventing unintended movement and ensuring a predictable default state. This is crucial for applications requiring precise, momentary control of actuator movement. -
Spool 3: 4-Way (Power Up/Power Down)
Similar to Spool 2, this 4-way configuration provides full directional control for a second double-acting cylinder or reversible hydraulic motor. While not explicitly specified as "Spring Center" in the primary title description for Spool 3, the common industry practice for multi-spool valves often assumes spring return for 4-way functionality unless a detent is explicitly indicated. This spool further expands the valve's capability to manage another complex hydraulic function, making the valve exceptionally versatile for systems with multiple dynamic components. This allows for simultaneous or independent control of two double-acting functions in addition to the single-acting detent function.
Enhanced Maintainability: External Spool Seals
A critical consideration in the long-term cost of ownership for any hydraulic component is its maintainability. The design of this valve incorporates external spool seals. This feature significantly simplifies and expedites the replacement process of worn or damaged seals, as it eliminates the need for extensive disassembly of the valve body or removal of the entire valve from the hydraulic system. This 'external' design approach translates directly into reduced downtime for equipment, lower labor costs for maintenance, and an extended overall operational life for the valve, making it a highly practical choice for demanding environments where efficiency is key.
Optimized Fluid Connectivity: Port Sizing and Standards
Proper port sizing and standardized connections are vital for efficient fluid transfer and secure installation. This valve adheres to widely recognized industry standards, ensuring broad compatibility and reliable performance:
-
Inlet Port Size: 3/4 SAE ORB (-12)
The inlet port, responsible for receiving pressurized fluid from the pump, is sized at 3/4 inch and utilizes the SAE ORB (O-Ring Boss) standard. The -12 designation refers to the dash size, indicating the nominal tubing OD in 16ths of an inch (12/16 = 3/4 inch). SAE ORB connections are highly regarded for their superior sealing capability, employing an O-ring to prevent leaks even under high pressure and vibration, making them a preferred choice for critical pressure lines. -
Outlet Port Size: 3/4 SAE ORB (-12)
Similarly, the outlet port, which directs return fluid back to the hydraulic reservoir, also features a 3/4 SAE ORB (-12) connection. Consistent port sizing for both inlet and outlet ensures efficient flow paths for both pressurized and return fluid, minimizing pressure drop and optimizing system efficiency. The robust ORB seal contributes to a clean, leak-free hydraulic system. -
Work Port Size: 1/2 JIC (-8)
The work ports, which connect directly to the hydraulic actuators (cylinders or motors), are sized at 1/2 inch and utilize the JIC (Joint Industry Council) 37-degree flare fitting standard, denoted by -8. JIC fittings are recognized for their secure metal-to-metal seal created by the flare, providing a strong and reliable connection for actuator lines. The 1/2-inch size is suitable for a wide range of mobile and industrial actuators, balancing flow capacity with physical footprint and flexibility.
The Advantage of Power Beyond
The "Power Beyond" (PB) feature, explicitly mentioned in the product title and specifications, significantly enhances the utility of this directional control valve in multi-component hydraulic systems. A conventional open-center directional control valve routes unused pump flow directly back to the tank. However, with Power Beyond, the continuous flow from the pump, once it has passed through the primary valve's neutral section, is not simply returned to the tank but is instead directed to a dedicated "power beyond" port. This port then allows this pressurized, unmetered flow to be channeled to a subsequent downstream hydraulic component or another directional control valve in series.
This functionality is crucial for systems that incorporate multiple hydraulic functions requiring independent or sequential operation from a single pump. By utilizing the Power Beyond feature, operators can connect additional valves (e.g., another directional control valve, a motor control valve, or a grapple valve) in a series circuit, effectively allowing multiple functions to draw power from the same pump without the need for additional, dedicated pumps or complex parallel valving setups. This simplifies system design, reduces plumbing complexity, minimizes cost, and optimizes space utilization, making it an indispensable feature for comprehensive hydraulic control systems.
Applications Across Industries
The versatility and robust specifications of this 3 Spool Directional Control Valve make it an ideal choice for a broad spectrum of heavy-duty mobile and industrial hydraulic applications:
- Agricultural Equipment: Control of plows, cultivators, loaders, grain augers, and other implements requiring precise lifting, tilting, or rotational control. The detent spool is particularly useful for sustained lifting actions.
- Construction Machinery: Operation of backhoes, excavators (for auxiliary functions like hammer or grapple attachments), forklifts, and other earth-moving equipment.
- Material Handling: Control of conveyors, presses, and various lifting mechanisms in warehouses, factories, and logging operations.
- Snow & Ice Management: Powering snow plow lift/angle functions, salt/sand spreaders, and other municipal or commercial winter service equipment. The 3-way detent is excellent for holding plows in the raised position.
- Dump Trucks and Trailers: Actuation of dump bodies, tailgate lifts, and auxiliary functions on utility and construction trucks.
- Utility Vehicles: Control of winches, outriggers, cranes, and other hydraulic tools on service trucks and specialized utility vehicles.
Its ability to manage up to three distinct hydraulic circuits from a single, manually operated unit, combined with its integrated safety features and Power Beyond capability, positions this valve as a highly adaptable and efficient solution for complex hydraulic system demands.
Installation and Operational Considerations
While the handle is sold separately, this modular approach allows operators to select the ergonomic handle best suited to their application and preference, ensuring optimal comfort and control. The non-electrically operated nature of the valve simplifies installation by eliminating complex wiring, focusing instead on robust hydraulic plumbing. For proper and safe operation, adherence to manufacturer's installation guidelines, including correct port connections, secure mounting, and appropriate hydraulic fluid selection, is essential. Regular inspection of the external spool seals and periodic adjustment of the integral relief valve (if application-specific pressure changes are required) will ensure sustained peak performance and longevity.
Conclusion
The Buyers Products 3 Spool Directional Control Valve is an exemplary hydraulic component, engineered to deliver precision, power, and enduring reliability. Its comprehensive feature set, including robust flow and pressure handling, integrated load checks, an adjustable relief valve, precision-machined spools with external seals, and Power Beyond functionality, positions it as a superior choice for controlling multiple hydraulic functions. Whether the application demands the sustained action of a detent-equipped 3-way spool or the precise, momentary control of spring-centered 4-way spools, this valve provides an adaptable and technically sound solution. It is designed to integrate seamlessly into diverse hydraulic systems, enhancing operational efficiency, safety, and productivity across a multitude of demanding industries. For specific configurations or application guidance, the Customer Service team stands ready to provide expert assistance, ensuring optimal system design and performance.
