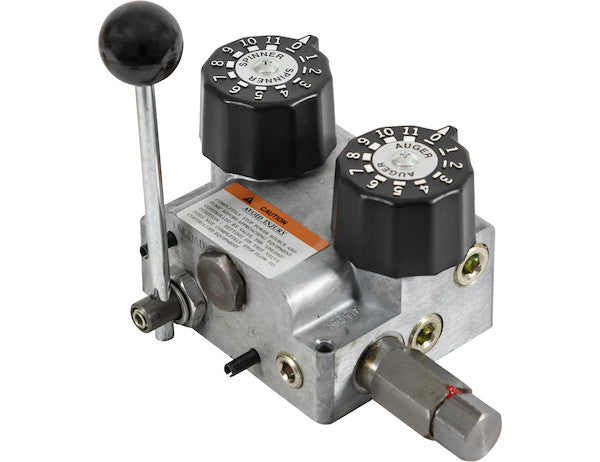

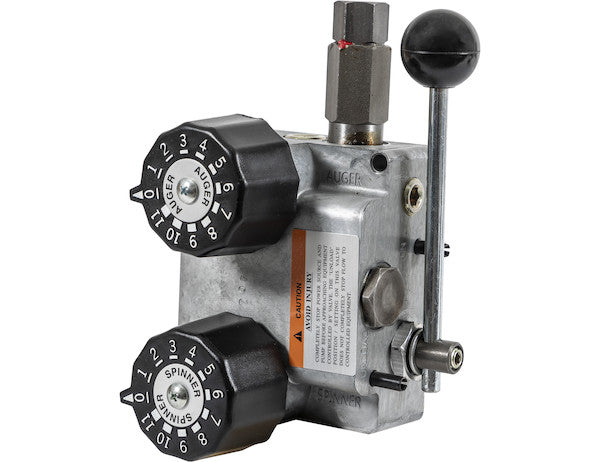

The Dual Flow Hydraulic Spreader Valve from Buyers Products is compact and easy to install, with a durable aluminum body. It features a built-in on/off control lever, system relief, and pressure compensation. Flow for each operation is easy to adjust, with two detent knobs that each feature 11 positive positions. Choose from a 7/15 GPM or a 10/30 GPM model to meet your needs.
Specifications
| Auger/Chain Flow Rate Max (GPM) | 15 |
|---|---|
| Auger/Chain Flow Rate Max (LPM) | 57.5 |
| Auger/Chain Port | 3/4 NPT |
| Flow (GPM) | 22 |
| Flow (LPM) | 85 |
| Functions Supported | Spinner/Auger |
| GPS Capable? | No |
| GPS Included? | No |
| Included Control Type | Manual |
| Inlet Port | 3/4 NPT |
| Load Sensing Port | - |
| Main Relief Setting | 1500 |
| Mount Type | Base |
| Number of Ports | 4 |
| Pre-Wet Supported? | No |
| Pressure | 2000 |
| Pressure (Bar) | 140 |
| Relief Cartridge Setting | 1500 |
| Single or Dual Flow | Dual |
| Spinner Flow Rate Max (GPM) | 7 |
| Spinner Flow Rate Max (LPM) | 57.5 |
| Spinner Port | 1/2 NPT |
| Tank Port | 3/4 NPT |
| Type | Fixed Displacement |
| What's Included | Valve Only |
Advanced Hydraulic Control for Precision Spreading Operations: The 3/4 Inch NPT Dual Flow Hydraulic Spreader Valve (7-15 GPM)
In the demanding world of material spreading, precise control over hydraulic functions is paramount for efficiency, material conservation, and consistent application. The 3/4 Inch NPT Dual Flow Hydraulic Spreader Valve, specifically the 7-15 GPM model, represents a sophisticated solution engineered to meet these critical requirements. Designed for robust performance and intuitive operation, this valve is an indispensable component for professional-grade spreading equipment, offering unparalleled command over both auger/chain and spinner functions.
At its core, this valve facilitates dual hydraulic flow, a crucial feature that allows independent control over two distinct hydraulic circuits from a single input. In the context of a material spreader, this translates directly to simultaneous and finely tuned management of the auger or chain conveyor system – responsible for material delivery – and the spinner mechanism, which controls the broadcast pattern and spread width. The ability to manage these critical functions independently and with high precision is what distinguishes this valve as a superior choice for applications ranging from road de-icing with salt and sand to agricultural fertilization and seeding.
Technical Superiority and Operational Benefits
The valve's design is underpinned by several key hydraulic principles and robust engineering choices, ensuring reliable and high-performance operation. Constructed with a durable aluminum body, the valve benefits from superior strength-to-weight ratio, excellent corrosion resistance, and efficient heat dissipation—all vital attributes for components operating in harsh outdoor environments and under continuous hydraulic stress. The compact form factor further simplifies integration into existing hydraulic systems, minimizing installation complexities and reducing overall machine footprint.
A standout feature is the integrated system relief. Hydraulic systems are inherently susceptible to pressure spikes that can lead to component damage or catastrophic failure. The main relief setting of 1500 PSI (103 Bar) and a corresponding relief cartridge setting of 1500 PSI provide critical over-pressure protection, diverting excess fluid back to the tank to safeguard the pump, motors, and other downstream components. This robust safety mechanism enhances system longevity and operational reliability, minimizing downtime and maintenance costs.
Furthermore, the inclusion of pressure compensation is a testament to the valve's advanced engineering. Pressure compensation actively maintains a consistent flow rate to the hydraulic motors regardless of varying system pressures or load conditions. For a spreader, this means that the auger/chain speed and spinner RPM remain stable, even when facing resistance from dense material or changes in vehicle speed. This ensures a uniform spread pattern and consistent material delivery, preventing uneven application that can lead to wasted material or ineffective treatment.
Precision Flow Control for Optimal Spreading
The 7-15 GPM model of this dual flow valve is meticulously calibrated to provide optimal flow rates for typical spreading applications. The auger/chain flow rate can be precisely adjusted up to a maximum of 15 GPM (57.5 LPM), enabling fine-tuning of material delivery rates. Concurrently, the spinner flow rate can be independently controlled up to 7 GPM (57.5 LPM), allowing operators to accurately set the broadcast width and density. This granularity of control ensures that the spreader can adapt to diverse materials and environmental conditions, maximizing operational effectiveness and minimizing waste.

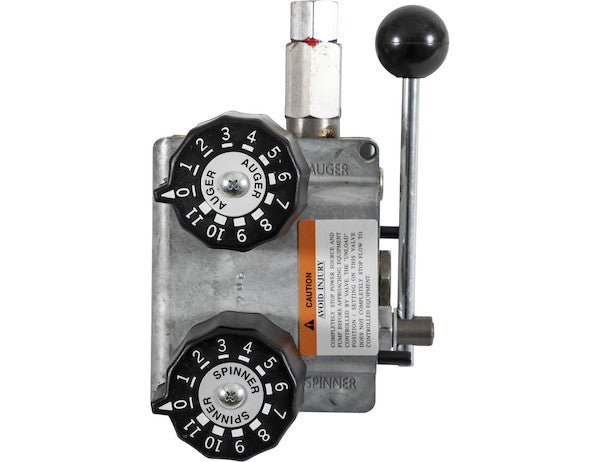

Adjustment is facilitated by two detent knobs, each offering 11 positive positions. This mechanical design provides tactile feedback and repeatable settings, allowing operators to quickly and consistently return to preferred flow rates for different materials or spreading scenarios. The detent mechanism prevents accidental changes in flow settings during operation, ensuring stable and predictable performance throughout the task. A built-in on/off control lever further enhances operational simplicity, providing direct and immediate command over the spreading functions.
Hydraulic Port Configuration and Connectivity

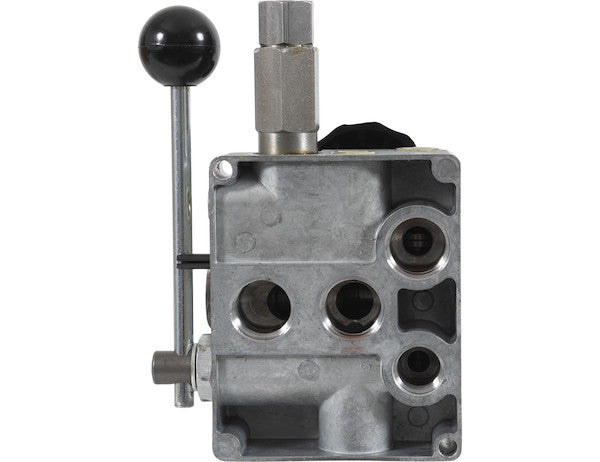

The valve features 3/4 inch NPT (National Pipe Tapered) inlet, auger/chain, and tank ports, while the spinner port utilizes a 1/2 inch NPT connection. NPT threads are a standard in hydraulic systems, known for their robust sealing capabilities when properly assembled with thread sealant. The larger 3/4 inch ports for the main flow paths (inlet, auger/chain, tank) ensure minimal pressure drop and adequate fluid transfer for the specified flow rates, maximizing hydraulic system efficiency. The slightly smaller 1/2 inch spinner port is appropriately sized for the lower flow requirements of the spinner motor, balancing hydraulic performance with component size and cost.
The 'Number of Ports' specification indicates four ports, typically representing:
- Pressure (P) Inlet: Where hydraulic fluid enters from the pump.
- Tank (T) Return: Where hydraulic fluid returns to the reservoir.
- Auger/Chain (A) Work Port: Supplies fluid to the auger/chain motor.
- Spinner (B) Work Port: Supplies fluid to the spinner motor.
Fixed Displacement and Manual Control Philosophy
Classified as a "Fixed Displacement" valve type, this unit operates within a system that typically utilizes a fixed displacement pump. While the pump delivers a constant flow, the valve's pressure compensation and adjustable orifices allow for precise control of the flow to the individual actuators. This approach offers a balance of simplicity, robustness, and cost-effectiveness for many spreading applications.
The "Manual" control type, as indicated by "Included Control Type" and the "GPS Capable? No / GPS Included? No" specifications, highlights a design philosophy focused on direct, operator-controlled intervention. While modern systems often incorporate GPS and automated variable rate control, manual hydraulic valves offer significant advantages in terms of reliability, ease of troubleshooting, and lower initial investment. For many operations, the proven simplicity and direct feedback of manual control remain the preferred method, empowering operators with immediate and tangible command over their equipment. The absence of complex electronic interfaces reduces potential points of failure, making it ideal for environments where ruggedness and straightforward operation are prioritized.
Comprehensive Specifications Overview
Let's delve deeper into the provided specifications to further illuminate the capabilities of this hydraulic spreader valve:
- Auger/Chain Flow Rate Max (GPM): 15 / (LPM): 57.5: This defines the maximum hydraulic fluid volume that can be directed to the auger or chain motor per unit time. A 15 GPM capacity ensures that even demanding material delivery systems can operate at their full potential, allowing for rapid and efficient material discharge.
- Spinner Flow Rate Max (GPM): 7 / (LPM): 57.5: The maximum flow rate for the spinner motor, precisely governing the speed of the spinner disc. This directly influences the spread pattern, width, and uniformity. The 7 GPM capacity is ideal for achieving wide and consistent broadcast patterns for various granular materials.
- Flow (GPM): 22 / (LPM): 85: This likely refers to the maximum aggregate flow rate the valve can handle, or possibly the total system flow for which it is designed, emphasizing its capacity to manage substantial hydraulic power.
- Pressure (PSI): 2000 / (Bar): 140: This is the maximum operating pressure the valve is designed to withstand. This robust pressure rating ensures durability and compatibility with a wide range of hydraulic power units commonly found on trucks and heavy equipment.
- Main Relief Setting (PSI): 1500 / Relief Cartridge Setting (PSI): 1500: As discussed, these settings are crucial for system protection, ensuring that if pressure exceeds 1500 PSI, hydraulic fluid is safely bypassed, preventing damage to the system.
- Inlet Port: 3/4 NPT / Auger/Chain Port: 3/4 NPT / Tank Port: 3/4 NPT / Spinner Port: 1/2 NPT: These specifications outline the physical connection interfaces, emphasizing the use of standardized NPT threads for secure, leak-free connections. The sizing reflects the flow requirements of each circuit.
- Functions Supported: Spinner/Auger: Explicitly states the primary functions the valve is designed to control, affirming its specialization for material spreading applications.
- Mount Type: Base: Indicates that the valve is designed for stable, bolted-down installation, providing a secure foundation for operation in vibrating and dynamic environments.
- Single or Dual Flow: Dual: The core differentiating feature, enabling independent control of two hydraulic functions from a single valve body.
- What's Included: Valve Only: Clarifies that the product is the hydraulic valve itself, without additional hoses, fittings, or control harnesses, allowing purchasers to integrate it into their existing or custom hydraulic setups.
Integration and Application Versatility
This 3/4 Inch NPT Dual Flow Hydraulic Spreader Valve (7-15 GPM) is ideally suited for integration into a diverse array of professional spreading equipment. Its design accommodates various forms of granular material spreaders, including those mounted on pickup trucks, dump trucks, or utility vehicles. The valve's capability to separately manage the auger/chain and spinner functions allows for unparalleled precision when applying de-icing agents like rock salt or sand on roadways and parking lots, ensuring efficient material usage and superior coverage. In agricultural contexts, it can precisely control fertilizer or seed distribution, optimizing yield and minimizing resource waste. The durability of its aluminum construction ensures longevity even when exposed to corrosive materials and harsh weather conditions typically encountered in these applications.
Maintenance and Longevity
The robust construction and straightforward mechanical design of this hydraulic valve contribute significantly to its low maintenance requirements and extended operational lifespan. Regular checks for hydraulic fluid cleanliness, proper hose connections, and securing of mounting hardware are generally sufficient to ensure continued peak performance. The durable aluminum body resists corrosion and wear, while the internal components are engineered for continuous duty cycles. The simplicity of manual controls also means fewer electronic components susceptible to environmental damage, further enhancing reliability in demanding service conditions.
Conclusion
The 3/4 Inch NPT Dual Flow Hydraulic Spreader Valve (7-15 GPM) stands as a testament to intelligent hydraulic engineering, delivering precise, reliable, and durable control for critical spreading operations. Its dual-flow capability, coupled with pressure compensation and integrated safety features, ensures consistent performance across varying loads and conditions. The manual detent knobs offer intuitive, repeatable adjustments, empowering operators with direct control over material delivery and spread patterns. Crafted from robust aluminum and designed for easy integration, this valve is an essential component for any professional seeking to optimize the efficiency, accuracy, and reliability of their hydraulic spreading equipment. For demanding applications where precision and durability are non-negotiable, this valve provides a foundational component for superior operational outcomes.
