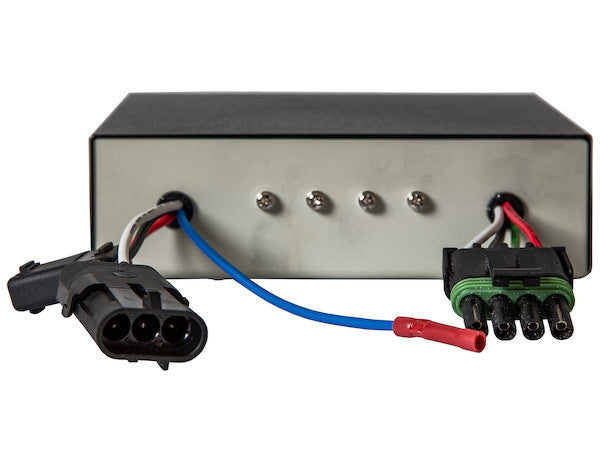

The Electric/Hydraulic Spreader Control from Buyers Products gives you industry leading value and performance in proportional spreader operation. Electric control systems eliminate the need for bulky hydraulic controls in your cab. Two systems are available, both featuring proportional valves housed in a weather-protective enclosure and a weatherproof, corrosion-free wiring harness. HV715EPG/HV1030EPG The 3 Function Controller with LED Display has spinner, auger-conveyor and electric pre-wet controls. It's available in two models for higher or lower GPM needs. These models have a "G" in their model number to signify that you can add a Garmin GPS receiver as an option. With the Garmin GPS unit, you gain more precise and cost-saving performance. The GPS feature plugs in easily on any truck. Set for current conditions, it continuously calculates your vehicle speed and adjusts spreading accordingly to reduce waste and cost. HV715EP/HV1030EP The 12V Programmable Controller with LED Display has auger-conveyor/spinner controls. It's available in two models for higher or lower GPM needs. The GPS option is not available for these models.
Specifications
| Auger/Chain Flow Rate Max (GPM) | 15 |
|---|---|
| Auger/Chain Flow Rate Max (LPM) | 57.5 |
| Auger/Chain Port | 5/8 SAE ORB (-10) |
| Flow (GPM) | 22 |
| Flow (LPM) | 85 |
| Functions Supported | Spinner / Auger |
| GPS Capable? | No |
| GPS Included? | No |
| Included Control Type | Manual / Auto |
| Inlet Port | 5/8 SAE ORB (-10) |
| Load Sensing Port | - |
| Spinner Port | 5/8 SAE ORB (-10) |
| Tank Port | 5/8 SAE ORB (-10) |
| Type | Fixed Displacement |
| What's Included | Valve And Control |
Advanced Electric/Hydraulic Spreader Control: Precision, Efficiency, and Durability
The Electric/Hydraulic Spreader Control system represents a significant advancement in material spreading technology, offering unparalleled precision, operational efficiency, and a robust design engineered for the most demanding applications. Designed by Buyers Products, this system integrates state-of-the-art electric control with high-performance hydraulic components to deliver superior spreading capabilities for a variety of granular and liquid materials.
Revolutionizing Spreader Operations with Electric Control
Traditional hydraulic control systems often necessitate bulky hydraulic lines and manual levers within the vehicle cab, leading to cluttered workspaces and less intuitive operation. The Electric/Hydraulic Spreader Control mitigates these issues by relocating the complex hydraulic valving to a weather-protective enclosure, typically mounted externally on the vehicle chassis. This design philosophy dramatically simplifies the in-cab environment, replacing mechanical linkages with an ergonomic, user-friendly electronic interface. The result is a cleaner cab, reduced operator fatigue, and enhanced control responsiveness. The shift to electric control not only improves the aesthetics and ergonomics but also streamlines installation and maintenance processes, reducing potential points of failure associated with extended hydraulic lines entering the cabin.
Proportional Spreader Operation: The Core of Precision
At the heart of this system lies its proportional control capability. Unlike conventional on/off or stepped hydraulic systems, proportional control allows for continuous, infinitely variable adjustment of hydraulic flow to the spinner and auger/conveyor mechanisms. This precise modulation translates directly into accurate and consistent material application rates. For the spinner, a 0-7 GPM (Gallons Per Minute) range ensures the ability to fine-tune the spread pattern and width, from a narrow, focused application to a wide, even disbursement, accommodating varying road widths and environmental conditions. The auger/conveyor, operating within a 0-15 GPM range, provides granular control over the material feed rate, ensuring that the desired quantity of material (e.g., salt, sand, gravel, fertilizer) is delivered consistently to the spinner or directly onto the surface. This level of control is critical for optimizing material usage, preventing over-application, and achieving uniform coverage, which are paramount for effective de-icing, dust suppression, or agricultural seeding.
Comprehensive System Architecture and Models
The Buyers Products Electric/Hydraulic Spreader Control system is available in several configurations to meet diverse operational requirements. All models share core features designed for durability and performance: proportional valves housed in a weather-protective enclosure and a weatherproof, corrosion-free wiring harness. These components are rigorously tested to withstand the harsh environments typical of winter maintenance, including exposure to salt, moisture, extreme temperatures, and vibrations.
HV715EPG/HV1030EPG: The 3-Function Controller with GPS Capability

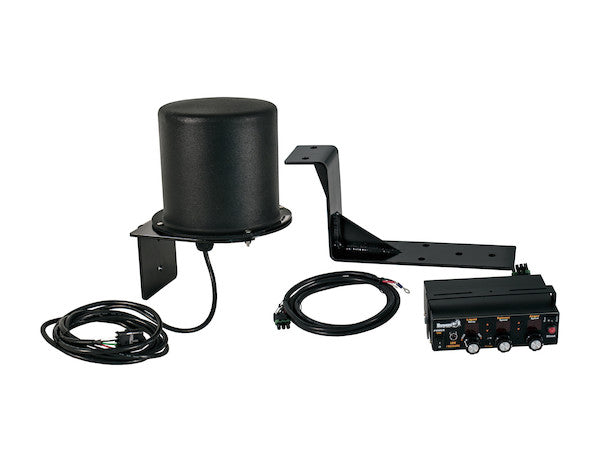

For applications demanding the highest level of precision and functionality, the HV715EPG and HV1030EPG models offer a 3-function controller with an intuitive LED display. These units control the spinner, auger/conveyor, and an electric pre-wet system. The inclusion of electric pre-wet controls is a significant advantage, allowing for the precise application of brine or other liquids to dry granular materials before spreading. This pre-wetting process significantly enhances the effectiveness of de-icing agents by promoting faster activation and better adhesion to surfaces, reducing bounce and scatter. The "G" in the model number denotes compatibility with an optional Garmin GPS receiver, unlocking advanced, speed-proportional spreading capabilities. These models are available in variants to cater to higher or lower GPM requirements, ensuring optimal performance across different hydraulic setups.
HV715EP/HV1030EP: The 12V Programmable Controller
For operations primarily focused on auger/conveyor and spinner control without the need for pre-wet or GPS integration, the HV715EP and HV1030EP models provide a robust 12V programmable controller with an LED display. These controllers offer the same high level of proportional control over material feed and spread pattern, ensuring efficient and effective spreading. While not equipped for GPS, their programmable nature allows operators to set and store preferred spreading parameters, facilitating consistent application across various tasks. Like their GPS-capable counterparts, these models also come in versions for different GPM needs, ensuring compatibility and peak performance with your existing hydraulic systems.
Unlocking Precision with GPS Integration (HV715EPG/HV1030EPG)
The optional Garmin GPS receiver, a hallmark of the HV715EPG/HV1030EPG models, elevates spreading precision to an unprecedented level. This feature integrates the vehicle's speed data directly into the spreading algorithm. By continuously calculating vehicle velocity, the system dynamically adjusts the hydraulic flow rates to the spinner and auger/conveyor. This means that as the vehicle speeds up, the system automatically increases material output, and conversely, as it slows down, output is reduced. The primary benefit of speed-proportional control is the maintenance of a consistent application rate (e.g., pounds per lane mile or grams per square meter) regardless of changes in vehicle speed. This eliminates material waste from over-application at slower speeds and ensures adequate coverage at higher speeds. The GPS unit plugs in easily, making installation straightforward on any truck. Beyond material savings, GPS integration contributes to:
- Cost Reduction: Significant savings on expensive spreading materials and reduced fuel consumption by optimizing spread patterns and preventing re-work.
- Environmental Stewardship: Minimizing the environmental impact of de-icing chemicals or fertilizers by applying only the necessary amounts.
- Enhanced Safety: Consistent and effective de-icing leads to safer roads for the public and reduced liability for municipalities and contractors.
- Data Logging and Accountability: GPS systems often provide data logging capabilities, allowing for detailed records of material usage, routes, and application rates. This data is invaluable for reporting, auditing, and operational analysis, offering insights into efficiency improvements and compliance with environmental regulations.
Hydraulic System Specifications and Engineering
The hydraulic components of this control system are designed for reliability and optimal performance. The system operates on a fixed displacement principle, ensuring consistent hydraulic power delivery. Key specifications include:
- Auger/Chain Flow Rate Max: Up to 15 GPM (57.5 LPM), providing ample power for various material densities and feed rates.
- Spinner Flow Rate Max: Up to 7 GPM (26.5 LPM), allowing for fine-tuned control over spread width and pattern.
- Total System Flow: A robust maximum flow capacity of 22 GPM (85 LPM) ensures efficient operation of both spinner and auger/conveyor simultaneously.
- Port Standardization: All critical ports – Auger/Chain, Spinner, Inlet, and Tank – utilize 5/8 SAE ORB (-10) connections. This standardization ensures compatibility with a wide range of hydraulic hoses and fittings, simplifying installation, maintenance, and replacement. The O-ring boss (ORB) fitting type is preferred in hydraulic applications for its superior sealing capability compared to NPT (National Pipe Taper) threads, reducing the risk of leaks and improving system reliability.
- Durability: The proportional valves are engineered for continuous duty in demanding conditions, featuring robust construction and internal components designed for long service life.
Operator Interface and User Experience
The programmable controllers, whether GPS-capable or standard, feature clear LED displays that provide real-time feedback on critical parameters such as spinner RPM, auger speed, and application rates. The intuitive interface allows operators to easily adjust settings, select pre-programmed modes, or engage auto-spreading functions. This ergonomic design minimizes the learning curve and allows operators to focus on the road and immediate conditions rather than complex controls. The inclusion of both manual and auto control types offers flexibility, enabling operators to take direct control when precise manual adjustments are needed or to rely on automated systems for consistent, speed-proportional spreading.
Robustness and Environmental Resilience
Understanding the harsh operational realities of spreading equipment, Buyers Products has engineered this control system with exceptional durability. The weather-protective enclosure for the proportional valves is constructed from high-grade materials resistant to corrosion, impacts, and extreme temperatures. Similarly, the wiring harness is not merely weather-resistant but corrosion-free, utilizing sealed connectors and robust sheathing to prevent ingress of moisture, salt, and debris, which are common causes of electrical failures in exposed applications. This commitment to durability ensures reliable operation year after year, minimizing downtime and extending the lifespan of the equipment.
Applications and Economic Benefits
This Electric/Hydraulic Spreader Control system is ideally suited for a broad spectrum of applications:
- Winter Road Maintenance: Municipalities and contractors can achieve optimal de-icing and anti-icing results, reducing material costs and improving public safety.
- Agricultural Spreading: Precision application of fertilizers, seeds, and soil amendments, leading to healthier crops and reduced input costs.
- Dust Control: Accurate spreading of water or dust suppression agents on unpaved roads and construction sites.
- Commercial Property Management: Efficient spreading of ice melt and other granular materials for large commercial areas, parking lots, and campuses.
The economic benefits extend beyond material savings. Reduced maintenance, fewer breakdowns, and improved operational efficiency translate into lower overall operating costs and increased profitability. The ability to perform tasks more quickly and effectively means crews can cover more ground in less time, maximizing resource utilization.
Conclusion
The Electric/Hydraulic Spreader Control from Buyers Products represents the pinnacle of modern spreading technology. By combining intuitive electric control with robust hydraulic performance and advanced proportional capabilities, it offers an industry-leading solution for precise material application. Whether opting for the advanced GPS-enabled 3-function controller or the reliable 12V programmable unit, operators gain access to a system that enhances efficiency, reduces operational costs, and delivers superior results in the most demanding environments. This control system is an essential investment for any operation seeking to optimize their spreading capabilities and achieve maximum value from their equipment and materials.
