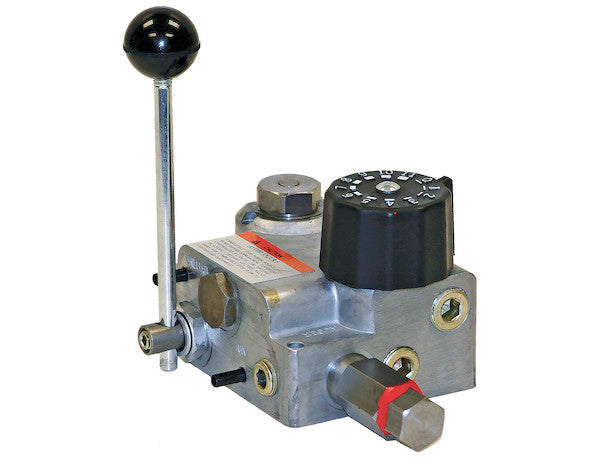

The Single Flow Hydraulic Spreader Valve from Buyers Products is compact and easy to install, with a durable aluminum body. It features a built-in on/off control lever, system relief, and pressure compensation. Flow is easy to adjust with a detent knob featuring 11 positive positions. It's rated at 20 GPM and 2000 PSI. The relief cartridge has a standard setting of 1500 PSI. Valve comes complete with handle.
Specifications
| Auger/Chain Flow Rate Max (GPM) | 20 |
|---|---|
| Auger/Chain Flow Rate Max (LPM) | 77 |
| Auger/Chain Port | 3/4 NPT |
| Flow (GPM) | 20 |
| Flow (LPM) | 76 |
| Functions Supported | Auger |
| GPS Capable? | No |
| GPS Included? | No |
| Included Control Type | Manual |
| Inlet Port | 3/4 NPT |
| Load Sensing Port | - |
| Main Relief Setting | 1500 |
| Mount Type | Base |
| Number of Ports | 3 |
| Pre-Wet Supported? | No |
| Pressure | 2000 |
| Pressure (Bar) | 140 |
| Relief Cartridge Setting | 1500 |
| Single or Dual Flow | Single |
| Spinner Flow Rate Max (GPM) | - |
| Spinner Flow Rate Max (LPM) | 77 |
| Spinner Port | - |
| Tank Port | 3/4 NPT |
| Type | Fixed Displacement |
| What's Included | Valve and Console |
Advanced Technical Overview: Single Flow Hydraulic Spreader Valve and Console
The Buyers Products Single Flow Hydraulic Spreader Valve and Console represents a meticulously engineered solution for precise and reliable control of hydraulic spreading mechanisms. Designed specifically for applications requiring a singular, independently controlled hydraulic circuit, this system excels in environments demanding robust performance, consistent material delivery, and intuitive operation. Its integration of advanced hydraulic principles within a compact, durable architecture makes it an indispensable component for modern spreader systems.
Core Functional Architecture: The Single Flow Valve
At the heart of this system is the single-flow hydraulic valve, a critical component responsible for directing and regulating hydraulic fluid flow to a specific actuator, typically an auger or conveyor chain in a material spreader. Unlike dual-flow systems that manage two independent circuits (e.g., auger and spinner), the single-flow design is optimized for applications where a single hydraulic function requires dedicated control, such as a conveyor system on a salt spreader or a single-channel agricultural distribution system. This dedicated focus streamlines the hydraulic circuit, reducing complexity and enhancing reliability.
The valve's construction features a durable aluminum body, chosen for its excellent strength-to-weight ratio, superior corrosion resistance, and effective heat dissipation properties. These characteristics are particularly vital in the harsh operating conditions often encountered by material spreaders, including exposure to corrosive de-icing agents, extreme temperatures, and abrasive debris. The compact design facilitates integration into a wide array of vehicle chassis and equipment configurations, minimizing spatial requirements and simplifying installation procedures.
Precision Flow Management: Pressure Compensation and Detent Control
A hallmark of this hydraulic spreader valve is its sophisticated flow regulation capability, achieved through integrated pressure compensation and an eleven-position detent knob. Pressure compensation is a fundamental hydraulic feature that ensures the output flow rate to the actuator remains consistent regardless of variations in the load experienced by the auger or the system pressure fluctuations. Without pressure compensation, an increase in resistance (e.g., encountering denser material in the spreader) would cause the auger to slow down, leading to inconsistent material distribution. By actively adjusting internal orifices or spool positions, the pressure compensator maintains a constant pressure drop across the flow control element, thereby stabilizing the volumetric flow rate. This translates directly into a uniform spread pattern and accurate material application, which is crucial for operational efficiency and environmental compliance.
The detent knob for flow adjustment provides an ergonomic and highly repeatable method for setting the desired material delivery rate. With 11 distinct, positive positions, operators can precisely select and consistently return to specific flow settings without guesswork. Each detent provides tactile feedback, ensuring the knob remains in the chosen position despite vibration or shock during operation. This level of granular control over flow directly correlates to the auger's rotational speed, allowing operators to fine-tune the spreading rate of various granular materials—from fine sands to coarse salts—with exceptional accuracy. The ability to recall specific settings across different shifts or operators enhances consistency and reduces training time.
Integrated System Protection and Control: On/Off Lever and Relief Valve
Operational safety and system longevity are paramount, and this valve addresses both through its built-in on/off control lever and system relief valve. The on/off control lever provides immediate, manual engagement and disengagement of the hydraulic circuit, allowing operators to start or stop material flow instantaneously. This feature is critical for safety, enabling quick shutdowns in emergencies or precise control at the beginning and end of spreading routes to prevent over-application or waste. The mechanical nature of the lever ensures reliability even in adverse conditions where electronic controls might be compromised.
The integrated system relief valve is a non-negotiable safety and protective component within any hydraulic circuit. Set at a standard pressure of 1500 PSI, this cartridge-style relief valve acts as a critical failsafe. Should the system pressure exceed this threshold due to excessive load, blockages in the auger, or hydraulic pump anomalies, the relief valve will automatically open. This action diverts excess hydraulic fluid back to the tank, thereby protecting the pump, hoses, and the valve itself from damage due to over-pressurization. The main relief setting of 1500 PSI is carefully calibrated to safeguard the components of typical spreading systems while allowing for robust operational pressures, up to the rated 2000 PSI capacity of the valve. The maximum operational pressure of 2000 PSI (approximately 140 Bar) provides ample hydraulic power for driving auger and chain conveyors under demanding conditions.
Performance Metrics and Port Specifications
The valve is rated for a maximum flow of 20 GPM (Gallons Per Minute), equivalent to approximately 76-77 LPM (Liters Per Minute), and a maximum operating pressure of 2000 PSI. These specifications ensure compatibility with a broad range of hydraulic power units and spreader mechanisms. A 20 GPM flow rate is sufficient to drive robust auger and chain conveyors at speeds necessary for efficient and rapid material distribution in municipal, commercial, and agricultural applications.
The valve features three standard 3/4 NPT (National Pipe Taper) ports: an inlet port for incoming pressurized fluid from the pump, an auger/chain port for fluid directed to the actuator, and a tank port for return fluid. NPT fittings are a widely adopted standard in hydraulic systems due to their tapered thread design, which creates a mechanical seal when tightened, offering secure and leak-resistant connections. The 3/4-inch sizing ensures adequate flow capacity for the rated 20 GPM, minimizing pressure drops and optimizing system efficiency.
The Console Component: Manual and Intuitive Control
While the primary technical focus is on the valve, the product title highlights the inclusion of a console, which serves as the operator's interface for controlling the spreader system. As an included manual control type, this console is designed for simplicity and direct engagement. Typically, such a console for a single-flow system would house the detent knob for flow adjustment, providing a convenient and accessible control point within the vehicle cab. It would also incorporate the on/off lever or a corresponding switch that electrically or mechanically actuates the valve's control lever. The manual nature emphasizes straightforward operation, reducing the learning curve for new operators and ensuring reliability by minimizing reliance on complex electronic circuitry that can be susceptible to moisture, dust, and vibration.
The console's design prioritizes ergonomics and intuitive layout. Clear labeling for the flow adjustment positions (the 11 positive detent settings) enables operators to make precise adjustments without diverting excessive attention from the road or task. The "What's Included" specification confirms the integrated nature of the valve and console, providing a complete and ready-to-deploy solution for hydraulic spreader control.
Applications and Operational Advantages
This Single Flow Hydraulic Spreader Valve and Console is ideally suited for a diverse range of applications where reliable, single-channel hydraulic control is required. Its primary use case is in conjunction with granular material spreaders, such as salt and sand spreaders for winter maintenance, aggregate spreaders for road construction, or fertilizer/seed spreaders in agriculture. Specific scenarios include:
- Municipal Winter Operations: Controlling the auger feed of salt or sand spreaders on snowplow trucks, ensuring consistent de-icing agent application on roads, bridges, and parking lots.
- Commercial Landscaping: Managing the discharge rate of granular materials like topsoil, mulch, or gravel from spreader attachments.
- Agricultural Spreading: Regulating the flow of fertilizer, lime, or seed from bulk spreaders, where a single, controlled output is sufficient.
- Fixed Displacement Systems: Optimized for integration with hydraulic power units utilizing fixed displacement pumps, where consistent flow regulation is achieved downstream by the valve itself.
The system's robust construction and straightforward operation offer several key operational advantages:
- Unmatched Reliability: The durable aluminum body, proven hydraulic principles (pressure compensation, relief valve), and manual controls contribute to exceptional longevity and reduced downtime, even in demanding environments.
- Superior Material Consistency: Pressure compensation ensures that the flow rate, and consequently the material delivery, remains constant regardless of variations in hydraulic load or system pressure, leading to optimized material usage and consistent coverage.
- Precise Control: The 11-position detent knob allows operators to precisely fine-tune spreading rates, adapting quickly to different material types, road conditions, or application requirements. This precision minimizes waste and ensures effective material deployment.
- Ease of Installation and Maintenance: The compact design, standard NPT ports, and base mount type simplify integration into existing hydraulic circuits. The manual nature of the system typically results in fewer complex electrical connections, further easing installation and troubleshooting. Routine maintenance is minimal, primarily focusing on general hydraulic system best practices.
- Cost Efficiency: By ensuring accurate and consistent material application, operators can significantly reduce material waste, leading to substantial cost savings over time. The reliability of the unit also lowers maintenance and repair expenditures.
Installation and Integration Considerations
The "compact and easy to install" attribute is a significant benefit. For optimal performance and longevity, several technical considerations should be observed during installation:
- Mounting: The base mount type requires a stable, flat surface for secure attachment, minimizing vibration and stress on hydraulic lines. Consideration should be given to accessibility for operation (if the console is integral to the valve body) and maintenance.
- Hydraulic Line Routing: Proper routing of 3/4 NPT hydraulic hoses is critical. Lines should be adequately supported, free from sharp bends, and protected from abrasion or heat sources. The inlet port should be connected to the pressure line from the hydraulic pump, the auger/chain port to the hydraulic motor driving the spreader, and the tank port to the hydraulic reservoir's return line.
- Fluid Compatibility: Ensure that the hydraulic fluid used in the system is compatible with the valve's internal seals and materials. The cleanliness of the hydraulic fluid is paramount; contaminated fluid is a leading cause of hydraulic component failure. Implementing a robust filtration system is highly recommended.
- System Pressure and Flow Matching: Verify that the hydraulic pump's maximum pressure and flow rate are compatible with the valve's ratings (2000 PSI, 20 GPM). While the valve can handle these maximums, operating within recommended ranges for the entire system ensures efficiency and prevents premature wear. The 1500 PSI relief setting provides a safety margin below the valve's maximum pressure rating.
- Vibration Control: As with all vehicle-mounted components, isolating the valve from excessive vibration can extend its lifespan.
Conclusion
The Single Flow Hydraulic Spreader Valve and Console from Buyers Products stands as a testament to functional design and hydraulic engineering precision. Its robust aluminum construction, combined with essential features such as integrated system relief and highly effective pressure compensation, ensures consistent, reliable, and precise material delivery in demanding spreading applications. The intuitive manual control, featuring an 11-position detent knob, provides operators with the granular control necessary to optimize material usage and achieve superior results. Rated for 20 GPM flow and 2000 PSI pressure, and designed for straightforward installation with 3/4 NPT ports, this valve and console system offers a high-performance, durable, and cost-effective solution for single-channel hydraulic spreader control, ultimately enhancing operational efficiency and extending equipment lifespan for municipal, commercial, and agricultural professionals.
