HVC1030 - 3/4 Inch NPT Dual Flow Hydraulic Spreader Valve And Console 10-30 GPM

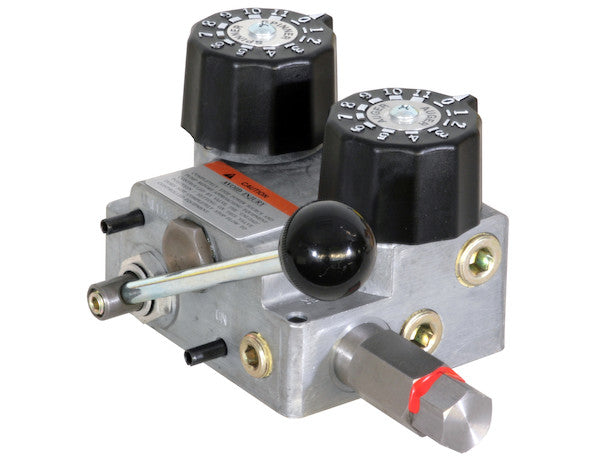

The Dual Flow Hydraulic Spreader Valve from Buyers Products is compact and easy to install, with a durable aluminum body. It features a built-in on/off control lever, system relief, and pressure compensation. Flow for each operation is easy to adjust, with two detent knobs that each feature 11 positive positions. Choose from a 7/15 GPM or a 10/30 GPM model to meet your needs.

Specifications

Advanced Hydraulic Control for Spreading Operations: The 3/4 Inch NPT Dual Flow Spreader Valve and Console (10-30 GPM)

In the realm of material spreading, whether for winter road maintenance, agricultural applications, or granular material distribution, precision and reliability are paramount. The 3/4 Inch NPT Dual Flow Hydraulic Spreader Valve and Console, specifically the 10-30 GPM model, represents a sophisticated solution engineered to provide unparalleled control over critical spreading mechanisms: the auger/chain conveyor and the spinner assembly. This system is designed for professional operators who demand robust performance, precise material delivery, and intuitive operation in demanding environments.

Fundamental Principles of Dual Flow Hydraulic Control

At its core, this product is a hydraulic control valve system designed to manage two independent hydraulic circuits from a single hydraulic power source. The "dual flow" designation signifies its capability to simultaneously and independently regulate the hydraulic fluid flow to two distinct actuators—typically, the auger or chain conveyor responsible for material delivery, and the spinner responsible for material dispersal. This independence is crucial for optimizing spreading patterns and material application rates, adapting to varying operational conditions such as vehicle speed, material type, and desired spread width.

The valve's architecture is centered around a fixed displacement design, meaning it delivers a consistent volume of fluid per cycle, assuming constant input from the hydraulic pump. However, its integrated pressure compensation mechanisms intelligently manage the output flow to ensure stability despite fluctuations in load or system pressure, a critical feature for maintaining uniform spreading.

Robust Construction and Integrated Design

The core of this spreader valve is housed within a durable aluminum body. The selection of aluminum is not merely arbitrary; it offers a superior combination of properties essential for demanding outdoor applications. Aluminum provides excellent corrosion resistance, crucial for exposure to road salts, chemicals, and harsh weather conditions commonly encountered in spreading operations. Furthermore, its high strength-to-weight ratio contributes to a compact and lighter assembly without compromising structural integrity. This durable construction ensures an extended operational lifespan and reduces the total cost of ownership through minimized maintenance and replacement cycles.

The unit's compact footprint facilitates ease of installation, allowing for flexible mounting options within the limited space often available on utility vehicles and dedicated spreader trucks. The "Base Mount Type" indicated in the specifications points to a design that allows for secure, stable attachment to a flat surface, providing a robust foundation for the valve's operation within the vehicle's hydraulic system.

Precision Flow Regulation and Control Interface

One of the standout features of this dual flow valve is its highly precise flow adjustment mechanism. Operators can independently control the flow rate for each function—the auger/chain and the spinner—using two dedicated detent knobs. Each knob offers 11 positive positions, providing granular control over the material delivery and dispersal rates. This level of discrete adjustment allows operators to fine-tune the spreader's performance to match specific application requirements, from light anti-icing treatment to heavy snow and ice removal or precise fertilizer application.

• **Auger/Chain Flow Rate Control**: With a maximum flow rate of 30 GPM (114 LPM), the auger/chain circuit ensures efficient and consistent material transport from the hopper to the spinner. The 11 positive positions enable precise calibration of the conveyor speed, directly influencing the volume of material fed per unit of time. This prevents under or over-application, leading to optimized material usage and reduced operational costs.
• **Spinner Flow Rate Control**: The spinner circuit features a maximum flow rate of 10 GPM (115 LPM), allowing for meticulous control over the spinner's rotational speed. The 11 positive positions facilitate accurate adjustment of the spread width and pattern, crucial for avoiding collateral damage to surrounding areas and ensuring uniform coverage across the target surface.

In addition to the flow adjustment knobs, the valve incorporates a built-in on/off control lever. This integrated manual control provides immediate and intuitive engagement or disengagement of the spreading operations, enhancing operator control and safety. The combination of tactile detent adjustments and a direct on/off lever results in an ergonomic and reliable user experience, vital for operators working in often challenging conditions.

Advanced Hydraulic System Protection and Stability

The integrity and longevity of any hydraulic system are heavily reliant on effective pressure management and flow stability. This Dual Flow Hydraulic Spreader Valve incorporates two critical features to address these requirements:

1. Pressure Compensation

Pressure compensation is a sophisticated hydraulic function that maintains a constant flow rate through an orifice or control valve, irrespective of variations in the load pressure (the resistance encountered by the hydraulic motor) or the pump pressure. In the context of a spreader, this means:

• **Consistent Material Delivery**: As the auger/chain motor encounters varying resistance (e.g., different material densities, partially clogged sections), a non-compensated system would experience fluctuating flow and thus inconsistent auger speed. With pressure compensation, the flow to the auger motor remains stable at the operator's chosen setting, ensuring a steady, predictable material output.
• **Uniform Spread Pattern**: Similarly, the spinner motor's speed can be affected by factors like material weight, wind resistance, or changes in system pressure. Pressure compensation ensures the spinner maintains a consistent RPM, leading to a uniform spread pattern and effective coverage without hot spots or bare areas.
• **Optimized System Efficiency**: By actively managing pressure differentials, the valve prevents unnecessary pressure drops or surges, which can lead to energy waste, heat generation, and premature wear on hydraulic components.

The mechanism typically involves an internal spool that reacts to pressure changes across the metering orifice. If the load pressure increases, the spool shifts to open the flow path further, maintaining the pre-set pressure differential and thus the desired flow rate. This automatic adjustment is critical for achieving high-precision spreading.

2. System Relief

The valve incorporates a robust system relief mechanism, specifically a "Main Relief Setting" of 1500 PSI (Relief Cartridge Setting of 1500 PSI). A relief valve is an essential safety device in any hydraulic circuit, designed to protect components from excessive pressure. When the pressure in the system exceeds a predetermined threshold (in this case, 1500 PSI), the relief valve automatically opens, diverting hydraulic fluid back to the reservoir. This prevents damage to the pump, motors, cylinders, and hoses that could occur from over-pressurization due to blockages, sudden load spikes, or incorrect operation.

With a maximum operating pressure of 2000 PSI (140 Bar), the 1500 PSI relief setting provides an adequate safety margin, ensuring that system components are not exposed to pressures beyond their safe operating limits under normal conditions, while still allowing for sufficient working pressure for demanding tasks. This proactive pressure management significantly extends the lifespan of the entire hydraulic system and enhances operational safety.

Seamless Integration with Spreading Equipment

The valve is designed for straightforward integration into existing or new hydraulic systems. The porting specifications are critical for proper hydraulic circuit design:

• **Inlet Port (3/4 NPT)**: This port connects to the pressure line from the hydraulic pump, delivering the primary flow of hydraulic fluid to the valve. The 3/4 NPT size is standard for accommodating the total system flow of up to 40 GPM (153 LPM).
• **Auger/Chain Port (3/4 NPT)**: This output port directs hydraulic fluid to the auger or chain drive motor. Its 3/4 NPT size is appropriately matched for the maximum 30 GPM flow rate required for powerful and consistent material conveyance.
• **Spinner Port (1/2 NPT)**: This output port supplies fluid to the spinner motor. The 1/2 NPT size is suitable for the 10 GPM maximum flow rate, ensuring precise control over the spinner's speed and spread pattern.
• **Tank Port (3/4 NPT)**: This return port directs hydraulic fluid back to the system's reservoir (tank) after passing through the valve and actuators. The 3/4 NPT size ensures unrestricted return flow, preventing back pressure accumulation and excessive heat generation within the hydraulic system.

The use of National Pipe Taper (NPT) threads is a widely accepted standard in North America, facilitating easy and reliable connection with common hydraulic fittings and hoses, simplifying installation and maintenance procedures.

Application Scope and Operational Benefits

This 3/4 Inch NPT Dual Flow Hydraulic Spreader Valve and Console (10-30 GPM) is an indispensable component for a wide array of professional spreading applications. Its primary functions are dedicated to managing spinner and auger mechanisms, making it ideal for:

• **Winter Road Maintenance**: For salters, sanders, and combination spreaders, accurate and consistent material application is crucial for public safety and cost-efficiency. The valve’s precise control over both auger speed (material delivery) and spinner speed (spread width) allows operators to adapt quickly to changing road conditions, pavement temperatures, and precipitation types, ensuring optimal ice and snow control.
• **Agricultural Spreading**: In agriculture, the uniform distribution of fertilizers, seeds, and granular pesticides is vital for crop yield and environmental stewardship. The ability to fine-tune application rates and spread patterns minimizes waste and maximizes efficacy.
• **Landscape and Grounds Maintenance**: For distributing aggregates, topsoil, or specialized treatments, controlled spreading ensures professional results and efficient resource utilization.

The "Manual" control type, as opposed to GPS-integrated or electronically automated systems, offers a direct and responsive interface preferred by many operators for its simplicity and immediate feedback. While lacking features such as GPS capability or pre-wet support, this valve excels in providing robust and reliable hydraulic control, offering a cost-effective solution for precision spreading without the added complexity and expense of advanced electronics.

Conclusion

The 3/4 Inch NPT Dual Flow Hydraulic Spreader Valve and Console (10-30 GPM) from Buyers Products is a testament to sophisticated hydraulic engineering tailored for the rigorous demands of material spreading. Its durable aluminum construction, compact design, and precise manual controls combine with critical hydraulic features like pressure compensation and system relief to deliver a superior operational experience. By providing independent, adjustable flow control for both auger/chain and spinner functions, alongside comprehensive system protection, this valve system empowers operators to achieve optimal spreading accuracy, efficiency, and safety. It represents an essential investment for professionals seeking a high-performance, reliable, and user-friendly solution for managing their hydraulic spreading equipment, ensuring consistent results across diverse applications.
