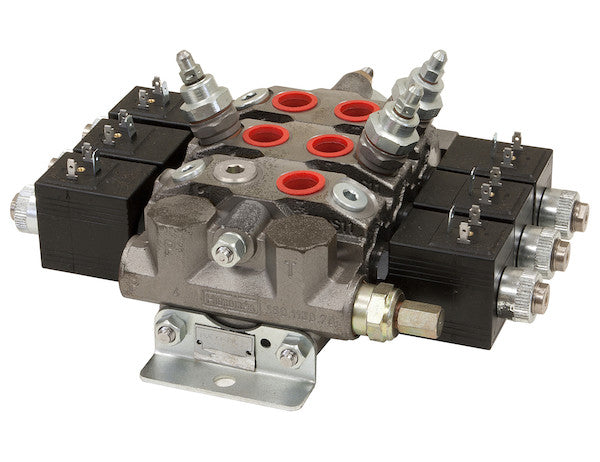

The compact Electric Sectional Valve from Buyers Products features a compact design. Its electrical controls allow you to mount a switch in the cab and control the valve remotely. It's great for smaller trucks and plow trucks. The 12V valve is rated to a max flow of 11 GPM. It features a simple on/off (non-proportional) flow. It can handle a maximum rating of 4300 PSI when the main relief is set at a higher pressure. The main relief is adjustable from 1300 to 3000 PSI (factory preset at 2150 PSI ). Two additional adjustable port reliefs -- angle and dump -- are available to provide protection for the specific job. The valve has cylinder spools, and features load hold check in the neutral position, precision-machined and ground spools, and easily replaceable spool end seals. Additional configurations are available. Please contact Customer Service for further information.
Specifications
| Amps per Coil | 2.500 |
|---|---|
| Coil Voltage | 12 |
| Electrically Operated (y/n) | Yes |
| Inlet Port Size | 1/2 SAE ORB (-8) |
| Main Relief Setting | 1300-3000 (Set at 2150) |
| Maximum Flow Rate | 11 |
| Maximum Pressure | 3600 |
| Number of spools | 2 |
| Out Port Size | #8 |
| Outlet Port Size | 1/2 SAE ORB (-8) |
| Port Relief Angle | 1900-4300 (Set at 2150) |
| Port Relief Dump | 400-1900 (Set at 600) |
| Port reliefs ( Y/N) | No |
| Port Type | SAE |
| Power Beyond (y/n) | No |
| Relief (Y/N) | Yes |
| Spool Action 1 | Power Up/Gravity Down |
| Spool Action 2 | Power Up/Power Down |
| Work Port Size | 1/2 SAE ORB (-8) |
Advanced Hydraulic Control: The Electric Sectional Valve for Precision Mobile Applications
In the dynamic realm of mobile hydraulic systems, the demand for compact, efficient, and robust control solutions is ever-increasing. The Electric Sectional Valve with 3-Way/4-Way Motor Spool functionality represents a pinnacle of engineering designed to meet these rigorous requirements, particularly for applications such involving smaller trucks, utility vehicles, and specialized equipment such as snowplows and salt spreaders. This highly engineered valve system integrates electrical control with advanced hydraulic mechanics, providing operators with unparalleled convenience, safety, and operational precision from the comfort of their cab.
Engineering Excellence: The Sectional Valve Architecture
At the core of this innovative product lies its sectional valve architecture, a design philosophy that offers significant advantages over traditional monoblock valves. Unlike monoblock designs, where all valve functions are cast into a single body, sectional valves consist of individual work sections, an inlet section, and an outlet section, bolted together to form a cohesive unit. This modularity is a critical feature, allowing for unprecedented customization and scalability. For systems requiring multiple functions, such as simultaneously controlling a snowplow's lift, angle, and a salt spreader's motor, individual sections can be specifically configured (e.g., for 3-way or 4-way operation) and assembled to precisely match the application's hydraulic circuit demands. This not only optimizes performance but also simplifies inventory management and facilitates future upgrades or modifications, as individual sections can be replaced or added without discarding the entire valve assembly. The compact nature of this specific sectional valve is further enhanced by intelligent design, ensuring it integrates seamlessly into space-constrained mobile equipment while delivering high-performance hydraulic control.
Precision Control: 3-Way and 4-Way Spool Functionality
The Electric Sectional Valve is equipped with sophisticated spool configurations to handle diverse hydraulic actuation needs. With two spools, the valve offers versatile control for multiple functions. One spool typically features "Power Up/Gravity Down" action, characteristic of a 3-way spool, ideal for single-acting cylinders commonly found in dump applications where hydraulic pressure lifts the load, and gravity assists in lowering it. The other spool offers "Power Up/Power Down" action, indicative of a 4-way spool, which is essential for double-acting cylinders or, crucially, for controlling hydraulic motors. The title "Motor Spool" highlights this critical capability, allowing for bi-directional flow control to a hydraulic motor. This enables precise forward and reverse operation of components such as augers on salt spreaders, conveyor belts, or other rotational actuators, which is indispensable for applications requiring variable material distribution or precise mechanical movement. While featuring a simple on/off (non-proportional) flow, the clear activation and deactivation states of these spools ensure reliable and repeatable operation, making it suitable for tasks where exact speed modulation is less critical than robust, dependable power delivery.
Electrical Integration for Enhanced Operability
Modern mobile equipment relies heavily on integrated electrical systems for operator convenience and safety. This Electric Sectional Valve fully embraces this trend with its 12V DC coil voltage and remote electrical control capabilities. The ability to mount a switch directly in the vehicle's cab eliminates the need for cumbersome manual levers or complex hydraulic lines extending into the operator compartment. This significantly enhances ergonomic comfort, reduces operator fatigue, and improves overall safety by allowing the operator to maintain focus on the task at hand. The low current draw of 2.5 Amps per coil ensures minimal impact on the vehicle's electrical system, preserving battery life and reducing the strain on the alternator. The solenoid-actuated design guarantees rapid and reliable response, translating electrical signals into precise hydraulic actions. This direct electrical control is particularly advantageous in harsh environments, such as those encountered by plow trucks, where external elements could impede mechanical linkages.
Optimized Hydraulic Performance Parameters
Understanding the hydraulic performance specifications is paramount for successful system integration. This valve is engineered to deliver robust performance within its intended operational envelope.
Flow Rate Management
Rated to a maximum flow of 11 GPM (Gallons Per Minute), this valve is optimally suited for applications that do not demand extremely high flow rates but still require substantial power. This flow rate is ample for effectively operating cylinders on small dump beds, angling snowplows, or driving the hydraulic motors on utility spreaders. Efficient flow management ensures that hydraulic components receive the necessary fluid volume for responsive operation, preventing sluggishness in actuation while conserving energy within the hydraulic power unit.
Pressure Handling Capabilities
The valve is designed to operate safely and effectively up to a maximum system pressure of 3600 PSI. This high-pressure rating underscores its robust construction and ability to withstand demanding operational loads. Furthermore, it is capable of handling transient peak pressures up to 4300 PSI, particularly during dynamic load changes or when the main relief is set at its higher limits, providing an essential safety margin and prolonging the life of the hydraulic components. This capacity ensures that even under severe working conditions, the valve maintains structural integrity and continues to perform reliably.
Comprehensive Pressure Relief Systems
Integrated pressure relief mechanisms are critical for safeguarding both the hydraulic system and the actuated equipment. This valve incorporates a multi-tiered approach to pressure protection:
- Main Relief Valve: Adjustable from 1300 to 3000 PSI (factory preset at 2150 PSI), the main relief valve is the primary guardian of the entire hydraulic circuit. Its function is to prevent system overpressure by diverting excess fluid back to the reservoir once a pre-set threshold is exceeded. This protects the pump from cavitation, prevents damage to hoses and cylinders, and ensures that the system operates within safe limits, thereby extending the lifespan of all hydraulic components. The adjustable nature allows for fine-tuning to specific system requirements and load profiles.
-
Adjustable Port Reliefs: Beyond the main relief, two additional, adjustable port reliefs are included to provide localized protection for specific actuators. These are designated as "Angle" and "Dump" reliefs, directly correlating to common plow truck functions.
- Angle Port Relief: With an adjustable range of 1900-4300 PSI (factory preset at 2150 PSI), this relief protects the hydraulic cylinder or motor responsible for angling a plow blade or similar attachment. In scenarios where the blade encounters an immovable object or extreme side load, this relief prevents damage to the cylinder, hoses, and the plow structure itself by momentarily bypassing hydraulic fluid.
- Dump Port Relief: Set between 400-1900 PSI (factory preset at 600 PSI), this relief is typically associated with the lift function of a dump body or plow. Its lower setting is designed to protect components from impact loads during the lowering phase or to prevent overpressure in the event of an obstruction. This specific tuning ensures optimal protection without compromising operational speed for gravity-down applications.
The inclusion and adjustability of these port reliefs underscore a design philosophy focused on application-specific safety and component longevity.
Advanced Spool Design and Durability
The performance and longevity of a hydraulic valve are intrinsically linked to the quality and design of its spools. The Electric Sectional Valve features several attributes that contribute to its exceptional reliability and operational smoothness:
- Cylinder Spools: Configured for cylinder actuation, these spools are optimized for the precise control of hydraulic cylinders, facilitating tasks such as lifting, lowering, extending, and retracting. The "Power Up/Gravity Down" and "Power Up/Power Down" spool actions clearly delineate their capability to manage both single-acting (e.g., dump, lift) and double-acting (e.g., angling, clamp) cylinders, as well as the 4-way control for hydraulic motors.
- Load Hold Check in Neutral Position: A critical safety and performance feature, the load hold check valve integrated into the neutral position prevents unintended movement or drift of the actuator when the spool is centered. This ensures that a raised dump bed remains raised or an angled plow stays in position, even under load or when the hydraulic pump is disengaged. This eliminates creep, enhancing safety and operational stability.
- Precision-Machined and Ground Spools: The manufacturing process employs precision machining and grinding techniques for the valve spools. This meticulous attention to detail results in exceptionally tight tolerances, smooth surfaces, and precise fit within the valve body bores. The benefits are manifold: significantly reduced internal leakage, smooth and consistent spool operation requiring minimal force, and an extended service life due to reduced wear and friction. This engineering precision directly translates into higher efficiency and reliable performance over the valve's operational lifespan.
- Easily Replaceable Spool End Seals: Recognizing that seals are wear items in any hydraulic system, the design incorporates easily replaceable spool end seals. This thoughtful design choice simplifies maintenance procedures, allowing for quick and cost-effective replacement of seals without requiring extensive disassembly of the entire valve. This feature minimizes downtime, reduces maintenance costs, and significantly extends the overall service life of the valve, contributing to a lower total cost of ownership.
Seamless System Integration and Connectivity
Ease of integration into existing or new hydraulic systems is crucial. The Electric Sectional Valve utilizes standardized SAE ORB (O-Ring Boss) porting for all its connections—Inlet, Outlet, and Work Ports—all sized at 1/2 SAE ORB (-8). This choice of port type offers several distinct advantages:
- Superior Leak Prevention: SAE ORB fittings incorporate an O-ring seal, providing a robust, leak-free connection that performs exceptionally well under high pressure and vibration, common in mobile applications.
- High Pressure Capability: These fittings are designed to withstand high hydraulic pressures, aligning perfectly with the valve's maximum pressure ratings.
- Ease of Assembly and Disassembly: SAE ORB connections are straightforward to install and remove, simplifying initial setup and subsequent maintenance.
- Standardization: The use of an industry-standard port type ensures broad compatibility with a wide range of hydraulic hoses and fittings, streamlining procurement and reducing complexity during system assembly.
The specification noting "Power Beyond (No)" indicates that this valve is typically designed for systems where a dedicated return line is sufficient, or it is part of a series circuit where subsequent valves are fed from the tank line, rather than relying on a continuous pressure signal for downstream components. This simplifies the valve's internal plumbing and can be advantageous for specific circuit designs.
Versatility Across Demanding Applications
The Electric Sectional Valve with 3-Way/4-Way Motor Spool is engineered for a broad spectrum of demanding mobile applications where reliable hydraulic control is essential. Its compact size makes it an ideal fit for:
- Plow Trucks: Essential for controlling the lift and angle of snowplows. The "Angle" port relief specifically protects the angling cylinder, while the "Dump" relief can manage the plow's lift function, or a separate dump body lift, showcasing its dual-purpose utility.
- Salt and Sand Spreaders: The 4-way "Motor Spool" functionality is critical for driving hydraulic motors that power augers or spinner discs, ensuring precise and adjustable material distribution.
- Small Dump Trucks and Utility Vehicles: Efficiently manages the hydraulic cylinders for dump beds, lifts, or other attachments, providing robust power up and gravity down or power up/power down control.
- Agricultural Equipment: Ideal for controlling various implements such as small cultivators, loaders, or specialty tools requiring bi-directional hydraulic motor control or cylinder actuation.
- Light Construction Machinery: Can be integrated into mini excavators, skid steers, or other compact equipment for auxiliary functions requiring reliable on/off hydraulic power.
Its non-proportional flow characteristic ensures simplicity and reliability for applications where precise speed modulation is not the primary requirement, but dependable and robust hydraulic action is paramount.
Operational Advantages and Long-Term Value
Investing in the Electric Sectional Valve from Buyers Products offers a multitude of operational advantages and significant long-term value. Its compact design facilitates installation in tight spaces, a common constraint in modern mobile equipment. The remote electrical control system significantly enhances operator safety and comfort, leading to increased productivity and reduced fatigue. Robust pressure relief mechanisms, including both main and port reliefs, provide comprehensive protection against system overloads, safeguarding expensive hydraulic components and extending equipment life. The precision-machined spools with load hold checks ensure reliable, drift-free operation. Furthermore, the easily replaceable spool end seals underscore a commitment to maintainability, allowing for cost-effective servicing and minimizing equipment downtime. This combination of advanced features, durable construction, and intelligent design contributes to a low total cost of ownership and ensures sustained, high-performance operation in the most demanding environments.
Customization and Support
Recognizing the diverse requirements of various hydraulic applications, additional configurations of this Electric Sectional Valve are available. Buyers Products is committed to providing solutions that precisely match your operational needs. For specific inquiries regarding alternative spool arrangements, flow capacities, pressure settings, or any other customization options, we encourage you to contact our expert Customer Service team. Our specialists are prepared to provide detailed technical information, assist with system design, and ensure that you select the optimal hydraulic valve configuration for your unique application, guaranteeing peak performance and maximum efficiency.
