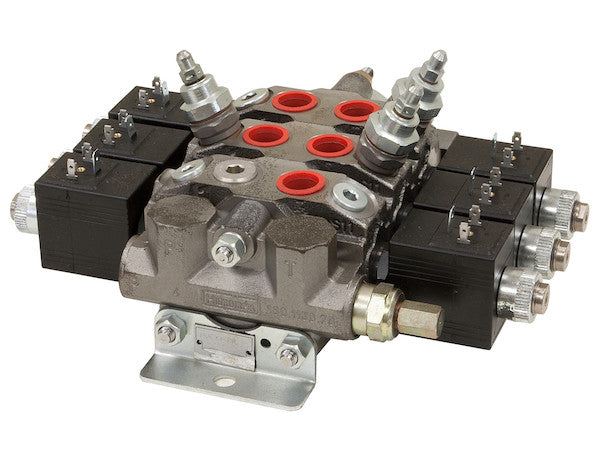

The compact Electric Sectional Valve from Buyers Products features a compact design. Its electrical controls allow you to mount a switch in the cab and control the valve remotely. It's great for smaller trucks and plow trucks. The 12V valve is rated to a max flow of 11 GPM. It features a simple on/off (non-proportional) flow. It can handle a maximum rating of 4300 PSI when the main relief is set at a higher pressure. The main relief is adjustable from 1300 to 3000 PSI (factory preset at 2150 PSI ). Two additional adjustable port reliefs -- angle and dump -- are available to provide protection for the specific job. The valve has cylinder spools, and features load hold check in the neutral position, precision-machined and ground spools, and easily replaceable spool end seals. Additional configurations are available. Please contact Customer Service for further information.
Specifications
| Amps per Coil | 2.500 |
|---|---|
| Coil Voltage | 12 |
| Electrically Operated (y/n) | Yes |
| Inlet Port Size | 1/2 SAE ORB (-8) |
| Main Relief Setting | 1300-3000 (Set at 2150) |
| Maximum Flow Rate | 11 |
| Maximum Pressure | 3600 |
| Number of spools | 1 |
| Out Port Size | #8 |
| Outlet Port Size | 1/2 SAE ORB (-8) |
| Port Relief Angle | 1900-4300 (Set at 2150) |
| Port Relief Dump | 400-1900 (Set at 600) |
| Port reliefs ( Y/N) | Yes |
| Port Type | SAE |
| Power Beyond (y/n) | Yes |
| Relief (Y/N) | Yes |
| Spool Action 1 | Power Up/Gravity Down |
| Work Port Size | 1/2 SAE ORB (-8) |
Precision Hydraulic Control: An In-Depth Examination of the Electric Sectional Valve 3-Way/PB
The Electric Sectional Valve 3-Way/PB represents a sophisticated advancement in mobile hydraulic control systems, specifically engineered to deliver precise, reliable, and remotely operable hydraulic functionality for demanding vocational applications. This comprehensive technical overview delves into the intricate design, operational principles, and multifaceted benefits of this essential component, illuminating its critical role in enhancing efficiency and safety across various industries.
Foundational Principles of Electrical Hydraulic Control
At its core, this Electric Sectional Valve distinguishes itself through its electrically actuated control mechanism. Unlike traditional manual or pilot-operated valves, electrical control allows for the remote positioning of the valve spool, offering significant advantages in terms of installation flexibility, operator ergonomics, and system integration. The 12V electrical system compatibility ensures seamless integration with standard vehicle power supplies, while the low current draw per coil (2.500 Amps) minimizes demands on the electrical system, safeguarding battery life and electrical component longevity. The ability to mount a control switch within the cab translates to enhanced operator comfort and safety, eliminating the need for bulky hydraulic lines or mechanical linkages to the operator station. This remote capability is particularly invaluable in environments where direct access to the valve is impractical or hazardous, such as in the confined spaces of modern work trucks or during adverse weather conditions encountered by plow trucks.
Unpacking the "3-Way" and "Power Beyond" Configuration
The designation "3-Way" in the valve's title specifically refers to its operational capacity to direct hydraulic fluid to one of three possible states or conditions for a single hydraulic function. In the context of the listed "Power Up/Gravity Down" spool action, this typically implies control over a single-acting hydraulic cylinder. The three states commonly involve:
- Power Up (Extend): Directing pressurized fluid to the cylinder's rod end (or base end, depending on application) to extend it with hydraulic force.
- Neutral/Hold: Blocking flow to the cylinder, effectively holding it in a fixed position. The integrated load hold check valve ensures that the load remains securely positioned, even when the valve is in this neutral state or if the hydraulic pump ceases operation, significantly contributing to operational safety and stability.
- Gravity Down (Retract/Dump): Releasing fluid from the cylinder, allowing the load or implement to retract under its own weight or external force, with the valve controlling the rate of fluid return to the tank.
The "Power Beyond" (PB) feature is a critical differentiator for this sectional valve, offering expanded system capabilities. A Power Beyond valve is equipped with a dedicated outlet port that allows pressurized, unused flow from the primary circuit to be routed to another valve or hydraulic circuit downstream. This means that a single hydraulic pump can supply multiple hydraulic functions sequentially without requiring additional power take-offs (PTOs) or complex manifold systems. For instance, in a snow plow application, the main flow can first power the plow lift, and any remaining, unutilized flow can then be "powered beyond" to a secondary valve controlling an auxiliary function like a salt spreader or wing plow. This design optimizes system efficiency, reduces component count, and simplifies hydraulic plumbing, leading to more cost-effective and streamlined hydraulic systems, particularly beneficial in space-constrained vehicle installations.
Optimized Hydraulic Performance: Flow, Pressure, and Relief Systems
This Electric Sectional Valve is engineered for robust performance within demanding mobile hydraulic environments. With a maximum flow rate of 11 GPM (Gallons Per Minute), it is precisely scaled to meet the hydraulic demands of smaller trucks and plow trucks, ensuring responsive and efficient operation of hydraulic actuators such as cylinders and motors. This flow rate dictates the speed at which hydraulic cylinders can extend or retract, or motors can rotate, providing adequate power for typical snow and ice management tasks, small dump operations, or auxiliary equipment deployment.
The valve's pressure handling capabilities are equally impressive. While the general maximum system pressure is rated at 3600 PSI, the valve is designed to withstand a peak pressure of up to 4300 PSI, especially when considering the settings of the adjustable port relief valves. This distinction is vital: 3600 PSI indicates the maximum continuous operating pressure for the entire system, whereas the higher 4300 PSI capacity pertains to the momentary pressure spikes that the valve's internal components, particularly the port reliefs, can safely manage without structural compromise. This robust pressure rating ensures durability and safety even under extreme load conditions.
The valve operates with a simple on/off (non-proportional) flow characteristic. This means that when activated, the valve spool shifts fully to its designated position, delivering maximum available flow to the actuator until deactivated. This non-proportional control is ideal for applications where precise, gradual speed modulation is not critical, and full-speed operation is desired for tasks such like lifting a plow or extending a dump bed. This design simplifies control logic and reduces complexity, contributing to the valve's overall reliability and cost-effectiveness.
Integrated Pressure Relief Mechanisms for System Protection
A cornerstone of any reliable hydraulic system is comprehensive pressure protection, and this valve excels in this regard through its multi-tiered relief valve architecture:
- Main Relief Valve: This integral component serves as the primary system-wide pressure limiter, protecting the pump, hoses, and other hydraulic components from excessive pressure. Adjustable from 1300 PSI to 3000 PSI, with a factory preset of 2150 PSI, the main relief valve ensures that the overall system pressure does not exceed a safe operational threshold. If the system pressure rises above this set point, the main relief valve opens, diverting excess fluid back to the reservoir, thereby preventing damage to the hydraulic circuit. The adjustability allows for fine-tuning to match the specific requirements and safety margins of different applications.
-
Port Relief Valves (Angle and Dump): Beyond the main relief, two specialized, adjustable port relief valves – one for "Angle" and one for "Dump" – provide localized overpressure protection for the specific actuators connected to those work ports.
- Port Relief Angle: With an adjustable range of 1900-4300 PSI (factory preset at 2150 PSI), this relief valve is crucial for applications like snow plow angling mechanisms. It protects the angle cylinders from shock loads and impact forces that can occur when the plow blade strikes an obstacle or encounters uneven terrain. By allowing fluid to bypass the cylinder under extreme pressure, it prevents structural damage to the plow, cylinder, and mounting hardware.
- Port Relief Dump: Adjustable from 400-1900 PSI (factory preset at 600 PSI), this relief valve is typically dedicated to protecting the cylinder responsible for dumping or lowering a load. Its lower pressure range is often optimized for gravity-down applications, ensuring that sudden impacts during lowering or external forces applied to a dump bed do not create dangerous pressure spikes within the cylinder, protecting both the actuator and the vehicle chassis.
Precision Engineering and Inherent Durability
The longevity and consistent performance of a hydraulic valve are directly proportional to the quality of its internal components and manufacturing processes. This Electric Sectional Valve features:
- Cylinder Spools: Designed for controlling the flow to hydraulic cylinders, these spools are optimized for precise and reliable actuation. Their specific geometry facilitates efficient flow direction and minimal internal leakage, contributing to system efficiency and responsive control.
- Load Hold Check in Neutral Position: This vital safety feature is integrated into the valve's design. When the valve is in the neutral position, the load hold check valve prevents fluid from bypassing, effectively locking the hydraulic cylinder in place. This ensures that suspended loads, such as a raised plow or a tilted dump bed, remain securely elevated even when the pump is off, eliminating drift and enhancing operational safety.
- Precision-Machined and Ground Spools: The manufacturing of the valve spools involves precision machining followed by a grinding process. This results in extremely tight tolerances and exceptionally smooth surface finishes. Such precision minimizes internal leakage (thus improving efficiency), reduces wear and friction (extending component life), and ensures smooth, consistent spool movement for reliable operation over thousands of cycles.
- Easily Replaceable Spool End Seals: Recognizing the operational demands and potential for wear in hydraulic systems, the design incorporates easily replaceable spool end seals. This thoughtful design feature simplifies maintenance and significantly extends the service life of the valve. Instead of replacing an entire valve body due to worn seals, technicians can perform targeted, cost-effective repairs, reducing downtime and operational expenses.
- SAE ORB Port Type: All hydraulic connections utilize SAE O-Ring Boss (ORB) ports with 1/2 SAE ORB (-8) sizing for inlet, outlet, and work ports. SAE ORB connections are renowned in the hydraulic industry for providing superior leak resistance compared to pipe thread connections. The O-ring creates a positive, metal-to-metal seal that is highly effective at preventing fluid loss, even under high pressures and vibrational stress, contributing to a cleaner, safer, and more reliable hydraulic system.
Targeted Applications and Operational Advantages
The compact design and robust feature set of this Electric Sectional Valve make it an ideal choice for a specific segment of the mobile equipment market:
- Smaller Trucks: Its compact footprint allows for easy integration into vehicles with limited space, a common challenge in modern utility and work trucks.
- Plow Trucks / Snow and Ice Management: This is a primary application. The remote electrical control, specialized port reliefs (angle and dump), and load hold feature are perfectly aligned with the operational needs of snow plows, salt spreaders, and other winter maintenance equipment. It provides reliable control for lifting, lowering, and angling plows, crucial for efficient snow removal.
- Light-Duty Dump Trucks: The "Power Up/Gravity Down" spool action and the dump port relief make it highly suitable for controlling the single-acting cylinders found on dump bodies, ensuring safe and controlled tipping and lowering of materials.
- Utility and Service Vehicles: For controlling auxiliary functions such as outriggers, small cranes, or other implements requiring reliable on/off hydraulic power.
- Landscaping Equipment: Control of tilt functions on trailers, small loaders, or other hydraulic attachments.
The cumulative operational advantages are significant: enhanced operator comfort and safety through remote control, reduced installation complexity due to electrical actuation and Power Beyond capabilities, superior equipment protection through comprehensive relief valve settings, and extended service life attributed to precision manufacturing and maintainable components.
System Integration, Installation, and Maintenance
Integrating this Electric Sectional Valve into an existing or new hydraulic system is streamlined by its standardized electrical and hydraulic interfaces. The 12V coil voltage and low amperage draw ensure compatibility with most vehicle electrical systems without requiring specialized power converters or heavy-duty wiring. Installation typically involves securing the compact valve block in an accessible yet protected location, connecting the hydraulic lines to the SAE ORB ports, and wiring the coil to the remote switch and vehicle's power supply. The Power Beyond port simplifies plumbing for multi-function systems, significantly reducing the complexity often associated with hydraulic circuit design.
From a maintenance perspective, the valve is designed for longevity and ease of service. The robust construction and precision-machined components contribute to a long operational lifespan. The provision for easily replaceable spool end seals is a testament to its serviceability, allowing for expedient and cost-effective repairs without requiring complete valve replacement. Regular inspection of hydraulic lines, electrical connections, and relief valve settings (which should only be adjusted by qualified personnel) will ensure continuous optimal performance and safety.
Conclusion and Customization Potential
The Electric Sectional Valve 3-Way/PB is an exemplary product of advanced hydraulic engineering, designed to meet the rigorous demands of modern mobile equipment. Its blend of compact design, electrically remote control, Power Beyond functionality, multi-tiered pressure protection, and robust construction delivers an unparalleled combination of performance, safety, and reliability. This valve is not merely a component; it is a strategic investment in the operational efficiency and longevity of vocational vehicles and equipment. Its suitability for critical applications like snow plowing and dump operations underscores its durability and precise control capabilities.
While this particular configuration addresses a broad spectrum of needs, Buyers Products acknowledges the diverse requirements across industries. Therefore, additional configurations of this high-performance sectional valve are available. For specific application requirements, custom pressure settings, or alternative spool functions, customers are encouraged to contact Customer Service. Our technical experts are equipped to provide detailed information and assist in tailoring a hydraulic solution that perfectly aligns with your unique operational challenges and performance objectives, ensuring that every piece of equipment operates at its peak potential.
