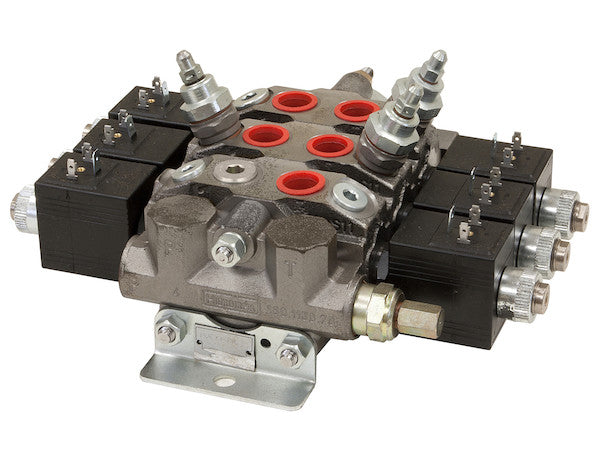

HVE4 - Electric Sectional Valve 4-Way

The compact Electric Sectional Valve from Buyers Products features a compact design. Its electrical controls allow you to mount a switch in the cab and control the valve remotely. It's great for smaller trucks and plow trucks. The 12V valve is rated to a max flow of 11 GPM. It features a simple on/off (non-proportional) flow. It can handle a maximum rating of 4300 PSI when the main relief is set at a higher pressure. The main relief is adjustable from 1300 to 3000 PSI (factory preset at 2150 PSI ). Two additional adjustable port reliefs -- angle and dump -- are available to provide protection for the specific job. The valve has cylinder spools, and features load hold check in the neutral position, precision-machined and ground spools, and easily replaceable spool end seals. Additional configurations are available. Please contact Customer Service for further information.

Specifications

The Electric Sectional Valve 4-Way represents a critical component in modern mobile hydraulic systems, engineered for precise, reliable, and compact control of hydraulic actuators. Designed by Buyers Products, this valve integrates advanced electrical control with robust hydraulic performance, making it an indispensable solution for a variety of demanding applications, particularly within the utility, municipal, and commercial vehicle sectors, such as smaller trucks and plow trucks. This comprehensive description delves into the technical specifications, operational advantages, and application suitability of this innovative hydraulic control valve.

Advanced Hydraulic Control: Understanding the 4-Way Electric Sectional Valve

At its core, this product is an Electric Sectional Valve. The term "4-Way" refers to the valve's ability to direct fluid flow through four distinct paths: a pressure inlet (P), a tank outlet (T), and two work ports (A and B). This configuration is fundamental for controlling double-acting hydraulic cylinders, which require fluid to extend and retract, or for operating bi-directional hydraulic motors, which demand flow in two directions. The valve effectively changes the direction of fluid flow to and from the actuator, facilitating controlled movement and positioning of equipment.

The "Sectional Valve" designation is significant. While this particular model is specified with one spool, indicating a single work section, the underlying sectional design philosophy implies modularity. Unlike monoblock valves, which are cast as a single unit, sectional valves are composed of individual sections bolted together. This modularity offers several engineering advantages:

• Configurability: While this unit is presented as a single-spool solution, the sectional design principle means that, in other product offerings or future expansions, multiple work sections could be assembled to meet diverse application requirements without needing an entirely new valve body.
• Serviceability: Individual sections can often be serviced or replaced independently, simplifying maintenance and potentially reducing downtime and cost.
• Customization: The ability to select and combine different types of work sections (e.g., different spool functions, flow ratings, or integrated features) provides a highly adaptable platform for hydraulic system designers.

For this specific 1-spool Electric Sectional Valve, its compact design leverages the robust construction principles of sectional valves while offering a focused solution for simpler, single-actuator control scenarios. It ensures durability and performance characteristic of sectional designs, optimized for space-constrained environments.

Precision Electrification and Remote Command

A defining feature of this valve is its electrical operation. Integrating a 12V DC electrical control system, it allows for a switch to be mounted remotely in the vehicle's cab, offering significant operational benefits:

• Enhanced Operator Ergonomics and Safety: Remote control eliminates the need for direct manual actuation at the valve, allowing operators to remain in a safe, climate-controlled environment while operating hydraulic functions. This is particularly critical in harsh weather conditions, such as those encountered during snow plowing operations.
• Simplified System Integration: Electrical signals are easily integrated with existing vehicle control systems, wiring harnesses, and digital interfaces, simplifying installation and reducing hydraulic line routing complexity within the cab.
• Reduced Noise and Vibration: By separating the control interface from the hydraulic power unit, cab noise and vibration levels associated with hydraulic operation are significantly mitigated, contributing to a more comfortable operator experience.
• Precise, Repeatable Control: While this valve operates with a simple on/off (non-proportional) flow, the electrical signal ensures consistent and immediate response, crucial for reliable task execution. Each coil consumes 2.500 Amps, indicating efficient power utilization compatible with standard 12V vehicle electrical systems.

The non-proportional flow characteristic means the valve is either fully open or fully closed, providing straightforward actuation for applications where precise speed control is not the primary requirement, but rather reliable, immediate movement. This is ideal for functions like raising/lowering a snowplow, angling it left or right, or initiating a dump bed cycle, where the operator simply needs the function to engage or disengage completely.

Optimized Hydraulic Performance: Flow, Pressure, and Protection

The performance parameters of this Electric Sectional Valve are carefully calibrated for its intended applications, balancing power with efficiency and protection.

Flow Rate

With a maximum flow rate of 11 GPM (gallons per minute), this valve is well-suited for light to medium-duty hydraulic systems. This flow rate dictates the speed at which hydraulic cylinders extend or retract, or the RPM of a hydraulic motor. For typical applications like snow plows, tailgate lifts, or small dump bodies on utility vehicles, 11 GPM provides sufficient speed for efficient operation without requiring an excessively large or power-hungry hydraulic pump. This matches well with the hydraulic power output typically available from auxiliary power take-offs (PTOs) or electric-over-hydraulic power units common on smaller trucks.

Pressure Ratings and Relief Mechanisms

The valve is designed to withstand and manage significant hydraulic pressures, which directly correlate to the force generation capabilities of connected actuators.

• Maximum Operating Pressure: The valve's maximum operating pressure is specified at 3600 PSI. This is the continuous pressure rating under which the valve is designed to operate reliably and safely.
• Peak/Surge Pressure Capability: It can handle a maximum rating of 4300 PSI when the main relief is set at a higher pressure. This 4300 PSI figure represents a peak or surge pressure capability, indicating the valve's structural integrity can momentarily withstand higher pressures, providing a safety margin for transient pressure spikes in the system. It is important for system designers to distinguish between continuous operating pressure and momentary peak pressure capabilities when selecting components.

Critical to managing these pressures and protecting the hydraulic system are the integrated relief valves:

Main Relief Valve: This valve features a main relief valve, adjustable from 1300 to 3000 PSI, with a factory preset of 2150 PSI. The main relief valve is a fundamental safety device in any hydraulic circuit. Its primary function is to limit the maximum pressure in the entire system, preventing damage to the pump, reservoir, lines, and other components by diverting excess fluid back to the tank once the set pressure is reached. The adjustability allows system integrators to fine-tune the overall system pressure to match the specific requirements of the application and the capabilities of the hydraulic pump and actuators, ensuring both adequate power and component longevity. The factory preset of 2150 PSI is a common setting for many mobile hydraulic applications, providing a balance of power and safety.

Adjustable Port Reliefs (Angle and Dump): Beyond the main relief, this valve incorporates two additional adjustable port reliefs – specifically for "angle" and "dump" functions. These port reliefs provide localized overpressure protection for individual work ports, addressing specific load conditions that might arise at the actuator.

• Port Relief Angle (1900-4300 PSI, Set at 2150 PSI): This relief valve is crucial for applications like snowplows, where the plow blade's angle can encounter significant shock loads (e.g., hitting an immovable object). By setting a specific relief pressure for the "angle" function, the system can protect the angling cylinders and the valve itself from excessive pressure spikes, allowing fluid to bypass when the load becomes too high, thus preventing mechanical damage.
• Port Relief Dump (400-1900 PSI, Set at 600 PSI): The "dump" port relief is designed for applications involving dump bodies or similar lifting mechanisms. It protects the cylinder responsible for the dump function from overloads, particularly during the lowering phase or if the load shifts unexpectedly. The lower pressure range (400-1900 PSI) for this relief, compared to the angle relief, suggests it might be specifically tuned for applications where a lighter or more sensitive pressure limit is required for safe operation, or to manage dynamic forces during descent.

The presence and adjustability of these specific port reliefs significantly enhance the versatility and safety of the valve, allowing for tailored protection strategies for complex multi-function implements. While the general "Port reliefs (Y/N)" in the specifications table might indicate 'No' for standard, integrated, non-adjustable reliefs, the explicit mention and detailed settings for "Port Relief Angle" and "Port Relief Dump" confirm that these essential adjustable relief functions are indeed available and configured on this specific model, offering critical protection.

Robust Design and Construction for Longevity

The engineering and material selection for this Electric Sectional Valve underscore its commitment to durability and long-term performance in challenging operational environments.

• Cylinder Spools: The valve features "cylinder spools," which are typically designed to provide efficient and reliable control of double-acting hydraulic cylinders. These spools often have specific metering lands and flow paths optimized for smooth acceleration and deceleration of cylinders, ensuring controlled movement.
• Load Hold Check in Neutral Position: A critical safety and performance feature, the load hold check valve in the neutral position prevents the connected actuator (e.g., a cylinder lifting a plow) from drifting or settling under gravity when the valve is centered. This ensures that a raised load remains safely in position, conserving energy and preventing unintended movement.
• Precision-Machined and Ground Spools: The manufacturing process involves precision machining and grinding of the spools. This meticulous attention to detail results in extremely tight tolerances between the spool and the valve body bore. The benefits are numerous:
  • Reduced Internal Leakage: Minimizing the gap between the spool and bore reduces internal leakage (slip flow), which translates to higher hydraulic efficiency, less heat generation, and better load-holding capability.
  • Smooth Operation: Precision finishes ensure smooth, low-friction movement of the spool, leading to consistent valve response and reduced wear.
  • Extended Lifespan: High-quality surface finishes and material hardness (often hardened steel) significantly extend the operational life of the spool and valve body, even under high pressures and continuous cycling.
• Easily Replaceable Spool End Seals: This feature speaks directly to the maintainability and long-term cost-effectiveness of the valve. Seals are wear components in any hydraulic system, and their degradation can lead to external leakage and contamination ingress. The design allowing for easy replacement of spool end seals simplifies routine maintenance, extends the overall service life of the valve, and minimizes potential downtime.
• Compact Design: The compact footprint of the valve is a significant advantage, particularly for smaller trucks and utility vehicles where mounting space is often at a premium. A compact design facilitates easier installation, reduces weight, and allows for more flexible placement within the vehicle's chassis or equipment compartments without compromising performance.

Porting Standards: The use of 1/2 SAE ORB (-8) for inlet, outlet, and work ports signifies adherence to industry-standard SAE O-Ring Boss fittings. SAE ORB ports are highly favored in modern hydraulic systems due to their superior sealing capability compared to NPT (National Pipe Taper) threads. The O-ring provides a robust, leak-free seal, essential for maintaining system integrity, preventing fluid loss, and minimizing environmental contamination, especially in mobile applications subjected to vibration and dynamic stresses.

Application Suitability and Versatility

This Electric Sectional Valve 4-Way is specifically designed to excel in challenging mobile hydraulic applications, with a particular emphasis on smaller trucks and plow trucks.

• Snow Plow Trucks: This is an ideal application. The valve can control multiple functions essential for snow removal:
  • Lift/Lower: Power up/power down capability (as indicated by "Spool Action 1: Power Up/Power Down") directly controls the raising and lowering of the plow blade.
  • Angling: The dedicated "Port Relief Angle" demonstrates its suitability for managing the left and right angling of the plow, protecting the cylinders from impact forces.
  • Dump (for Spreaders): If the truck is equipped with a salt or sand spreader that uses a hydraulic dump function, this valve can manage it, with the "Port Relief Dump" offering specific protection.
  The remote electrical control is paramount here, allowing operators to focus on driving and safety in adverse conditions.
• Utility Vehicles and Smaller Commercial Trucks: Beyond plows, the valve is excellent for various utility tasks:
  • Tailgate Lifts: Controlling the lift and lower functions of hydraulic tailgate lifts for cargo loading/unloading.
  • Small Dump Bodies: Operating the hydraulic cylinder for small dump beds, used for landscaping, construction debris, or municipal waste.
  • Auxiliary Equipment: Powering other single-acting or double-acting hydraulic tools and attachments on service trucks, such as small cranes, winches, or specialized tools that require simple on/off control.

The valve's ability to operate reliably in diverse environmental conditions—from extreme cold during winter plowing to hot summer utility work—is ensured by its robust construction and high-quality sealing. The 12V coil voltage is universally compatible with vehicle electrical systems, simplifying integration into existing platforms.

System Integration and Maintenance Considerations

Integrating the Electric Sectional Valve into a hydraulic system is straightforward due to its compact design and standard SAE ORB porting.

• Mounting: The compact nature allows for flexible mounting locations, minimizing the length of hydraulic lines and optimizing space utilization.
• Wiring: Standard 12V DC wiring connects the valve's coils to the remote switch in the cab, often through a consolidated wiring harness for cleanliness and protection. The low current draw (2.5 Amps per coil) is easily managed by typical vehicle electrical systems.
• Plumbing: The SAE ORB ports ensure secure, leak-free connections to the hydraulic pump, reservoir, and actuators using appropriate hoses and fittings.
• Fluid Compatibility: The valve is designed for use with standard hydraulic fluids, and proper filtration is always recommended to maximize component life.
• Serviceability: The easily replaceable spool end seals are a key maintenance advantage, simplifying repairs and reducing the total cost of ownership over the valve's lifespan. Regular inspection of seals and connections, along with maintaining clean hydraulic fluid, will ensure optimal performance.

Conclusion

The Electric Sectional Valve 4-Way from Buyers Products stands as a testament to intelligent engineering, combining compact design with robust hydraulic capabilities and precise electrical control. Its maximum flow rate of 11 GPM and operational pressure of 3600 PSI (with a peak surge capability of 4300 PSI), coupled with highly adjustable main and port relief valves, ensure both powerful performance and comprehensive system protection. The inclusion of precision-machined cylinder spools, a load hold check in neutral, and easily replaceable seals highlights a commitment to efficiency, safety, and long-term maintainability. Optimized for the demanding environments of smaller trucks and plow applications, this valve provides operators with reliable remote control, enhancing safety and productivity. For integrators and users seeking a high-performance, durable, and easily controllable hydraulic valve for single-actuator, 4-way applications, this Electric Sectional Valve offers an exceptional solution designed for enduring operational excellence. Additional configurations are available, demonstrating the versatility of this product line; for further customization or application-specific guidance, contacting Customer Service is recommended.
