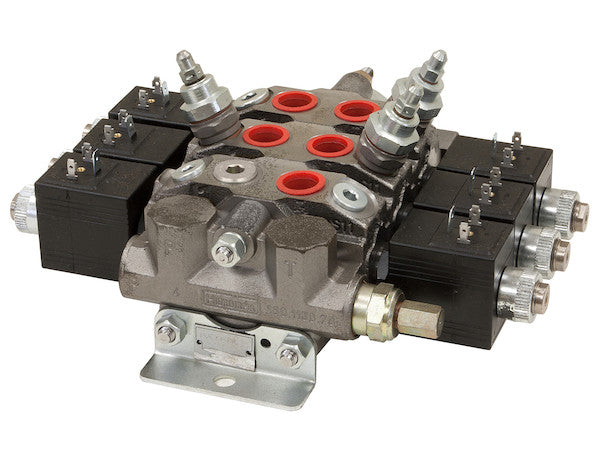

The compact Electric Sectional Valve from Buyers Products features a compact design. Its electrical controls allow you to mount a switch in the cab and control the valve remotely. It's great for smaller trucks and plow trucks. The 12V valve is rated to a max flow of 11 GPM. It features a simple on/off (non-proportional) flow. It can handle a maximum rating of 4300 PSI when the main relief is set at a higher pressure. The main relief is adjustable from 1300 to 3000 PSI (factory preset at 2150 PSI ). Two additional adjustable port reliefs -- angle and dump -- are available to provide protection for the specific job. The valve has cylinder spools, and features load hold check in the neutral position, precision-machined and ground spools, and easily replaceable spool end seals. Additional configurations are available. Please contact Customer Service for further information.
Specifications
| Amps per Coil | 2.500 |
|---|---|
| Coil Voltage | 12 |
| Electrically Operated (y/n) | Yes |
| Inlet Port Size | 1/2 SAE ORB (-8) |
| Main Relief Setting | 1300-3000 (Set at 2150) |
| Maximum Flow Rate | 11 |
| Maximum Pressure | 3600 |
| Number of spools | 2 |
| Out Port Size | #8 |
| Outlet Port Size | 1/2 SAE ORB (-8) |
| Port Relief Angle | 1900-4300 (Set at 2150) |
| Port Relief Dump | 400-1900 (Set at 600) |
| Port reliefs ( Y/N) | No |
| Port Type | SAE |
| Power Beyond (y/n) | No |
| Relief (Y/N) | Yes |
| Spool Action 1 | Power Up/Power Down |
| Spool Action 2 | Power Up/Power Down |
| Work Port Size | 1/2 SAE ORB (-8) |
Advanced Hydraulic Control: The Electric Sectional Valve 4-Way/4-Way for Demanding Applications
In the realm of mobile hydraulic systems, the demand for precise, reliable, and compact control solutions is ever-increasing. The Electric Sectional Valve from Buyers Products, specifically configured as a 4-Way/4-Way unit, represents a pinnacle of design and engineering for applications requiring robust and remotely controllable hydraulic power. Engineered for seamless integration into smaller trucks, snowplow systems, and other utility vehicles, this valve combines sophisticated electrical actuation with a rugged hydraulic architecture, ensuring optimal performance and longevity in challenging operational environments.
Understanding the 4-Way/4-Way Valve Configuration
The designation "4-Way/4-Way" is fundamental to understanding the operational capabilities of this hydraulic valve. A "4-way" valve refers to a directional control valve with four primary ports: P (Pressure), T (Tank), A (Work Port 1), and B (Work Port 2). These four ports facilitate the control of double-acting hydraulic cylinders or reversible hydraulic motors. In its neutral position, the valve typically blocks or connects these ports in specific ways to hold an actuator in position or allow it to float. When actuated, it directs pressurized fluid from port P to either port A or port B, simultaneously allowing return fluid from the opposite work port to flow back to port T (tank).
The "4-Way/4-Way" description further implies that each of the valve's sections (spools) within this multi-spool valve bank is configured as a 4-way valve. With a stated "Number of spools: 2", this valve effectively offers two independent 4-way control circuits, enabling the simultaneous or sequential operation of two double-acting cylinders or motors. This dual-circuit capability is particularly advantageous in applications such as plow trucks, where separate hydraulic functions like lifting/lowering and angling require independent control from a single, compact valve assembly. Each spool is designed for "Power Up/Power Down" action, guaranteeing positive and controlled movement in both directions of an attached actuator.
Precision Electrical Control and System Integration
A cornerstone of this valve's advanced functionality is its integral electrical control system. Operating on a standard 12V DC power supply, with a nominal draw of 2.500 Amps per coil, it is perfectly suited for integration into conventional vehicle electrical systems without requiring complex power modifications. The electrical operation feature ("Electrically Operated (y/n): Yes") allows for the remote mounting of control switches within the vehicle's cab. This remote capability offers significant ergonomic and safety benefits, enabling operators to control hydraulic functions with precision and comfort, irrespective of the valve's physical location on the chassis. By minimizing the need for lengthy hydraulic lines and complex mechanical linkages to the cab, the electrical interface reduces installation complexity, potential leak points, and overall system weight, thereby enhancing reliability and simplifying maintenance.
The "on/off (non-proportional)" flow characteristic of this valve means that when a solenoid is energized, fluid flow is fully directed to the specified work port at the maximum available flow rate (up to 11 GPM), and when de-energized, flow ceases. While some applications might demand proportional flow for infinite speed control, many rugged mobile operations, particularly those involving plows or other utility attachments, benefit from the straightforward and robust "on/off" actuation. This non-proportional control is highly reliable, less prone to electronic noise, and provides consistent, powerful operation for fixed-speed tasks.
Robust Performance Metrics: Flow, Pressure, and Integrated Relief Systems
The Electric Sectional Valve is engineered to perform under demanding conditions, boasting impressive hydraulic specifications. Its maximum flow rate of 11 GPM (Gallons Per Minute) is ideally calibrated for the efficient operation of cylinders and motors typically found in compact and medium-duty applications. This flow rate ensures responsive actuator movement without generating excessive heat, which is crucial for maintaining hydraulic fluid integrity and system longevity. Optimal flow management directly contributes to the operational speed and productivity of the attached implements.
Pressure handling is another critical performance parameter. The valve is rated for a maximum operating pressure of 3600 PSI, indicating its robust construction and ability to generate significant force for lifting, pushing, or pulling tasks. However, its design allows for the accommodation of transient pressure spikes up to 4300 PSI when the main relief is set higher, providing an additional margin of safety against extreme hydraulic loads. This high-pressure capability ensures that the valve can power heavy-duty functions, providing the necessary force for operations such as snow removal, material handling, or utility work.
Sophisticated Pressure Relief Mechanisms
Central to the valve's safety and operational integrity are its multi-stage pressure relief systems. The primary defense against system overpressure is the main relief valve. This critical component is adjustable within a broad range of 1300 to 3000 PSI and is factory preset at 2150 PSI. The main relief valve protects the hydraulic pump and the entire upstream circuit from excessive pressure buildup, diverting fluid back to the tank when the system pressure exceeds the set limit. This adjustability allows the valve to be fine-tuned to the specific requirements of the hydraulic system and the capacities of the attached actuators, ensuring both safety and optimal performance.
Beyond the main relief, the valve incorporates two additional, adjustable port relief valves: one for "Angle" and one for "Dump." These are specialized relief valves designed to protect individual actuators and specific sections of the hydraulic circuit from shock loads or overloads unique to certain operations, particularly in plow applications. The "Port Relief Angle" is adjustable from 1900-4300 PSI, factory set at 2150 PSI, and is specifically engineered to protect the cylinder(s) responsible for angling a plow blade. When the plow encounters an immovable object or experiences extreme side loads, this relief valve will open to prevent damage to the cylinder, hoses, or the plow structure itself. Similarly, the "Port Relief Dump" (adjustable from 400-1900 PSI, factory set at 600 PSI) serves to protect the dump or lift cylinder, often used for raising and lowering the plow. Its lower preset value is typically suitable for allowing controlled "float" or pressure release during the lowering phase or when encountering ground irregularities, preventing damage to the plow frame or vehicle. The availability of these adjustable port reliefs, though specified as "No" in the general "Port reliefs (Y/N)" line of the table (likely indicating they are optional or configurable additions rather than standard on every variant), is a testament to the valve's adaptability and comprehensive safety features when configured for specialized tasks.
Precision Engineering and Durable Construction
The compact design of this Electric Sectional Valve is a significant advantage, particularly for vehicles with limited mounting space. Its reduced footprint allows for flexible installation, making it ideal for integration into the tight confines of smaller trucks and utility equipment. Despite its compact size, there is no compromise on durability or performance.
The valve features high-quality "cylinder spools," which are specifically designed for efficient control of double-acting cylinders. These spools are precision-machined and ground to extremely tight tolerances. This meticulous manufacturing process ensures minimal internal leakage, resulting in superior holding power, reduced energy waste, and prolonged component life. The precision-fit spools glide smoothly within their bores, providing reliable and consistent actuation over thousands of cycles.
A critical safety and efficiency feature is the "load hold check in the neutral position." This mechanism prevents hydraulic cylinders from drifting or settling when the valve is in its neutral state, even under significant load. This ensures that implements remain precisely where the operator positions them, enhancing safety and reducing the need for constant re-adjustment. For instance, a raised plow will remain raised, preventing accidental ground contact or interference.
Maintenance considerations are also integrated into the design. The "easily replaceable spool end seals" simplify routine servicing and repairs. Rather than requiring extensive valve disassembly or replacement of the entire valve body for a seal failure, these easily accessible seals allow for quick and cost-effective maintenance, minimizing downtime and extending the operational life of the unit.
Advanced Porting and Connectivity
The Electric Sectional Valve utilizes SAE O-Ring Boss (ORB) ports for its hydraulic connections, specified as 1/2 SAE ORB (-8) for the Inlet, Outlet, and Work Ports. SAE ORB fittings are widely recognized in the hydraulic industry for their superior sealing capabilities compared to traditional tapered pipe threads (NPT). The O-ring creates a positive, leak-free seal that is highly resistant to vibration and pressure fluctuations, significantly reducing the risk of hydraulic fluid leaks, which can lead to environmental contamination, safety hazards, and costly fluid loss. The standardized SAE port type also simplifies hose and fitting selection, ensuring compatibility and ease of installation in diverse hydraulic systems.
The clearly defined port sizes and types ensure straightforward integration into existing or new hydraulic circuits. The consistent 1/2 SAE ORB (-8) sizing across inlet, outlet, and work ports streamlines component selection and plumbing design, contributing to a more efficient and reliable hydraulic system build.
Optimal Applications and Versatility
This Electric Sectional Valve is particularly well-suited for a range of demanding mobile hydraulic applications:
- Snowplow Trucks: This is an exemplary application. The dual 4-way spools allow for independent control of plow lift/lower and angle functions. The specialized adjustable port reliefs (Angle and Dump) are invaluable for protecting the plow's hydraulic cylinders from impact and shock loads, which are common during snow removal operations. The compact design facilitates mounting in constrained areas under the hood or chassis, while electrical remote control offers precise and ergonomic operation from the heated cab. The "Power Up/Power Down" action ensures positive control of the plow's position in all directions.
- Smaller Utility Trucks and Vehicles: For compact utility vehicles, landscape trucks, or service vehicles requiring auxiliary hydraulic functions, this valve provides a robust and space-efficient solution. It can control functions such as operating small cranes, lift gates, dump beds, or other hydraulic tools.
- Light-Duty Material Handling: In applications involving small loaders, forklifts, or other material handling equipment, the valve can provide reliable control for boom lift, bucket tilt, or attachment manipulation.
- Custom Hydraulic Circuits: Its modular design and robust specifications make it suitable for custom-built machinery or retrofitting existing equipment where reliable, remote hydraulic control is needed for two double-acting functions.
The exclusion of "Power Beyond" functionality (Power Beyond (y/n): No) indicates that this valve is designed to be the terminal valve in a simple hydraulic circuit, returning all flow directly to the tank. While a power-beyond port would allow downstream valves to be fed, its absence here simplifies plumbing for single-valve systems, aligning with its compact, dedicated functional role.
Commitment to Quality and Support
Buyers Products is renowned for its commitment to engineering high-quality, durable components for the work truck industry. This Electric Sectional Valve embodies that commitment, from its precision-machined spools to its robust electrical components and comprehensive relief systems. The attention to detail in its design ensures long-term reliability and performance, even in harsh operating conditions.
Furthermore, the availability of "additional configurations" highlights the versatility and adaptability of this product line. Buyers Products understands that hydraulic requirements can vary significantly between applications. Therefore, customers are encouraged to contact Customer Service to discuss specific needs. This direct consultation allows for tailored solutions, ensuring that the chosen valve configuration perfectly matches the unique demands of any given hydraulic system, optimizing performance, safety, and longevity.
Conclusion
The Electric Sectional Valve 4-Way/4-Way from Buyers Products stands as a technically sophisticated and operationally robust solution for modern mobile hydraulic systems. Its compact form factor, precise 12V electrical controls, impressive flow and pressure capabilities, and comprehensive multi-stage relief systems make it an indispensable component for applications demanding reliable, remotely actuated hydraulic power. From protecting essential components with adjustable port reliefs in snowplow operations to ensuring load stability with integrated load hold checks, every aspect of this valve is meticulously engineered for peak performance and durability. For professionals seeking an advanced, dependable, and easily integrated hydraulic control valve for their critical mobile equipment, this Electric Sectional Valve offers an unparalleled combination of innovation, safety, and functional excellence, backed by the proven quality of Buyers Products.
