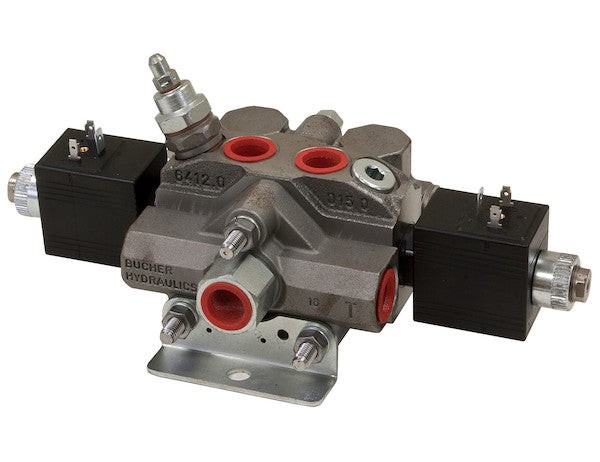

The compact Electric Sectional Valve from Buyers Products features a compact design. Its electrical controls allow you to mount a switch in the cab and control the valve remotely. It's great for smaller trucks and plow trucks. The 12V valve is rated to a max flow of 11 GPM. It features a simple on/off (non-proportional) flow. It can handle a maximum rating of 4300 PSI when the main relief is set at a higher pressure. The main relief is adjustable from 1300 to 3000 PSI (factory preset at 2150 PSI ). Two additional adjustable port reliefs -- angle and dump -- are available to provide protection for the specific job. The valve has cylinder spools, and features load hold check in the neutral position, precision-machined and ground spools, and easily replaceable spool end seals. Additional configurations are available. Please contact Customer Service for further information.
Specifications
| Amps per Coil | 2.500 |
|---|---|
| Coil Voltage | 12 |
| Electrically Operated (y/n) | Yes |
| Inlet Port Size | 1/2 SAE ORB (-8) |
| Main Relief Setting | 1300-3000 (Set at 2150) |
| Maximum Flow Rate | 11 |
| Maximum Pressure | 3600 |
| Number of spools | 1 |
| Out Port Size | #8 |
| Outlet Port Size | 1/2 SAE ORB (-8) |
| Port Relief Angle | 1900-4300 (Set at 2150) |
| Port Relief Dump | 400-1900 (Set at 600) |
| Port reliefs ( Y/N) | Yes |
| Port Type | SAE |
| Power Beyond (y/n) | Yes |
| Relief (Y/N) | Yes |
| Spool Action 1 | Power Up/Power Down - 1 Port Relief |
| Work Port Size | 1/2 SAE ORB (-8) |
Advanced Technical Overview: Electric Sectional Valve 4-Way with Integrated Relief and Power Beyond Functionality
The Electric Sectional Valve from Buyers Products represents a high-performance, compact solution engineered for precision hydraulic control in demanding mobile applications. Designed for seamless integration into 12V electrical systems, this valve offers remote operation capabilities, enabling superior ergonomic control from a vehicle's cab. Its robust construction and sophisticated hydraulic features make it an ideal choice for enhancing the operational efficiency and safety of smaller trucks, municipal plow trucks, utility vehicles, and compact machinery requiring reliable, discrete hydraulic actuation.
Core Design and Electrical Control System
At the heart of this valve’s functionality is its electrically operated design. Operating on a standard 12V DC power supply, the valve's solenoids, rated at 2.5 Amps per coil, provide precise and rapid actuation. This electrical control facilitates remote mounting, allowing the hydraulic valve to be positioned optimally within the vehicle's chassis, minimizing hose runs and maximizing available space, while the operator retains full control via a simple switch panel in the cab. This setup is particularly advantageous in environments where direct mechanical linkage would be impractical or subject to wear and tear.
The valve's on/off (non-proportional) flow characteristic ensures straightforward and reliable operation. Unlike proportional valves that allow for variable flow rates based on control signal intensity, this valve provides a full flow or no flow condition. This discrete control is perfectly suited for applications requiring clear, definitive actions such as lifting or lowering a plow, angling a blade, or actuating a dump gate. The simplicity of on/off control often translates to enhanced system reliability, reduced complexity in control logic, and easier troubleshooting for fleet maintenance personnel.
Hydraulic Performance and Flow Dynamics
Engineered to handle a maximum flow rate of 11 Gallons Per Minute (GPM), this sectional valve is meticulously optimized for hydraulic systems on equipment where moderate flow requirements are prevalent. This flow rate ensures responsive operation of cylinders and motors commonly found in the target applications, providing ample hydraulic power without necessitating oversized pumps or complex manifold systems. The efficiency of operation at 11 GPM contributes to reduced energy consumption and lower heat generation within the hydraulic circuit, extending the life of hydraulic fluid and components.
The valve’s pressure handling capabilities are equally impressive, providing robust performance under strenuous conditions. While the general maximum operating pressure is specified at 3600 PSI, the valve is engineered to withstand instantaneous pressures up to 4300 PSI when the main relief is configured to its higher settings, specifically referring to the capacity of the port reliefs. This inherent strength provides a substantial safety margin, protecting the valve body and internal components from transient pressure spikes that can occur during demanding operations, such as sudden impacts or extreme load reversals.
Integrated Pressure Relief Systems: Main and Port Reliefs
A critical aspect of any robust hydraulic system is comprehensive pressure management, and this sectional valve excels in this regard by incorporating multiple layers of relief protection. This design not only safeguards the hydraulic system from overpressure but also enhances operational safety and extends the lifespan of actuated components.
Main Relief Valve: The primary system protection is provided by an adjustable main relief valve, which has a setting range from 1300 PSI to 3000 PSI. Factory preset at 2150 PSI, this relief valve directly limits the maximum pressure in the main pressure line (P-port) of the hydraulic system. When system pressure exceeds this set point, the main relief valve diverts excess flow directly back to the tank (T-port), preventing damage to the pump, hoses, and other components. The adjustability allows for fine-tuning the system's overall pressure ceiling to match the specific requirements and capabilities of the attached hydraulic actuators and power unit, ensuring optimal performance without compromising safety.
Auxiliary Port Reliefs (Angle and Dump): Beyond the main relief, two independently adjustable port reliefs are integrated for specific work port protection: the 'Angle' relief and the 'Dump' relief. These port reliefs provide localized overpressure protection for the individual work ports (A and B ports) connected to the hydraulic cylinder or motor. This is especially crucial for equipment like snowplows, where external forces can generate significant pressure in a specific cylinder line, independent of the main system pressure.
- Port Relief - Angle: This relief, adjustable from 1900 PSI to 4300 PSI (factory preset at 2150 PSI), is typically configured to protect the cylinder responsible for angling a plow blade. In the event of an impact with an immovable object, hydraulic pressure can rapidly spike in the 'angle' cylinder line. This dedicated relief valve will open, diverting fluid and preventing damage to the cylinder, hoses, and the plow structure itself. The wide adjustment range allows for precise matching to various plow sizes and operational conditions.
- Port Relief - Dump: With an adjustment range from 400 PSI to 1900 PSI (factory preset at 600 PSI), the 'Dump' relief is designed to manage pressures associated with the dump function, such as controlled lowering of a dump bed or similar functions. A lower pressure setting for this relief can prevent damage if the load becomes jammed or if the cylinder reaches its mechanical stop too abruptly. It ensures that the return pressure from the cylinder to the tank is managed safely, preventing overstressing of the cylinder or the overall system when lowering or retracting against resistance.
The inclusion of these specific port reliefs significantly enhances the safety and longevity of the hydraulic system, providing tailored protection that a single main relief cannot offer. They prevent localized overloads from affecting the entire system and are indispensable for applications involving dynamic loads and potential external impacts.
Spool Design and Fluid Control
This valve features a single-spool, 4-way configuration, indicating its ability to direct pressurized fluid to two work ports (A and B) and return fluid from those ports to the tank, in addition to receiving fluid from the pump (P) and directing excess to the tank (T). This 4-way functionality is fundamental for controlling double-acting hydraulic cylinders, enabling both 'Power Up' and 'Power Down' movements, or 'Extend' and 'Retract' actions for linear actuators.
The spool action, specifically "Power Up/Power Down - 1 Port Relief," denotes a configuration where the single spool provides active hydraulic force for both extending and retracting a cylinder, with the aforementioned port reliefs providing critical overpressure protection on the work ports. In the neutral position, the valve incorporates a load hold check. This integral check valve prevents hydraulic fluid from draining out of the cylinder when the spool is in neutral, effectively holding the load in its current position without drift. This is a crucial safety and operational feature, especially for applications where loads must be precisely held, such as a raised snowplow or a tilted dump bed, preventing unintended movement and potential hazards.
The spools themselves are precision-machined and ground to exceptionally tight tolerances. This meticulous manufacturing process ensures a smooth, low-friction operation, minimizing internal leakage (cross-port leakage) and maximizing hydraulic efficiency. High-quality spools contribute directly to the valve's responsiveness, accuracy, and overall service life. Furthermore, the design incorporates easily replaceable spool end seals. This feature simplifies routine maintenance and allows for cost-effective repairs, ensuring that the valve can be kept in optimal working condition for an extended period, reducing downtime and operational costs.
Porting and Connectivity: SAE ORB Standard and Power Beyond
Connectivity is provided through 1/2 SAE ORB (-8) ports for the inlet (P), outlet (T), and work ports (A and B), alongside an unspecified Out Port Size of #8 (likely referring to an auxiliary or drain port, or a generic designation for 1/2" equivalent for certain applications). The use of SAE O-Ring Boss (ORB) ports is a significant advantage over traditional NPT (National Pipe Taper) threads. SAE ORB connections feature a straight thread and an O-ring seal, which provides a superior, leak-free connection, even under high pressure and vibration. This significantly reduces the potential for hydraulic fluid leaks, improves system cleanliness, and simplifies assembly and maintenance.
A notable feature of this sectional valve is its "Power Beyond" capability. In a standard open-center valve, when the valve is in neutral, all pump flow is routed directly back to the tank, making it difficult to operate multiple valves in series without complex circuitry. The Power Beyond feature allows pressurized fluid from the pump to be routed *through* this valve and then to another downstream hydraulic component or valve, even when this valve's spool is in the neutral position. This enables the creation of more sophisticated hydraulic systems where multiple functions can be controlled by separate valves operating from a single pump, maximizing the utility of the hydraulic power unit without requiring multiple pumps or complex flow dividers. For example, a plow truck might use this valve for the plow lift and angle, and then send power beyond to a salt spreader motor or another auxiliary function.
Applications and Operational Benefits
The compact Electric Sectional Valve is specifically engineered for a range of demanding mobile hydraulic applications:
- Snowplows and Ice Control Equipment: Its primary application lies in controlling the lift, lower, and angle functions of snowplows on municipal and commercial vehicles. The robust pressure ratings, integrated port reliefs, and remote electrical control are perfectly suited for the harsh operating conditions encountered during winter maintenance. The adjustable port reliefs offer critical protection against impact loads when plowing.
- Smaller Utility Trucks: Ideal for operating auxiliary equipment such as small crane outriggers, tilt mechanisms for utility beds, or various attachments where precise, on/off hydraulic movements are required.
- Compact Construction Equipment: Suitable for mini excavators, skid steers, or compact track loaders for controlling specific attachments like grapples, augers, or angle blades.
- Agricultural Machinery: Can be employed for controlling implements such as small cultivators, rakes, or seeders, providing reliable hydraulic actuation for field operations.
The benefits of deploying this valve are multifaceted:
- Enhanced Operator Control: Remote electrical operation improves ergonomics and safety, allowing operators to focus on the task at hand from the comfort and safety of the cab.
- System Protection: Multiple layers of pressure relief (main and port reliefs) safeguard the entire hydraulic circuit and connected actuators from overpressure and sudden impacts, significantly extending equipment life.
- Durability and Longevity: Precision-machined spools, robust materials, and easily replaceable seals contribute to a long service life and reduced maintenance requirements.
- Compact Integration: The compact design facilitates installation in confined spaces, a common constraint in mobile equipment.
- Versatility: The Power Beyond feature adds significant versatility to the hydraulic system design, allowing for sequential or parallel operation of multiple hydraulic functions.
Installation and System Integration Considerations
Proper installation and system integration are paramount to fully leveraging the capabilities of the Electric Sectional Valve. When integrating this valve, several technical considerations should be observed:
- Hydraulic Fluid: Utilize hydraulic fluid that meets or exceeds ISO standards for viscosity and purity, compatible with the operating temperature range of the application. Proper fluid selection minimizes wear and tear on internal components and maximizes efficiency.
- Filtration: Integrate adequate upstream and downstream filtration to maintain fluid cleanliness. Contaminants are a leading cause of premature valve failure and can compromise the precision of spool operation.
- Electrical Wiring: Ensure all electrical connections for the 12V system are securely made, properly insulated, and protected by appropriate fuses or circuit breakers. The 2.5 Amps per coil rating dictates specific wire gauge requirements to prevent voltage drop and overheating, especially for longer cable runs to the remote switch.
- Mounting: Mount the valve securely to the vehicle chassis or equipment frame, ensuring it is protected from excessive vibration, physical impact, and environmental ingress (e.g., moisture, dirt). Orientation should also consider ease of plumbing and accessibility for maintenance.
- Hose and Fitting Sizing: All hydraulic hoses and fittings should be appropriately sized for the 11 GPM flow rate and maximum system pressure to minimize pressure drop and ensure efficient fluid transfer. The 1/2 SAE ORB (-8) ports are designed for specific fitting types that ensure optimal sealing.
- Pressure Adjustment: During initial setup, the main relief and individual port reliefs should be adjusted by qualified personnel using a calibrated pressure gauge to the precise values required by the specific application and equipment manufacturer's recommendations. Failure to do so can result in system damage or unsafe operation.
Conclusion
The Electric Sectional Valve 4-Way with 1 Relief Port/PB from Buyers Products stands as a highly engineered, robust, and versatile hydraulic control solution. Its combination of compact design, remote electrical control, high-pressure capability, and multi-tiered pressure relief systems makes it an indispensable component for optimizing the performance and safety of mobile hydraulic systems. Designed for demanding applications such as snowplows and utility vehicles, this valve delivers precise, reliable control with an emphasis on durability and ease of maintenance. With its advanced features, including precision-machined spools, load hold checks, and Power Beyond functionality, this valve is engineered to meet the rigorous demands of modern mobile hydraulic circuits. For specific application requirements or inquiries regarding additional configurations, our customer service team is available to provide expert guidance and support.
