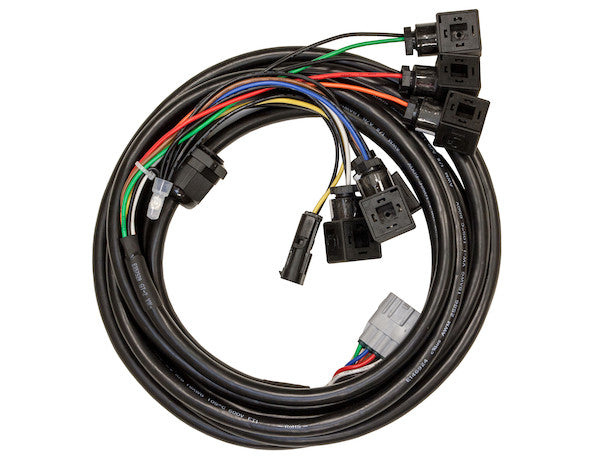

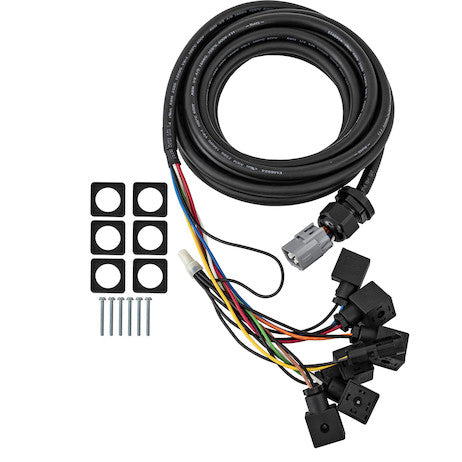

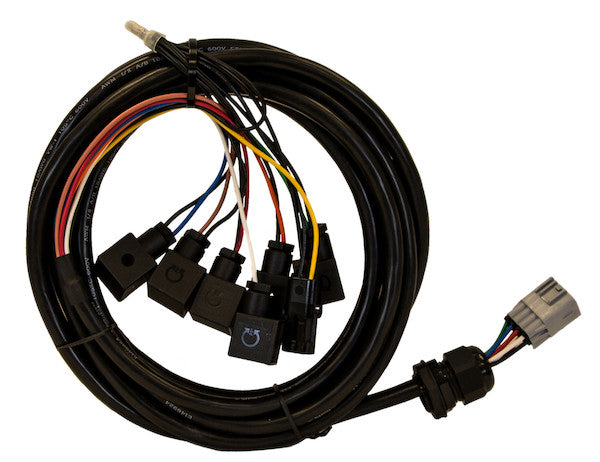

Buyers Products 20 Foot Harness is designed to connect a Buyers Products Electric Sectional Valve with a Switch Panel. It can work with up to a 3 spool valve. The harness has female push-on connectors that quickly hook up to a switch and DIN connectors for easy hookup to the valve.
Specifications
| Electrically Operated (y/n) | Yes |
|---|---|
| Inlet Port Size | - |
| Main Relief Setting | - |
| Maximum Flow Rate | - |
| Maximum Pressure | - |
| Out Port Size | - |
| Power Beyond (y/n) | N |
| Works With | Electrically Operated Sectional Valves |
The 20ft Wire Harness: A Foundation for Precision Electro-Hydraulic Control
In the realm of modern mobile and industrial hydraulic systems, the integration of electrical control with hydraulic power is paramount for achieving precision, efficiency, and operator convenience. The 20ft Wire Harness for Electrically Operated Sectional Valves by Buyers Products serves as a critical conduit in this sophisticated ecosystem, facilitating the seamless communication and power transmission between an operator's control interface (switch panel) and the hydraulic valve responsible for directing fluid flow. This meticulously engineered harness is not merely a collection of wires; it is a precisely manufactured component designed to uphold the integrity and responsiveness of complex electro-hydraulic operations, ensuring optimal performance and longevity in demanding applications.
Detailed Functional Description: Seamless System Integration
The primary function of this 20-foot wire harness is to establish a robust and reliable electrical connection within a hydraulic control circuit. Specifically, it bridges the gap between a Buyers Products electric sectional valve and an associated switch panel. Electric sectional valves are fundamental components in systems requiring remote or automated control over hydraulic functions. They rely on electrical signals to actuate internal solenoids, which in turn shift valve spools to direct hydraulic fluid to various actuators. The switch panel provides the human-machine interface, translating operator commands into electrical signals. The harness acts as the vital nervous system, transmitting these control signals and the necessary power to energize the valve's solenoids. Its design emphasizes ease of installation and dependable operation, making it an indispensable part of any electrically controlled hydraulic setup.
Length and Installation Flexibility: The 20-Foot Advantage
A significant characteristic of this wire harness is its generous 20-foot (approximately 6.1-meter) length. This extended reach provides substantial flexibility during installation, accommodating a wide array of vehicle and equipment configurations where the hydraulic power unit, valve assembly, and operator control panel may be situated at considerable distances from one another. In applications such as dump trucks, snowplows, agricultural machinery, or utility vehicles, components are often spread across a chassis or within distinct compartments. The 20-foot length minimizes the need for splices or extensions, which can introduce points of failure, signal degradation, or increased resistance. This ample length ensures that installers can route the harness efficiently, avoiding potential hazards like sharp edges, moving parts, and heat sources, thereby contributing to a cleaner, safer, and more reliable system layout.
Compatibility and Scalability: Supporting Up to a 3-Spool Valve
The design of this harness specifically supports operation with electrically operated sectional valves comprising up to three spools. In hydraulic systems, each spool typically controls a distinct hydraulic function, such as lifting, lowering, extending, or retracting a cylinder, or operating a hydraulic motor. A 3-spool valve, therefore, allows for the independent control of three separate hydraulic circuits. The harness is engineered with the requisite number of conductors and connector pins to facilitate the control signals and power supply for each of these three spools. This capability makes it suitable for a broad range of medium-complexity applications without over-engineering for more intricate systems or being insufficient for common multi-function needs. Its compatibility ensures a streamlined connection, reducing complexity and potential errors during setup for systems requiring multiple hydraulic functions.
Connector Technology: Precision on Both Ends
Switch Panel Interface: Female Push-On Connectors
On the switch panel end, the harness terminates with female push-on connectors. This type of connector is chosen for its widespread compatibility, ease of installation, and secure electrical contact in appropriate applications. Push-on terminals, often referred to as spade connectors, feature a flat, insulated metal blade or tab that slides into a mating female receptacle. The female connectors on this harness are designed to mate precisely with the corresponding male terminals commonly found on many standard switch panels. Key advantages include rapid assembly without the need for specialized crimping tools at the point of connection, which can significantly reduce installation time and labor costs. Furthermore, when properly installed, these connectors provide a low-resistance electrical pathway, ensuring efficient signal transmission and minimal voltage drop. The robust mechanical retention of quality push-on connectors helps prevent accidental disconnections due to vibration, a common factor in mobile equipment environments, thus maintaining continuous control over the hydraulic system.
Valve Interface: DIN Connectors
The interface to the electric sectional valve is facilitated by DIN connectors. The term "DIN connector" refers to a family of circular multi-pin electrical connectors that adhere to standards set by the Deutsches Institut für Normung (DIN), the German national organization for standardization. In hydraulic applications, these connectors are highly favored for their exceptional robustness, environmental sealing capabilities, and secure locking mechanisms. The DIN connector on this harness is specifically designed to mate with the solenoid coils of Buyers Products electric sectional valves. These connectors typically feature a threaded or bayonet coupling mechanism that ensures a positive lock, preventing accidental disconnection under severe vibration, shock, or pulling forces. Critically, many industrial DIN connectors incorporate ingress protection (IP) ratings, signifying their resistance to dust, dirt, moisture, and even direct water spray or submersion. This makes them ideal for the harsh operating conditions prevalent in mobile hydraulics, protecting the critical electrical connections from environmental contaminants that could otherwise lead to corrosion, short circuits, or intermittent operation. The precise pin alignment and robust housing of DIN connectors contribute significantly to the overall reliability and longevity of the electro-hydraulic control system.
Wire Harness Construction: Engineered for Durability
The construction of this 20ft wire harness is engineered to withstand the rigorous demands of its intended operating environment. The selection of materials for the conductors, insulation, and outer jacketing is paramount to its performance and lifespan. The conductors are typically fabricated from high-purity copper, chosen for its excellent electrical conductivity and flexibility, often in a stranded configuration to enhance resistance to fatigue from vibration and bending. The wire gauge (AWG - American Wire Gauge) is carefully selected to handle the required current load for the valve solenoids without excessive voltage drop or heat generation, ensuring efficient power delivery. The insulation surrounding each conductor is designed to prevent electrical shorts and withstand environmental factors such as temperature extremes, oils, fuels, and chemicals commonly encountered in vehicle and equipment applications. The outermost layer, the jacket, provides comprehensive mechanical protection against abrasion, cuts, impacts, and UV radiation, further safeguarding the internal wiring from damage and degradation over time. The entire assembly is often molded or taped at critical junctions to provide strain relief and additional environmental protection.
Electrical Performance and Signal Integrity
Beyond physical robustness, the electrical performance of the harness is critical. Proper wire sizing ensures minimal voltage drop along the 20-foot length, which is crucial for the consistent and reliable actuation of valve solenoids. A significant voltage drop can reduce the effective power reaching the solenoid, leading to sluggish response, incomplete actuation, or premature failure. The harness is designed to maintain signal integrity for the control commands, preventing electrical noise or interference from disrupting the precise operation of the solenoids. While not explicitly stated, in demanding environments, harnesses may incorporate twisted pairs or shielding to mitigate electromagnetic interference (EMI) and radio-frequency interference (RFI), safeguarding the delicate control signals from external electrical noise sources generated by other vehicle systems like alternators or ignition systems. Proper grounding architecture within the harness also plays a vital role in electrical safety and stable system operation, preventing ground loops and ensuring a clear return path for electrical current.
Environmental Resilience and Robustness
Operating conditions for electrically operated sectional valves are rarely benign. Mobile hydraulic applications expose components to a spectrum of environmental challenges, including wide temperature fluctuations, high levels of vibration and shock, exposure to water, dust, dirt, corrosive chemicals (e.g., road salt, hydraulic fluid, cleaning agents), and UV radiation from sunlight. This 20ft wire harness is constructed with materials and design principles that confer high levels of environmental resilience. The outer jacket material is typically an engineered polymer with excellent resistance to abrasion, oils, and greases. The DIN connectors, as previously mentioned, offer superior ingress protection (IP ratings), ensuring that moisture and particulates do not compromise the electrical connections at the valve interface. The entire harness is built to maintain its structural and electrical integrity through extreme conditions, thereby ensuring consistent hydraulic control and reducing the likelihood of costly downtime due to electrical failures.
Application Context and System Benefits
This wire harness is a cornerstone component for a variety of electrically operated hydraulic systems. Common applications include:
- Snow and Ice Control Equipment: Controlling plow lift/angle, spreader functions, or auxiliary hydraulics.
- Dump Bodies: Actuating lift and lower functions for dump beds.
- Service Vehicles: Operating cranes, outriggers, or other powered attachments.
- Agricultural Machinery: Controlling implements, steering, or other hydraulic functions.
- Industrial Equipment: Providing remote control for machinery in static or mobile industrial settings.
Installation Best Practices and Longevity
While the harness is designed for ease of use, adhering to best installation practices is crucial for maximizing its longevity and performance. Proper routing of the 20-foot harness is paramount; it should be secured at regular intervals to prevent excessive movement and minimize exposure to potential damage points. Avoid routing near heat sources, sharp edges, or areas subject to constant friction or pinching. Adequate strain relief should be provided at all connection points, especially where the harness connects to the switch panel and the valve, to prevent mechanical stress on the connectors and wiring. Regularly inspecting the harness for signs of wear, abrasion, or degradation can preempt costly failures. Proactive maintenance, such as cleaning connectors and ensuring they remain securely fastened, will contribute significantly to the reliable operation of the electro-hydraulic system over its service life.
Safety, Compliance, and Operational Reliability
Electrical wiring in hydraulic systems carries inherent safety considerations. A properly specified and installed wire harness minimizes risks such as short circuits, electrical fires, and unintended hydraulic movements. The use of a quality harness like this one, designed for electrically operated valves, ensures that current carrying capacities are met and insulation integrity is maintained, preventing dangerous situations. Adherence to industry standards for electrical connections and wiring practices is embedded in the product's design, promoting overall operational reliability and compliance with safety regulations. By ensuring a stable and uninterrupted electrical pathway, this harness directly contributes to the predictable and safe operation of critical hydraulic functions, protecting both equipment and personnel.
Conclusion: A Foundation for Reliable Electro-Hydraulics
The Buyers Products 20ft Wire Harness for Electrically Operated Sectional Valves is an essential, high-performance component designed to provide a robust and reliable electrical connection in demanding environments. Its thoughtful engineering, encompassing length, specialized connectors, durable construction, and adherence to electrical performance standards, ensures seamless integration and long-term operational integrity of electro-hydraulic systems. Investing in such a purpose-built harness is an investment in the efficiency, precision, and safety of your hydraulic equipment.
