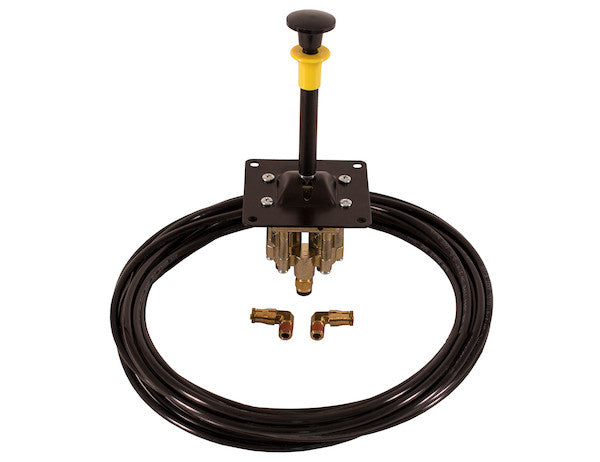

Buyers Products BAV040 4-Way, 3-Position Air Valve Kit is a single lever, non-feathering valve with spring return neutral lockout design.The kit includes brass push lock fittings and durable, DOT approved, 25 ft x 1/4 in. diameter nylon tubing. Console sold separately.
Specifications
| Feathering | No |
|---|---|
| Neutral Lock Out (y/n) | Yes |
| Number of Ports | 2 |
| Port Size | 0.250 |
| Port Type | Brass Push Lock Fittings |
| Rated Pressure | 125 |
| Spring to Neutral / Deadman Control (y/n) | Y |
| Valve Action | Non-Feathering |
| Valve Actuation | Manual Lever |
| Valve Primary Application | Neutral Lockout Air Valve Kit |
The Buyers Products BAV040 4-Way, 3-Position Air Valve Kit represents a pinnacle in pneumatic control technology, specifically engineered for applications demanding robust, precise, and safe operation. This comprehensive kit provides a ready-to-install solution for managing double-acting pneumatic actuators, integrating advanced safety features with durable construction to meet the rigorous demands of mobile equipment and industrial machinery. Designed as a single-lever, non-feathering valve with an essential spring-return neutral lockout mechanism, the BAV040 ensures optimal control and enhanced operational safety across a diverse range of critical tasks. The inclusion of high-quality brass push-lock fittings and DOT-approved nylon tubing further underscores its commitment to reliability and ease of installation, offering a complete package for discerning professionals. While the console is sold separately, the core components of this kit deliver unparalleled performance, making it an indispensable asset for various pneumatic systems.
Technical Overview of 4-Way, 3-Position Functionality
Understanding the operational mechanics of the BAV040 valve begins with its "4-Way, 3-Position" designation. In pneumatic systems, a "4-Way valve" is fundamentally designed to control the flow of compressed air to and from a double-acting cylinder or motor. This implies four distinct flow paths are managed: a pressure inlet, an exhaust outlet, and two work ports connected to the opposing sides of the actuator. The BAV040, while listed with "Number of Ports: 2" in its specifications, refers to the two output work ports directly connecting to the actuator. Internally, the valve expertly manages the incoming pressure and outgoing exhaust, effectively providing the four-way control necessary for extending, retracting, or holding a double-acting mechanism.
The "3-Position" aspect denotes the valve's capability to assume three distinct operational states, each manually selected via the single lever:
- Position 1 (e.g., Extend/Actuator A): In this state, compressed air is directed to one side of the actuator, while the opposing side is simultaneously vented to atmosphere, causing the actuator to move in a specific direction (e.g., cylinder extension).
- Position 2 (Neutral/Center): This is a critical safety position for the BAV040. In its default, centered state, the valve enters a "neutral lockout" mode. Typically, in such a configuration, all work ports are blocked. This means that compressed air is prevented from reaching the actuator, and any air trapped within the actuator is held, effectively locking the actuator in its current position. This is crucial for maintaining the position of a load or preventing unintended movement, especially in applications like dump truck hoists or outriggers where gravity or external forces could cause unwanted motion. The "spring return" feature ensures that the valve automatically reverts to this safe neutral position when the operator releases the lever, reinforcing fail-safe operation.
- Position 3 (e.g., Retract/Actuator B): Here, the air supply is redirected to the second work port of the actuator, while the first side is vented. This causes the actuator to move in the opposite direction (e.g., cylinder retraction).
Core Engineering Principles: Neutral Lockout and Non-Feathering Action
Neutral Lockout Design: Ensuring Uncompromised Safety
A cornerstone feature of the Buyers Products BAV040 is its advanced neutral lockout design. This mechanism is paramount for operational safety, particularly in mobile and industrial applications where accidental or unauthorized actuation could lead to severe consequences. The lockout design functions by mechanically securing the control lever in the neutral position. This prevents inadvertent movement of the lever away from neutral due to vibration, accidental bumping, or operator error during non-operational periods. To engage a work position, the operator must deliberately disengage the lockout, typically by pulling or pushing a collar or button on the lever itself, before moving the lever. This deliberate action ensures that actuation is always intentional. In dynamic environments, such as on construction sites or busy roadways, the neutral lockout provides a critical layer of protection, preventing the unintended deployment of equipment like snow plow blades, lift gates, or auxiliary functions on utility vehicles. This design inherently enhances the safety profile of the equipment it controls, mitigating risks associated with human error and environmental factors.
Non-Feathering Valve Action: Precision and Efficiency
The BAV040 is engineered with a non-feathering valve action, a crucial characteristic that dictates its operational behavior and suitability for specific tasks. "Feathering" in a pneumatic valve refers to the ability to proportionally control the flow of air by partially opening the valve, thereby regulating the speed or force of an actuator. Conversely, a "non-feathering" valve, like the BAV040, operates on an "all-or-nothing" principle. When the lever is moved from neutral to an active position, the valve ports open fully and instantaneously, allowing the maximum permissible air flow. There is no intermediate position for partial flow control. The advantages of a non-feathering design are significant for many heavy-duty applications:
- Rapid Actuation: Equipment can be actuated quickly and decisively, which is essential for tasks requiring immediate response, such as lifting a dump bed or positioning a plow.
- Consistent Performance: Each actuation delivers a full, predictable flow of air, ensuring consistent operation cycle after cycle without the variability that can arise from partial valve openings.
- Durability and Longevity: The absence of partial flow conditions reduces wear and tear on the valve's internal components, as throttling can cause erosion and heat buildup. This contributes to a longer service life and reduced maintenance requirements.
- Simplicity and Reliability: The straightforward ON/OFF operation simplifies the pneumatic circuit and minimizes potential points of failure compared to more complex proportional control valves.
Spring Return to Neutral / Deadman Control: Enhanced Operator Safety
Complementing the neutral lockout and non-feathering features is the spring return to neutral mechanism, often referred to as "deadman control." This fundamental safety feature ensures that the valve automatically returns to its safe, neutral (all ports blocked or vented, depending on specific design) position immediately upon the operator releasing the control lever. This is a critical failsafe, preventing equipment from remaining in an active state if the operator becomes incapacitated, distracted, or simply lets go of the control. For example, if an operator is moving a plow blade and needs to suddenly address another issue, releasing the lever instantly returns the blade control to a secure, non-actuated state. This design philosophy is integral to modern safety standards, reducing the risk of unattended or uncontrolled machine operation, thereby protecting both personnel and equipment. The consistent and reliable return to neutral enhances operational confidence and contributes significantly to overall system safety.
Integrated Components: Brass Push Lock Fittings and DOT Approved Tubing
The Buyers Products BAV040 Air Valve Kit is not merely a valve; it is a comprehensive solution packaged with essential ancillary components designed for seamless integration and long-term reliability. The inclusion of brass push lock fittings and durable, DOT-approved nylon tubing distinguishes this kit by providing all necessary connection elements, simplifying installation, and ensuring system integrity.

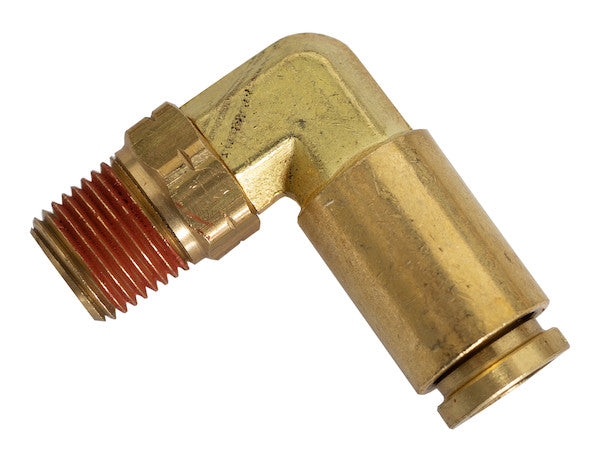

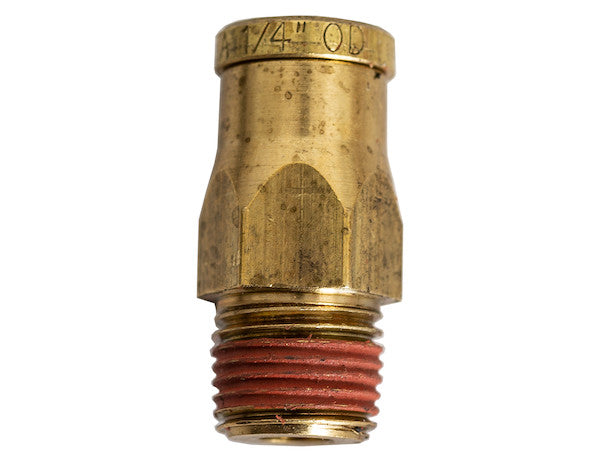

Brass Push Lock Fittings: Efficiency and Reliability
The kit supplies brass push lock fittings, chosen for their superior performance characteristics in pneumatic systems. These fittings offer several distinct advantages:
- Rapid Installation: Push lock fittings, also known as push-to-connect or instant fittings, allow for quick and tool-free connections. Tubing is simply pushed into the fitting until seated, where an internal collet grips the tubing, and an O-ring creates a hermetic seal. This significantly reduces installation time and labor costs compared to traditional compression or threaded fittings.
- Secure Connection: Despite their ease of installation, push lock fittings provide a robust and secure connection capable of withstanding the rated pressure of 125 PSI. The internal gripping mechanism ensures the tubing remains firmly in place, even under vibration or pulsating pressures typical in mobile equipment.
- Reusable and Reconfigurable: These fittings can be easily disconnected by pressing the release collar, allowing for system modifications, maintenance, or component replacement without damaging the tubing or fitting. This reusability offers flexibility and economic benefits over the lifecycle of the system.
- Corrosion Resistance: Brass, as a material, offers excellent resistance to corrosion and rust, making these fittings ideal for exposure to moisture, road salts, and various environmental contaminants commonly encountered in vehicle and outdoor industrial applications. This material choice contributes to the overall longevity and reliability of the pneumatic system.
- Optimal Sealing: The internal O-ring seal provides a leak-free connection, critical for maintaining system pressure and efficiency, preventing air loss, and ensuring consistent actuator performance.
DOT Approved 25 ft x 1/4 in. Diameter Nylon Tubing: Durability and Compliance
A crucial component of the BAV040 kit is the 25 feet of 1/4 inch diameter nylon tubing, which is explicitly DOT (Department of Transportation) approved. DOT approval is a significant indicator of quality and safety, particularly for applications involving commercial vehicles. It signifies that the tubing meets stringent federal standards for performance, durability, and safety under various operating conditions, including temperature extremes, vibration, and exposure to certain chemicals. Key attributes of the included tubing:
- DOT Compliance: Essential for vehicle applications where air lines are subject to federal regulations (e.g., air brake systems, auxiliary air systems on trucks). This compliance ensures the tubing can withstand the operational stresses and environmental factors inherent in mobile equipment.
-
Material Properties (Nylon): Nylon tubing is favored in pneumatic systems due to its exceptional balance of properties:
- Flexibility: It offers sufficient flexibility for easy routing and installation around vehicle chassis or machinery, while maintaining structural integrity.
- Chemical Resistance: Nylon exhibits good resistance to common automotive and industrial fluids, including oils, greases, and many solvents, ensuring long-term performance in varied environments.
- Abrasion Resistance: The material is tough and resistant to abrasion, protecting against wear from rubbing against other components or surfaces.
- Pressure Rating: Designed to handle the rated pressure of the system (125 PSI for the BAV040 kit) with a substantial safety margin.
- Temperature Range: Capable of performing reliably across a wide range of operating temperatures, from extreme cold to elevated heat, without becoming brittle or soft.
- Optimal Size (1/4 inch): The 1/4 inch (0.250 inch) diameter is a standard and highly versatile size for pneumatic control lines, balancing adequate airflow for most small to medium-sized actuators with manageable size for routing and installation.
- Generous Length (25 ft): The 25-foot length provides ample material for most standard installations, minimizing the need for additional purchases and accommodating various layout requirements on vehicles or industrial equipment.
Deep Dive into Technical Specifications and Performance Parameters
The detailed specifications of the Buyers Products BAV040 kit provide critical insights into its operational capabilities and design intent. Each parameter has been carefully selected to ensure the valve performs optimally in its intended applications.
Number of Ports and Port Size
The specification lists "Number of Ports: 2" and "Port Size: 0.250". As discussed, while functionally a "4-Way" valve directs air to two sides of an actuator and exhausts from two sides, the "2 Ports" likely refers to the two physical output ports that connect directly to the double-acting actuator. The internal design of the valve manages the pressure inlet and exhaust functions. The 0.250-inch (1/4-inch) port size is standard for many pneumatic control applications, balancing efficient air flow with compact sizing suitable for mobile and light industrial equipment. This size typically provides sufficient volume for rapid actuation of pneumatic cylinders and motors used in auxiliary vehicle functions.
Rated Pressure: 125 PSI
The valve is rated for a pressure of 125 PSI (Pounds per Square Inch). This rating indicates the maximum operating pressure the valve is designed to safely and effectively handle. It aligns with common compressed air system pressures found in commercial vehicles and industrial facilities, which typically operate between 90-120 PSI. The 125 PSI rating provides a necessary safety margin above typical operating pressures, ensuring the valve maintains its integrity and performance even under momentary pressure spikes. Operating within or below this rated pressure is essential for the longevity and reliability of the valve and the entire pneumatic system.
Valve Action: Non-Feathering
As previously detailed, the non-feathering action ensures full, instantaneous flow when actuated. This characteristic is not merely a design choice but a performance commitment. It guarantees that the operator's command translates directly into a swift and complete action of the pneumatic actuator, avoiding the ambiguities or control challenges associated with partially open valves. This makes it ideal for functions where a definite ON/OFF state is preferred over nuanced speed modulation.
Valve Actuation: Manual Lever
The manual lever actuation provides a direct, tactile interface between the operator and the pneumatic system. This method is preferred in many rugged applications due to its reliability, simplicity, and the immediate physical feedback it offers. Operators can physically feel the valve engaging in each of its three positions, enhancing confidence in control execution. The manual nature means no electrical signals or complex electronics are required, contributing to the valve's robustness and ease of troubleshooting in the field.
Valve Primary Application: Neutral Lockout Air Valve Kit
The primary application designation clearly highlights the core value proposition: a kit centered around a neutral lockout air valve. This emphasizes that the product is specifically designed for scenarios where safety through secure neutral positioning is paramount. It is a solution tailored for environments where controlled, intentional movements are critical, and accidental activation must be rigorously prevented.
Applications and Use Cases: Where Precision and Safety Intersect
The Buyers Products BAV040 4-Way, 3-Position Air Valve Kit is meticulously engineered for a wide array of demanding applications where reliable pneumatic control, coupled with stringent safety measures, is non-negotiable. Its unique combination of neutral lockout, non-feathering action, and spring return to neutral makes it an ideal choice across several sectors.
Mobile Equipment and Commercial Vehicles
This kit is particularly well-suited for the mobile equipment industry, where pneumatic systems are integral to various auxiliary functions:
- Dump Trucks: Controlling the hydraulic hoist mechanism that raises and lowers the dump bed. The neutral lockout prevents accidental bed deployment or descent while the vehicle is in motion or parked.
- Snow Plows: Managing the lift, angle, or float functions of snow plow blades. Non-feathering ensures immediate, full response for effective snow removal, while the lockout secures the blade position.
- Salt/Sand Spreaders: Actuating gates or mechanisms for dispensing de-icing materials.
- Utility Vehicles: Operating outriggers, auxiliary lifts, or tool functions on service and utility trucks where stability and controlled movements are essential. The spring return ensures that functions are disengaged upon release.
- Tow Trucks: Controlling various functions on recovery vehicles, such as boom extensions or wheel lifts, where precise and safe operation is critical.
Industrial Machinery and Automation
Beyond mobile applications, the BAV040 finds significant utility in industrial settings:
- Clamping and Fixturing Systems: Actuating pneumatic clamps or vises on manufacturing assembly lines, ensuring workpieces are securely held during processing. The lockout prevents accidental release.
- Material Handling: Controlling pneumatic gates, diverters, or positioning mechanisms on conveyor systems or sorters.
- Presses and Punches: Managing the up/down strokes of small to medium pneumatic presses where rapid, full-stroke action is required, and a safe neutral is crucial during setup or standby.
- Process Control: Actuating large industrial valves or dampers pneumatically, where a definitive open or closed state is needed.
Agricultural Equipment
Farmers utilize pneumatic systems for controlling various implements and functions on tractors and specialized agricultural machinery. The BAV040 can be used for:
- Actuating pneumatic cylinders on planting equipment, cultivators, or harvesting machinery.
- Controlling auxiliary functions that require robust and reliable ON/OFF pneumatic power.
In all these diverse scenarios, the overarching benefits of the BAV040—enhanced safety through lockout and spring return, consistent and reliable performance via non-feathering action, and ease of installation with a complete kit—make it a superior choice for effective pneumatic control.
Installation and Maintenance Considerations
While the Buyers Products BAV040 Air Valve Kit is designed for straightforward installation and minimal maintenance, adherence to best practices is crucial for optimal performance and longevity.
Installation Guidelines
- Clean Air Supply: Ensure the pneumatic system has a clean, dry, and regulated air supply. Contaminants like moisture, oil, or particulate matter can significantly reduce the lifespan of pneumatic components. An air filter, regulator, and lubricator (FRL unit) upstream of the valve is highly recommended, especially in industrial environments.
- Tubing Routing: When routing the 1/4 inch nylon tubing, avoid sharp bends, kinks, or areas where it could be pinched, abraded, or exposed to excessive heat. Use appropriate tube clips and clamps to secure the tubing, preventing vibration and stress on the fittings.
- Fittings Connection: Utilize the brass push lock fittings by ensuring the tubing end is cut clean and square. Simply push the tubing firmly into the fitting until it bottoms out. A slight tug back will confirm the connection is secure. To disconnect, press the release collar evenly against the fitting body and pull the tubing out.
- Valve Mounting: While a console is sold separately, the valve should be securely mounted in an accessible location, allowing for easy operation of the manual lever and visual inspection. Ensure proper orientation for inlet, exhaust, and work ports as per system design.
- Leak Testing: After installation, thoroughly test the entire pneumatic circuit for leaks using a soapy water solution. Any bubbles indicate a leak that must be addressed to prevent pressure loss and ensure efficient operation.
Maintenance Practices
The robust design of the BAV040 kit typically requires minimal ongoing maintenance. However, periodic inspections are recommended:
- Tubing Inspection: Regularly inspect the nylon tubing for signs of wear, cuts, abrasions, or degradation. Replace any compromised sections promptly to prevent leaks or failures.
- Fittings Inspection: Check brass push lock fittings for any signs of loosening, damage, or air leaks. Ensure the tubing is still fully seated.
- Valve Operation: Periodically actuate the manual lever through all three positions to confirm smooth operation and that the spring return and neutral lockout mechanisms are functioning correctly.
- Air Quality: Monitor the performance of your FRL unit. Replace filter elements as needed and drain moisture traps regularly to maintain clean air quality to the valve.
The Buyers Products Advantage: Reliability, Safety, and Value
The Buyers Products BAV040 4-Way, 3-Position Air Valve Kit encapsulates the brand's commitment to delivering high-quality, dependable solutions for demanding applications. This kit offers a compelling value proposition rooted in several key advantages:
- Comprehensive and Ready-to-Install: By bundling the robust air valve with brass push lock fittings and DOT-approved nylon tubing, Buyers Products provides a complete kit that streamlines the procurement and installation process, saving time and ensuring component compatibility.
- Uncompromised Safety Features: The integrated neutral lockout mechanism and spring return to neutral (deadman control) are paramount safety features. They prevent accidental actuation, secure equipment in a safe position upon release, and contribute significantly to a safer operating environment for both personnel and equipment.
- Consistent and Reliable Performance: The non-feathering action guarantees rapid, full-flow actuation, leading to predictable and consistent control of pneumatic actuators. This reliability is crucial for applications where repeatable and decisive movements are essential.
- Durability and Longevity: Constructed with high-quality materials, including durable valve components and corrosion-resistant brass fittings, the BAV040 kit is built to withstand the harsh conditions prevalent in mobile and industrial environments, ensuring a long operational lifespan and reduced downtime.
- Ease of Use and Installation: The manual single-lever actuation offers intuitive control, while the push-lock fittings simplify connection and disconnection of tubing, making installation and maintenance more efficient.
- DOT Compliance Assurance: The inclusion of DOT-approved tubing provides an added layer of confidence for vehicle-based applications, affirming that the components meet rigorous industry standards for safety and performance on public roads.
