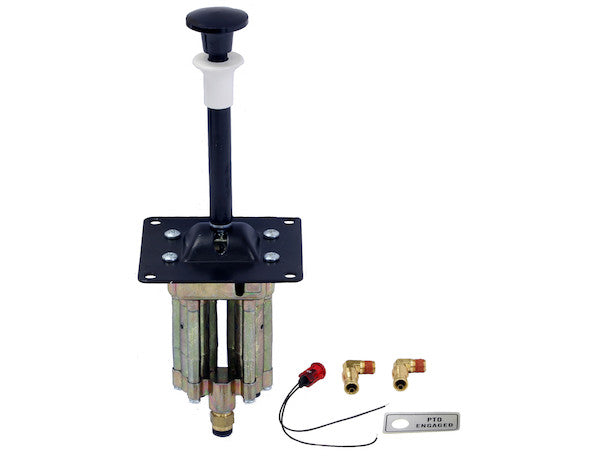

K1010FAS - Neutral Lockout/Feathering Air Control Valve Kit

Buyers Products K1010 Series 4-Way, 3-Position Feathering Air Valve Kit contains a spring-return air valve with push lock fittings. The kit also includes durable, DOT approved 25 ft by 1/4 in. diameter nylon tubing.

Specifications

Buyers Products K1010 Series: Precision Pneumatic Control with Enhanced Safety and Durability

The Buyers Products K1010 Series Neutral Lockout/Feathering Air Control Valve Kit represents a meticulously engineered solution for demanding pneumatic control applications, particularly in mobile and industrial environments where precise operation, operator safety, and system integrity are paramount. This comprehensive kit provides a robust platform for controlling double-acting pneumatic cylinders and actuators, offering unparalleled control over the speed and position of actuated components. Designed for professional use, the K1010 Series integrates critical functionalities such as feathering capability, a neutral lockout mechanism, and a spring-return deadman control, all within a durable and easily installable package.

Advanced 4-Way, 3-Position Valve Architecture

At the core of the K1010 Series kit is its advanced 4-way, 3-position air valve. This configuration is fundamental for controlling double-acting pneumatic cylinders, which require air pressure to extend and retract. A 4-way valve means it has four primary flow paths: one for pressure inlet, one for exhaust, and two for the work ports connected to opposite sides of the cylinder. The 3-position design refers to the distinct states the valve can assume: extended (actuator extends), retracted (actuator retracts), and a central neutral position. In the neutral position, a key feature of this valve is its ability to block airflow to and from the work ports, effectively locking the actuator in its last position. This capability is critical for applications requiring an actuator to hold a load or maintain a specific position without drift.

While the functional description specifies "4-Way, 3-Position," the physical manifestation of the valve in this kit features "Number of Ports: 3." This typically implies a streamlined design where the pressure inlet and two work ports (A and B) are readily accessible, with the exhaust mechanism being either integrated internally or configured in a way that minimizes external connections, often consolidating exhaust pathways to optimize space and simplify plumbing. The 0.250-inch port size ensures compatibility with standard pneumatic tubing and fittings, providing adequate flow rates for a wide range of mobile and industrial actuators operating within the rated pressure of 125 PSI.

Precision Feathering Control

The feathering capability is a standout feature of the K1010 Series valve, elevating operational control beyond simple ON/OFF actuation. Feathering, in pneumatic systems, refers to the ability to proportionally control the flow rate of air to an actuator by partially opening the valve. This allows the operator to precisely regulate the speed of the cylinder's extension or retraction, as well as fine-tune its stopping position. Unlike standard two-position valves that provide only full-speed movement, a feathering valve enables gradual, controlled motion. This is invaluable in applications where sudden movements could cause damage, instability, or compromise safety. For instance, in snowplow operations, feathering allows the operator to gently angle or lift the blade, preventing jarring impacts on the vehicle or the plow itself. In material handling, it permits careful positioning of loads, reducing the risk of product damage and improving overall operational efficiency.

The manual lever actuation directly translates the operator's input into precise air flow modulation. The more the lever is moved from the neutral position, the greater the airflow, and consequently, the faster the actuator moves. This tactile feedback system provides an intuitive interface for operators, allowing them to achieve granular control even in dynamic working conditions. The robust internal mechanism of the valve is designed to withstand continuous modulation, ensuring consistent and reliable feathering performance throughout its operational lifespan.

Uncompromised Safety with Neutral Lockout and Deadman Control

Safety is a primary design consideration for the K1010 Series, evident through its integrated Neutral Lockout and spring-return (deadman) control features. The Neutral Lockout functionality ensures that when the valve's manual lever is released, it automatically returns to the central neutral position, where all work ports are blocked. This means that the pneumatic actuator is locked in its current position, preventing unintended movement due to external forces, pressure fluctuations, or accidental bumps to the valve. This is critically important in applications such as holding a dump bed in a partially raised position, securing a plow blade, or stabilizing any load-bearing pneumatic system.

Complementing the neutral lockout is the spring-return mechanism, also known as "deadman control." This design mandates continuous operator engagement for the valve to remain in an actuated (extend or retract) position. Upon release of the manual lever, internal springs promptly return the valve spool to its neutral, locked-out state. This "deadman" characteristic is a fundamental safety principle in many industrial controls, preventing accidental or unattended activation. Should the operator become incapacitated or simply release the control, the system defaults to a safe, static state, significantly reducing the risk of accidents, equipment damage, or injury to personnel. This dual layer of safety — neutral lockout for position holding and deadman control for active operation — makes the K1010 Series an exceptionally safe choice for demanding mobile and stationary pneumatic systems.

Durable Construction and High-Quality Components

The Buyers Products K1010 Series kit is constructed with durability and reliability in mind, utilizing high-quality materials suited for harsh operating environments:

• Valve Body: The core valve mechanism is engineered for resilience, capable of withstanding the rigors of mobile equipment operation, including vibration, temperature fluctuations, and exposure to various contaminants. The internal components are designed for a long cycle life, ensuring consistent performance over extended periods.
• Brass Push Lock Fittings: The kit incorporates brass push lock fittings for all pneumatic connections. Brass is an excellent material for pneumatic fittings due to its superior corrosion resistance, high tensile strength, and good thermal conductivity. These fittings provide a secure, leak-free connection without the need for specialized tools, significantly simplifying installation and maintenance. The push lock design allows for quick and easy insertion and removal of tubing, reducing downtime and labor costs during setup or system modifications. Their robust construction ensures they can withstand the typical pressures and mechanical stresses found in mobile pneumatic systems.
• DOT Approved Nylon Tubing: The kit includes 25 feet of 1/4 inch diameter nylon tubing, which is not only durable but also DOT (Department of Transportation) approved. The DOT approval signifies that the tubing meets stringent standards for use in braking and air accessory systems on commercial vehicles, guaranteeing its safety, reliability, and pressure integrity. Nylon tubing offers excellent resistance to abrasion, chemicals, and impact, making it ideal for routing in exposed areas of vehicles and machinery. Its flexibility allows for easier installation around obstacles, while its robust construction ensures it can handle the rated pressure of 125 PSI without compromising performance or safety. The generous 25-foot length provides ample material for most standard installations, minimizing the need for additional purchases.

Technical Specifications and Operational Parameters

A detailed understanding of the K1010 Series specifications underscores its suitability for professional applications:

• Feathering: Yes - Confirms the proportional control capability for precise actuator speed and position.
• Neutral Lock Out: Yes - Essential for safety, preventing actuator drift when the valve is in its neutral state.
• Number of Ports: 3 - As discussed, these typically include a pressure inlet and two work ports (A and B), with an efficiently managed exhaust system. This configuration simplifies plumbing while retaining full 4-way functional control over a double-acting cylinder.
• Port Size: 0.250 inches - Standard dimension for pneumatic lines, ensuring adequate airflow for responsive control and compatibility with common actuators.
• Port Type: Brass Push Lock Fittings - Provides secure, quick, and corrosion-resistant connections, enhancing ease of installation and maintenance.
• Rated Pressure: 125 PSI - Indicates the maximum safe operating pressure, aligning with typical compressed air systems in mobile and industrial settings. This rating provides a substantial safety margin for common 80-100 PSI operating pressures.
• Spring to Neutral / Deadman Control: Y - Verifies the crucial safety feature that returns the valve to a safe, neutral, locked position upon release of the manual lever.
• Valve Action: Feathering - Reinforces the core functionality of modulated airflow for precise control.
• Valve Actuation: Manual Lever - Offers direct, intuitive, and tactile control to the operator, allowing for nuanced adjustments.
• Valve Primary Application: Neutral Lockout Air Valve Kit - Highlights its core purpose in providing safe and controlled pneumatic operation.

Installation and System Integration

The K1010 Series kit is designed for straightforward installation and seamless integration into existing or new pneumatic systems. The inclusion of brass push lock fittings significantly reduces installation time and complexity. Users can simply push the 1/4-inch nylon tubing into the fittings for a secure, leak-tight connection. The pre-cut 25-foot length of DOT-approved tubing provides flexibility in mounting the valve in an ergonomic and accessible location within the vehicle cab or operator station, while still reaching the actuator. A typical installation would involve connecting the primary air supply line to the valve's pressure inlet port, and then connecting the two work ports (A and B) to the respective extend and retract ports of a double-acting pneumatic cylinder. The manual lever should be positioned for easy and safe access by the operator, ensuring that the deadman control can be effectively utilized.

Versatile Applications

The robust design, precision control, and inherent safety features of the Buyers Products K1010 Series valve kit make it ideally suited for a broad array of demanding applications across various industries:

• Snow and Ice Management: Essential for controlling snowplow angling, lifting, and down-pressure functions, allowing operators to precisely adjust blade position for optimal snow removal without abrupt movements. Also ideal for controlling spreaders, allowing for precise material flow adjustments.
• Dump Body Operations: Provides safe and controlled operation of dump truck hoists, tailgates, and other auxiliary pneumatic functions. The neutral lockout ensures the dump bed can be held securely at any intermediate position.
• Utility and Municipal Vehicles: Used in vocational trucks for controlling various attachments and specialized equipment, where fine adjustments are often necessary.
• Agricultural Equipment: Enhances control over hydraulic or pneumatic cylinders on implements such as loaders, bale spears, and tillage equipment, improving efficiency and preventing damage.
• Material Handling Equipment: Critical for precision control of lift gates, loading ramps, conveyor diverters, and other pneumatic actuators, ensuring safe and gentle handling of goods.
• Construction Machinery: Applicable to various attachments on excavators, backhoes, and other heavy equipment where precise articulation of pneumatic cylinders is required.
• Industrial Automation: For applications requiring manual, intermittent, yet precise pneumatic control in factory settings, where direct operator intervention with safety interlocks is beneficial.

Conclusion

The Buyers Products K1010 Series Neutral Lockout/Feathering Air Control Valve Kit stands as a premier solution for sophisticated pneumatic control. Its integration of 4-way, 3-position functionality with advanced feathering capabilities, coupled with critical safety features like neutral lockout and deadman control, positions it as an indispensable component for precise and secure operation of double-acting pneumatic actuators. The kit's durable construction, featuring robust brass push lock fittings and DOT-approved nylon tubing, ensures exceptional longevity and ease of maintenance in the most challenging mobile and industrial environments. For professionals seeking a high-performance, reliable, and safety-conscious pneumatic control system, the K1010 Series offers an unparalleled combination of precision, durability, and operational security, making it a valuable investment for enhancing efficiency and safety across diverse applications.
