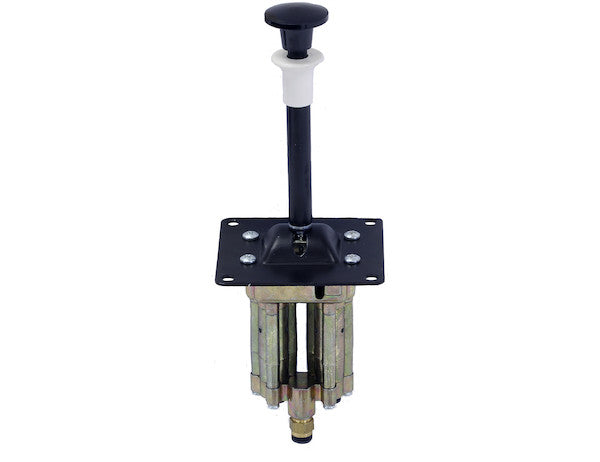

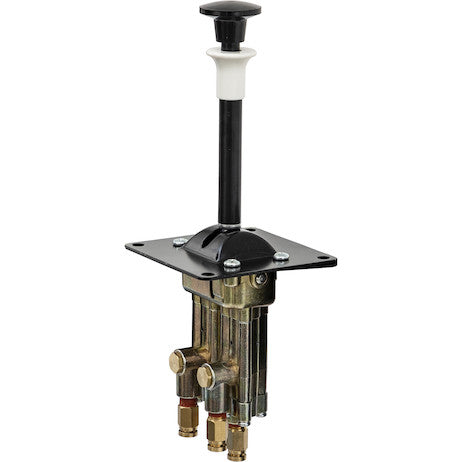

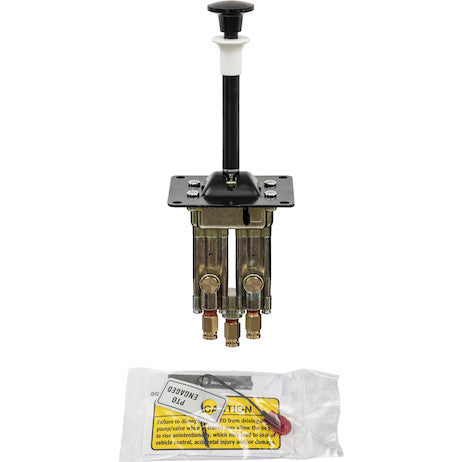

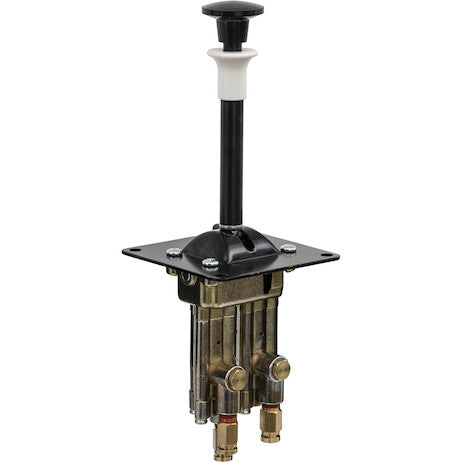

K1010FAS1 - Neutral Lockout/Feathering Air Control Valve Only

The K1010 Series 4-Way, 3-Position Feathering Air Valve (Valve Only) by Buyers Products, provides a neutral lockout/feathering pneumatic control. Valve Only.

Specifications

The K1010 Series Neutral Lockout/Feathering Air Control Valve, available as a standalone unit, represents a pinnacle in pneumatic control technology, specifically engineered for applications demanding both precise modulation and rigorous safety interlocks. Manufactured by Buyers Products, a recognized leader in robust vehicle and industrial components, this 4-way, 3-position air valve is designed to deliver unparalleled operational flexibility and reliability in challenging environments. Its core functionality revolves around providing comprehensive control over pneumatic actuators, typically double-acting cylinders, through a combination of feathering capability and a critical neutral lockout mechanism.

At its heart, the K1010 Series valve is a 4-way, 3-position directional control valve. The designation "4-way" signifies its capacity to manage four distinct airflow paths: a pressure inlet (P), an exhaust port (E), and two work ports (A and B). This configuration is fundamental for controlling double-acting pneumatic cylinders, allowing pressure to be directed to one side of the cylinder while simultaneously venting the opposite side, thereby extending or retracting the cylinder rod. The "3-position" aspect indicates the valve's ability to operate in three distinct states: a central, neutral position, and two actuated positions (e.g., extend and retract). In the neutral position, the valve typically blocks all ports or connects them to exhaust, preventing unintentional movement of the actuator. The K1010 Series is further enhanced by its "spring to neutral" or "deadman" control, meaning the manual lever actuation automatically returns to the neutral position when released. This inherent safety feature is paramount in preventing accidental activation and ensuring the controlled system defaults to a safe, static state.

A point of clarification regarding the specified "Number of Ports: 3" for a "4-Way" valve is essential for a precise technical understanding. While a 4-way functional description typically implies a minimum of four, and often five, physical ports (pressure, two work ports, and one or two exhaust ports), the "3 ports" specification for the K1010 Series likely refers to the primary, user-connectable input and output lines: one pressure inlet and two work ports (A and B) for controlling a double-acting cylinder. In such designs, the exhaust function, which is integral to 4-way operation, might be managed internally within the valve body and vented to atmosphere through non-explicitly listed orifices or integrated into the main valve structure, rather than requiring separate, distinct exhaust connection ports for the user. This streamlined external port count can contribute to a more compact installation footprint while retaining full 4-way functionality, allowing for efficient control of pneumatic cylinders in extension and retraction cycles.

The "feathering" capability is a defining characteristic of the K1010 Series, setting it apart from standard on/off pneumatic valves. Feathering, in the context of pneumatic control, refers to the ability to precisely modulate the flow rate of compressed air to an actuator. Unlike binary (on/off) valves that provide full flow or no flow, a feathering valve allows the operator, through fine manipulation of the manual lever, to achieve intermediate flow rates. This translates directly into proportional control over the speed and force of the pneumatic actuator. For example, slowly pushing the lever might cause a cylinder to extend gradually, while pushing it further increases the extension speed. This level of granular control is indispensable in applications where delicate positioning, controlled acceleration/deceleration, or variable force application is required. The manual lever actuation provides tactile feedback, allowing operators to develop a nuanced feel for the system's response, which is critical for achieving fine adjustments in real-time. This direct, mechanical interface ensures immediate response and eliminates the latency sometimes associated with electronically controlled systems, proving advantageous in dynamic operational scenarios.

Complementing the feathering control is the integrated "neutral lockout" feature. This safety mechanism ensures that when the valve is in its central, neutral position, the system it controls remains immobile and secure. The neutral lockout prevents inadvertent actuation, offering a critical layer of safety during standby periods, maintenance, or when equipment is operating in close proximity to personnel. The "Spring to Neutral / Deadman Control" further reinforces this safety aspect. This design dictates that the manual lever must be actively held in an actuated position to maintain air flow to the respective work port. Upon release, internal springs automatically return the lever to the neutral, lockout position, cutting off air supply to the work ports and often venting residual pressure to atmosphere. This prevents runaway operation and ensures that the controlled load or implement immediately stops movement if the operator becomes distracted or incapacitated. Such a feature is invaluable in heavy machinery applications like snow plows, dump beds, and hoists, where unintended movement can pose significant safety hazards to operators and bystanders, as well as potential damage to equipment or property. The combination of feathering for precision and neutral lockout for safety positions the K1010 Series as a superior choice for demanding pneumatic control tasks.

Delving into the technical specifications, the K1010 Series valve features 0.250-inch port sizes, equipped with Brass Push Lock Fittings. The 0.250-inch dimension is a common and versatile size for pneumatic tubing in mobile and industrial applications, balancing sufficient flow capacity for many actuators with a compact footprint. The use of Brass Push Lock Fittings is a significant advantage. These fittings allow for quick, tool-free connection and disconnection of pneumatic tubing, drastically reducing installation and maintenance time. The brass construction offers excellent corrosion resistance, superior strength, and durability compared to plastic alternatives, ensuring a robust and leak-free connection even under vibration and varying temperatures. This choice of fitting material speaks to the product's design for longevity and reliability in harsh operating conditions, where pneumatic connections are often exposed to moisture, road salts, and mechanical stresses.

The valve is rated for a pressure of 125 PSI (pounds per square inch). This pressure rating is well within the typical operating range for industrial and mobile pneumatic systems. Standard shop air compressors often deliver air between 90 and 120 PSI, making the 125 PSI rating for the K1010 Series valve perfectly suited for most common applications. A robust pressure rating indicates that the valve components are designed to withstand sustained internal pressure without leakage or failure, contributing to system efficiency and safety. Maintaining appropriate pressure within pneumatic systems is crucial for consistent performance and avoiding premature component wear.

The "Valve Actuation: Manual Lever" emphasizes the direct, mechanical interface between the operator and the valve. This method offers several benefits: it's intuitive to use, provides immediate tactile feedback to the operator, and does not require complex electrical circuitry or programming. The simplicity of a manual lever translates to high reliability, ease of maintenance, and suitability for environments where electrical systems might be vulnerable to moisture, dust, or electromagnetic interference. The robust construction of the lever and its internal mechanism ensures consistent performance over thousands of actuation cycles, crucial for applications involving frequent operation.

Beyond the listed specifications, the inherent design principles of the K1010 Series suggest a focus on durability and performance. Materials chosen for internal components would typically include high-grade elastomers for seals, ensuring airtight integrity and resistance to wear, compatible with standard compressed air (which may contain trace amounts of oil for lubrication). The valve body itself is likely constructed from durable metals, such as machined aluminum or brass, providing structural rigidity and resistance to external impacts and environmental degradation. The precise machining of internal passages and spools is critical for achieving smooth feathering action and reliable sealing in all three positions, minimizing internal leakage and maximizing operational efficiency.

The K1010 Series valve finds its primary application as a "Neutral Lockout Air Valve Only," signifying its role as a dedicated control interface. Its capabilities make it exceptionally well-suited for a diverse range of mobile equipment and industrial machinery. In the realm of vehicle applications, it is ideal for controlling snow plow angles and lifts, dump truck hoist cylinders, salt spreader gates, and various auxiliary functions on utility vehicles. For instance, in snow plowing, the feathering control allows operators to precisely adjust the plow's angle or height to navigate varied terrain and snow depths without abrupt movements that could damage the plow or the road surface. The neutral lockout ensures the plow remains securely in position when not actively controlled, preventing unintended drops or shifts. Similarly, for dump beds, feathering enables a controlled, gradual lowering or raising, preventing sudden impacts or spills, while the lockout provides safety during transport or when the bed is elevated for maintenance.

In industrial settings, this valve is invaluable for material handling equipment, such as small hoists, conveyors, or pneumatic clamping systems where precise positioning and safe operation are paramount. Agricultural machinery can benefit from its ability to control implements with feathered precision, enhancing operational efficiency and safety in the field. The reliability and robust design also make it suitable for construction equipment, municipal vehicles, and any application where pneumatic power is utilized to move, lift, or position loads requiring fine control and a secure rest state.

Successful integration and longevity of the K1010 Series valve depend on adherence to fundamental pneumatic system best practices. The supply of clean, dry, and optionally lubricated compressed air is critical. Contaminants like rust particles, water, or oil sludge can degrade internal seals and restrict air passages, leading to premature wear and inconsistent performance. Therefore, upstream air preparation units, including filters, regulators, and lubricators (FRLs), are highly recommended. Proper tubing selection, ensuring correct sizing and material compatibility, along with secure routing to prevent kinking or abrasion, will maintain system integrity and performance. Mounting the valve securely to a stable surface, protected from excessive vibration and direct environmental exposure where possible, will further extend its service life. While the brass push-lock fittings offer robust connections, periodic inspection for wear or damage to tubing and fittings is advisable to prevent leaks and maintain system efficiency.

In conclusion, the K1010 Series Neutral Lockout/Feathering Air Control Valve by Buyers Products is a sophisticated yet robust pneumatic component engineered for precision and safety. Its 4-way, 3-position design, coupled with advanced feathering capabilities and an essential neutral lockout with spring-to-neutral functionality, provides operators with unparalleled command over pneumatic actuators. The use of durable brass push-lock fittings for 0.250-inch ports and a 125 PSI pressure rating underscores its suitability for demanding industrial and mobile applications. This valve is not merely an air control device; it is a critical safety and efficiency enhancer, enabling precise mechanical movements while safeguarding against operational hazards. Its direct manual lever actuation offers intuitive, reliable control, making it an indispensable component for systems requiring both fine modulation and unwavering operational security across a wide spectrum of applications.
