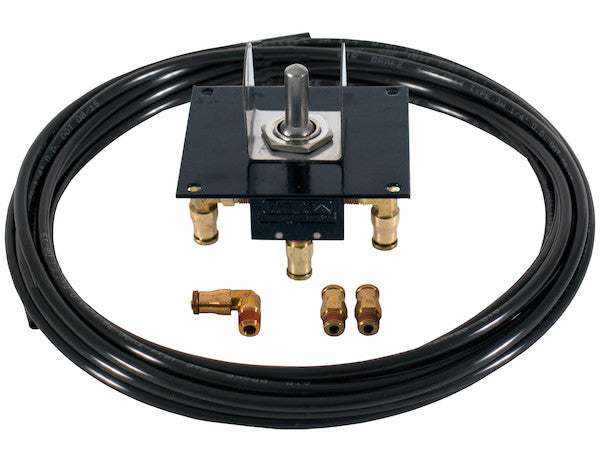

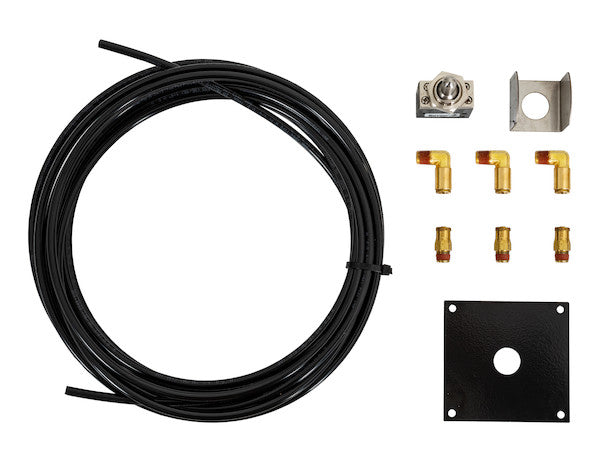

Buyers Products Toggle Air Valve Kit has a momentary switch and a spring-return air toggle valve. The kit includes brass push lock fittings, a stainless steel finger guard, and console adapter plate. The nylon tubing is DOT approved and is 25 ft by 1/4 in. diameter in size.
Specifications
| Feathering | No |
|---|---|
| Neutral Lock Out (y/n) | No |
| Number of Ports | 3 |
| Port Size | 0.250 |
| Port Type | Brass Push Lock Fittings |
| Rated Pressure | 125 |
| Spring to Neutral / Deadman Control (y/n) | Y |
| Valve Action | Limited Feathering |
| Valve Actuation | Manual Toggle |
| Valve Primary Application | Spring Return |
Advanced Technical Overview: Toggle Style Air Control Valve Kit
The Buyers Products Toggle Air Valve Kit represents a meticulously engineered solution for the precise and reliable control of pneumatic systems across a diverse range of mobile and stationary applications. Designed with an emphasis on operator safety, intuitive functionality, and robust construction, this kit provides all necessary components for a comprehensive pneumatic control station. Its core functionality revolves around a momentary switch integrated with a spring-return air toggle valve, a configuration inherently suited for operations requiring a 'deadman' control, where system activation is directly tied to continuous operator engagement.
Core Functional Principles: Momentary Toggle and Spring Return Mechanism
At the heart of this kit is the Toggle Air Valve, a 3-port pneumatic valve designed for directional control. The "Manual Toggle" actuation mechanism provides direct, tactile feedback to the operator, ensuring positive engagement. Unlike detented valves that lock into position, this valve features a "Momentary Switch" and "Spring-Return" action. This means the valve remains activated only for as long as the operator holds the toggle in the engaged position. Upon release, an internal spring mechanism swiftly returns the toggle and the valve spool to its default, neutral state. This characteristic is explicitly denoted by the "Spring to Neutral / Deadman Control (Y)" specification.
The 3-port configuration is standard for many pneumatic control applications. Typically, one port serves as the supply (receiving pressurized air), another as the output (delivering air to the controlled device, such as an air cylinder or air horn), and the third as the exhaust (venting air from the output line when the valve is de-activated or returned to neutral). When the toggle is actuated, the supply port is connected to the output port, allowing pressurized air to flow. When released, the output port is typically connected to the exhaust, rapidly relieving pressure from the downstream component, ensuring quick and predictable system response. The "Rated Pressure" of 125 PSI indicates its compatibility with standard vehicle and industrial compressed air systems, offering ample capacity for most auxiliary pneumatic functions.
Understanding Valve Action: Limited Feathering vs. Proportional Control
The specifications "Feathering: No" and "Valve Action: Limited Feathering" might initially appear contradictory, but they highlight a crucial distinction in pneumatic control. "Feathering: No" typically refers to the absence of full, continuous proportional control. A true proportional valve allows for a precise, variable output pressure or flow rate directly correlated to the degree of operator input. This kit, however, offers "Limited Feathering." This implies that while it is not a fully proportional valve, an experienced operator can, through nuanced and brief activations of the momentary toggle, achieve a degree of modulated airflow. This might be useful for applications where a gradual engagement or disengagement of an air-actuated device is beneficial, rather than an abrupt on/off. For instance, an operator might momentarily "tap" the toggle to partially fill an air bag or slowly engage a PTO, providing finer control than a purely binary switch, yet without the complexity and cost of a true proportional valve system. The absence of "Neutral Lock Out" reinforces the momentary nature, ensuring the valve does not accidentally remain in an active state.
Integrated Components for Comprehensive System Assembly
The kit's value extends beyond the valve itself, encompassing essential ancillary components designed for seamless integration and robust performance:
Brass Push Lock Fittings: Secure and Efficient Connections
Included in the kit are durable "Brass Push Lock Fittings." These fittings are specified with a "Port Size" of 0.250 inches, ensuring compatibility with the provided nylon tubing. Brass is an excellent material choice for pneumatic fittings due to its superior corrosion resistance, particularly in environments exposed to moisture and varying temperatures, which are common in vehicular and outdoor industrial settings. Its inherent strength also provides robust mechanical integrity, resisting deformation under pressure and vibration. Push-lock fittings are renowned for their ease of installation and reliability. They allow for rapid connection and disconnection of tubing without specialized tools, relying on an internal collet and O-ring system to create a secure, leak-proof seal simply by inserting the tubing. This design significantly reduces installation time and simplifies maintenance, while ensuring the integrity of the pneumatic circuit at the rated pressure of 125 PSI.
DOT Approved Nylon Tubing: Reliability and Compliance
The kit supplies "Nylon Tubing" measuring "25 ft by 1/4 in. diameter." The specification "DOT Approved" is paramount, particularly for applications on commercial vehicles. DOT (Department of Transportation) approval signifies that the tubing meets stringent safety and performance standards established for pneumatic braking and auxiliary air systems on public roadways. This approval guarantees high burst pressure resistance, excellent flexural fatigue resistance, and chemical compatibility with typical air system contaminants (e.g., oil mist from compressors). Nylon tubing offers several advantages over other materials: it is lightweight, flexible for easy routing, resistant to abrasion, and capable of operating across a broad temperature range without significant degradation of performance. The 1/4-inch diameter is a common size for auxiliary air lines, providing an adequate flow rate for most control applications while minimizing space requirements and pressure drop over the 25-foot length.
Stainless Steel Finger Guard: Enhancing Operator Safety
A "Stainless Steel Finger Guard" is an integral safety feature of this kit. Positioned around the toggle lever, it physically prevents accidental actuation of the valve, protecting the operator from unintended system activation. This is particularly crucial in environments where operators wear gloves or in confined spaces where inadvertent contact is possible. Stainless steel is selected for this component due to its exceptional durability, resistance to corrosion, and aesthetic appeal. It withstands harsh operational conditions, including exposure to chemicals, impacts, and extreme temperatures, ensuring long-term protective functionality without degradation.
Console Adapter Plate: Facilitating Professional Installation
The inclusion of a "Console Adapter Plate" streamlines the professional integration of the toggle valve into various vehicle dashboards or control panels. This plate provides a stable and secure mounting surface, allowing the valve to be flush-mounted or surface-mounted, depending on the console design and aesthetic requirements. It simplifies the installation process by providing a pre-engineered solution for mounting, eliminating the need for custom fabrication or modification of the console. This ensures a clean, organized, and robust installation, contributing to the overall reliability and ergonomic design of the control station.
Applications and Operational Context
This Toggle Style Air Control Valve Kit is ideally suited for a wide array of pneumatic control tasks, particularly within heavy-duty mobile equipment, commercial vehicles, and industrial machinery where robust, operator-controlled air actuation is required. Common applications include, but are not limited to:
- Auxiliary Air System Control: Engaging air horns, controlling air-actuated PTOs (Power Take-Offs), operating lift axles, deploying pneumatic পঞ্চম wheels, or controlling auxiliary equipment like spreaders and plows.
- Industrial Machinery: Actuating single-acting or double-acting pneumatic cylinders for clamping, lifting, pushing, or positioning tasks, where manual, momentary control is preferred.
- Safety Systems: As a "deadman" control for various safety interlocks or emergency overrides, ensuring that a system is only active when the operator is physically engaged.
The kit's comprehensive nature simplifies procurement and ensures component compatibility, reducing the complexity and time involved in setting up pneumatic control systems. Its "Manual Toggle" actuation combined with "Spring Return" functionality makes it a reliable choice for operations demanding positive operator input and immediate system deactivation upon release, a critical safety aspect in many industrial and vehicular contexts.
Installation and Maintenance Considerations
Installation of the Buyers Products Toggle Air Valve Kit is designed to be straightforward, thanks to the push-lock fittings and console adapter plate. However, proper installation practices are paramount to ensure system integrity and longevity. This includes:
- Tubing Routing: Ensuring the nylon tubing is routed away from heat sources, sharp edges, and moving parts to prevent damage. Maintaining adequate bend radii to avoid kinking.
- Secure Connections: Verifying that all push-lock fittings are fully seated, ensuring a leak-free system. Leak detection sprays should be used to confirm the integrity of all connections under pressure.
- Pressure Compatibility: Confirming that all downstream components are rated for the 125 PSI operating pressure.
- System Cleanliness: Ensuring the compressed air supply is clean and dry to prevent contamination of the valve and other pneumatic components.
Given the robust construction with brass fittings and stainless steel components, the kit is designed for minimal maintenance. Regular visual inspections for tubing wear, fitting integrity, and toggle functionality are typically sufficient to ensure continued reliable operation. The inherent durability of the materials chosen contributes to an extended service life even under demanding operational conditions.
Compliance, Safety, and Design Philosophy
The "DOT Approved" nylon tubing underscores the commitment to safety and regulatory compliance, making this kit suitable for demanding vehicular applications where reliability is non-negotiable. The "Spring to Neutral / Deadman Control" feature is a fundamental safety mechanism, requiring continuous operator input for activation, thereby minimizing the risk of unattended or accidental operation. The "Stainless Steel Finger Guard" further augments safety by preventing unintentional actuation. The design philosophy behind this kit prioritizes straightforward operation, robust construction, and adherence to critical safety standards, making it a dependable choice for professionals seeking a high-quality, comprehensive solution for their air control requirements.
In summary, the Buyers Products Toggle Style Air Control Valve Kit offers a meticulously assembled package for precise, safe, and reliable pneumatic control. Its combination of a momentary, spring-return toggle valve with robust brass fittings, DOT-approved nylon tubing, and essential safety and installation components ensures a high-performance solution that meets the rigorous demands of modern industrial and vehicular applications.
