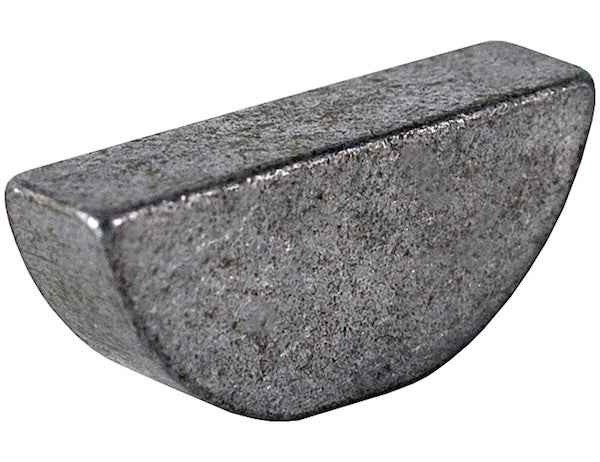

K18N - Woodruff Key 1/4 x 1-1/8 Inch

Buyers Products Woodruff Key comes in a variety of diameters and thicknesses to fit your driveline needs.

Specifications

Advanced Technical Overview: Woodruff Key 1/4 x 1-1/8 Inch for Precision Driveline Applications

The Buyers Products Woodruff Key, specifically designed with a 1/4 inch thickness and a 1-1/8 inch nominal diameter, represents a critical component in mechanical power transmission systems. Engineered from robust carbon steel with a plain finish, this key is meticulously crafted to ensure reliable torque transfer and positional integrity within various driveline configurations. Understanding the precise specifications and inherent advantages of the Woodruff key design is paramount for engineers and technicians seeking optimal performance and longevity in their machinery.

Fundamental Principles of Keyed Connections and the Woodruff Advantage

Keyed connections are essential for transmitting rotary motion and torque between a shaft and a hub or coupling. Unlike friction-based connections, a key provides a positive mechanical interlock. The Woodruff key distinguishes itself from traditional square or rectangular keys by its unique semicircular shape. When inserted into a corresponding semicircular keyseat machined into the shaft, the key effectively resists torsional forces, preventing relative rotation between the shaft and the attached component. The design of the Woodruff key offers several inherent advantages, including its ability to pivot and align itself within the keyseat, reducing stress concentrations often observed with sharper cornered keyways. This self-aligning characteristic is particularly beneficial in preventing rocking and ensuring uniform load distribution across the contact surfaces, thereby enhancing the overall durability and operational efficiency of the driveline system.

Detailed Geometric Analysis: 1/4 x 1-1/8 Inch Dimensions

The specific dimensions of this Woodruff key—1/4 inch thickness and 1-1/8 inch nominal diameter—are critical for its intended functionality and dictate its compatibility with various shaft and hub configurations. The thickness of 1/4 inch (or 0.25 inch) refers to the width of the key, which directly influences its shear strength. Shear strength is the primary mode of failure for a key under excessive torsional load, where the key essentially fractures across its width. Therefore, a precise thickness is vital for accommodating the anticipated torque requirements of the application. This standardized dimension ensures a snug fit within the keyway, minimizing backlash and ensuring efficient power transfer. Furthermore, the accuracy of this thickness is crucial for maintaining concentricity and preventing vibrational issues during high-speed operation.

The nominal diameter of 1-1/8 inch (or 1.13 inches) defines the diameter of the circular segment from which the key is essentially cut. This dimension is instrumental in determining the depth of the keyseat required in the shaft and, consequently, the effective contact area for torque transmission. The deeper engagement afforded by the larger diameter of the Woodruff key, compared to a square key of similar cross-sectional area, contributes to its stability and resistance to shearing. The specific 1-1/8 inch diameter provides an optimal balance between sufficient key material for strength and minimized material removal from the shaft, which could otherwise weaken the shaft itself. Proper selection of a key with this precise diameter ensures that the key does not protrude excessively or sit too shallowly, both of which could compromise the integrity of the keyed joint. Adherence to these precise geometric parameters is fundamental for achieving the robust, long-lasting connections expected in demanding industrial and automotive driveline applications.

Material Science: Carbon Steel with Plain Finish

The selection of Carbon Steel as the material for this Woodruff key is a deliberate engineering choice, reflecting a balance of strength, durability, and cost-effectiveness. Carbon steel, a ferrous alloy composed primarily of iron and carbon, is renowned for its excellent mechanical properties. For keying applications, high tensile strength and yield strength are paramount, allowing the key to resist the substantial shear and compressive stresses generated during torque transmission without permanent deformation. The specific grade of carbon steel utilized by Buyers Products is chosen to provide optimal hardness, which contributes to wear resistance, especially critical in applications where minor relative motion or fretting could occur under dynamic loads. Furthermore, carbon steel exhibits good toughness, meaning it can absorb significant energy before fracturing, a crucial attribute for components subjected to shock loads or cyclic loading conditions typical in driveline systems.

The Plain Finish specification indicates that the key is supplied without any additional surface coatings, such as plating or black oxide. While coatings can offer enhanced corrosion resistance or altered friction characteristics, a plain finish is often preferred for internal components within enclosed environments, such as gearboxes or engine assemblies, where it is protected from direct exposure to corrosive elements. The absence of a coating allows for maximum dimensional precision and ensures direct metal-on-metal contact, which can be beneficial for certain types of interference fits. Moreover, a plain finish typically facilitates more consistent manufacturing tolerances and eliminates the potential for coating buildup that could interfere with the precise fit within the keyway. For applications requiring enhanced corrosion protection, the surrounding environment or assembly design often incorporates methods such as oil baths or protective housings that adequately safeguard the plain carbon steel key, leveraging its superior mechanical properties without the need for additional surface treatments.

Precision Manufacturing and Quality Assurance

The reliability of a Woodruff key is not solely dependent on its design or material, but equally on the precision of its manufacturing process and rigorous quality assurance. Buyers Products employs advanced manufacturing techniques to produce these Woodruff keys, ensuring adherence to stringent dimensional tolerances. The process typically involves high-precision stamping or machining operations, followed by careful deburring and finishing. Each key undergoes meticulous inspection for critical dimensions suchations as thickness, diameter, and overall form, often utilizing calibrated micrometers, gauges, and optical comparators to verify compliance with engineering specifications. The control of these tolerances is crucial; even slight deviations can lead to poor fitment, premature wear, or catastrophic failure of the keyed joint. A key that is too loose will cause backlash and accelerated wear, while an oversized key can damage the shaft or hub keyway during installation, inducing stress concentrations. By implementing robust quality control protocols, Buyers Products ensures that every 1/4 x 1-1/8 inch carbon steel Woodruff key meets the highest standards of dimensional accuracy and material integrity, guaranteeing consistent and dependable performance in diverse driveline applications.

Functional Advantages in Driveline Applications

The application of the 1/4 x 1-1/8 inch Woodruff key in driveline systems yields several functional advantages that contribute to the overall robustness and longevity of the mechanical assembly. One of the primary benefits is its exceptional ability to transmit torque efficiently and reliably. The semi-circular shape, when seated in the corresponding keyseat, distributes compressive stresses more evenly compared to square keys, which can create stress concentrations at the corners of the keyway. This reduced stress concentration minimizes the risk of fatigue cracks propagating from the keyway, thereby extending the service life of the shaft and hub. Furthermore, the Woodruff key's design inherently resists rocking motion within the keyway. The full engagement of the circular segment provides a stable foundation, ensuring that the key remains firmly seated even under dynamic or reversing loads. This stability is critical for maintaining precise angular alignment between the shaft and the driven component, which is essential for smooth operation and prevention of vibration. Its ease of installation, particularly in blind keyways or when working in constrained spaces, also offers a practical advantage, simplifying assembly processes and reducing labor time. These combined functional attributes make the Woodruff key a superior choice for many demanding driveline applications.

Typical Applications Across Industries

The versatility and robust performance of the 1/4 x 1-1/8 inch Woodruff key make it an indispensable component across a wide array of industries and applications. In the automotive sector, these keys are commonly found in crankshafts, camshafts, and transmission assemblies, where precise timing and reliable power transfer are critical for engine and drivetrain performance. Their ability to withstand high torsional loads and vibrations is perfectly suited for the demanding environment of internal combustion engines. Within industrial machinery, Woodruff keys are integral to gearboxes, pumps, compressors, and conveyer systems, ensuring the secure attachment of gears, impellers, and pulleys to drive shafts. The agricultural equipment sector also heavily relies on these keys for tractors, harvesters, and other implements that require durable connections in often harsh operating conditions. Beyond these, they are prevalent in small engines for lawnmowers and generators, marine propulsion systems, and various power transmission units in general manufacturing. Their consistent performance in transmitting torque and maintaining alignment under diverse operational parameters solidifies their status as a preferred fastening solution for engineers designing durable and efficient mechanical systems.

Installation Best Practices for Optimal Performance

Proper installation of the 1/4 x 1-1/8 inch Woodruff key is critical to ensure its intended performance and the longevity of the entire driveline assembly. Before installation, it is imperative to thoroughly inspect both the key and the keyways in the shaft and hub for any burrs, nicks, or foreign material. The keyways must be clean, dry, and free from obstructions to allow for proper seating. The Woodruff key is typically inserted into the shaft keyseat first, with the rounded edge facing inwards towards the shaft center. A light interference fit between the key and the shaft keyseat is desirable to prevent movement; however, excessive force should be avoided, as this can deform the key or damage the keyseat. A soft-faced hammer or arbor press can be used for gentle persuasion, ensuring the key is fully seated to its proper depth. Once the key is in place on the shaft, the hub or mating component can be slid over the shaft, aligning its keyway with the protruding portion of the Woodruff key. Lubrication of the shaft and hub bore can aid in assembly, provided it is compatible with the application and does not compromise the security of the connection. Never force the components together if resistance is met, as this may indicate misalignment or an incorrect key size, potentially leading to damage. Post-installation, a visual inspection should confirm that the key is fully engaged and that there is no undue stress or misalignment in the assembly.

Maintenance, Inspection, and Longevity Considerations

While the Woodruff key is designed for robust and long-term service, periodic inspection and proactive maintenance can significantly contribute to the overall longevity and reliability of the driveline system. Regular visual inspections should be conducted during routine equipment servicing to check for any signs of wear, deformation, fretting corrosion, or loosening of the key. Frictional wear on the sides of the key or the keyway indicates potential micromotion or insufficient fit, which could lead to accelerated degradation. Any key exhibiting signs of damage, such as shear marks, cracks, or significant material loss, should be promptly replaced to prevent catastrophic failure. It is also advisable to inspect the shaft and hub keyways for wear or damage whenever the keyed joint is disassembled. When replacing a Woodruff key, always use a new key of the correct dimensions and material specifications to ensure optimal performance. Adhering to the manufacturer's recommended torque specifications for any retaining fasteners (e.g., set screws, retaining nuts) associated with the hub is also crucial to maintain the integrity of the keyed connection. By integrating these simple maintenance and inspection practices, operators can maximize the operational lifespan of the Woodruff key and the entire mechanical system it serves.

Adherence to Industry Standards and Compliance

The design and manufacture of Buyers Products Woodruff Keys, including the 1/4 x 1-1/8 inch carbon steel variant, strictly adhere to relevant national and international industry standards. Compliance with standards such as ANSI B17.2 (Woodruff Keys) or comparable ISO/DIN standards ensures interchangeability, consistent quality, and predictable performance. These standards specify not only the nominal dimensions but also critical tolerances for thickness, diameter, and other geometric features, as well as material specifications. By conforming to these established benchmarks, Buyers Products guarantees that its Woodruff keys will integrate seamlessly into standard keyways and provide the intended load-bearing capacity and positional accuracy. This adherence minimizes compatibility issues, simplifies design processes for engineers, and assures users of a reliable and high-quality component. Furthermore, it reflects a commitment to engineering excellence and provides a foundational level of trust regarding the key's mechanical properties and dimensional precision, crucial for safety-critical and high-performance applications.

The Buyers Products Advantage: Engineered for Excellence

Choosing the Buyers Products 1/4 x 1-1/8 inch Woodruff Key means investing in a component that exemplifies engineering excellence and unwavering reliability. Buyers Products' reputation is built upon a foundation of stringent material selection, advanced manufacturing processes, and rigorous quality control. Each Woodruff key is fabricated from high-grade carbon steel, meticulously machined to precise specifications to ensure optimal fit, maximum torque transmission, and superior resistance to shear and compressive stresses. The plain finish, coupled with the inherent strength of carbon steel, provides a robust solution for demanding driveline applications where durability is paramount. By consistently meeting or exceeding industry standards, Buyers Products delivers Woodruff keys that not only perform reliably but also integrate flawlessly into existing mechanical systems. This commitment to quality minimizes downtime, reduces maintenance costs, and extends the operational life of your equipment, making Buyers Products the trusted choice for critical driveline components.

Conclusion

The Buyers Products 1/4 x 1-1/8 inch Carbon Steel Woodruff Key with a plain finish is a testament to precision engineering and material science, offering an ideal solution for secure and efficient torque transmission in diverse driveline applications. Its unique design minimizes stress concentrations, provides self-aligning capabilities, and ensures robust resistance to mechanical loads. Manufactured to exacting standards from durable carbon steel, this key guarantees reliable performance, ease of installation, and long-term service life. For engineers and maintenance professionals seeking an uncompromised solution for connecting shafts and hubs, this Woodruff key provides the critical interface necessary for operational integrity and system longevity.
