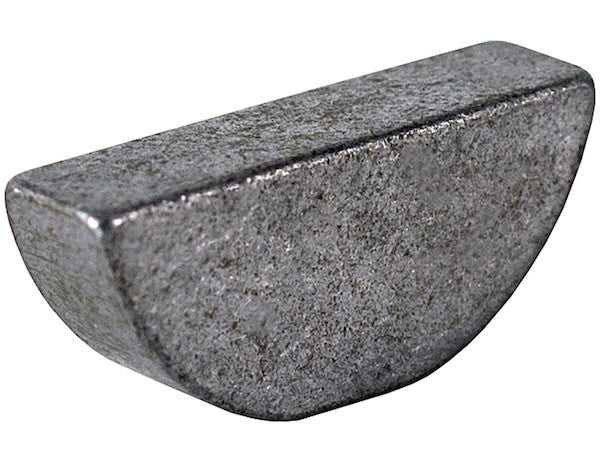

Buyers Products Woodruff Key comes in a variety of diameters and thicknesses to fit your driveline needs.
Specifications
| Diameter | 1.50 |
|---|---|
| Finish | Plain |
| Material | Carbon Steel |
| Thickness | .25 |
The Woodruff Key, 1/4 x 1-1/2 inch from Buyers Products, is a critical mechanical power transmission component. It securely attaches rotating parts—gears, pulleys, flywheels—to shafts, ensuring synchronized rotation and efficient torque transfer. Unlike square or rectangular keys, its distinct semi-circular base minimizes shaft stress and simplifies assembly. This makes it ideal for industrial, automotive, and agricultural applications requiring robustness and easy installation. Crafted from high-quality carbon steel, this key ensures durability and consistent performance in demanding environments.
Fundamentals of Keyed Shaft-Hub Connections
Keyed connections are essential for positive mechanical drive systems, transmitting torque between a rotating shaft and an attached component. A key locks into keyseats on the shaft and keyways in the hub, preventing relative rotation. Applied torque subjects the key to shear stresses at its interfaces and compressive stress on its sides. Connection efficacy and longevity depend critically on key, keyseat, keyway precision and material properties. Improper fit or material selection leads to premature wear, key deformation, or system failure. The Woodruff key design mitigates these risks by optimizing stress distribution and fit characteristics, enhancing reliability and operational lifespan.
The Distinctive Engineering of the Woodruff Key Design
The Woodruff key features a semi-circular profile, seating into a corresponding keyseat in the shaft, its flat top engaging a rectangular keyway in the hub. This design offers several engineering advantages. Firstly, the semi-circular keyseat, deeper yet narrower than conventional rectangular keyseats, substantially reduces stress concentration factors at its corners. Rectangular keyseats, with sharp corners, act as stress risers, making the shaft vulnerable to fatigue. The smoother, rounded bottom of the Woodruff keyseat distributes stresses more evenly, enhancing shaft fatigue strength. Secondly, the key's slight tilt in its keyseat during assembly provides self-alignment. This simplifies installation, minimizing cocking or binding risks, especially with tapered hub keyways or difficult alignments. Inserting the key into the shaft keyseat first, then sliding the hub over, streamlines assembly. This design offers a robust connection under shock loads, less prone to rocking or loosening than poorly fitted square keys.
Precision Specifications: 1/4 x 1-1/2 Inch Explained
For the Buyers Products Woodruff Key 1/4 x 1-1/2 Inch, "1/4 inch" denotes the nominal thickness/width. This dictates keyway width in the hub and keyseat width in the shaft. A precise fit prevents lateral movement, minimizes backlash, reduces wear, and effectively transmits shear forces. "1-1/2 inch" refers to the nominal diameter of the full circle from which the semi-circular key is derived. This determines the key's maximum depth and required keyseat depth. Together, these define the key's cross-sectional area engaged in torque transmission. Engineers use these specifications, referencing industry standards like ASME B18.27.1 or DIN 6888, to calculate torque capacity. Appropriate key dimensions are paramount; an undersized key shears, an oversized one may weaken the shaft or cause fitment issues. The 1/4 x 1-1/2 inch configuration is versatile for moderate to heavy-duty power transmission.
Material Science: Carbon Steel with a Plain Finish
High-quality Carbon Steel is fundamental to this Woodruff Key's mechanical integrity. This iron-carbon alloy is chosen for its optimal balance of strength, hardness, and ductility. Medium to high-carbon steels (0.30% to 1.00% carbon) are typically used for superior tensile strength, yield strength, and resistance to deformation under shear and compressive loads. These properties ensure the key withstands significant torque forces without premature deformation or fracture. The material's inherent toughness resists sudden impacts or shock loads common in operational environments. Carbon steel also offers good machinability, vital for precise dimensional tolerances. The "Plain Finish" signifies no additional surface coating. While plain carbon steel is susceptible to corrosion, this finish is often preferred when the key is protected within an oil-lubricated gearbox, sealed by a housing, or when cost-effectiveness and direct metal-to-metal contact for optimal friction/torque transfer are prioritized. For general internal power transmission, plain carbon steel offers robust performance and excellent value.
Manufacturing Precision and Quality Assurance Protocols
Woodruff key reliability directly ties to manufacturing precision. Buyers Products employs rigorous protocols ensuring each 1/4 x 1-1/2 inch Woodruff Key meets exacting dimensional tolerances and material integrity standards. Production involves cold forming or precision machining from carbon steel bar stock. Cold forming enhances grain structure, improving strength and surface finish. Precision machining allows tight tolerances and geometries. Critical dimensions—thickness, diameter, semi-circular base radius—are meticulously controlled via advanced metrology. Surface finish is managed to reduce assembly friction and operational wear. Each batch undergoes stringent quality assurance inspections, including dimensional checks, material composition verification (spectroscopy), and mechanical property testing (hardness, tensile strength). This commitment ensures every key provides a consistent, reliable fit and optimal performance, preventing premature wear, keyseat damage, or loosening under dynamic conditions. Adherence to industry standards for key dimensions and materials is fundamental to this comprehensive quality assurance framework.
Installation Best Practices and Diverse Industrial Applications
Correct installation maximizes Woodruff key connection performance and longevity. Begin by accurately machining the semi-circular keyseat into the shaft, ensuring precise depth and width. Then, machine the rectangular keyway into the component's hub. The Woodruff key is fully inserted into the shaft's keyseat. Its design allows the hub to slide over the shaft and key without complex full-length key alignment, significantly simplifying assembly, especially for difficult components. Ensure the key is correctly seated, free of burrs. Light tapping with a soft-faced hammer may be used; avoid excessive force. The 1/4 x 1-1/2 inch Woodruff Key is extensively applied across diverse industries. In automotive, it secures camshafts, crankshafts, timing gears for precise timing/torque transfer. Industrial machinery uses it for impellers on pump shafts, gears in gearboxes, and various rotating components. Agricultural machinery relies on these keys for drive components, enduring harsh conditions and shock loads. Small engines (lawnmowers, generators, RVs) use Woodruff keys to secure flywheels, ensuring consistent power. Its versatility stems from its robust design and reliable handling of moderate to heavy torque requirements.
Advanced Engineering Benefits: Enhanced Stability and Stress Reduction
Beyond simplified assembly, Woodruff key design offers significant engineering benefits. A primary advantage is superior capability to handle shock loads and reverse torsion. The key's substantial depth embedded within the shaft's keyseat provides enhanced stability and resistance to tipping/rocking, surpassing square keys where only a small portion extends above the shaft. This stability mitigates wear and loosening under dynamic forces. Furthermore, the semi-circular keyseat in the shaft effectively minimizes sharp corners that concentrate stress, a major contributor to shaft fatigue failure. By distributing load more smoothly, the shaft's effective strength is often better preserved than with an equivalent rectangular keyseat. In comparison, Square and Rectangular Keys can be simpler and sometimes stronger for pure torsional loads when precisely fitted, but introduce higher stress concentrations and complicate assembly. The Woodruff key offers an excellent balance: a robust, stable connection with reduced shaft stress and facilitated assembly, optimizing it for diverse mechanical power transmission scenarios. Its ability to accommodate minor keyway alignment imperfections further contributes to manufacturing efficiencies and simplified maintenance.
Critical Considerations: Selection, Longevity, and Standards Adherence
Optimal performance of the 1/4 x 1-1/2 inch Woodruff Key hinges on careful selection and best practices. Engineers must assess maximum anticipated torque, shaft diameter, and material properties of shaft/hub to ensure chosen key dimensions provide adequate factor of safety against shear/compressive failure. While beneficial for stress distribution, the keyseat's depth reduces shaft cross-sectional area; proper sizing is crucial to avoid compromising shaft torsional strength. Longevity is affected by initial fit precision, operational load severity, lubrication, and environmental conditions. Regular inspection for wear—fretting corrosion, deformation, looseness—is vital. Replacement at the first sign of significant wear prevents extensive damage. Buyers Products ensures its Woodruff Keys adhere to recognized industry standards like ASME B18.27.1 or DIN 6888. This adherence guarantees dimensional consistency, interchangeability, and material quality, providing confidence in performance and compatibility. Standardization simplifies design, procurement, and maintenance, ensuring replacement keys fit and perform as expected.
Conclusion: A Foundation for Reliable Driveline Systems
The Buyers Products Woodruff Key 1/4 x 1-1/2 Inch embodies thoughtful engineering in power transmission. Its specific dimensions, combined with the inherent benefits of the Woodruff design and robust carbon steel properties, make it an indispensable component for securing rotating parts. From superior stress distribution and self-aligning characteristics to broad applicability, this key delivers a reliable, efficient solution for torque transfer. By prioritizing precision manufacturing and stringent quality control, Buyers Products ensures each key contributes to the stability, longevity, and overall operational efficiency of the mechanical systems it serves, providing engineers and end-users with a dependable foundation for their driveline needs.
