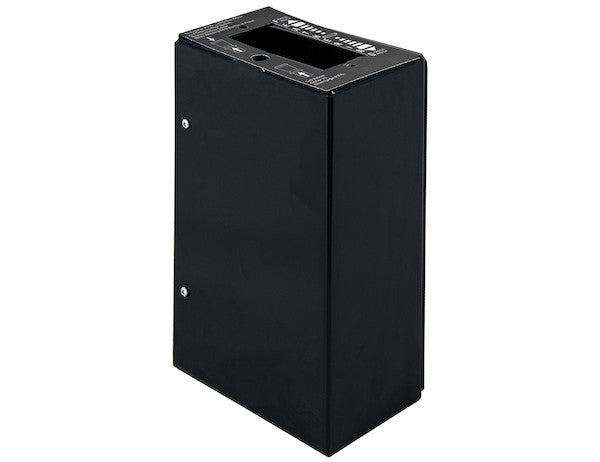

Buyers Products Black Steel Console For K70DF Series Valves features powder-coated steel construction and is designed to fit K70DF Series Valves.
Specifications
| Color | Black |
|---|---|
| Depth | 3.5 |
| Finish | Powder-Coat |
| Height | 10.0 |
| Material | Carbon Steel |
| Series | K70DF |
| Width | 6.75 |
| Works With | K70DF, K70DFD, K70DFNKO Control Valves |
The K70DF Series Black Steel Console: Engineered for Demanding Hydraulic Applications
The Buyers Products Black Steel Console is precisely engineered for K70DF Series Valves, serving as a critical component in the functional integration of hydraulic control systems within heavy-duty mobile equipment. Constructed from robust powder-coated carbon steel, its dimensions of 3.5" (D) x 6.75" (W) x 10" (H) are optimized for secure mounting, optimal positioning, and long-term protection of K70DF, K70DFD, and K70DFNKO control valves. This console is developed to meet the rigorous demands where reliability and operational efficiency are paramount, enhancing the overall performance and longevity of hydraulic machinery.
Core Functionality and Design Philosophy
A hydraulic valve console functions as the critical interface between the operator and the hydraulic system, providing secure housing and protection for the control valves. For the K70DF Series, this console ensures precise alignment, safeguarding the valve assemblies from physical impact, environmental ingress, and operational vibrations. This dedicated design prevents premature wear by mitigating stress on hydraulic lines and connections. The console's internal architecture is meticulously configured to accommodate the specific dimensions and mounting points of K70DF series valves, offering a snug, vibration-resistant fit. This tailored approach enhances system integrity and operator ergonomics by centralizing controls, improving precision, and reducing fatigue. Its enclosed nature also helps contain minor fluid leaks, maintaining a cleaner operational environment and streamlining maintenance. Ultimately, the console extends the operational lifespan of expensive hydraulic valves by protecting them from the harsh realities of demanding work environments.
Material Excellence: Carbon Steel Construction
The selection of carbon steel for this console is a strategic decision, leveraging its superior mechanical properties essential for heavy-duty applications. Carbon steel provides an exceptional balance of tensile strength, yield strength, and hardness, delivering inherent rigidity and resistance to deformation under significant dynamic loads and impacts. This robustness is critical in environments with constant vibration and potential external damage, ensuring the K70DF valves remain precisely mounted and aligned. The material's inherent stiffness minimizes flex, paramount for consistent hydraulic function. Furthermore, carbon steel exhibits excellent fatigue resistance, vital for components enduring continuous stress cycles. Its cost-effectiveness and inherent vibration-dampening capabilities further solidify its role in ensuring the console's long-term durability and protection for sensitive hydraulic components.
Advanced Surface Protection: Powder-Coat Finish
The powder-coat finish applied to the carbon steel console is a vital engineering choice, significantly enhancing its protective qualities and extending its service life. This advanced dry finishing process electrostatically applies finely ground pigment and resin particles, which are then cured in an oven to form a smooth, uniform, and exceptionally durable coating.
- Superior Corrosion Resistance: Forms an impermeable barrier against moisture, salt, chemicals, and corrosive agents, critical in harsh outdoor and industrial settings, especially against road salts.
- Enhanced Abrasion and Impact Resistance: Significantly more resistant to chips, scratches, and minor impacts compared to liquid paints, maintaining structural integrity and appearance.
- Chemical Resistance: Specialized resins offer robust protection against hydraulic fluids, fuels, and cleaning agents commonly encountered in equipment operation.
- UV Stability: Excellent resistance to UV radiation prevents fading and degradation, while the specified "Black" color provides inherent UV stability and discrete integration.
Precision Engineering and Dimensional Integrity
The dimensions of 3.5" (D) x 6.75" (W) x 10" (H) are the result of meticulous engineering, balancing compactness with optimal functionality and ergonomic integration.
- Depth (3.5 inches): This shallow profile minimizes protrusion, enabling flexible mounting in tight cabin spaces and maintaining clear sightlines, crucial for operator comfort and safety. Internal clearances are optimized for valve bodies and connections.
- Width (6.75 inches): Provides sufficient lateral space for K70DF series valves and their levers, ensuring unobstructed, comfortable operation. This width also accommodates internal bracing for structural integrity.
- Height (10 inches): Crucial for fully enclosing and protecting the K70DF series valves, including spool extensions and handles. It facilitates ergonomic positioning, bringing controls to an accessible operating level, and allows for proper cable/hose routing without sharp bends.
Seamless Compatibility: K70DF Series Valves
The console’s explicit design for K70DF Series Valves (K70DF, K70DFD, K70DFNKO Control Valves) highlights a commitment to specialized functionality. These valves are highly regarded for robust construction and precise hydraulic control in various heavy-duty applications. A dedicated console offers several critical advantages:
- Perfect Fit: Precisely dimensioned to cradle K70DF valves, utilizing inherent mounting points for a secure, vibration-resistant fit, preventing movement and ensuring consistent performance.
- Optimized Clearances: Provides adequate internal volume for hydraulic hoses and wiring, preventing kinking or chafing, which can lead to premature wear.
- Enhanced Ergonomics: Presents control levers in an organized, accessible manner, improving operator comfort, precision, and reducing fatigue during complex operations.
- Environmental Protection: Offers an additional layer of defense against dust, moisture, debris, and physical impact, extending valve lifespan.
- System Integration: Contributes to a professional installation, simplifying troubleshooting and maintenance, and ensuring all valve features function optimally without obstruction.
Applications and Operational Environments
The Black Steel Console for K70DF Series Valves is indispensable across demanding heavy-duty mobile and industrial applications where reliable hydraulic control is critical. Typical applications include:
- Municipal & Public Works: Snowplows, salt spreaders, and dump trucks rely on precise hydraulic control in adverse weather and corrosive conditions.
- Construction Equipment: Loaders and excavators require protection against job site debris, impacts, and constant vibration.
- Agricultural Machinery: Tractors and harvesters need shielded controls against dust, moisture, and fertilizers in rigorous field operations.
- Waste Management: Refuse vehicles benefit from robust protection against debris and operational stresses during compaction and lifting.
- Mechanical Stress: Vibration, impacts, dynamic loads.
- Environmental Exposure: Rain, snow, UV, dust, mud, extreme temperatures.
- Chemical Corrosion: Road salts, de-icing agents, hydraulic fluids.
Installation and Integration Guidelines
Proper installation of the Black Steel Console is vital for long-term performance, valve protection, and operational safety.
- Strategic Placement: Mount the console for optimal ergonomic access, ensuring controls are within reach without obstructing visibility or other vehicle functions.
- Secure Mounting: Affix to a rigid, stable surface using all designated mounting points and high-grade fasteners to prevent loosening from vibration.
- Clearance & Access: Ensure ample space for lever movement, hydraulic hose routing, and future maintenance access. Avoid sharp bends in hoses.
- Hydraulic Line Routing: Route lines carefully, avoiding chafing points and proximity to heat. Use appropriate fittings and torque to specifications to prevent leaks.
- Electrical Connections (If applicable): Insulate and secure all electrical wiring from moisture and damage, utilizing sealed terminals for reliability.
- Vibration Dampening: Consider rubber grommets or isolating mounts in high-vibration applications to further protect valves.
- Pre-Operation Check: Verify all valve functions operate smoothly, check for leaks, and ensure all fasteners are tight before use.
Durability, Reliability, and Longevity
The console's design prioritizes durability, reliability, and longevity, reducing downtime and total cost of ownership. The inherent strength of carbon steel provides foundational resistance to structural fatigue from vibration and impact, maintaining critical internal geometry for secure valve mounting. This structural integrity prevents misalignment and premature wear of valve components. The advanced powder-coat finish acts as an impervious shield, offering superior resistance to corrosion, abrasion, chemicals, and UV degradation. This prevents exposure of the steel, a common failure point for less protected components. Its precise engineering ensures a secure fit for K70DF valves, minimizing movement that could lead to wear. By safeguarding the delicate internal mechanisms of the valves, the console extends service intervals and reduces costly repairs, offering a low-maintenance, long-term investment for essential hydraulic controls.
Conclusion
The Buyers Products Black Steel Console for K70DF Series Valves is an exemplary product, combining robust carbon steel construction with a durable powder-coat finish and precise dimensions. It offers unparalleled structural integrity and environmental protection for K70DF, K70DFD, and K70DFNKO control valves. This console enhances system reliability, extends valve service life, and ensures optimal operator interface in demanding applications, reflecting Buyers Products' commitment to quality and engineering excellence.
