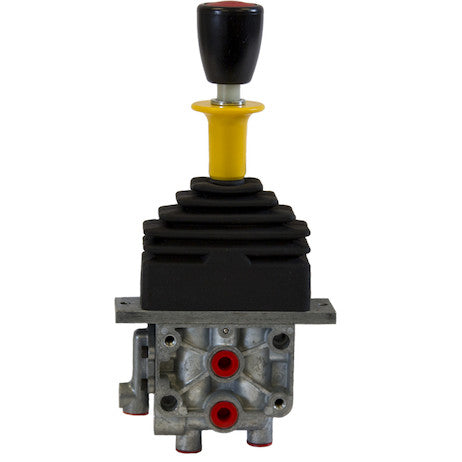

K70DFD - Single Lever Air Control Valve - 4-way Hoist with Feather Down, No PTO Output Function, Detent Center Position, Spring Center

Buyers Products K70 Series Single Lever Air Control Valves give you complete control of your pneumatic functions. These stackable valves are available in 3-way (raise, lower, and hold) or 5-way (PTO, raise, lower, inlet, and exhaust functions with a push button auxiliary function) models with 3-position (raise, lower and neutral) controls. Flexible design makes it easy to adapt the control valves to your application . Movement of the handle in either direction allows controlled proportional pressure output to work ports 'A' or 'B' to allow feathering.

Specifications

Advanced Pneumatic Control: The K70 Series Single Lever Air Control Valve for Hoist Applications

The Buyers Products K70 Series Single Lever Air Control Valve, engineered specifically for 4-way hoist applications, represents a pinnacle in pneumatic control technology. This robust valve is meticulously designed to provide operators with precise, reliable, and safe command over critical lifting and lowering operations. Integrating advanced features such as feathering capability, a detent center position, and spring-to-center functionality, this valve ensures optimal performance and enhanced safety in demanding industrial and mobile equipment environments where hoist control is paramount.

Core Functional Design for 4-Way Hoist Control

At its core, this K70 series valve is configured for 4-way operation, which is fundamental for controlling double-acting pneumatic cylinders or other devices requiring bi-directional movement, such as those found in hoist mechanisms. A 4-way valve typically features one pressure inlet, one exhaust port, and two work ports (often labeled A and B). When the control lever is actuated in one direction, pressure is directed to work port A while work port B is connected to exhaust, enabling movement in one direction (e.g., hoist raise). Conversely, actuating the lever in the opposite direction supplies pressure to work port B and connects work port A to exhaust, facilitating movement in the other direction (e.g., hoist lower). This configuration provides comprehensive control over a hoist's extension and retraction phases, ensuring full operational capability for lifting and positioning loads. The intelligent design ensures that each movement is met with appropriate pressure and exhaust management, contributing to smooth and efficient hoist operation. The K70 series’ inherent reliability in these critical pressure and exhaust transitions makes it an indispensable component in high-demand pneumatic systems.

Precision Feathering for Unparalleled Control

One of the most significant technical advantages of this K70 valve is its sophisticated feathering capability. Feathering refers to the valve's ability to provide proportional pressure output to the work ports 'A' or 'B' in response to the degree of handle movement. Unlike conventional on/off valves that only provide full pressure or no pressure, the feathering function allows for a gradual, modulated application of pneumatic force. For hoist applications, this translates directly into unparalleled control over load movement. An operator can precisely control the speed and smoothness of both raising and, particularly, lowering operations. This is crucial for safely handling delicate loads, positioning equipment with high accuracy, or gradually settling heavy objects. The ability to "feather down" means that descent can be carefully regulated, preventing sudden drops or jerking motions that could damage equipment, endanger personnel, or compromise the integrity of the load. This proportional control not only enhances operational safety but also minimizes wear and tear on the hoist mechanism by reducing shock loads and abrupt movements, thereby extending the service life of the entire system. The fine degree of modulation achievable through the single lever significantly elevates the control experience beyond standard pneumatic solutions.

Ergonomic Single Lever Actuation

The ergonomic design of the single lever control simplifies operation, enhancing user efficiency and reducing operator fatigue during extended use. A single lever consolidates multiple functions (raise, lower, neutral) into one intuitive interface, minimizing the cognitive load on the operator and allowing for faster, more natural reactions to operational demands. The mechanical advantage provided by the lever ensures that proportional control, particularly feathering, can be achieved with minimal physical effort, translating the operator's precise hand movements directly into nuanced pneumatic output. This direct and responsive interface is critical in applications where immediate and accurate adjustments are necessary, providing a tangible benefit in terms of operational fluidity and safety. The K70 series' commitment to user-centric design is evident in this single-lever approach, making complex pneumatic control accessible and highly manageable.

Enhanced Safety: Detent Center Position and Spring-to-Neutral Functionality

Safety is a paramount consideration in hoist operations, and this K70 Series valve incorporates two critical features to address this: a detent center position and spring-to-neutral (deadman control) functionality.

• Detent Center Position

  The detent center position provides a tactile and positive engagement point for the operator when the valve is in its neutral state. This physical "click" or resistance ensures that the lever is securely held in the center position, preventing accidental activation due to vibrations or inadvertent bumps. In the neutral position, both work ports (A and B) are typically blocked, effectively holding the hoist in its current position by trapping air pressure within the cylinder or allowing it to equalize, depending on the specific hoist design and plumbing. This detent mechanism offers operators confidence that the hoist will remain stationary until deliberate action is taken, providing a crucial layer of operational stability and safety when the hoist is not actively being moved.

• Spring-to-Neutral / Deadman Control

  The spring-to-neutral, often referred to as a deadman control feature, is a vital safety mechanism. This design ensures that the control lever automatically returns to the central (neutral) position when the operator releases their grip. This immediate return to neutral ceases all pneumatic output to the work ports, effectively stopping any hoist movement. In the event an operator becomes incapacitated, distracted, or simply removes their hand from the lever, the hoist will safely and automatically halt. This prevents uncontrolled movement of the load, significantly mitigating the risk of accidents, injuries, or damage to property. The integration of this deadman control makes the valve intrinsically safer than systems lacking such an automatic failsafe, aligning with stringent safety protocols required in industrial and commercial hoisting applications.

Port Configuration and Absence of PTO Output Function

The K70 Series valve features a 5-port configuration, which facilitates its robust functionality. While a standard 4-way valve conceptually requires an inlet, exhaust, and two work ports, the K70 series leverages its modular design with five distinct ports to ensure comprehensive pneumatic management. These ports typically include a pressure inlet, an exhaust outlet, and two primary work ports (A and B) for bi-directional actuator control. The fifth port in the K70 series architecture, while present in the general design, is specifically configured in this model to *not* provide a PTO (Power Take-Off) output function. This explicit design choice, "No PTO Output Function," means the valve is optimized and dedicated solely to hoist control without the added complexity or cost associated with PTO integration. This specialization streamlines the valve's functionality, making it a highly efficient and cost-effective solution for systems requiring precise hoist management without the need to engage auxiliary power take-off mechanisms. This focused design enhances reliability by eliminating potential points of failure or operational confusion related to a PTO function that is not required for the specific application.

Robust Technical Specifications and Construction

The K70 Series Single Lever Air Control Valve is engineered to perform reliably under demanding conditions, a commitment underscored by its technical specifications:

• Rated Pressure: 125 PSI

  With a rated pressure of 125 PSI, this valve is designed to operate effectively within common industrial and mobile pneumatic system pressure ranges. This rating ensures compatibility with a wide array of air compressors and pneumatic actuators, providing sufficient force for most hoist applications while maintaining a safety margin within typical system pressures. The ability to handle this pressure consistently contributes to the valve's overall durability and longevity.

• Port Type: Brass Push Lock Fittings

  The inclusion of brass push-lock fittings for all ports offers significant advantages in terms of installation speed, ease of maintenance, and connection reliability. Brass, known for its corrosion resistance and durability, ensures a long service life even in environments with moisture or varying temperatures. Push-lock fittings allow for quick and tool-free connection and disconnection of pneumatic tubing, drastically reducing installation time and simplifying system modifications or repairs. This type of fitting provides a secure, leak-free seal, essential for maintaining system efficiency and preventing pressure drops, which could compromise hoist performance and safety.

• Series: K70

  Being part of the K70 Series, this valve benefits from a legacy of proven design and manufacturing excellence from Buyers Products. The K70 series is known for its modularity and stackable design, offering flexibility for system expansion or integration into complex pneumatic circuits. This series reputation assures users of high-quality components, consistent performance, and the availability of compatible parts and accessories, enhancing the valve's overall value proposition.

Material Science and Durability

The selection of materials for the K70 Series valve is critical to its long-term performance and reliability. Components are typically constructed from high-grade metals such as brass for fittings and robust engineering plastics or treated metals for the valve body and internal mechanisms. These materials are chosen for their resistance to wear, corrosion, and environmental factors such as temperature fluctuations, vibration, and dust ingress. The internal seals and O-rings are made from durable elastomers, carefully selected to withstand pneumatic pressures and prevent air leakage over extended operational cycles. This meticulous material selection ensures that the valve maintains its functional integrity and precise control characteristics even in harsh operating conditions, minimizing the need for frequent maintenance and replacement.

Application Versatility and Integration

While primarily designed for hoist control, the K70 Series Single Lever Air Control Valve’s flexible design makes it adaptable to various other pneumatic applications requiring 4-way, proportional, and spring-return control. Its robust construction and precise control capabilities make it suitable for a range of industrial machinery, mobile equipment, and specialized vehicles where controlled bi-directional movement of pneumatic actuators is essential. The stackable nature of the K70 series also provides seamless integration into existing pneumatic panels or complex control systems, offering a scalable solution for evolving operational needs. Its compact footprint and standardized porting further simplify the design and implementation process for system integrators and equipment manufacturers.

Installation and Maintenance Considerations

Installation of the K70 Series valve is straightforward, facilitated by the brass push-lock fittings that simplify tubing connections. Proper installation involves connecting the air supply to the inlet port, the exhaust line to the exhaust port, and the hoist's pneumatic cylinder lines to work ports A and B. Ensuring a clean, dry, and regulated air supply is crucial for optimal performance and longevity of the valve and the entire pneumatic system. Regular inspection for leaks at the fittings and ensuring the lever operates smoothly are typical maintenance practices. The durable construction and quality internal components minimize the need for extensive maintenance, contributing to lower total cost of ownership over the valve's operational life.

Conclusion

The Buyers Products K70 Series Single Lever Air Control Valve for 4-way hoist applications embodies a commitment to precision, safety, and reliability. Its advanced feathering capability provides operators with nuanced control over hoist movements, particularly during delicate lowering operations. The integration of a detent center position and spring-to-neutral (deadman) control offers critical safety assurances, preventing unintended movements and automatically securing the hoist in a neutral state upon release. Engineered with robust brass push-lock fittings and rated for 125 PSI, this valve is built for durability and ease of integration. By specifically omitting a PTO output function, this model focuses its design and performance entirely on dedicated hoist control, offering an optimized solution for a broad spectrum of lifting and material handling tasks. The K70 series represents an intelligent investment for any application demanding superior pneumatic hoist control, promising enhanced operational efficiency, reduced risk, and extended equipment lifespan.
