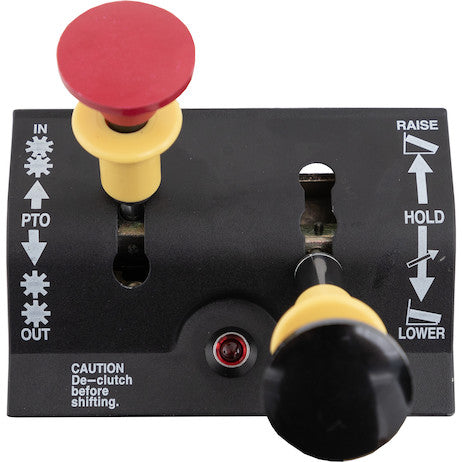

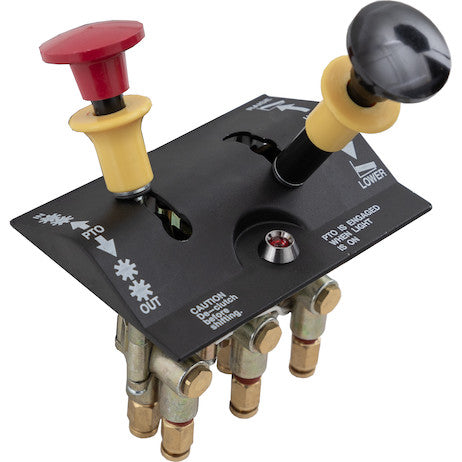

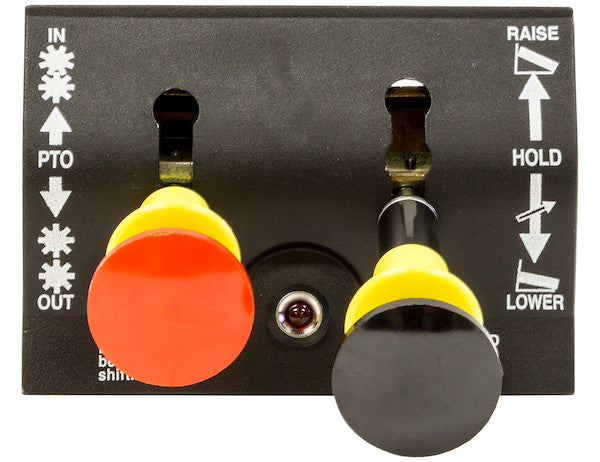

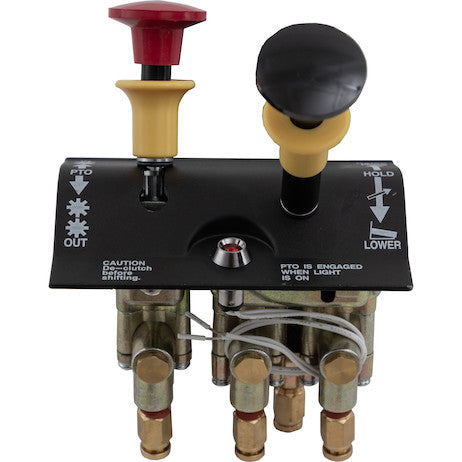

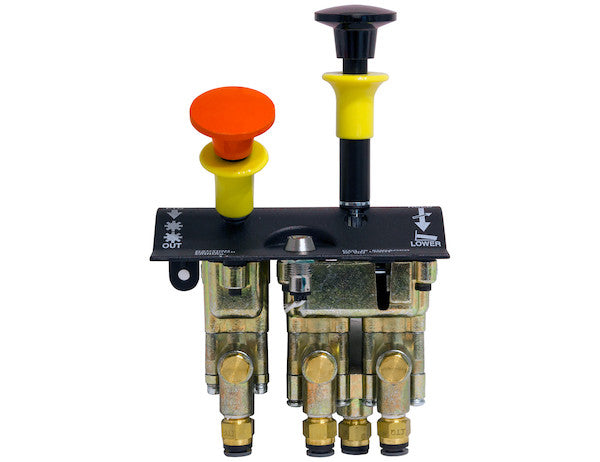

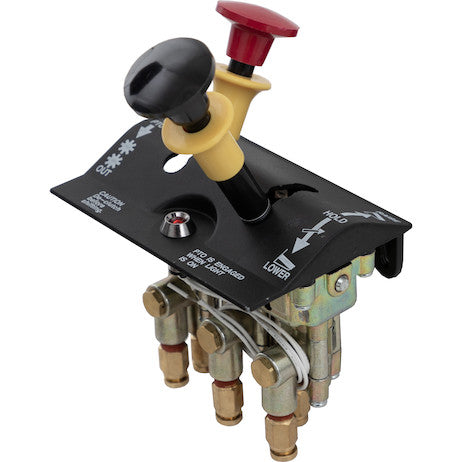

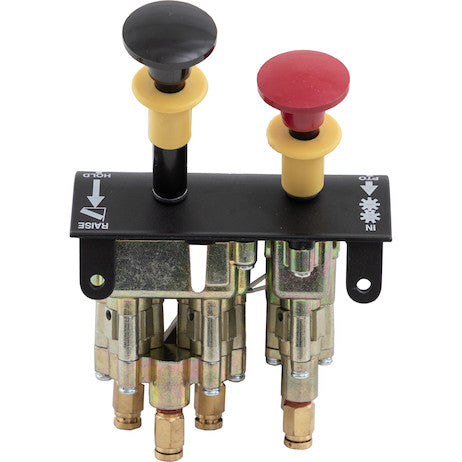

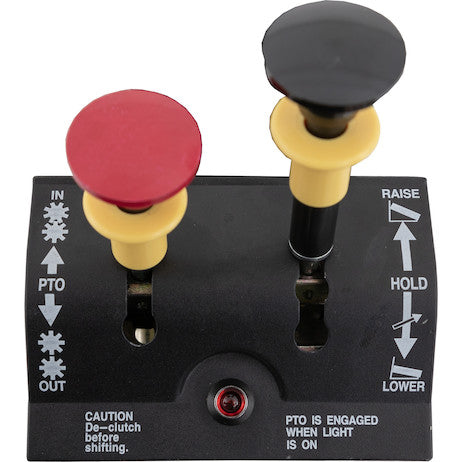

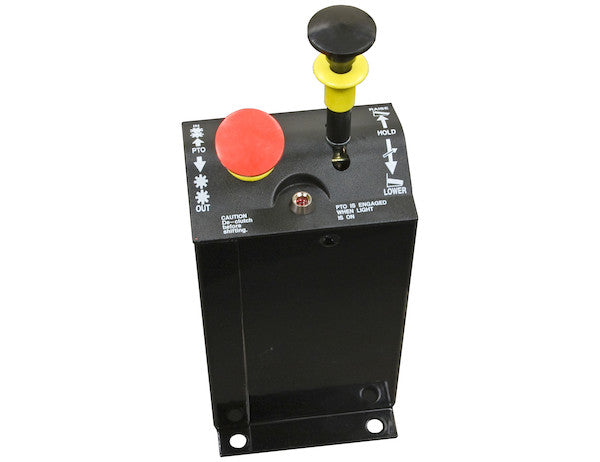

K80 - Dual Lever Non-Feathering Non-Disengage Non-Return PTO/Pump Air Control Valve

Buyers Products K80 Series Multi-Function PTO/Pump Valve has a dual lever design for feathering, disengaging, and spring return options. The dual-color sleeves designate feathering and automatic disengage; white sleeve designates feathering; and orange sleeve designates automatic disengage. Certain models (K80F, K80DF, K85F, K85DF) provide full range feathering qualities. Valve regulates pressure from 10 to 125 PSI and is designed for dump trucks, dump trailers, transfer trailers, live floor trailers, asphalt/live bottom trailers, bottom dumps, side dumps, platform dumps, and others.

Specifications

Advanced Technical Overview: Dual Lever Non-Feathering Non-Disengage Non-Return PTO/Pump Air Control Valve

The Buyers Products K80 Series Dual Lever Non-Feathering Non-Disengage Non-Return PTO/Pump Air Control Valve represents a specialized and robust solution engineered for demanding commercial and industrial pneumatic control applications. As a critical component in the operation of heavy-duty vehicles and machinery, this valve provides uncompromising, direct manual control over Power Take-Off (PTO) and hydraulic pump systems. Its specific configuration – non-feathering, non-disengage, and non-return – dictates a precise operational philosophy, targeting applications where explicit, sustained engagement is paramount, and nuanced modulation or automatic reset functions are either unnecessary or undesirable.

Core Functional Principles and Design Philosophy

At its heart, this K80 Series valve acts as a pneumatic interface, translating operator input via dual manual levers into air pressure signals that control the engagement and disengagement of a PTO unit, which subsequently drives a hydraulic pump. The design emphasizes reliability and durability, critical attributes for equipment operating in strenuous environments such as construction sites, agricultural fields, and waste management operations. The valve's capability to regulate pressure within a range of 10 to 125 PSI ensures compatibility with a broad spectrum of pneumatic systems, offering flexibility while maintaining precise control over actuation forces. This pressure range is vital for ensuring correct PTO engagement without over-pressurizing the control circuitry, thereby extending component lifespan and enhancing operational safety.

The Significance of Non-Feathering Operation

Feathering, in the context of pneumatic control valves, refers to the ability to gradually increase or decrease air pressure to achieve a soft engagement or disengagement of a component, such as a PTO or clutch. This allows for smooth acceleration or deceleration of driven equipment, minimizing shock loads on transmissions and hydraulic pumps. However, the specific K80 model under discussion is explicitly designed as a Non-Feathering unit. This characteristic is not a limitation but a deliberate design choice for applications where immediate, full engagement or disengagement is required and advantageous.

In scenarios where a PTO must engage rapidly and decisively to drive a pump at its full intended capacity, the absence of feathering ensures a swift transition to the operational state. This is particularly beneficial for high-volume or high-power tasks where delay in reaching peak performance is detrimental to efficiency. For instance, in dump truck operations, the hydraulic pump for the hoist needs to engage completely to lift heavy loads. A non-feathering valve provides this direct, binary control, reducing complexity and potential points of failure associated with proportional control mechanisms. The simplicity inherent in a non-feathering design often translates to higher reliability and reduced maintenance requirements in harsh operating conditions.

Understanding Non-Disengage Characteristics

The term "disengage" in multi-function PTO/pump valves typically refers to a mechanism that allows for automatic or assisted return to an OFF state, often for safety or convenience. Some advanced systems might feature automatic disengagement tied to vehicle speed, gear selection, or external safety interlocks. In contrast, this K80 Series valve is characterized as Non-Disengage. This means that once the operator engages the PTO and pump system, it will remain engaged until manually disengaged by the operator. There is no automatic return to a neutral or off position based on external triggers or internal mechanisms designed for passive disengagement.

This explicit manual control is a critical safety and operational feature for applications requiring sustained, uninterrupted power. For example, in live floor trailers or asphalt/live bottom trailers, continuous and consistent power to the conveyor system is essential for material discharge. An automatic disengage function, if inadvertently triggered, could lead to operational interruptions, material blockages, or safety hazards. The non-disengage feature provides the operator with absolute command over the PTO's state, ensuring that it remains active for the duration of the task, thereby enhancing operational safety and efficiency by preventing unintended shutdowns.

The Implications of Non-Return Operation

Many pneumatic control valves incorporate a "spring return" mechanism, which automatically returns the valve to a default (often neutral or off) position when the actuating force (e.g., manual lever pressure) is removed. This K80 Series valve, however, is a Non-Return type. This signifies that the levers, and consequently the valve's internal spool, will remain in their last selected position – whether engaged or disengaged – until manually repositioned by the operator. There is no spring bias to force it back to a neutral state.

This non-return characteristic works in conjunction with the non-disengage feature to provide steadfast control. For prolonged operations where the PTO system must remain active for extended periods, a non-return valve eliminates the need for the operator to continuously hold a lever in place. This reduces operator fatigue and allows for more focused attention on the primary task, improving overall ergonomic conditions and operational safety. In applications like transfer trailers or specific side dump operations where continuous hydraulic power is required for sequential or lengthy processes, the ability of the valve to hold its position indefinitely without operator intervention is a distinct advantage.

Advanced Design and Construction Details

The K80 Series valve is constructed to endure the rigorous conditions inherent in commercial vehicle applications. Its robust design is underpinned by several key engineering considerations:

• Dual Lever Actuation: The dual lever design offers intuitive and distinct control paths. While the primary description of the K80 series mentions color-coded sleeves for feathering and automatic disengage (white and orange, respectively), it is crucial to note that for this specific non-feathering, non-disengage, non-return model, these color designations for advanced features are not applicable, reinforcing its simplified, direct control philosophy. The physical separation of levers, however, still provides clear tactile feedback and reduces the chance of accidental actuation compared to some single-lever multi-function designs. The manual lever actuation ensures a direct mechanical link to the valve's internal mechanism, offering reliable performance without relying on complex electronic interfaces, which can be vulnerable to environmental factors.
• 5-Port Configuration: The 5-port design is standard for comprehensive pneumatic control of a PTO and pump system. Typically, these ports accommodate:
  1. Supply Air Inlet: Connects to the vehicle's primary air supply.
  2. Exhaust Port: Vents air when the PTO is disengaged.
  3. PTO Engagement Output: Directs pressure to engage the PTO clutch.
  4. Pump Control Output: Sends pressure to control the hydraulic pump (often for engagement or pressure relief valve control).
  5. Auxiliary/Return Port: May be used for secondary functions or specific system returns.
  This comprehensive porting allows for seamless integration into various truck and trailer pneumatic systems, providing all necessary connections for complete PTO/pump management.

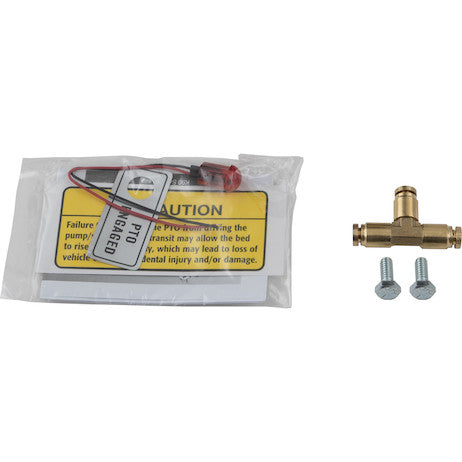

• Brass Push Lock Fittings: The utilization of brass push lock fittings for all ports is a significant feature. Brass offers superior corrosion resistance compared to other common materials, making it ideal for environments exposed to moisture, road salts, and chemicals. Push lock fittings themselves provide a rapid, secure, and tool-free method for connecting pneumatic lines, significantly reducing installation time and effort. Their robust design ensures a tight, leak-free seal, critical for maintaining system pressure and efficiency, while also allowing for easy maintenance or system modifications.
• Rated Pressure 125 PSI: A rated pressure of 125 PSI signifies the valve's capability to safely and reliably operate within the typical pressure range of commercial vehicle pneumatic systems, which often run at or around 120 PSI. This rating provides an adequate safety margin, ensuring the valve's structural integrity and consistent performance under maximum operating conditions, contributing to overall system longevity.

Applications and Operational Suitability

The specific operational characteristics of the Dual Lever Non-Feathering Non-Disengage Non-Return PTO/Pump Air Control Valve make it ideally suited for a distinct set of heavy-duty applications where simplicity, reliability, and explicit manual control are paramount:

• Dump Trucks and Dump Trailers: In these applications, the PTO engages a hydraulic pump to power the hoist mechanism for tipping the bed. A non-feathering valve ensures a rapid, full engagement, providing immediate hydraulic power for lifting. The non-disengage, non-return features mean the operator can activate the hoist and maintain its operation without continuous manual input, focusing instead on monitoring the dumping process and surroundings. This prevents accidental disengagement during critical lift cycles.
• Transfer Trailers: These trailers often use hydraulic systems to transfer material from one container to another. Consistent, uninterrupted power is crucial. The non-feathering action allows for prompt activation of transfer mechanisms, while the non-disengage, non-return design ensures continuous operation for the entire transfer cycle without requiring constant operator engagement with the valve.
• Live Floor Trailers and Asphalt/Live Bottom Trailers: These trailers employ hydraulic systems to move bulk materials horizontally using a conveyor-like floor. Uninterrupted movement of the live floor is essential for efficient and complete discharge. The valve's characteristics provide robust, continuous power, preventing any unintentional stops or hesitations that could lead to material bridging or incomplete unloading, which are common challenges in these operations.
• Bottom Dumps, Side Dumps, and Platform Dumps: Similar to dump trucks, these trailers rely on powerful hydraulic systems for their specific dumping mechanisms. Whether it's the rapid opening of clam-shell gates in a bottom dump, the tilting action of a side dump, or the elevation of a platform dump, the valve provides the unequivocal, consistent control necessary for these high-power, high-stakes operations. The non-feathering aspect ensures immediate engagement of the hydraulic system, while the non-disengage and non-return features guarantee that the system remains active until the operator decides to disengage it, providing a high degree of control and reducing operational errors.

In all these applications, the primary benefit of this particular valve configuration is its directness and simplicity. It removes the variables of proportional control and automatic resets, delivering a straightforward, highly reliable on/off functionality that is often preferred in rugged environments where operational consistency and minimal points of failure are prioritized over nuanced control.

Distinction within the K80 Series and Strategic Selection

It is important to contextualize this specific valve within the broader Buyers Products K80 Series. The K80 Series is renowned for its versatility, offering a range of multi-function PTO/pump valves with varying capabilities, including models that do provide feathering, disengaging, and spring return options (e.g., K80F, K80DF, K85F, K85DF, which offer full range feathering qualities, and distinct color-coded sleeves as mentioned in the general series description). The existence of these diverse options within the K80 Series highlights Buyers Products' commitment to providing tailored solutions for a wide array of application requirements.

The Dual Lever Non-Feathering Non-Disengage Non-Return model is a deliberate variant designed for specific operational philosophies. Choosing this model implies a strategic decision to prioritize:

1. Unwavering Engagement: For tasks where the PTO and pump need to be fully engaged from the moment of activation until manual disengagement, without any intermediate modulation or automatic cut-offs.
2. Operator-Centric Control: Total manual command over the system's state, removing any automated responses that might be considered unpredictable or undesirable in critical operations.
3. Simplified System Architecture: A reduction in complexity compared to proportional or spring-return systems, which can translate to enhanced reliability and potentially lower procurement and maintenance costs for specific fleets.
4. Durability in Harsh Environments: A less complex pneumatic pathway often proves more resilient to dirt, debris, and extreme temperatures, which are common in heavy-duty commercial operations.

Fleet managers and system integrators must carefully evaluate their specific application needs. If, for instance, a hydraulic crane requires precise speed control for its boom movements, a feathering-capable valve from the K80 series (like a K80F or K80DF) would be the appropriate choice. However, for a standard dump operation where the hydraulic pump needs to run at full capacity to lift a heavy load, the non-feathering, non-disengage, non-return valve offers a robust, no-nonsense solution that aligns perfectly with the operational requirements.

Technical Specifications Reinforcement

Revisiting the core specifications, each point underscores the valve's specialized role:

• Feathering: No – Confirms the direct, binary ON/OFF control for immediate full engagement.
• Number of Ports: 5 – Indicates comprehensive pneumatic connectivity for standard PTO/pump systems.
• Port Type: Brass Push Lock Fittings – Ensures durable, corrosion-resistant, and easy-to-install connections, critical for field serviceability.
• Rated Pressure: 125 PSI – Guarantees compatibility and robust performance within typical commercial vehicle air systems.
• Series: K80 – Places this model within a proven family of reliable PTO/pump control solutions from Buyers Products.
• Spring to Neutral / Deadman Control (y/n): No – Directly confirms the non-return characteristic, requiring manual repositioning and preventing unintended disengagement.
• Valve Action: Non-Feathering/Non-Disengage/Non-Return – This is the definitive summary of the valve's operational profile, highlighting its explicit manual control paradigm.
• Valve Actuation: Manual Lever – Emphasizes straightforward, mechanical control, reducing reliance on electronic or complex pneumatic logic.
• Valve Primary Application: PTO/Pump Valve – Clearly defines its central purpose in hydraulic power system management for commercial vehicles.

Conclusion

The Buyers Products K80 Series Dual Lever Non-Feathering Non-Disengage Non-Return PTO/Pump Air Control Valve is a meticulously engineered pneumatic control device designed for the most demanding heavy-duty applications. Its unique combination of non-feathering, non-disengage, and non-return characteristics provides operators with unparalleled direct and explicit control, essential for tasks requiring sustained, uninterrupted PTO and hydraulic pump operation. Constructed with durable materials like brass push lock fittings and rated for a robust 125 PSI, this valve stands as a testament to reliability and longevity in harsh operating environments. For professionals in the trucking and heavy equipment industries seeking a straightforward, dependable, and high-performance control solution for dump trucks, various trailers, and other hydraulically driven equipment, this specialized K80 Series valve delivers an optimal balance of functionality, durability, and operational simplicity.
