Buyers Products K80 Series Multi-Function PTO/Pump Valve has a dual lever design for feathering, disengaging, and spring return options. The dual-color sleeves designate feathering and automatic disengage; white sleeve designates feathering; and orange sleeve designates automatic disengage. Certain models (K80F, K80DF, K85F, K85DF) provide full range feathering qualities. Valve regulates pressure from 10 to 125 PSI and is designed for dump trucks, dump trailers, transfer trailers, live floor trailers, asphalt/live bottom trailers, bottom dumps, side dumps, platform dumps, and others.
Specifications
| Feathering | No |
|---|---|
| Number of Ports | 5 |
| Port Type | Brass Push Lock Fittings |
| Rated Pressure | 125 |
| Series | K80 |
| Spring to Neutral / Deadman Control (y/n) | Yes |
| Valve Action | Non-Feathering/Non-Disengage/Spring Return |
| Valve Actuation | Manual Lever |
| Valve Primary Application | PTO/Pump Valve |
Buyers Products K80 Series Dual Lever Non-Feathering Non-Disengage Spring Return PTO/Pump Air Control Valve: Advanced Pneumatic Control for Heavy-Duty Applications
The Buyers Products K80 Series Dual Lever Non-Feathering Non-Disengage Spring Return PTO/Pump Air Control Valve represents a pinnacle of robust engineering and precise pneumatic control, specifically designed for the rigorous demands of commercial hydraulic systems. This detailed description delves into the technical aspects, operational principles, and application benefits of this essential component, elucidating its role in enhancing the efficiency, safety, and longevity of heavy-duty vehicles and equipment.
Precision Engineering for Critical Operations
At its core, this valve is engineered to provide reliable and direct pneumatic control for Power Take-Off (PTO) and hydraulic pump activation. The K80 Series is renowned for its durability and adaptability, and this specific model, with its non-feathering, non-disengage, and spring return characteristics, offers a specialized solution for applications where unequivocal control is paramount. Unlike models within the K80 series that offer modulated "feathering" control or automatic disengagement, this valve prioritizes direct actuation and a failsafe return to a neutral state, catering to distinct operational requirements.
Understanding Non-Feathering Control
The "Non-Feathering" designation is a critical attribute of this valve. In pneumatic control systems, feathering refers to the ability to modulate air pressure gradually, allowing for a smooth, progressive engagement or disengagement of a component, such as a PTO clutch or a hydraulic pump. While beneficial for certain applications requiring fine control over hydraulic flow or power transmission, many heavy-duty tasks necessitate immediate and full engagement. A non-feathering valve delivers air pressure directly and rapidly upon actuation, ensuring the PTO and pump engage swiftly and completely. This direct action minimizes slippage and wear on clutch components in applications where rapid, full power transfer is the primary objective, such as activating a dump body's hydraulic pump or a live floor system. This rapid engagement is crucial for reducing operational cycles and increasing productivity in high-demand environments.
The Significance of Non-Disengage Functionality
The "Non-Disengage" characteristic indicates that this valve does not incorporate an automatic mechanism for disengaging the PTO or pump. Operators must manually actuate the lever to disengage the system. This design choice offers a deliberate level of control, preventing unintended disengagement that might occur with automatic systems in certain complex operational scenarios. In environments where consistent power delivery is crucial and operator oversight is preferred, manual disengagement provides an added layer of operational certainty. This ensures that the system remains engaged until the operator explicitly decides to disengage it, providing full command over critical hydraulic functions.
Enhancing Safety with Spring Return Mechanism
A cornerstone feature of this valve is its "Spring Return" mechanism, also known as "Deadman Control." This safety-centric design ensures that when the operator releases the manual lever, the valve automatically returns to its neutral, non-actuating position. In the context of PTO/pump control, this means that the air supply to the PTO clutch or hydraulic pump is immediately cut off, preventing unintended operation should the operator's attention be diverted or in an emergency. This rapid return to neutral significantly enhances operational safety, minimizes the risk of accidental equipment activation, and reduces potential wear on components by ensuring timely disengagement. The spring return function is particularly vital in dynamic work environments where quick reactions and failsafe mechanisms are paramount for operator and equipment protection.

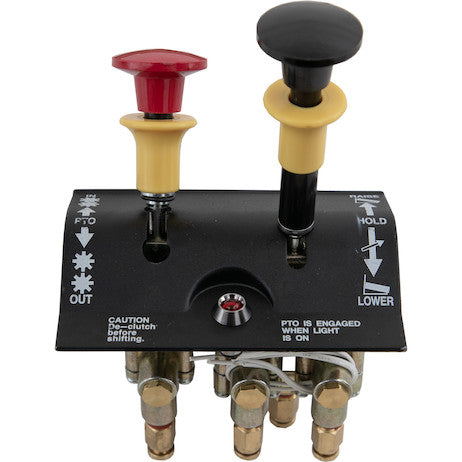

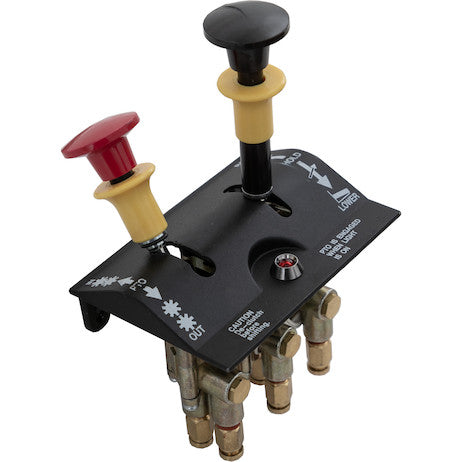

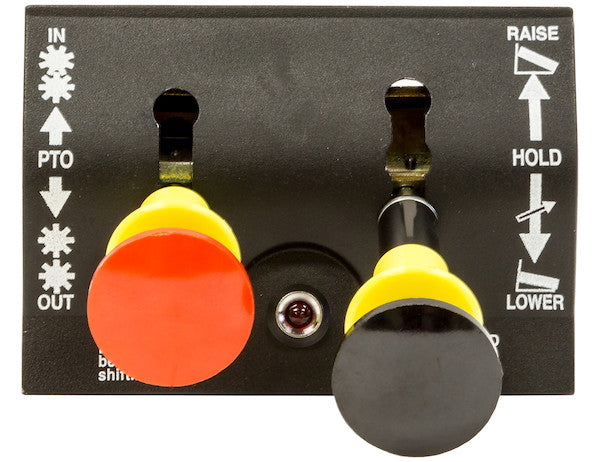

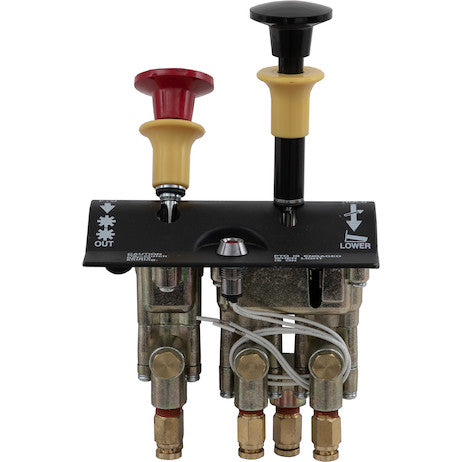

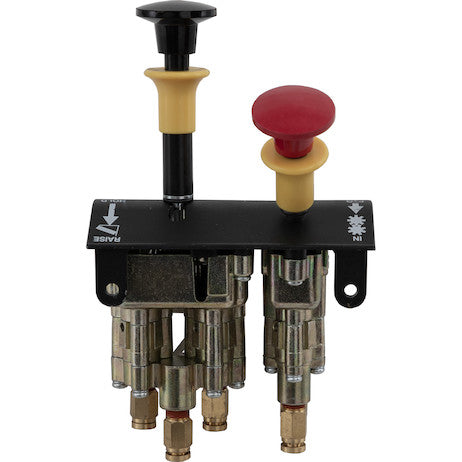

Dual Lever Design: Precision and Versatility
The dual lever design, a hallmark of the K80 Series, provides operators with distinct control inputs. While the specific model discussed here is non-feathering and non-disengage, the dual lever architecture typically allows for separate control of two distinct functions or fine-tuning of a single function with multiple stages. In this configuration, one lever might control the direct engagement of the PTO, while the other could be used for an auxiliary pneumatic function, or potentially a secondary hydraulic circuit if the system is configured to respond to two separate pneumatic signals. Each lever operates independently, providing precise manual control over the respective functions, both benefiting from the inherent spring return safety feature. The ergonomic design of the levers, often with color-coded sleeves as mentioned in the general series description, aids in intuitive operation and reduces the likelihood of operator error.
Technical Specifications and Their Implications
The detailed specifications of this valve underscore its technical superiority and suitability for demanding applications:
Pressure Regulation Range: 10 to 125 PSI
The ability to regulate air pressure within a range of 10 to 125 PSI is a critical functional parameter. Pneumatic PTO systems and air-actuated hydraulic pumps require specific pressure thresholds for optimal engagement and disengagement. This valve's broad pressure regulation capability ensures compatibility with a wide array of pneumatic systems and hydraulic components. Precise pressure control is essential to prevent premature wear or damage to the PTO clutch due to insufficient pressure, or unnecessary stress on the system from excessive pressure. Maintaining pressure within the manufacturer-recommended range ensures consistent performance, extends the lifespan of the controlled components, and optimizes fuel efficiency by preventing slippage.
Port Configuration: 5 Ports
A 5-port valve is a standard configuration for advanced pneumatic control applications. These ports typically include:
- Pressure Supply (Inlet): Connects to the vehicle's compressed air system.
- Exhaust Port(s): Allows air to escape when the valve is de-actuated, facilitating rapid system depressurization and disengagement.
- Output Ports (Control Lines): Deliver controlled air pressure to the pneumatic actuator (e.g., PTO shift cylinder, hydraulic pump control).

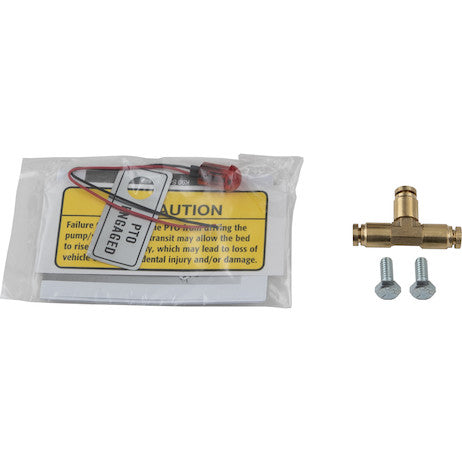

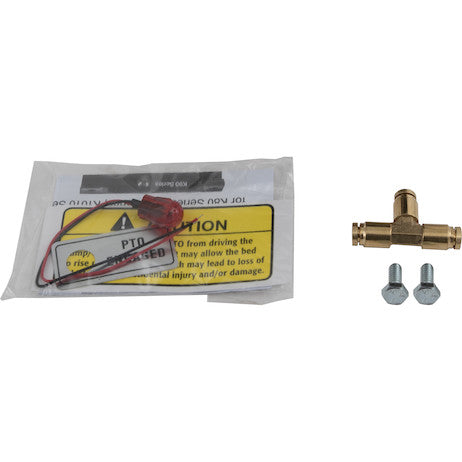

Port Type: Brass Push Lock Fittings
The inclusion of brass push lock fittings is a significant advantage in terms of installation and maintenance. Brass, an alloy of copper and zinc, offers excellent corrosion resistance, high tensile strength, and good machinability, making it ideal for pneumatic components exposed to varying environmental conditions. Push-lock fittings, also known as push-to-connect or quick-connect fittings, simplify the installation process by allowing air lines to be inserted directly without the need for tools or sealant. They create a secure, airtight seal, capable of withstanding the specified pressure range. This design drastically reduces installation time, simplifies field repairs, and ensures reliable, leak-free connections, which are vital for maintaining system efficiency and preventing pressure drops.
Rated Pressure: 125 PSI
The maximum rated pressure of 125 PSI aligns perfectly with the operational requirements of most commercial vehicle pneumatic systems, which typically operate within this range. This rating guarantees that the valve can safely and effectively manage the system's air pressure without compromise, ensuring structural integrity and consistent performance even under peak demand conditions. Adherence to this pressure rating is crucial for the long-term reliability and safety of the entire pneumatic circuit.
Series: K80
Belonging to the esteemed Buyers Products K80 Series, this valve inherits a legacy of robust construction and dependable performance. The K80 Series is a recognized standard in the heavy-duty truck and trailer industry for its versatility and resilience in challenging operating environments. This series is engineered to withstand vibrations, temperature fluctuations, and exposure to contaminants, providing a long service life and minimal downtime.
Valve Action: Non-Feathering/Non-Disengage/Spring Return
This specification explicitly reiterates the core functional characteristics, defining the valve's operational profile as one designed for direct, unambiguous engagement, manual disengagement, and automatic return to a safe neutral state.
Valve Actuation: Manual Lever
Manual lever actuation provides direct tactile feedback to the operator, ensuring a clear understanding of the valve's state. In heavy-duty applications, manual controls are often preferred for their simplicity, reliability, and ease of troubleshooting compared to more complex electronic or remote systems. The sturdy design of the levers ensures ergonomic operation and durability under constant use.
Valve Primary Application: PTO/Pump Valve
Categorizing this as a PTO/Pump Valve directly highlights its intended purpose within hydraulic systems of commercial vehicles. Its design is optimized for the specific demands of activating and deactivating PTO units and associated hydraulic pumps, which are integral to the functionality of specialized trailers and work trucks.
Material and Construction Excellence
While specific material composition details beyond brass fittings are proprietary, Buyers Products' reputation within the K80 Series implies a construction utilizing high-grade, durable materials. The valve body is typically crafted from robust metal alloys resistant to impact and corrosion. Internal components, including springs, seals, and plungers, are selected for their wear resistance, resilience to pneumatic forces, and longevity. Seals are critical to pneumatic system integrity, and high-quality elastomers are chosen to maintain a leak-free operation across varying temperatures and pressures. This meticulous material selection ensures the valve's ability to endure the harsh conditions prevalent in heavy-duty commercial operations, including exposure to dirt, moisture, vibration, and extreme temperatures.
Operational Principles and System Integration
The valve functions as a pneumatic interface between the vehicle's compressed air system and the PTO/pump mechanism. When a lever is actuated, it directs regulated compressed air to the appropriate pneumatic cylinder or actuator, which in turn mechanically engages the PTO or activates the hydraulic pump. Upon release, the spring return mechanism exhausts the air from the control line, allowing the PTO or pump to return to its disengaged state. This precise control mechanism is fundamental to the safe and efficient operation of hydraulic systems, preventing premature wear and ensuring optimal performance.
Integration into existing vehicle pneumatic systems is streamlined by the standardized port types and series design. The valve typically mounts conveniently within the vehicle's cab or an accessible control panel, connecting directly to the main air supply, exhaust, and control lines. Its compact design facilitates installation in confined spaces, a common challenge in commercial vehicle manufacturing and retrofitting.
Applications in Heavy-Duty Industries
The Buyers Products K80 Series Dual Lever Non-Feathering Non-Disengage Spring Return PTO/Pump Air Control Valve is ideally suited for a broad spectrum of heavy-duty applications where direct, reliable, and safe hydraulic power control is paramount. These include:
- Dump Trucks and Dump Trailers: Essential for activating the hydraulic pump that powers the lift mechanism of the dump body. The non-feathering action ensures rapid, full engagement, which is critical for efficient dumping cycles. The spring return provides a crucial safety feature, ensuring the pump disengages when the operator releases the control, preventing unintended operation.
- Transfer Trailers: Used to engage PTOs for hydraulic systems that power conveyor belts or other material handling mechanisms within the trailer. The direct engagement ensures continuous material transfer without interruption.
- Live Floor Trailers: Similar to transfer trailers, these require constant and reliable hydraulic power to operate the moving floor system. The non-feathering characteristic guarantees immediate full power, while the spring return offers a failsafe.
- Asphalt/Live Bottom Trailers: Critical for precise control of the hydraulic systems that drive the moving floor or conveyor systems used in asphalt paving and material distribution. Direct engagement is necessary for consistent material flow.
- Bottom Dumps and Side Dumps: These trailers rely on powerful hydraulic systems for rapid discharge of bulk materials. The valve ensures the PTO and pump engage quickly and reliably, allowing for efficient dumping operations. The robust construction is vital given the harsh operating environments.
- Platform Dumps: For vehicles equipped with platform lifting mechanisms, this valve provides the necessary control for the hydraulic pump, ensuring stable and secure lifting and lowering operations.
- Other Specialized Commercial Vehicles: Any vehicle requiring a heavy-duty, direct pneumatic control for PTO engagement, hydraulic pump activation, or other air-actuated functions will benefit from the reliability and safety features of this valve. This could include vocational trucks, municipal vehicles, and specialized construction equipment.
In all these applications, the valve's robust construction, precise pneumatic regulation, and inherent safety features contribute significantly to operational efficiency, reduction of downtime, and enhanced worker safety.
Advantages and Benefits Summary
The Buyers Products K80 Series Dual Lever Non-Feathering Non-Disengage Spring Return PTO/Pump Air Control Valve offers a compelling array of advantages for operators and fleet managers:
- Exceptional Reliability: Built for endurance, ensuring consistent performance in the most demanding operational environments.
- Enhanced Safety: The spring return (deadman control) mechanism actively minimizes the risk of accidental activation or prolonged engagement, protecting both personnel and equipment.
- Optimized Performance: Non-feathering design ensures rapid, full engagement, maximizing power transfer efficiency for time-critical operations.
- Durable Construction: High-quality materials and robust engineering ensure a long operational lifespan and resistance to wear, corrosion, and environmental stressors.
- Simplified Operation: The manual lever actuation provides direct, intuitive control, reducing operator training requirements and potential for error.
- Cost-Effectiveness: Longevity, minimal maintenance requirements, and prevention of component damage contribute to a lower total cost of ownership over the product's lifespan.
- Versatile Application: Suitable for a wide range of heavy-duty vehicles and trailers across various industries, offering a standardized solution for pneumatic PTO/pump control.
- Ease of Installation and Maintenance: Brass push lock fittings streamline connectivity, facilitating quicker installation and simplifying future servicing.
Installation and Maintenance Considerations
While designed for durability, proper installation and minimal routine maintenance are essential to maximize the lifespan and performance of the K80 Series valve. Installation should be performed by qualified personnel, adhering to all manufacturer guidelines and industry best practices. Key considerations include:
- Clean Air Supply: Ensuring the valve receives clean, dry, and regulated compressed air from the vehicle's system is paramount. Contaminants like moisture and particulates can degrade internal components and seals.
- Secure Mounting: The valve must be securely mounted to prevent movement and vibration, which can lead to premature wear or connection failures.
- Correct Air Line Connections: Utilizing the appropriate size and type of air lines with the brass push lock fittings, ensuring they are fully inserted and properly seated to prevent leaks.
- Regular Inspection: Periodic inspection of air lines, fittings, and the lever mechanism for signs of wear, damage, or leaks is recommended to ensure continued optimal performance.
Conclusion
The Buyers Products K80 Series Dual Lever Non-Feathering Non-Disengage Spring Return PTO/Pump Air Control Valve stands as a testament to purpose-built design for the heavy-duty sector. It delivers unparalleled reliability, critical safety features, and direct, efficient control over hydraulic PTO and pump functions. For operators and fleet managers demanding robust performance in challenging environments—where rapid, unequivocal engagement and failsafe disengagement are non-negotiable—this valve provides an indispensable pneumatic control solution. Its meticulous engineering and robust construction ensure that vehicles equipped with this valve operate with maximum efficiency, enhanced safety, and prolonged service life, ultimately contributing to increased productivity and reduced operational costs.
