K80DF - Dual Lever Feathering Non-Disengage Spring Return PTO/Pump Air Control Valve

Buyers Products K80 Series Multi-Function PTO/Pump Valve has a dual lever design for feathering, disengaging, and spring return options. The dual-color sleeves designate feathering and automatic disengage; white sleeve designates feathering; and orange sleeve designates automatic disengage. Certain models (K80F, K80DF, K85F, K85DF) provide full range feathering qualities. Valve regulates pressure from 10 to 125 PSI and is designed for dump trucks, dump trailers, transfer trailers, live floor trailers, asphalt/live bottom trailers, bottom dumps, side dumps, platform dumps, and others.

Specifications

Advanced Technical Overview: Buyers Products K80 Series Dual Lever Feathering Non-Disengage Spring Return PTO/Pump Air Control Valve

The Buyers Products K80 Series Multi-Function PTO/Pump Air Control Valve represents a pinnacle of engineering in pneumatic control systems for heavy-duty vocational equipment. Specifically designed for applications demanding precise control, unwavering reliability, and enhanced operator safety, this dual-lever, feathering, non-disengage, spring-return valve is an indispensable component in modern commercial vehicle hydraulics. This comprehensive technical description will delve into the intricate features, operational principles, material science, and application benefits that position the K80 series as a market leader.

Core Functionality and System Integration

At its heart, the K80 Series valve serves as the primary interface for engaging and controlling Power Take-Off (PTO) units and their associated hydraulic pumps. In heavy-duty trucks and trailers, PTOs divert mechanical power from the vehicle's engine or transmission to operate auxiliary equipment, such as hydraulic pumps for dump bodies, live floors, cranes, or other specialized implements. The K80 valve precisely regulates the pneumatic pressure directed to the PTO clutch pack and/or the hydraulic pump's control mechanism, facilitating smooth engagement, modulated operation, and safe disengagement.

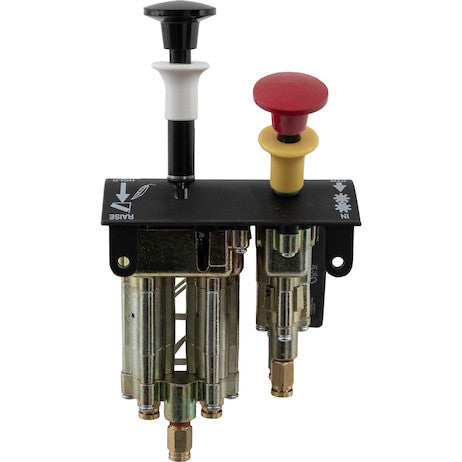

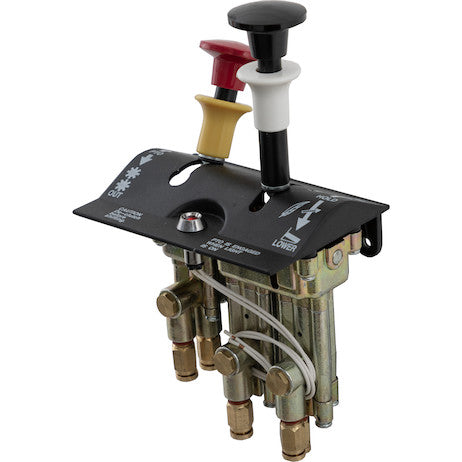

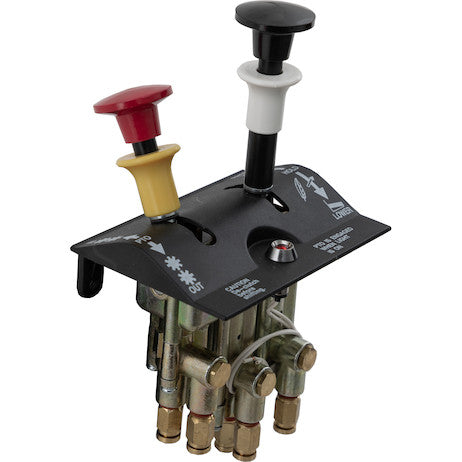

Operating within a pressure range of 10 to 125 PSI, this valve is engineered to accommodate a broad spectrum of pneumatic system architectures found across various manufacturers and vehicle types. Its five-port configuration is critical for comprehensive pneumatic circuit control, allowing for dedicated supply, exhaust, and control lines necessary for sophisticated PTO and pump activation sequences. The utilization of robust brass push-lock fittings for all ports ensures not only a secure, leak-proof connection but also facilitates rapid, tool-free installation and maintenance, significantly reducing downtime during service interventions.

Precision Feathering Capability

A hallmark feature of the K80 Series, and particularly pronounced in models such as the K80F, K80DF, K85F, and K85DF, is its full-range feathering capability. Feathering refers to the ability to gradually engage or disengage the PTO and control the hydraulic flow rate, rather than an abrupt ON/OFF action. This is achieved by modulating the air pressure supplied to the PTO clutch or hydraulic pump control, allowing the operator to fine-tune the output. The white sleeve on the dual lever specifically designates this feathering function.

The technical advantages of feathering are profound:

• Reduced Shock Loading: Abrupt engagement of a PTO can induce significant mechanical shock to the driveline components, PTO unit, pump, and hydraulic system. Feathering mitigates these transient stresses, extending the operational life of expensive components.
• Enhanced Operational Control: For applications like precise material spreading in asphalt pavers, controlled raising/lowering of dump bodies, or modulated speed of live floors, feathering provides the granularity of control necessary for optimal performance and job site efficiency.
• Improved Safety: Gradual engagement prevents sudden movements of heavy equipment, reducing the risk of accidents and improving overall operator and bystander safety.
• Optimized Fuel Efficiency: By allowing the operator to apply only the necessary power for a task, feathering can contribute to more efficient energy utilization, leading to potential fuel savings.
• Smoother Operation: The absence of sudden jerks and surges makes for a more comfortable and less fatiguing operator experience, crucial during long shifts.

Dual Lever Design and Operator Interface

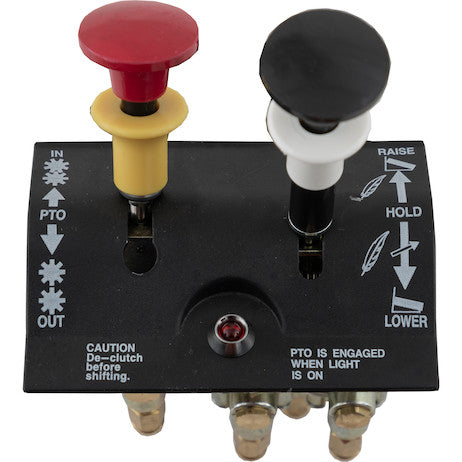

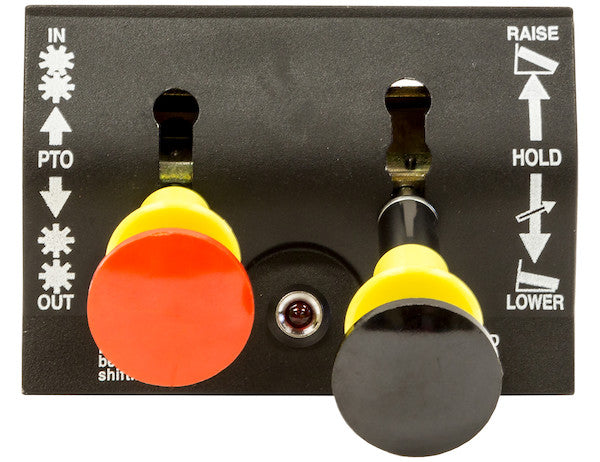

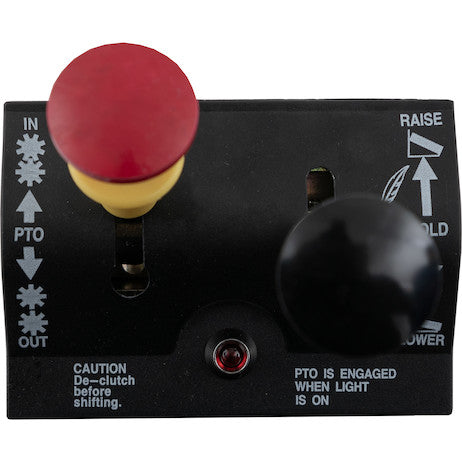

The dual lever design is central to the K80 Series' multi-functional utility. This configuration allows for independent or synergistic control over distinct operational parameters, enhancing flexibility and precision. One lever is dedicated to the feathering control (typically identified by the white sleeve), enabling granular modulation of the PTO and pump. While the general K80 series may offer an automatic disengage option (orange sleeve), the specific model referenced in the title and specifications table is explicitly categorized as "Non-Disengage."

The "Non-Disengage" attribute means that once the PTO is engaged via the valve, it remains engaged until the operator manually returns the lever to the neutral position. This characteristic is particularly advantageous in applications where continuous, uninterrupted power delivery is paramount, and an automatic disengagement upon lever release would be counterproductive. For instance, in continuous-feed operations or applications requiring sustained hydraulic pressure, a non-disengage mechanism prevents accidental or premature cessation of power, ensuring operational continuity and reducing the need for repeated re-engagement cycles.

Spring Return Mechanism: The Deadman Control Principle

Incorporating a spring return to neutral, also known as a "deadman control" feature, is a critical safety and operational design choice for the K80 Series valve. This mechanism ensures that the control lever automatically reverts to a neutral, or safe, position upon release by the operator. The implications of this design are profound:

• Enhanced Safety: In the event of operator incapacitation, distraction, or unintentional release of the control lever, the system automatically defaults to a non-actuated state. This prevents runaway operations or unintended power delivery, significantly reducing the risk of accidents.
• Regulatory Compliance: Many industrial and commercial applications are governed by stringent safety regulations (e.g., OSHA, ANSI standards) that mandate deadman control features for machinery with potential hazards. The K80 Series' spring return mechanism helps equipment manufacturers and operators comply with these critical safety requirements.
• Operational Discipline: It compels the operator to maintain active engagement with the control, fostering a higher level of attentiveness during critical operations.
• Preventive Action: It guards against scenarios where an engaged PTO might inadvertently remain active when the operator steps away from the controls, leading to energy waste or dangerous conditions.

Robust Construction and Material Specification

Durability and longevity are paramount in the demanding environments where heavy-duty vocational equipment operates. The K80 Series valve is engineered with a focus on robust construction and material selection to withstand harsh conditions, including exposure to vibration, temperature extremes, moisture, and corrosive elements.

• K80 Series Pedigree: The valve belongs to the established K80 Series, known for its proven track record in reliability and performance across diverse applications.

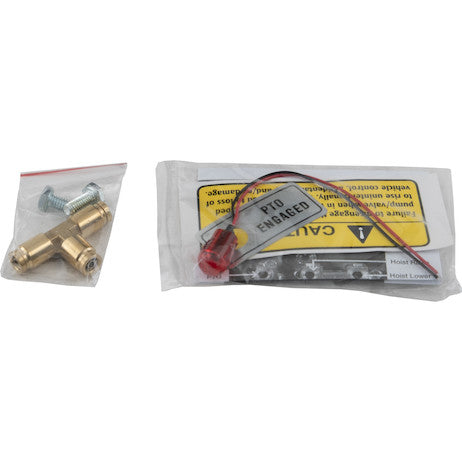

• Brass Push Lock Fittings: The choice of brass for the five port fittings is deliberate. Brass offers excellent corrosion resistance, superior strength, and good machinability, ensuring precise thread engagement and reliable sealing for pneumatic connections. Push-lock fittings further enhance reliability by providing a secure, vibration-resistant connection that is less prone to loosening than traditional threaded connections, while also simplifying maintenance.
• Internal Component Integrity: While specific internal material compositions are proprietary, the overall design suggests high-grade elastomers for seals, precision-machined internal passages for optimal airflow, and robust springs for reliable return action. These components are selected to resist wear, maintain sealing integrity over time, and ensure consistent pressure regulation.

Applications in Heavy-Duty Transport and Construction

The versatility and robust feature set of the Dual Lever Feathering Non-Disengage Spring Return PTO/Pump Air Control Valve make it ideally suited for a wide array of heavy-duty applications. Its precise control capabilities are particularly beneficial where the rate or intensity of hydraulic power needs careful management.

• Dump Trucks and Dump Trailers: Essential for controlling the hydraulic cylinders that lift and lower the dump body. Feathering allows for gentle lowering, preventing abrupt impacts, and controlled discharge of materials, especially critical for delicate loads or precise spreading. The non-disengage feature can be useful for continuous dumping operations without accidental power interruptions.
• Transfer Trailers: These trailers utilize hydraulic power to move material from the front to the rear of the trailer or into another container. Precise control ensures smooth, consistent material transfer, preventing blockages or uncontrolled surges.
• Live Floor Trailers: Widely used for hauling bulk materials like aggregates, wood chips, and agricultural products, live floor trailers rely on hydraulic power to move a series of slats on the trailer floor, pushing material out. Feathering enables variable speed control of the live floor, allowing operators to adjust discharge rates according to material consistency and destination requirements. The non-disengage feature provides uninterrupted material flow.
• Asphalt/Live Bottom Trailers: Similar to live floor trailers, these require precise control over material discharge, especially when paving. The ability to feather the output ensures consistent flow of asphalt onto the roadbed, critical for achieving a smooth and even surface.
• Bottom Dumps and Side Dumps: These trailers use hydraulic power to open gates at the bottom or sides for rapid material discharge. While often quick-action, feathering can still be beneficial for controlled opening in certain situations or for precise placement of materials.
• Platform Dumps: Offering similar functionality to traditional dump bodies, these often require the same level of precise control over the hydraulic lift and lower cycles.
• Other Vocational Equipment: Beyond these core applications, the valve can be integrated into vacuum trucks, refuse vehicles, snowplows, and various other specialized equipment requiring pneumatic control of PTOs and hydraulic systems.

Operational Efficiency and Total Cost of Ownership

Investing in a high-quality control valve like the K80 Series contributes significantly to the overall operational efficiency and reduces the total cost of ownership for vocational fleets.

• Reduced Maintenance Costs: The robust construction, reliable components, and the feathering function's ability to minimize shock loads translate into longer operational lifespans for the PTO, pump, and hydraulic system, thereby reducing the frequency and cost of repairs.
• Increased Productivity: Precise control allows operators to perform tasks more efficiently and effectively. Faster, yet safer, cycle times, combined with reduced downtime for maintenance, directly translate to higher productivity and better fleet utilization.
• Enhanced Resale Value: Vehicles equipped with reliable, high-performance components like the K80 Series valve often retain higher resale value due to their perceived quality and durability.
• Operator Satisfaction: A system that operates smoothly, safely, and predictably improves operator morale and reduces fatigue, which can indirectly contribute to productivity and safety metrics.

Installation and Maintenance Best Practices

While the K80 Series valve is designed for ease of installation and reliability, adhering to best practices is crucial for optimal performance and longevity.

• Clean Air Supply: Ensuring a clean, dry, and regulated air supply is paramount. Contaminants (moisture, oil, particulate matter) can degrade internal seals, clog passages, and accelerate wear. Installation of appropriate air filters and dryers upstream of the valve is highly recommended.
• Proper Tubing: Use appropriate pneumatic tubing (e.g., nylon, polyurethane) rated for the operating pressure and environmental conditions. Ensure tubing runs are free of kinks, sharp bends, and abrasion points.
• Secure Connections: While brass push-lock fittings simplify connection, ensure they are fully seated and free from leaks. A leak in the pneumatic system can lead to inefficient operation, reduced pressure, and increased compressor workload.
• Mounting: Mount the valve securely in a location that provides easy operator access and protects it from physical damage, excessive heat, and direct exposure to contaminants.
• Routine Inspection: Periodically inspect the valve for signs of wear, damage, or leaks. Check the integrity of the levers and the responsiveness of the spring return mechanism.

Conclusion

The Buyers Products K80 Series Dual Lever Feathering Non-Disengage Spring Return PTO/Pump Air Control Valve is a sophisticated and robust solution for demanding pneumatic control applications in the heavy-duty vocational segment. Its combination of a dual-lever interface, precise feathering capability, non-disengage action, and critical spring-return safety mechanism, all housed within a durable K80 series architecture with high-quality brass push-lock fittings, sets a high standard for performance and reliability. By enabling superior operational control, enhancing safety, and contributing to reduced maintenance and increased productivity, this valve is an essential investment for any fleet manager or equipment operator seeking to optimize their hydraulic systems and maximize their asset utilization.
