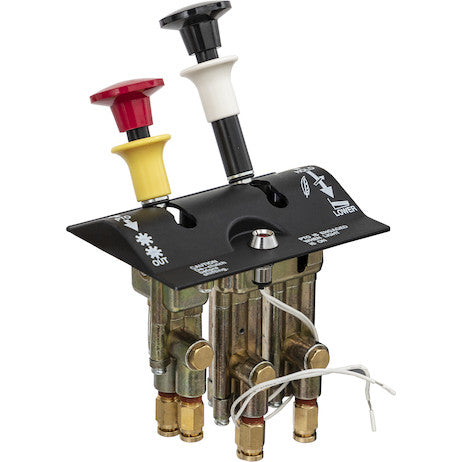

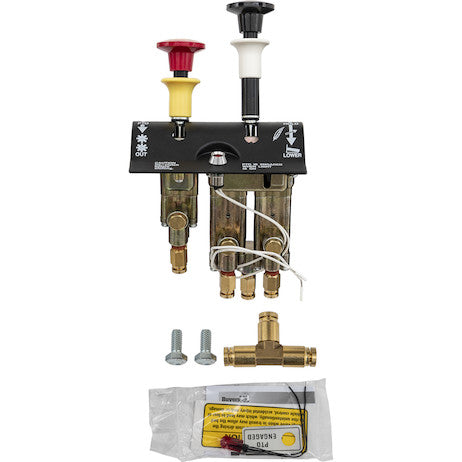

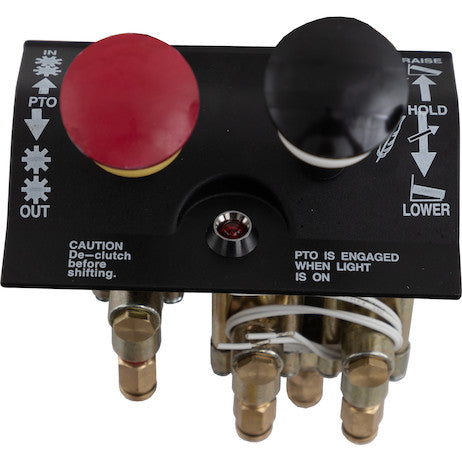

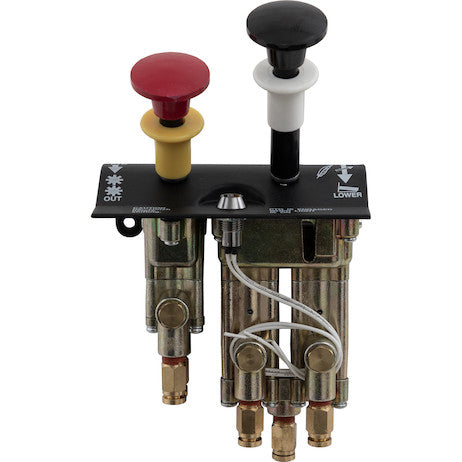

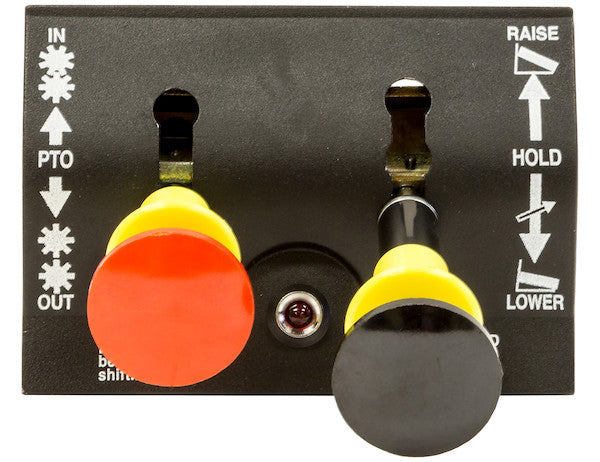

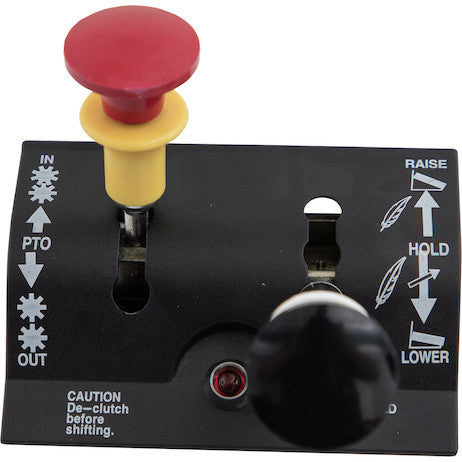

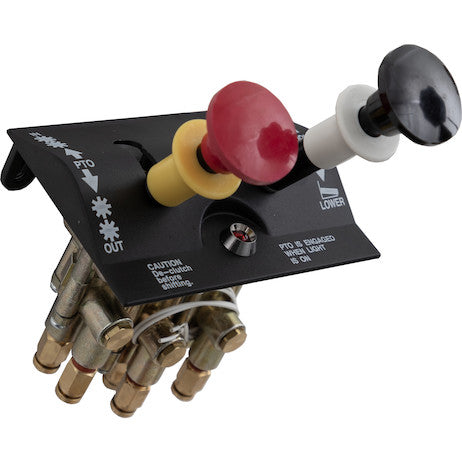

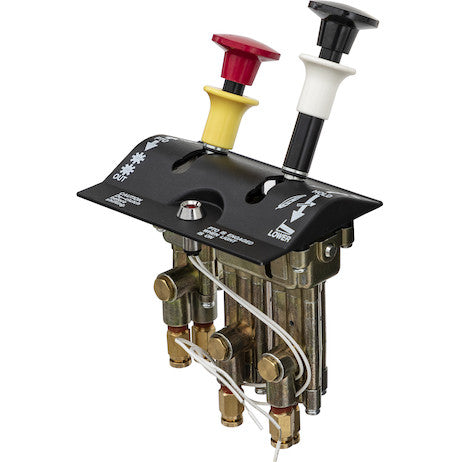

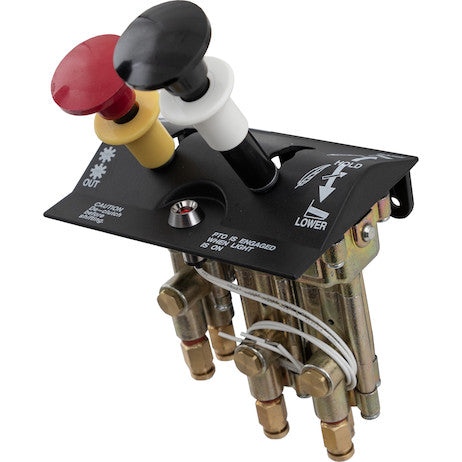

Buyers Products K80 Series Multi-Function PTO/Pump Valve has a dual lever design for feathering, disengaging, and spring return options. The dual-color sleeves designate feathering and automatic disengage; white sleeve designates feathering; and orange sleeve designates automatic disengage. Certain models (K80F, K80DF, K85F, K85DF) provide full range feathering qualities. Valve regulates pressure from 10 to 125 PSI and is designed for dump trucks, dump trailers, transfer trailers, live floor trailers, asphalt/live bottom trailers, bottom dumps, side dumps, platform dumps, and others.
Specifications
| Feathering | Yes |
|---|---|
| Number of Ports | 5 |
| Port Type | Brass Push Lock Fittings |
| Rated Pressure | 125 |
| Series | K80 |
| Spring to Neutral / Deadman Control (y/n) | No |
| Valve Action | Feathisengage/Springering/Non-Disengage/Non-Return |
| Valve Actuation | Manual Lever |
| Valve Primary Application | PTO/Pump Valve |
The Dual Lever Feathering Non-Disengage Non-Return PTO/Pump Air Control Valve: Precision Pneumatic Control for Heavy-Duty Applications
In the demanding realm of heavy-duty commercial vehicle operations, precise and reliable control over power take-off (PTO) and hydraulic pump systems is paramount for operational efficiency and safety. The Buyers Products K80 Series Dual Lever Feathering Non-Disengage Non-Return PTO/Pump Air Control Valve represents a sophisticated engineering solution designed to meet these exact requirements. This valve, an integral component of pneumatic control systems, offers operators an unparalleled degree of manual command over critical hydraulic functions, distinguishing itself through its unique combination of dual-lever feathering capability and a deliberate non-disengage, non-return operational philosophy.
Advanced Pneumatic Control: Understanding the K80 Series
The K80 Series valve functions as the primary interface between the vehicle's compressed air system and the pneumatic actuators responsible for engaging and disengaging the PTO and controlling the hydraulic pump. Unlike simpler ON/OFF valves, this model is engineered for nuanced control, particularly through its "feathering" characteristic. Feathering refers to the ability to gradually increase or decrease the pneumatic pressure output, which in turn allows for smooth, incremental engagement or disengagement of the PTO and precise modulation of hydraulic fluid flow from the pump. This capability is critical for operations that require fine adjustments in hydraulic power, such as gradually raising a dump bed, precisely positioning a crane, or smoothly operating a live floor system.
The Significance of Dual Lever Design
The dual lever design is central to the valve's advanced functionality. Each lever provides independent, continuous control, allowing operators to fine-tune the pneumatic output to achieve the exact desired hydraulic response. While the K80 series generally offers a range of options, for this specific "Non-Disengage Non-Return" variant, the dual levers are optimized for persistent, modulated control. One lever might primarily manage the initiation and termination of the PTO engagement signal, ensuring it remains active until manually disengaged. The second lever then typically governs the feathering aspect, providing variable air pressure from a minimum of 10 PSI up to the maximum rated pressure of 125 PSI. This dual-axis control translates directly into superior operational precision, minimizing shock loads on hydraulic components, prolonging equipment life, and enhancing overall task accuracy. The tactile feedback and intuitive operation of the levers, complemented by the designated white sleeve for feathering, facilitate an operator's ability to execute complex hydraulic movements with confidence and repeatability.
Feathering: The Cornerstone of Precision Operation
The "Feathering: Yes" specification is a key differentiator for this valve. In hydraulic systems, abrupt engagement or disengagement can lead to significant mechanical stress, known as hydraulic shock. This shock can manifest as sudden jerks, surges, or impacts, which are detrimental to the longevity of hydraulic cylinders, pumps, hoses, and the vehicle's chassis. Feathering mitigates these issues by allowing the operator to smoothly ramp up or down the pneumatic pressure signal. This gradual control over the PTO engagement and pump output pressure translates into a proportional, smooth increase or decrease in hydraulic power. For applications like spreading aggregates from a dump truck or operating specialized attachments, feathering ensures materials are distributed evenly and equipment moves without undue strain, improving both the quality of work and the safety of the operation.
Non-Disengage, Non-Return: A Deliberate Design for Sustained Control
A defining characteristic of this particular K80 Series valve, as indicated by its title and the "Spring to Neutral / Deadman Control (y/n): No" specification, is its "Non-Disengage Non-Return" functionality. This design choice is not a limitation but a deliberate engineering decision to provide sustained, absolute manual control, which is critical for specific operational scenarios.
"Non-Disengage" implies that once the PTO is engaged via the valve's pneumatic signal, it will remain engaged until the operator manually moves the control lever to the disengage position. There is no automatic disengagement based on external factors such as vehicle speed, transmission gear, or parking brake status, which are features found in some other PTO control systems. This provides the operator with continuous, uninterrupted power to the hydraulic system, which is advantageous in applications requiring prolonged and consistent hydraulic output, where accidental or automatic disengagement would be detrimental to the task at hand. For instance, in continuous-duty applications like operating a live floor trailer for extended periods or powering a specialized piece of equipment that requires constant hydraulic flow, the non-disengage feature ensures the operation is not interrupted inadvertently.
Similarly, "Non-Return" signifies that the control levers, once moved to a specific position (e.g., for engagement or a particular feathering setting), will mechanically hold that position. They do not automatically spring back to a neutral or off state, unlike "deadman" controls which require constant operator input to maintain an activated state. This characteristic is invaluable for sustained operations where the operator needs to set a specific hydraulic output level and maintain it without continuous manual effort. This allows the operator to focus on other aspects of the job while the hydraulic system maintains its commanded state. The absence of a spring-return mechanism enhances operator convenience for prolonged tasks and ensures that a specific hydraulic function remains active until the operator explicitly commands a change. However, it also places a greater emphasis on operator awareness and training, as the system will not revert to a safe, neutral state without manual intervention.
Technical Specifications and Construction Excellence
The K80 Series valve is built to withstand the rigorous conditions inherent in heavy-duty commercial vehicle operations. Its robust construction and meticulously chosen materials underscore its reliability and longevity.
**5-Port Configuration:** The 5-port design provides comprehensive control over the pneumatic system. Typically, these ports include:
- **Supply Port:** Connects to the vehicle's main compressed air reservoir, providing the source pressure (rated up to 125 PSI).
- **Exhaust Port:** Allows spent air to be released, facilitating rapid response and smooth transitions between states.
- **PTO Engagement Port:** Delivers the pneumatic signal to engage the PTO actuator.
- **Pump Control Port (or Secondary Output Port):** Provides the modulated pneumatic signal for hydraulic pump control, particularly for feathering functions.
- **Auxiliary Port (or Return/Pilot Port):** May serve various functions depending on the system architecture, such as controlling a secondary function or providing a return path for air.

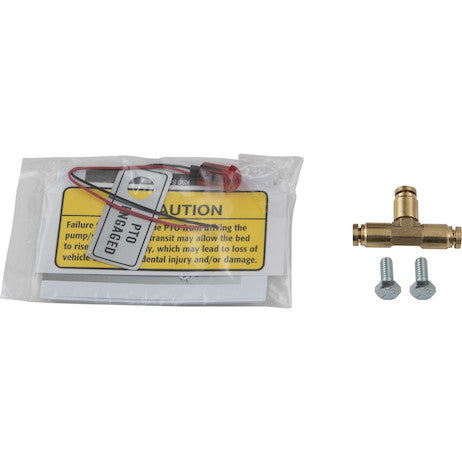

**Brass Push Lock Fittings:** The inclusion of brass push lock fittings for all ports significantly simplifies installation and maintenance. Brass is chosen for its excellent corrosion resistance and mechanical strength, ensuring a durable and leak-free connection in harsh environments. Push lock fittings allow for quick and easy connection and disconnection of air lines without the need for specialized tools, reducing downtime during installation or component replacement. This design feature contributes to the overall serviceability and cost-effectiveness of the valve.
**Rated Pressure 125 PSI:** The ability to regulate and operate within a pressure range of 10 to 125 PSI highlights the valve's versatility. This range is crucial for various PTO and pump engagement mechanisms, some of which require higher pressures for positive engagement, while others benefit from precise lower-pressure modulation for feathering. The valve's internal mechanisms are engineered to handle and precisely control pressures within this specified range, ensuring consistent performance across diverse operational demands.
Application-Specific Advantages: Where this Valve Excels
The unique combination of dual-lever feathering, non-disengage, and non-return capabilities makes this K80 Series valve ideally suited for a broad spectrum of heavy-duty applications where precise, sustained, and manual hydraulic control is paramount.
**Dump Trucks and Dump Trailers:** In these applications, feathering control is invaluable for gradually raising and lowering the dump bed, especially when spreading materials like asphalt, gravel, or sand. Precise control prevents sudden impacts on the chassis and allows for an even spread of material, reducing waste and improving operational efficiency. The non-disengage feature ensures the dump function remains active without interruption during the entire dumping cycle, which can be critical on uneven terrain or when maneuvering.
**Transfer Trailers, Live Floor Trailers, and Asphalt/Live Bottom Trailers:** These trailers rely on controlled material discharge. Feathering allows operators to precisely regulate the speed of conveyors or live floors, optimizing material flow and preventing blockages or uncontrolled surges. The non-disengage, non-return aspects are particularly beneficial here, as they enable continuous, uninterrupted discharge processes over extended periods, freeing the operator from constantly holding a control.
**Bottom Dumps and Side Dumps:** Similar to dump trucks, precise control over the gate opening and closing is essential for measured material release. Feathering prevents sudden gate movements that could destabilize the trailer or create unsafe conditions. The non-return feature allows the gate to be held at a specific opening degree for continuous, metered discharge.
**Platform Dumps and Specialty Equipment:** Any application requiring precise positioning or gradual movement of hydraulic cylinders or motors greatly benefits from this valve. This includes operating cranes, aerial work platforms, or specialized attachments where fine motor control is essential for safety and operational accuracy. The non-disengage characteristic ensures that once a function is engaged, it remains powered without requiring constant operator attention, allowing for sustained work.
The K80 Series valve's design directly addresses the need for robust, reliable, and operator-centric control in environments where machinery is subjected to high loads, frequent cycles, and demanding operating conditions. Its ability to regulate pressure between 10 and 125 PSI ensures compatibility with a wide array of pneumatic PTO systems and hydraulic pump engagement requirements.
Installation, Integration, and Maintenance
Designed for straightforward integration into existing vehicle pneumatic systems, the K80 Series valve with its brass push lock fittings minimizes installation complexity. Operators and maintenance personnel will appreciate the reduced labor and tooling requirements, leading to quicker deployment and easier component replacement if necessary. Proper installation involves connecting the air supply, exhaust, and control lines to the appropriate ports, ensuring secure and leak-free connections.
From a maintenance perspective, the robust construction and high-quality materials, including the durable brass fittings, contribute to a long service life and minimal maintenance requirements. Regular inspection of air lines for wear and ensuring clean, dry air supply are general best practices for any pneumatic system, and this valve is no exception. Its design for demanding environments means it is inherently resistant to common issues like vibration, temperature fluctuations, and exposure to dust and moisture, ensuring consistent performance over time.
Operator Ergonomics and Safety Considerations

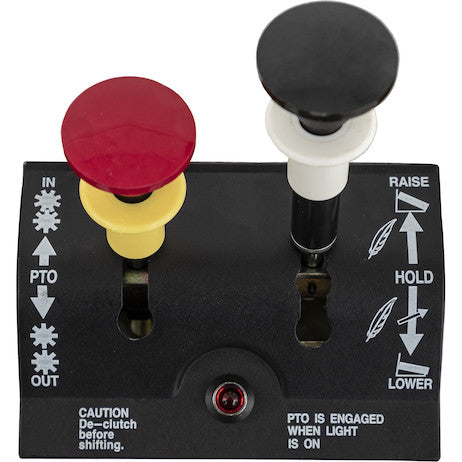

The manual lever actuation provides a direct and intuitive interface for the operator. The dual levers are ergonomically designed for comfortable and precise manipulation, even while wearing work gloves. The clear color-coding (white sleeve for feathering) further aids in immediate identification of control functions, reducing the potential for operational errors.
However, the "Non-Disengage Non-Return" nature of this valve necessitates a heightened level of operator awareness and training. Since the PTO and hydraulic functions will remain engaged and the levers will hold their position until manually changed, operators must be thoroughly trained on the specific operational characteristics of their equipment. This includes understanding the implications of sustained hydraulic power, proper shutdown procedures, and verifying the disengagement of PTO and hydraulic pumps before leaving the vehicle or performing maintenance. While this design offers distinct advantages for specific applications, it places a premium on operator responsibility and adherence to safety protocols.
Conclusion: A Strategic Investment in Control and Performance
The Buyers Products K80 Series Dual Lever Feathering Non-Disengage Non-Return PTO/Pump Air Control Valve is a highly specialized and technically advanced component engineered for discerning operators and fleet managers. It represents a strategic investment in precision, durability, and operational control for heavy-duty vocational vehicles. By combining the benefits of dual-lever feathering for nuanced hydraulic command with a steadfast non-disengage, non-return mechanism for sustained operation, this valve delivers consistent, reliable performance in the most demanding applications. Its robust construction, user-friendly brass push lock fittings, and broad pressure regulation capabilities ensure it stands as a cornerstone for efficient and controlled hydraulic power management, ultimately contributing to enhanced productivity, reduced equipment wear, and improved operational safety across a multitude of heavy-duty tasks.
